Exoplanet Name : |
ups And e |
|
Alternate Name : |
HD 9826 e |
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.9078 |
(Rjup) |
10.1759 |
(Rearth) |
|
Mass (Mjup / Me): |
1.0590 |
(Mjup) |
336.6963 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
5.2456 |
(AU) |
5.2456 |
(AU Est.) |
|
Eccentricity : |
0.0054 |
|
Orbital Period(Yrs) |
10.5373 |
|
Orbital Period(Observed/Estimated) |
3848.86 |
(Days Obs.) |
3893.87 |
(Days Est.) |
|
Surface Gravity (G Earth) |
3.2516 |
|
Star Radiation at Atmospheric Boundary: |
176.5 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
162.7 |
(K) |
|
Blackbody T 0.3(K) |
152.8 |
(K) |
|
Blackbody T 0.7(K) |
123.6 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
193.5 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
181.7 |
(K) |
|
Size Class: |
Jupiter-size |
|
Mass Class: |
|
|
Detection Type : |
Radial Velocity |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
ups And |
|
Alternate Name : |
|
|
Star Distance(LY) : |
44.0 |
|
Stellar Radius(Rsun) : |
1.6 |
(Rsun Measured) |
|
Stellar Mass(Msun) : |
1.3 |
(Msun Measured) |
1.3 |
(Msun Estimated) |
|
Star Age : |
3.8 |
(GY) |
|
Temperature : |
6212 |
(K) |
|
Spectral type : |
F8 V |
|
UV portion[%]: |
7.8 |
|
Visible portion[%]: |
44.8 |
|
IR portion[%]: |
47.4 |
|
Metalicity : |
0.1 |
|
Absolute Magnitude: |
3.4 |
|
Apparent Magnitude: |
4.1 |
|
Right Ascension(RA) |
24.1993 |
|
Declination (DEC) |
41.4106 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
|
|
Discovered by |
|
|
Discovery Paper - Authors |
0 |
|
Discovery Paper - Title |
0 |
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=ups+And+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
0 |
 |
 |
 |
 |
/
ups And e
ups And e
ups And e is an exoplanet orbiting the star ups And, located about 44.0 light-years (13.5 pc) away from Solar System. Its discovery was publicly announced on 2010.
The host star ups And has apparent magnitude of 4.1, with absolute magnitude of 3.4. It is 1.3 times more massive and 1.6 times bigger compared with our Sun. The surface temperature is 6212 with its spectral types of F8 V
In this planetary system, the extrasolar planet ups And e orbits around the star ups And every 3848.9 days with its orbital distance of 5.25 AU ( 784730590.5 km)

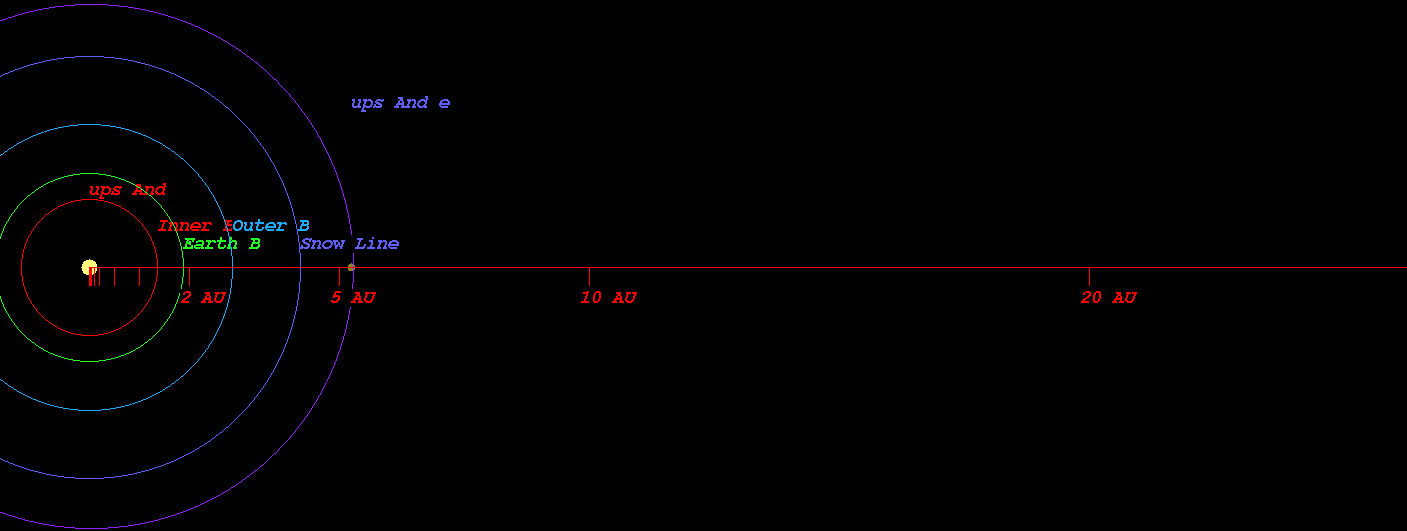

(Projected orbit of ups And e around its host star ups And)
The Star ups And 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 1.363 AU ( 203974072.8 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 1.885 AU ( 281945473.4 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 2.872 AU ( 429622507.0 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 4.226 AU ( 632208339.7 km)
Radiation at Planetary Boundary of ups And e : 176.54 W/m2

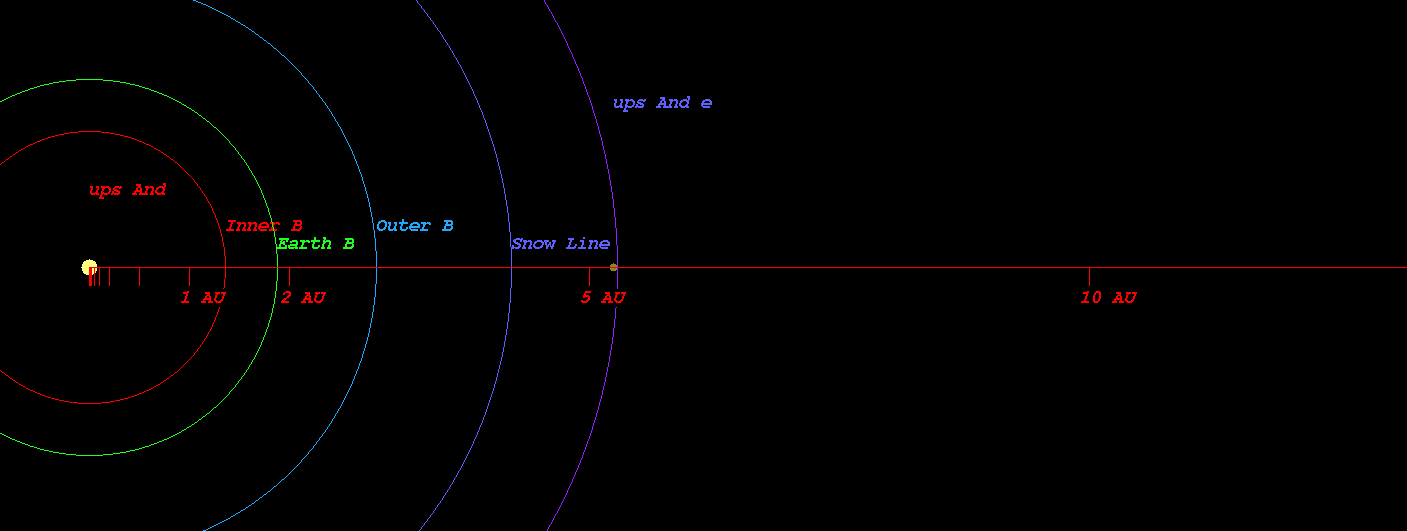

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star ups And)
Kopparapu Recent Venus for Star ups And distance : 1.376 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star ups And distance : 1.743 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star ups And distance : 1.683 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star ups And distance : 1.845 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star ups And distance : 3.047 AU
Kopparapu Outer Boundary for Early Mars for Star ups And distance : 3.214 AU

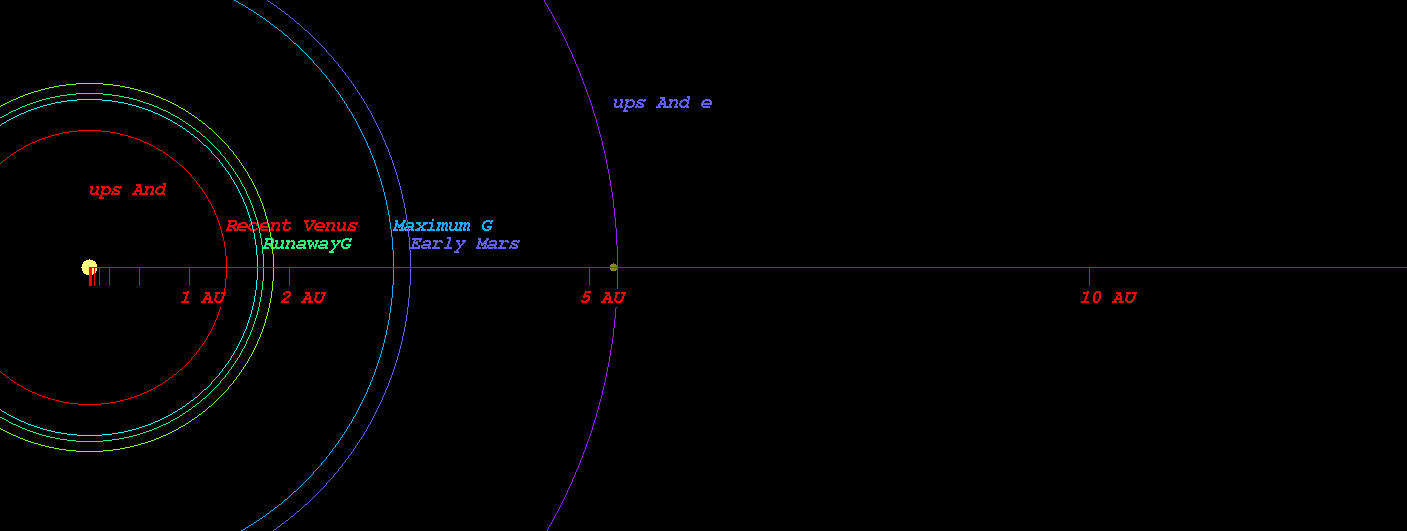

(Habitable zone calculated based on Kopparapu et al.(2013) around the star ups And)
Original Kopparapu Recent Venus for Star ups And distance : 1.391 AU
Original Kopparapu Runaway Greenhouse for Star ups And distance : 1.789 AU
Original Kopparapu Moist Greenhouse for Star ups And distance : 1.840 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star ups And distance : 3.102 AU
Original Kopparapu Outer Boundary for Early Mars for Star ups And distance : 3.226 AU

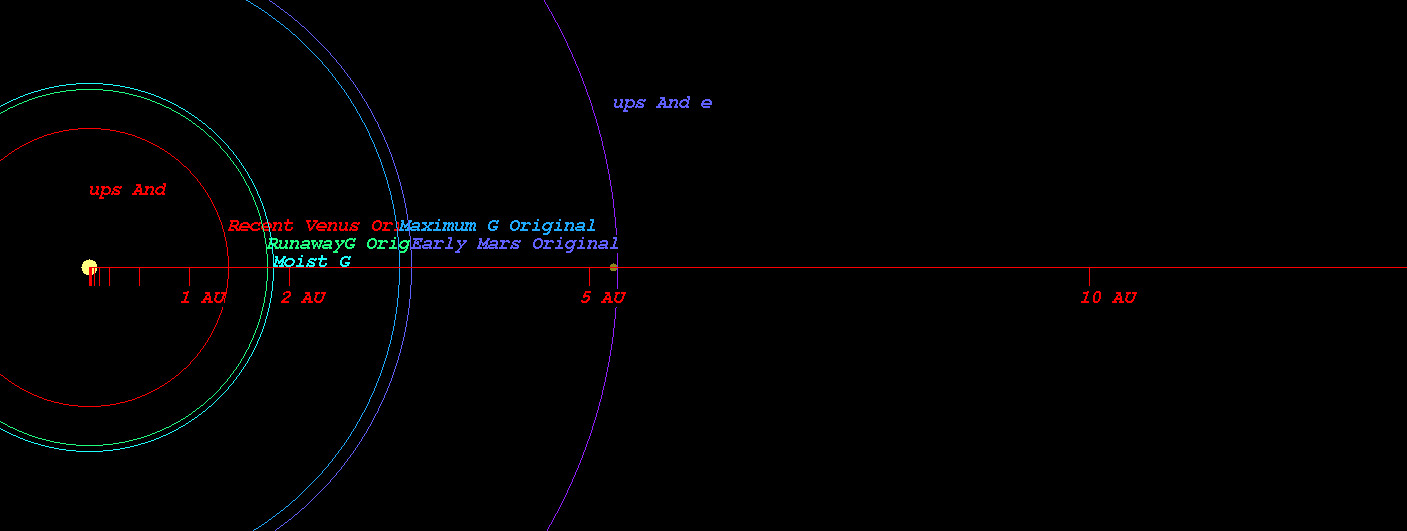

(Habitable zone calculated based on Kopparapu et al.(Original) around the star ups And)
(Position in Stellar Map of star ups And and its Exoplanet ups And e)

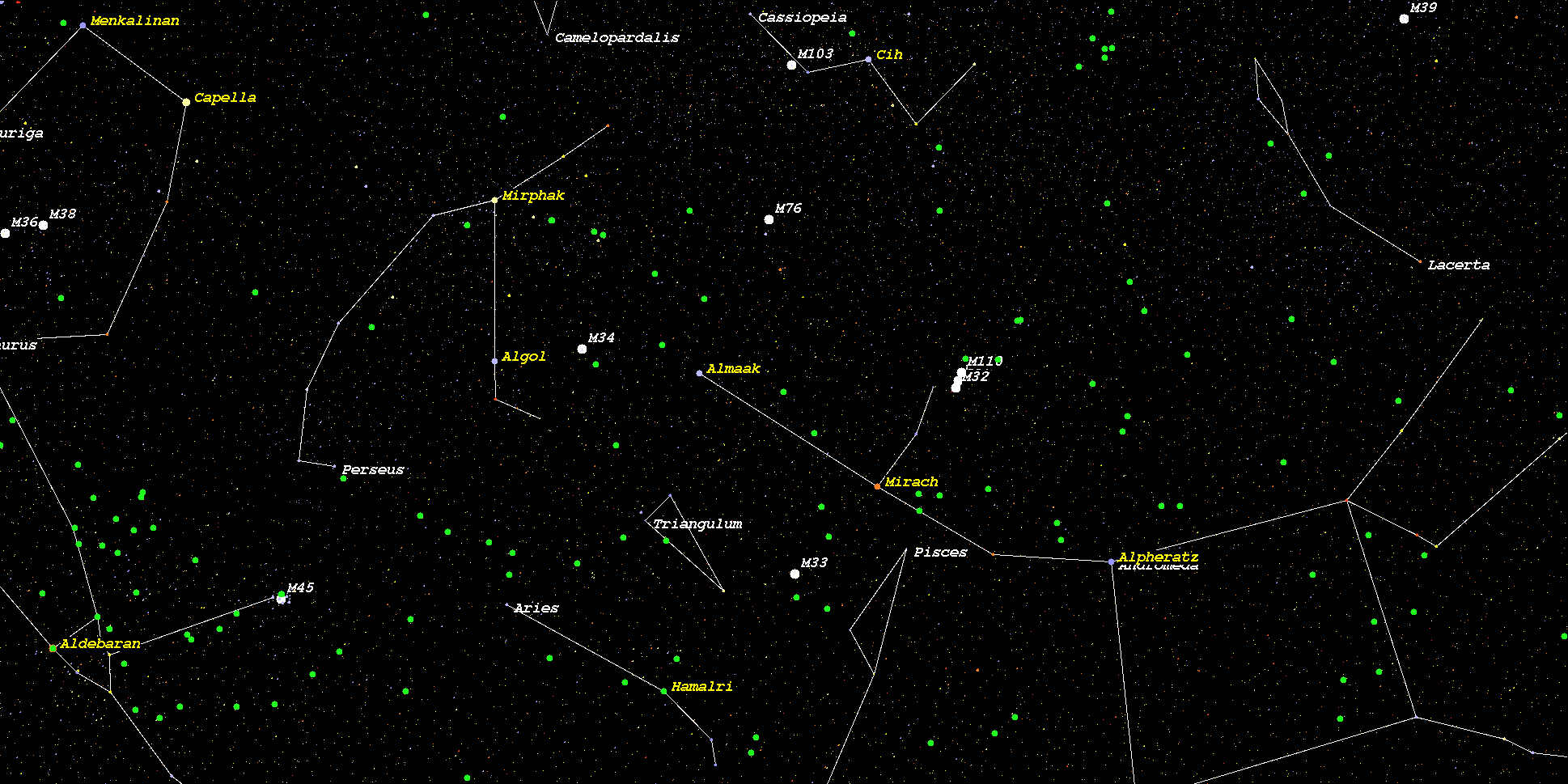

(Zoomed position in Stellar Map of star ups And and its Exoplanet ups And e (zoom level 3))
(Synthetic Spectrum of star ups And*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
