Imaginary Picture of WASP-92 b

Display orbital revolution of WASP-92 b around the hoststar WASP-92
/
Exoplanet Name : WASP-92 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.4610 (Rjup) 16.3763 (Rearth)
Mass (Mjup / Me): 0.8050 (Mjup) 255.9401 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0348 (AU) 0.0348 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0060
Orbital Period(Observed/Estimated) 2.17 (Days Obs.) 2.17 (Days Est.)
Surface Gravity (G Earth) 0.9543
Star Radiation at Atmospheric Boundary: 2832320.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1831.0 (K)
Blackbody T 0.3(K) 1719.5 (K)
Blackbody T 0.7(K) 1391.2 (K)
Tidally Locked Blackbody T 0.1(K) 2177.4 (K)
Tidally Locked Blackbody T 0.3(K) 2044.8 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-92
Alternate Name :
Star Distance(LY) : 1728.6
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 6280 (K)
Spectral type : F7
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 4.6
Apparent Magnitude: 13.2
Right Ascension(RA) 246.6921
Declination (DEC) 51.0412
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.harvard.edu/simbad/sim-basic?Ident=WASP-92+&submit=SIMBAD+search%200%20http://www.openexoplanetcatalogue.com/planet/MOA-2008-BLG-310-L%20b/%20%200%200%200
Open Exoplanet Database Link
WASP-92 b
WASP-92 b

  • WASP-92 b is an exoplanet orbiting the star WASP-92, located about 1728.6 light-years (530.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star WASP-92 has apparent magnitude of 13.2, with absolute magnitude of 4.6.
  • It is 1.2 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 6280 with its spectral types of F7
  • In this planetary system, the extrasolar planet WASP-92 b orbits around the star WASP-92 every 2.2 days with its orbital distance of 0.03 AU ( 5206005.9 km)
  • (Projected orbit of WASP-92 b around its host star WASP-92)


  • The Star WASP-92 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.146 AU ( 171398168.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.584 AU ( 236917061.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.413 AU ( 361009171.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.551 AU ( 531240810.5 km)
  • Radiation at Planetary Boundary of WASP-92 b : 2832320.88 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-92)



  • Kopparapu Recent Venus for Star WASP-92 distance : 1.152 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-92 distance : 1.459 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-92 distance : 1.409 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-92 distance : 1.544 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-92 distance : 2.547 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-92 distance : 2.686 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-92)



  • Original Kopparapu Recent Venus for Star WASP-92 distance : 1.166 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-92 distance : 1.496 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-92 distance : 1.542 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-92 distance : 2.593 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-92 distance : 2.696 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-92)



    (Position in Stellar Map of star WASP-92 and its Exoplanet WASP-92 b)

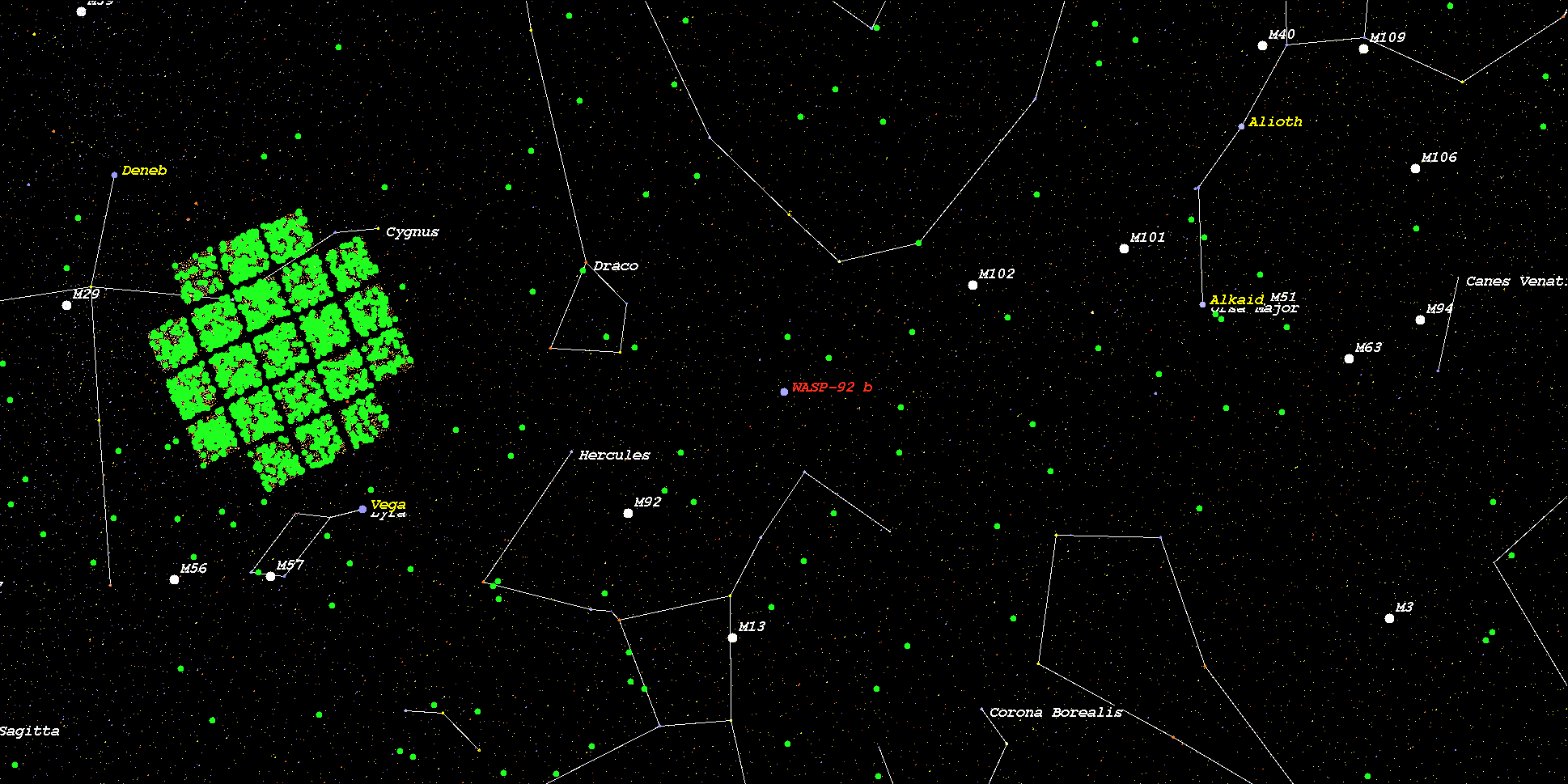

    (Zoomed position in Stellar Map of star WASP-92 and its Exoplanet WASP-92 b (zoom level 3))

    (Synthetic Spectrum of star WASP-92*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
