Imaginary Picture of WASP-75 b

Display orbital revolution of WASP-75 b around the hoststar WASP-75
/
Exoplanet Name : WASP-75 b
Alternate Name : "2MASS J22493256-1040320 b, EPIC 206154641.01, GSC 05816-01135 b, K2-40 b, WASP-75 A b, WISE J224932.60-104031.7 b"
Status : Confirmed
Radius (Rjup / Re): 1.2700 (Rjup) 14.2354 (Rearth)
Mass (Mjup / Me): 1.0700 (Mjup) 340.1937 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0375 (AU) 0.0375 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0068
Orbital Period(Observed/Estimated) 2.48 (Days Obs.) 2.48 (Days Est.)
Surface Gravity (G Earth) 1.6787
Star Radiation at Atmospheric Boundary: 1916914.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1660.7 (K)
Blackbody T 0.3(K) 1559.6 (K)
Blackbody T 0.7(K) 1261.9 (K)
Tidally Locked Blackbody T 0.1(K) 1974.9 (K)
Tidally Locked Blackbody T 0.3(K) 1854.7 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-75
Alternate Name : "2MASS J22493256-1040320, EPIC 206154641, GSC 05816-01135, K2-40, WASP-75 A, WISE J224932.60-104031.7"
Star Distance(LY) : 848.0
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 6100 (K)
Spectral type : F9
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 4.4
Apparent Magnitude: 11.4
Right Ascension(RA) 342.3857
Declination (DEC) -10.6756
Hubble Space Telescope Guide Star Catalog (GSC) ID 05816-01135
Discovered by
Discovery Paper - Authors "Y. G_mez Maqueo Chew, F. Faedi, D. Pollacco, D. J. A. Brown, A. P. Doyle, A. Collier Cameron, M. Gillon, M. Lendl, B. Smalley, A. H. M. J. Triaud, R. G. West, P. J. Wheatley, R. Busuttil, C. Liebig, D. R. Anderson, D. J. Armstrong, S. C. C. Barros, J. Bento, J. Bochinski, V. Burwitz, L. Delrez, B. Enoch, A. Fumel, C. A. Haswell, G. H_brard, C. Hellier, S. Holmes, E. Jehin, U. Kolb, P. F. L. Maxted, J. McCormac, G. R. M. Miller, A. J. Norton, F. Pepe, D. Queloz, J. Rodr_guez, D. S_gransan, I. Skillen, K. G. Stassun, S. Udry, C. A. Watson"
Discovery Paper - Title Discovery of WASP-65b and WASP-75b: Two Hot Jupiters Without Highly Inflated Radii
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=WASP-75+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/WASP-75%20b/
WASP-75 b
WASP-75 b

  • WASP-75 b is an exoplanet orbiting the star WASP-75, located about 848.0 light-years (260.0 pc) away from Solar System. Its discovery was publicly announced on 2013.
  • The host star WASP-75 has apparent magnitude of 11.4, with absolute magnitude of 4.4.
  • It is 1.1 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 6100 with its spectral types of F9
  • In this planetary system, the extrasolar planet WASP-75 b orbits around the star WASP-75 every 2.5 days with its orbital distance of 0.04 AU ( 5609920.2 km)
  • (Projected orbit of WASP-75 b around its host star WASP-75)


  • The Star WASP-75 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.016 AU ( 151945669.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.404 AU ( 210028623.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.139 AU ( 320037143.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.148 AU ( 470948676.2 km)
  • Radiation at Planetary Boundary of WASP-75 b : 1916914.34 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-75)



  • Kopparapu Recent Venus for Star WASP-75 distance : 1.032 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-75 distance : 1.307 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-75 distance : 1.263 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-75 distance : 1.384 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-75 distance : 2.291 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-75 distance : 2.416 AU

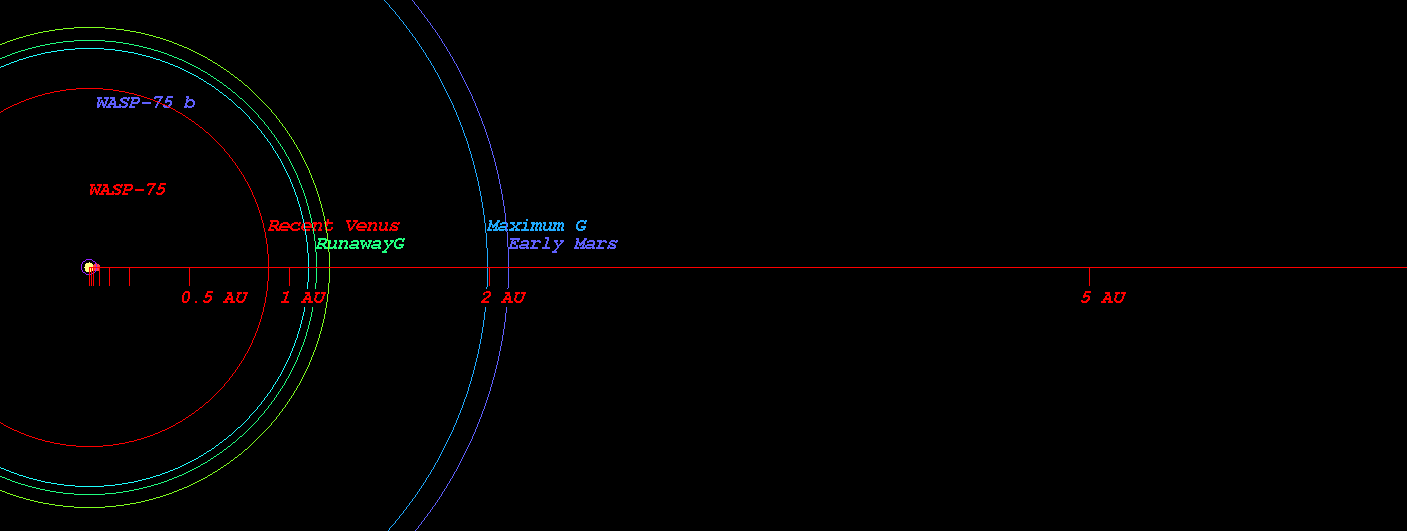

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-75)



  • Original Kopparapu Recent Venus for Star WASP-75 distance : 1.041 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-75 distance : 1.342 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-75 distance : 1.377 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-75 distance : 2.332 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-75 distance : 2.425 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-75)



    (Position in Stellar Map of star WASP-75 and its Exoplanet WASP-75 b)



    (Zoomed position in Stellar Map of star WASP-75 and its Exoplanet WASP-75 b (zoom level 3))

    (Synthetic Spectrum of star WASP-75*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
