Imaginary Picture of WASP-190 b

Display orbital revolution of WASP-190 b around the hoststar WASP-190
/
Exoplanet Name : WASP-190 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.1500 (Rjup) 12.8903 (Rearth)
Mass (Mjup / Me): 1.0000 (Mjup) 317.9380 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0663 (AU) 0.0663 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0147
Orbital Period(Observed/Estimated) 5.37 (Days Obs.) 5.37 (Days Est.)
Surface Gravity (G Earth) 1.9134
Star Radiation at Atmospheric Boundary: 1198222.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1476.6 (K)
Blackbody T 0.3(K) 1386.7 (K)
Blackbody T 0.7(K) 1122.0 (K)
Tidally Locked Blackbody T 0.1(K) 1756.0 (K)
Tidally Locked Blackbody T 0.3(K) 1649.1 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-190
Alternate Name :
Star Distance(LY) : 1796.3
Stellar Radius(Rsun) : 1.6 (Rsun Measured)
Stellar Mass(Msun) : 1.4 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 6400 (K)
Spectral type : F6-IV-V
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.0
Absolute Magnitude: 3.0
Apparent Magnitude: 11.7
Right Ascension(RA) 7.7093
Declination (DEC) -30.5733
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=WASP-190+&submit=SIMBAD+search
Open Exoplanet Database Link
WASP-190 b
WASP-190 b

  • WASP-190 b is an exoplanet orbiting the star WASP-190, located about 1796.3 light-years (550.8 pc) away from Solar System. Its discovery was publicly announced on 2018.
  • The host star WASP-190 has apparent magnitude of 11.7, with absolute magnitude of 3.0.
  • It is 1.4 times more massive and 1.6 times bigger compared with our Sun. The surface temperature is 6400 with its spectral types of F6-IV-V
  • In this planetary system, the extrasolar planet WASP-190 b orbits around the star WASP-190 every 5.4 days with its orbital distance of 0.07 AU ( 9918338.8 km)

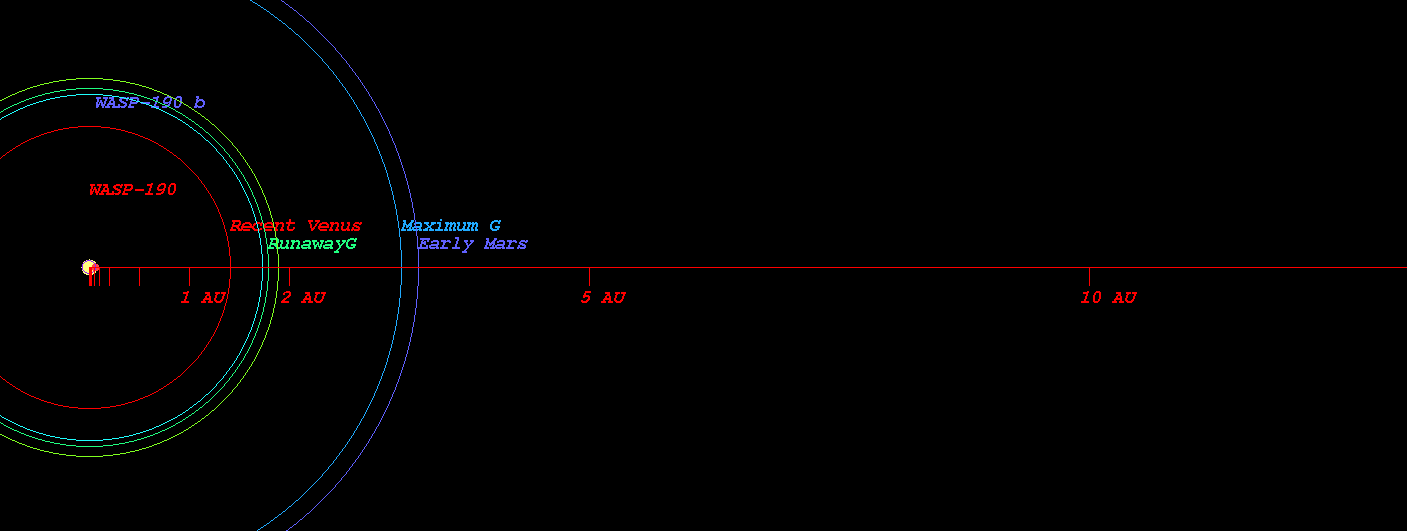

  • (Projected orbit of WASP-190 b around its host star WASP-190)


  • The Star WASP-190 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.420 AU ( 212391945.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.962 AU ( 293581173.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.990 AU ( 447352738.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.400 AU ( 658299152.4 km)
  • Radiation at Planetary Boundary of WASP-190 b : 1198222.90 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-190)



  • Kopparapu Recent Venus for Star WASP-190 distance : 1.417 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-190 distance : 1.795 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-190 distance : 1.733 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-190 distance : 1.899 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-190 distance : 3.127 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-190 distance : 3.298 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-190)



  • Original Kopparapu Recent Venus for Star WASP-190 distance : 1.438 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-190 distance : 1.840 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-190 distance : 1.903 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-190 distance : 3.184 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-190 distance : 3.311 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-190)



    (Position in Stellar Map of star WASP-190 and its Exoplanet WASP-190 b)



    (Zoomed position in Stellar Map of star WASP-190 and its Exoplanet WASP-190 b (zoom level 3))

    (Synthetic Spectrum of star WASP-190*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
