Imaginary Picture of TOI-1266 c

Display orbital revolution of TOI-1266 c around the hoststar TOI-1266
/
Exoplanet Name : TOI-1266 c
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.1900 (Rjup) 2.1297 (Rearth)
Mass (Mjup / Me): 0.0091 (Mjup) 2.8805 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1047 (AU) 0.1047 (AU Est.)
Eccentricity : 0.3400
Orbital Period(Yrs) 0.0515
Orbital Period(Observed/Estimated) 18.80 (Days Obs.) 18.45 (Days Est.)
Surface Gravity (G Earth) 0.6351
Star Radiation at Atmospheric Boundary: 3314.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 338.6 (K)
Blackbody T 0.3(K) 318.0 (K)
Blackbody T 0.7(K) 257.3 (K)
Tidally Locked Blackbody T 0.1(K) 402.7 (K)
Tidally Locked Blackbody T 0.3(K) 378.2 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : TOI-1266
Alternate Name :
Star Distance(LY) : 117.6
Stellar Radius(Rsun) : 0.4 (Rsun Measured)
Stellar Mass(Msun) : 0.5 (Msun Measured) 0.4 (Msun Estimated)
Star Age : 7.9 (GY)
Temperature : 3600 (K)
Spectral type : M2
UV portion[%]: 0.4
Visible portion[%]: 16.6
IR portion[%]: 83.0
Metalicity : -0.1
Absolute Magnitude: 10.2
Apparent Magnitude: 13.0
Right Ascension(RA) 197.9958
Declination (DEC) 65.8336
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK https://simbad.u-strasbg.fr/simbad/sim-basic?Ident=TOI-1266&submit=SIMBAD+search
Open Exoplanet Database Link
TOI-1266 c
TOI-1266 c

  • TOI-1266 c is an exoplanet orbiting the star TOI-1266, located about 117.6 light-years (36.0 pc) away from Solar System. Its discovery was publicly announced on 2020.
  • The host star TOI-1266 has apparent magnitude of 13.0, with absolute magnitude of 10.2.
  • It is 0.5 times more massive and 0.4 times bigger compared with our Sun. The surface temperature is 3600 with its spectral types of M2
  • In this planetary system, the extrasolar planet TOI-1266 c orbits around the star TOI-1266 every 18.8 days with its orbital distance of 0.10 AU ( 15662897.1 km)

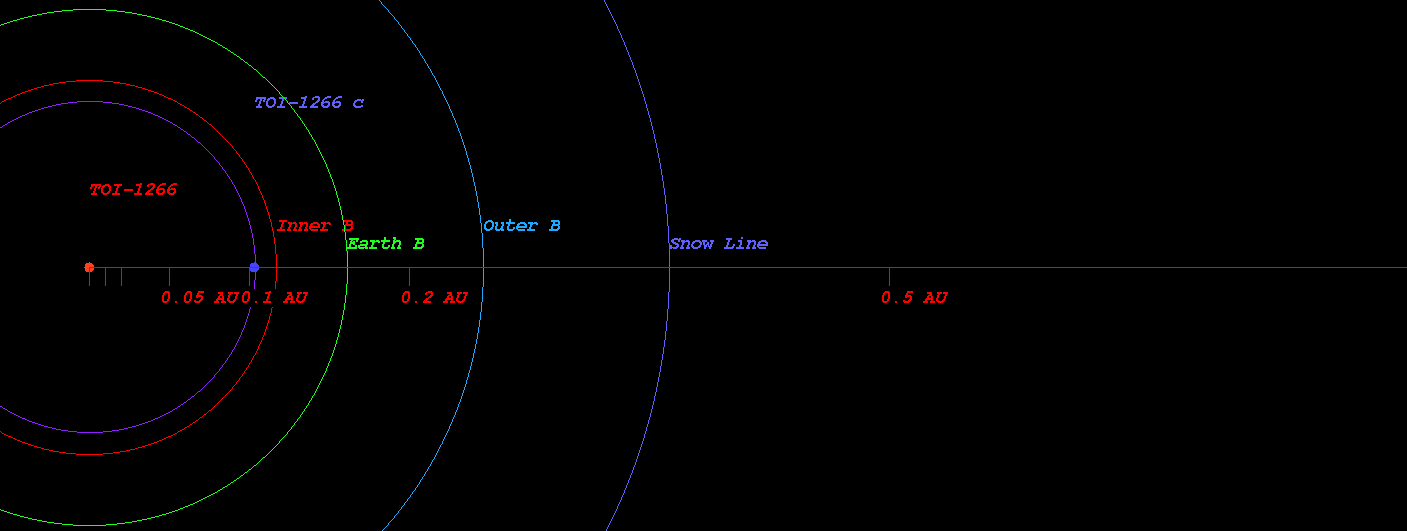

  • (Projected orbit of TOI-1266 c around its host star TOI-1266)


  • The Star TOI-1266 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.118 AU ( 17640561.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.163 AU ( 24383866.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.248 AU ( 37155615.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.365 AU ( 54676116.1 km)
  • Radiation at Planetary Boundary of TOI-1266 c : 3314.52 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star TOI-1266)



  • Kopparapu Recent Venus for Star TOI-1266 distance : 0.133 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star TOI-1266 distance : 0.168 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star TOI-1266 distance : 0.163 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star TOI-1266 distance : 0.179 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star TOI-1266 distance : 0.326 AU
  • Kopparapu Outer Boundary for Early Mars for Star TOI-1266 distance : 0.344 AU

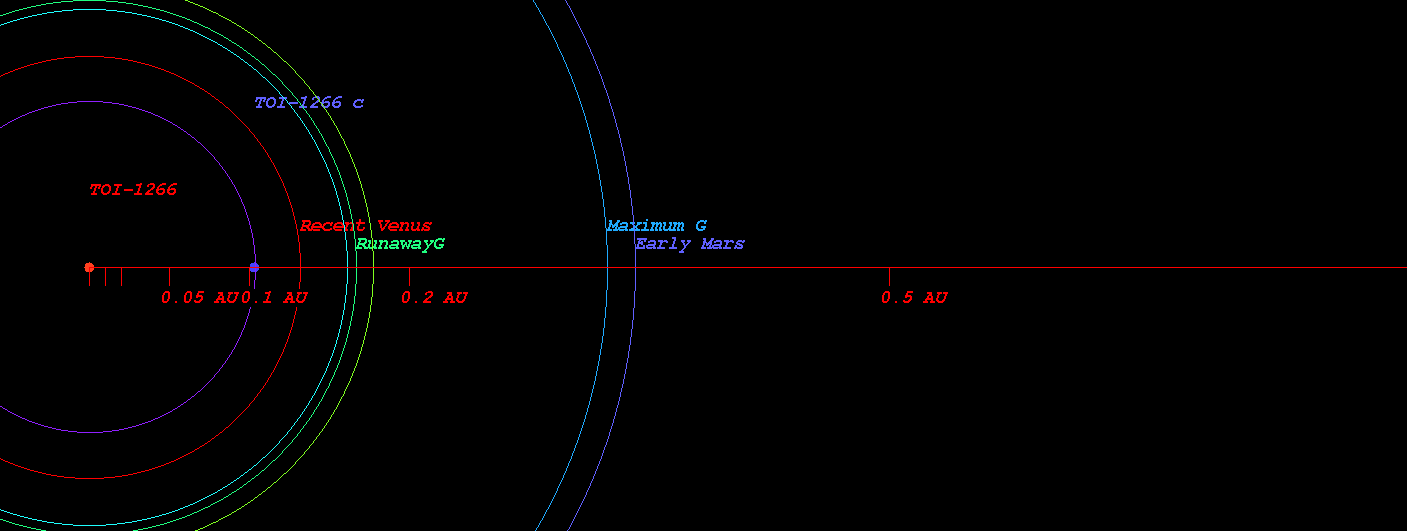

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star TOI-1266)



  • Original Kopparapu Recent Venus for Star TOI-1266 distance : 0.132 AU
  • Original Kopparapu Runaway Greenhouse for Star TOI-1266 distance : 0.174 AU
  • Original Kopparapu Moist Greenhouse for Star TOI-1266 distance : 0.174 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star TOI-1266 distance : 0.331 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star TOI-1266 distance : 0.344 AU

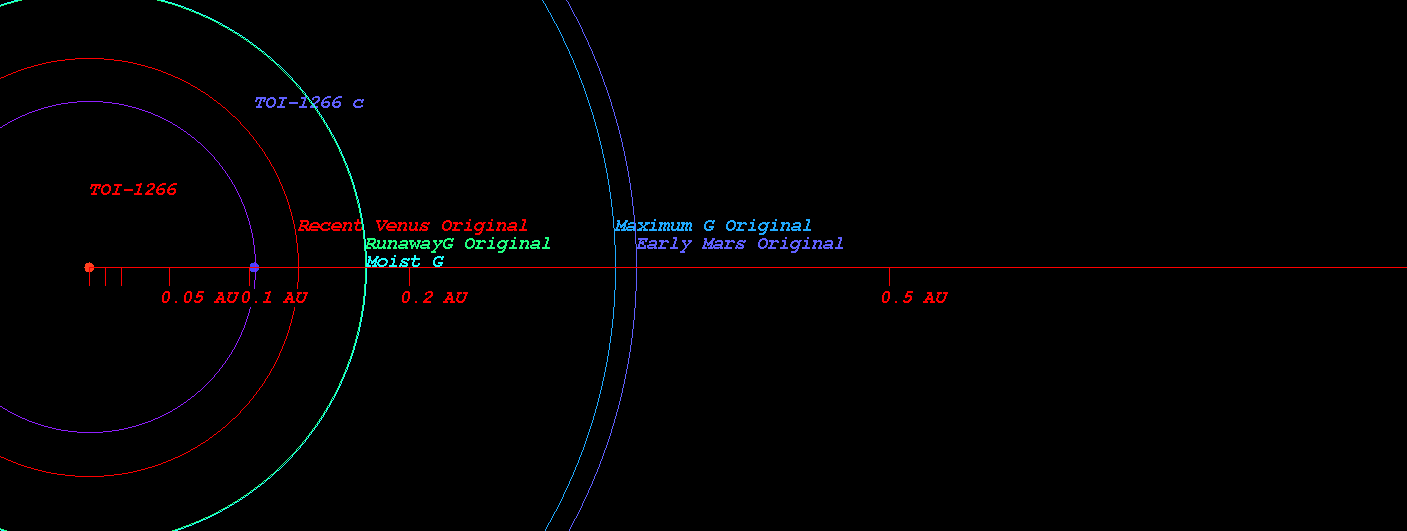

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star TOI-1266)



    (Position in Stellar Map of star TOI-1266 and its Exoplanet TOI-1266 c)

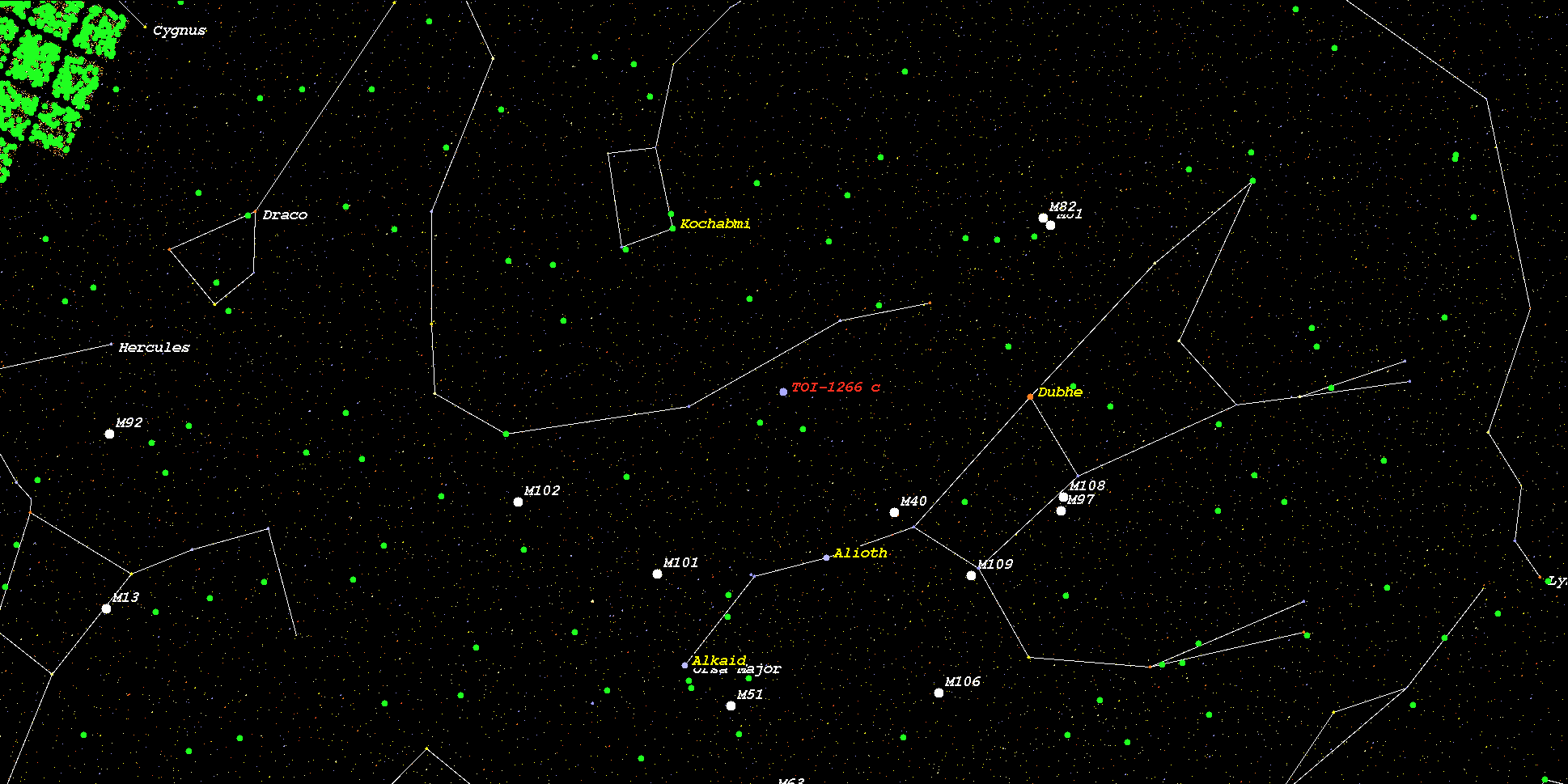

    (Zoomed position in Stellar Map of star TOI-1266 and its Exoplanet TOI-1266 c (zoom level 3))

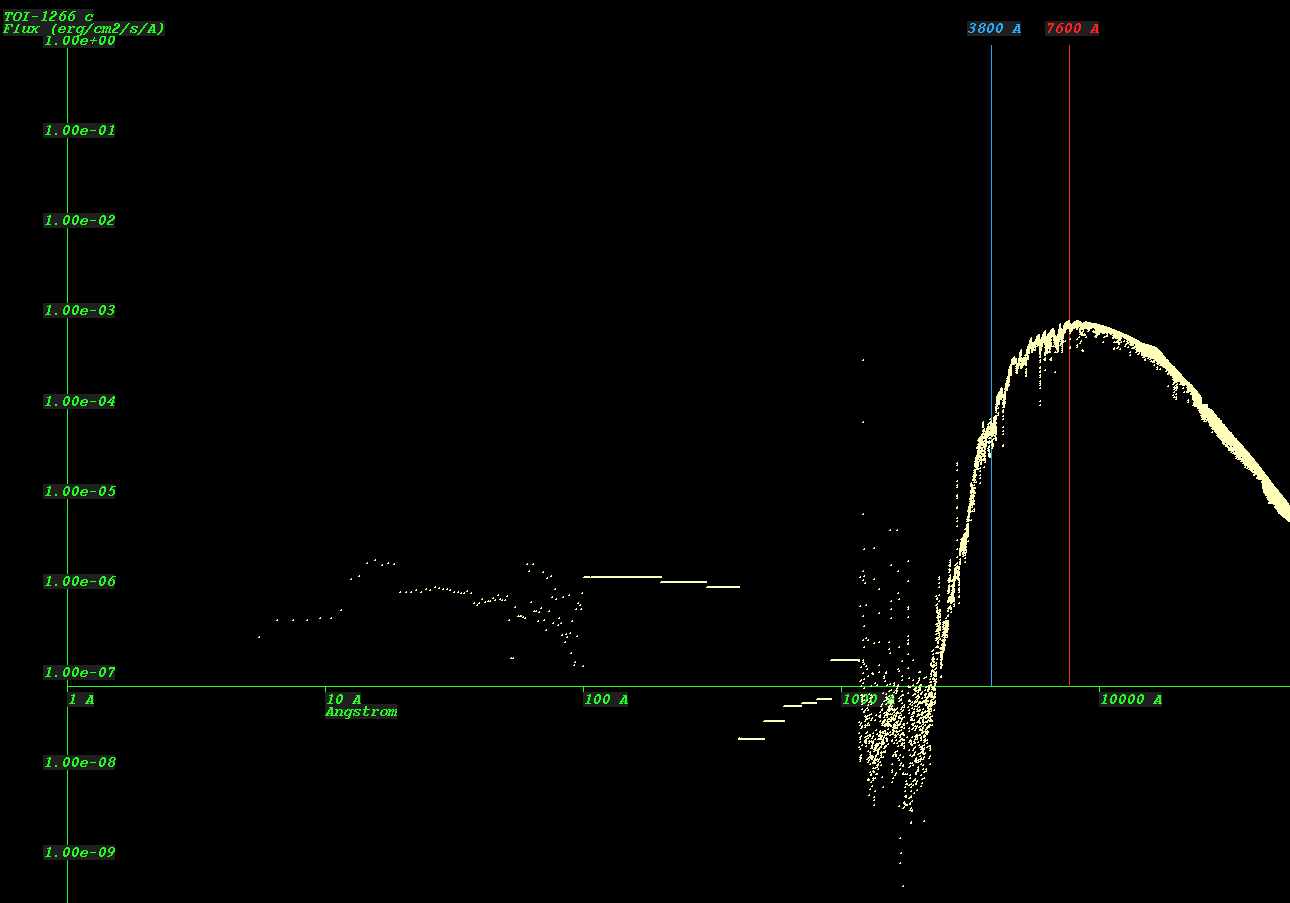

    (Synthetic Spectrum of star TOI-1266*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
