Imaginary Picture of OGLE-2013-BLG-0102L b

Display orbital revolution of OGLE-2013-BLG-0102L b around the hoststar OGLE-2013-BLG-0102L
/
Exoplanet Name : OGLE-2013-BLG-0102L b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 13.6000 (Mjup) 4323.9568 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.8000 (AU) 0.8000 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0000
Orbital Period(Observed/Estimated) 0.00 (Days Obs.) 839.15 (Days Est.)
Surface Gravity (G Earth) 41.7579
Star Radiation at Atmospheric Boundary: 2.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 54.0 (K)
Blackbody T 0.3(K) 50.7 (K)
Blackbody T 0.7(K) 41.0 (K)
Tidally Locked Blackbody T 0.1(K) 64.2 (K)
Tidally Locked Blackbody T 0.3(K) 60.3 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Microlensing
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : OGLE-2013-BLG-0102L
Alternate Name :
Star Distance(LY) : 9849.9
Stellar Radius(Rsun) : 0.1 (Rsun Estimated)
Stellar Mass(Msun) : 0.1 (Msun Measured) 0.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3300 (K)
Spectral type : M9
UV portion[%]: 0.2
Visible portion[%]: 11.2
IR portion[%]: 88.6
Metalicity : 0.0
Absolute Magnitude: 4.6
Apparent Magnitude: 17.0
Right Ascension(RA) 268.0295
Declination (DEC) -31.6906
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Jung,..; Udalski,.; Sumi,.; Han,.; Gould,.; Skowron,.; Koz_owski,.; Poleski,.; Wyrzykowski,.; Szyma_ski,..; Pietrzy_ski,.; Soszy_ski,.; Ulaczyk,.; Pietrukowicz,.; Mr_z,.; Kubiak,.; OGLEollaboration; Abe,.; Bennett,..; Bond,..; Botzler,..; Freeman,.; Fukui,.; Fukunaga,.; Itow,.; Koshimoto,.; Larsen,.; Ling,..; Masuda,.; Matsubara,.; Muraki,.; Namba,.; Ohnishi,.; Philpott,.; Rattenbury,..; Saito,o.; Sullivan,..; Suzuki,.; Tristram,..; Tsurumi,.; Wada,.; Yamai,.; Yock,...; Yonehara,.; MOAollaboration; Albrow,.; Choi,.-Y.; DePoy,..; Gaudi,..; Hwang,.-H.; Lee,.-U.; Park,.; Owen,.; Pogge,..; Shin,.-G.; Yee,..; ¥¹¥̣¥»·§UNollaboration"
Discovery Paper - Title "OGLE-2013-BLG-0102LA,B: Microlensing Binary with Components at Star/Brown Dwarf and Brown Dwarf/Planet Boundaries"
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/OGLE-2013-BLG-0102LB/
OGLE-2013-BLG-0102L b
OGLE-2013-BLG-0102L b
  • OGLE-2013-BLG-0102L b is an exoplanet orbiting the star OGLE-2013-BLG-0102L, located about 9849.9 light-years (3020.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star OGLE-2013-BLG-0102L has apparent magnitude of 17.0, with absolute magnitude of 4.6.
  • It is 0.1 times more massive and 0.1 times bigger compared with our Sun. The surface temperature is 3300 with its spectral types of M9

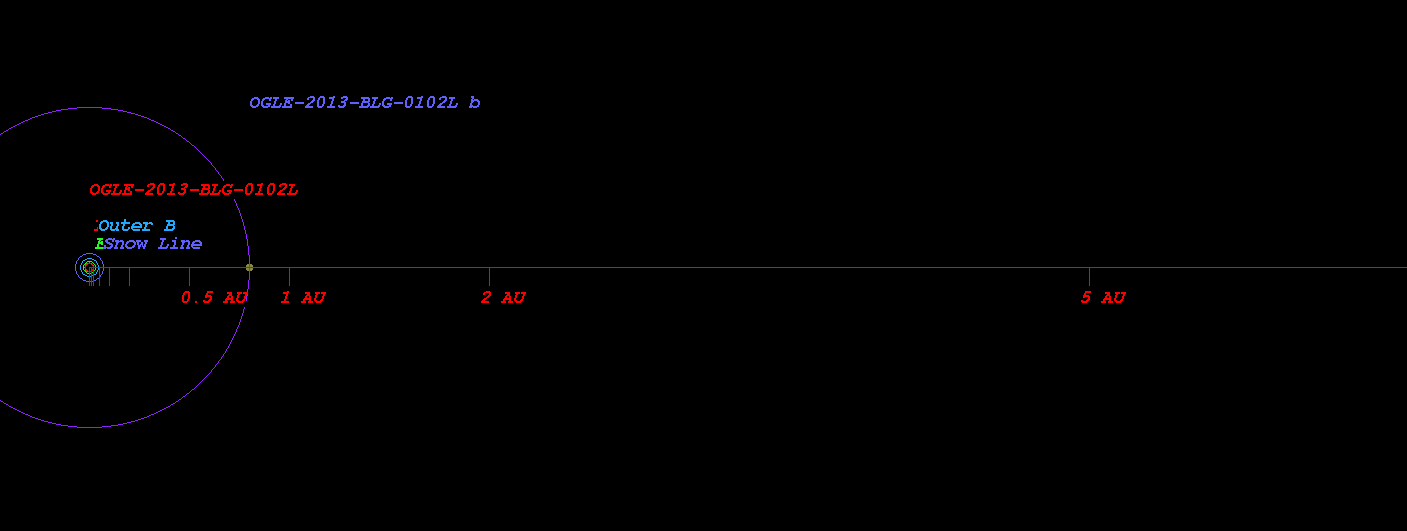

    • (Projected orbit of OGLE-2013-BLG-0102L b around its host star OGLE-2013-BLG-0102L)


  • The Star OGLE-2013-BLG-0102L 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.023 AU ( 3423400.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.032 AU ( 4732034.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.048 AU ( 7210573.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.071 AU ( 10610674.2 km)
  • Radiation at Planetary Boundary of OGLE-2013-BLG-0102L b : 2.14 W/m2

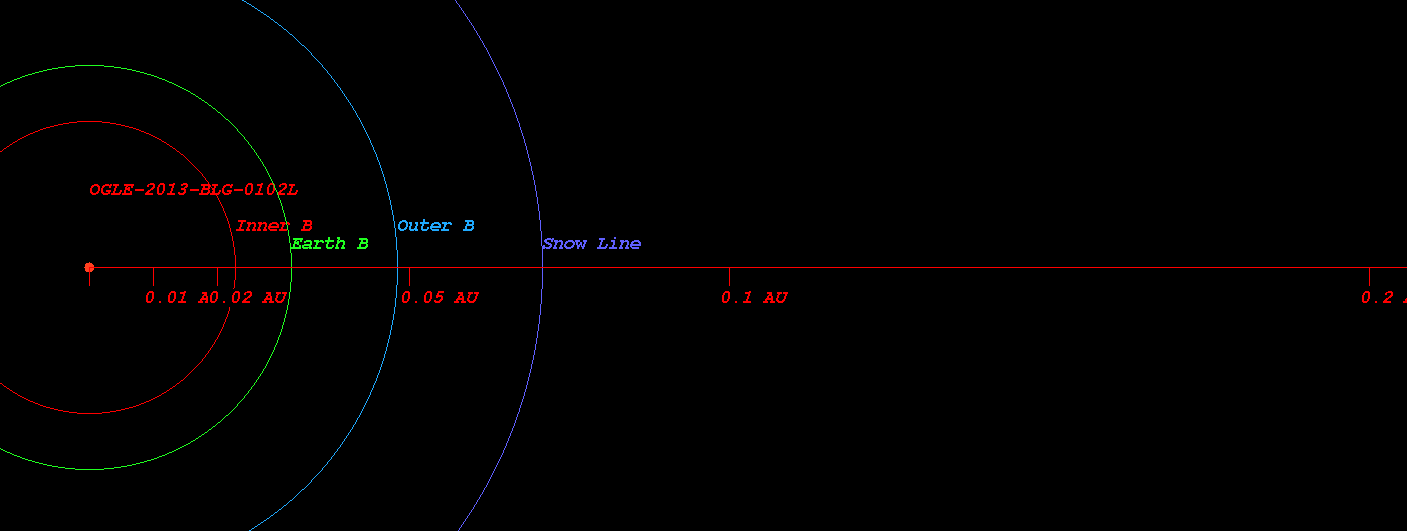

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star OGLE-2013-BLG-0102L)



  • Kopparapu Recent Venus for Star OGLE-2013-BLG-0102L distance : 0.026 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star OGLE-2013-BLG-0102L distance : 0.033 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star OGLE-2013-BLG-0102L distance : 0.032 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star OGLE-2013-BLG-0102L distance : 0.035 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star OGLE-2013-BLG-0102L distance : 0.064 AU
  • Kopparapu Outer Boundary for Early Mars for Star OGLE-2013-BLG-0102L distance : 0.068 AU

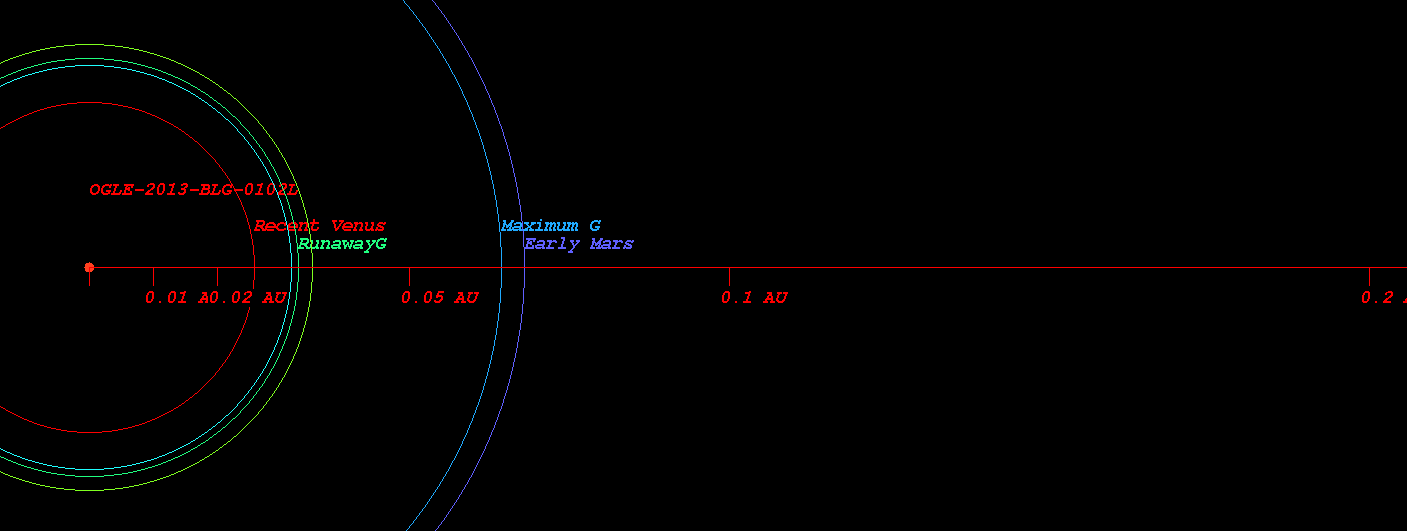

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star OGLE-2013-BLG-0102L)



  • Original Kopparapu Recent Venus for Star OGLE-2013-BLG-0102L distance : 0.026 AU
  • Original Kopparapu Runaway Greenhouse for Star OGLE-2013-BLG-0102L distance : 0.034 AU
  • Original Kopparapu Moist Greenhouse for Star OGLE-2013-BLG-0102L distance : 0.034 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star OGLE-2013-BLG-0102L distance : 0.065 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star OGLE-2013-BLG-0102L distance : 0.068 AU

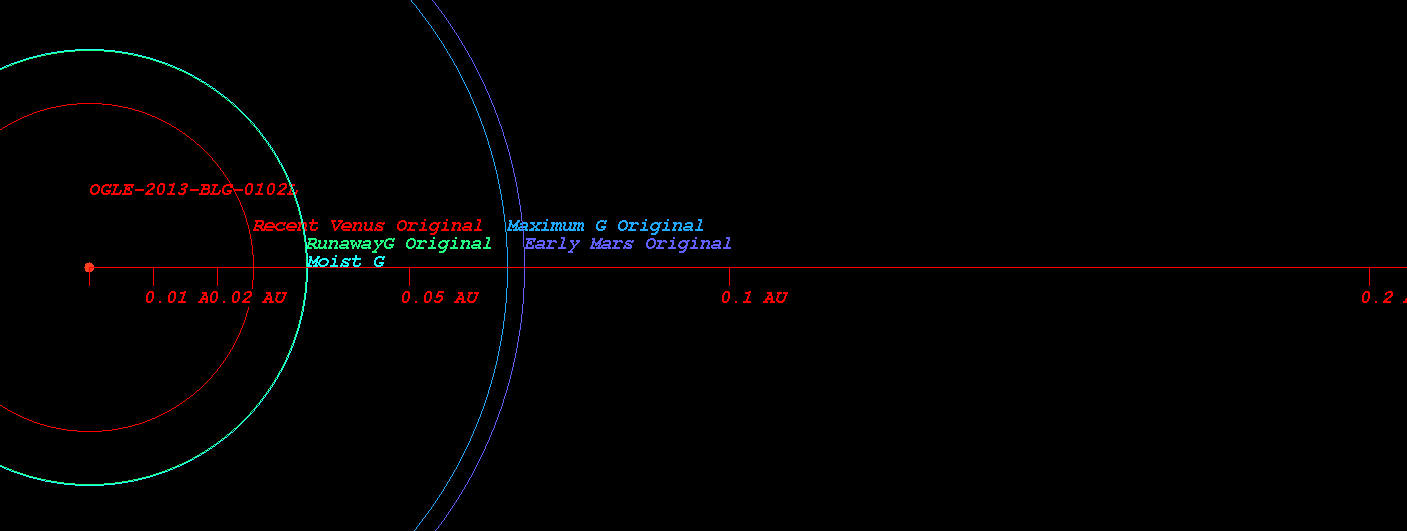

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star OGLE-2013-BLG-0102L)



    (Position in Stellar Map of star OGLE-2013-BLG-0102L and its Exoplanet OGLE-2013-BLG-0102L b)



    (Zoomed position in Stellar Map of star OGLE-2013-BLG-0102L and its Exoplanet OGLE-2013-BLG-0102L b (zoom level 3))

    (Synthetic Spectrum of star OGLE-2013-BLG-0102L*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
