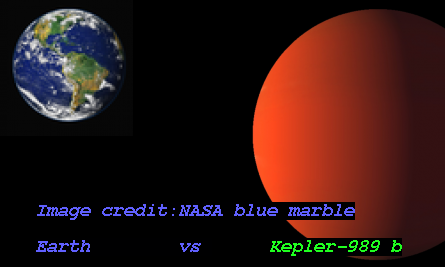

Imaginary Picture of Kepler-989 b

Display orbital revolution of Kepler-989 b around the hoststar Kepler-989
/
Exoplanet Name : Kepler-989 b
Alternate Name : "2MASS J18461989+4714010 b, K01870.01, KIC 10187159 b, KOI-1870 b, KOI-1870.01, WISE J184619.87+471400.7 b"
Status : Confirmed
Radius (Rjup / Re): 0.1970 (Rjup) 2.2082 (Rearth)
Mass (Mjup / Me): 0.0173 (Mjup) 5.5114 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0731 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0218
Orbital Period(Observed/Estimated) 7.96 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1303
Star Radiation at Atmospheric Boundary: 102444.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 798.5 (K)
Blackbody T 0.3(K) 749.9 (K)
Blackbody T 0.7(K) 606.7 (K)
Tidally Locked Blackbody T 0.1(K) 949.6 (K)
Tidally Locked Blackbody T 0.3(K) 891.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-989
Alternate Name : "2MASS J18461989+4714010, KIC 10187159, KOI-1870, WISE J184619.87+471400.7"
Star Distance(LY) : 1604.1
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 4.7 (GY)
Temperature : 5183 (K)
Spectral type : K1
UV portion[%]: 4.8
Visible portion[%]: 39.9
IR portion[%]: 55.3
Metalicity : 0.0
Absolute Magnitude: 4.5
Apparent Magnitude: 13.0
Right Ascension(RA) 281.5829
Declination (DEC) 47.2336
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 795 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-989&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-989%20b/
Kepler-989 b
Kepler-989 b

  • Kepler-989 b is an exoplanet orbiting the star Kepler-989, located about 1604.1 light-years (491.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-989 has apparent magnitude of 13.0, with absolute magnitude of 4.5.

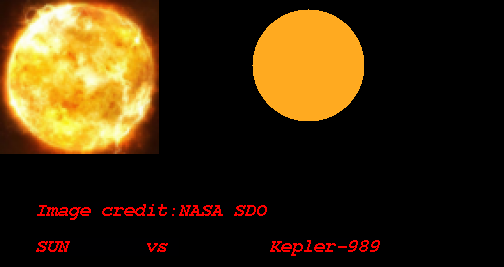

  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5183 with its spectral types of K1
  • In this planetary system, the extrasolar planet Kepler-989 b orbits around the star Kepler-989 every 8.0 days with its orbital distance of 0.07 AU ( 10928708.6 km)

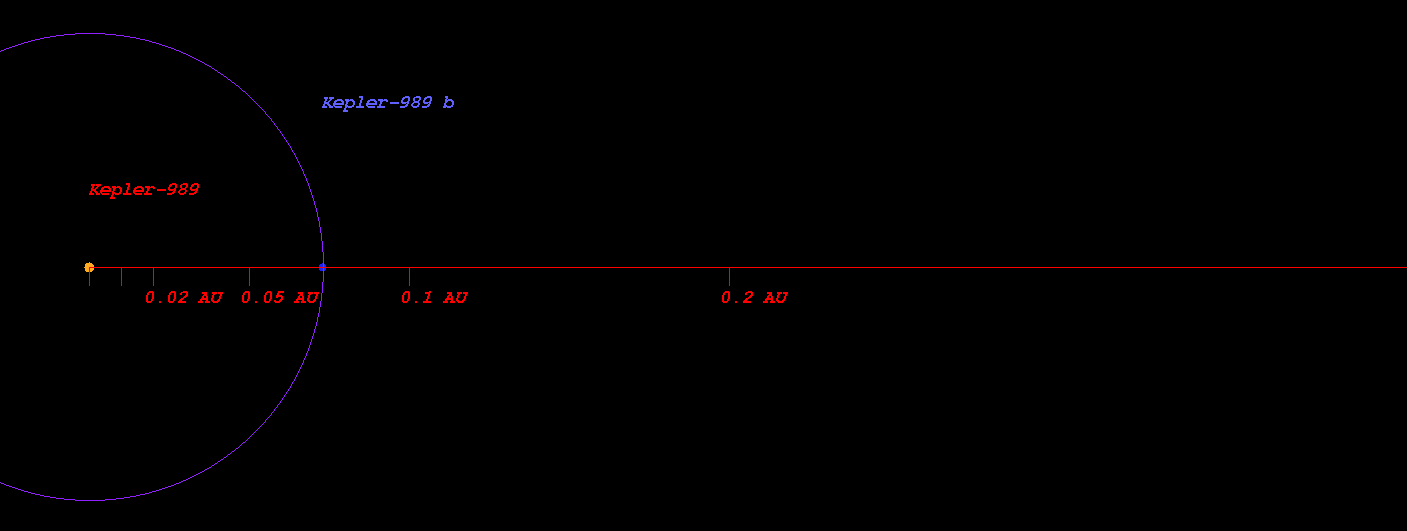

  • (Projected orbit of Kepler-989 b around its host star Kepler-989)


  • The Star Kepler-989 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.457 AU ( 68429454.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.632 AU ( 94587388.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.963 AU ( 144130247.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.418 AU ( 212093973.7 km)
  • Radiation at Planetary Boundary of Kepler-989 b : 102444.32 W/m2

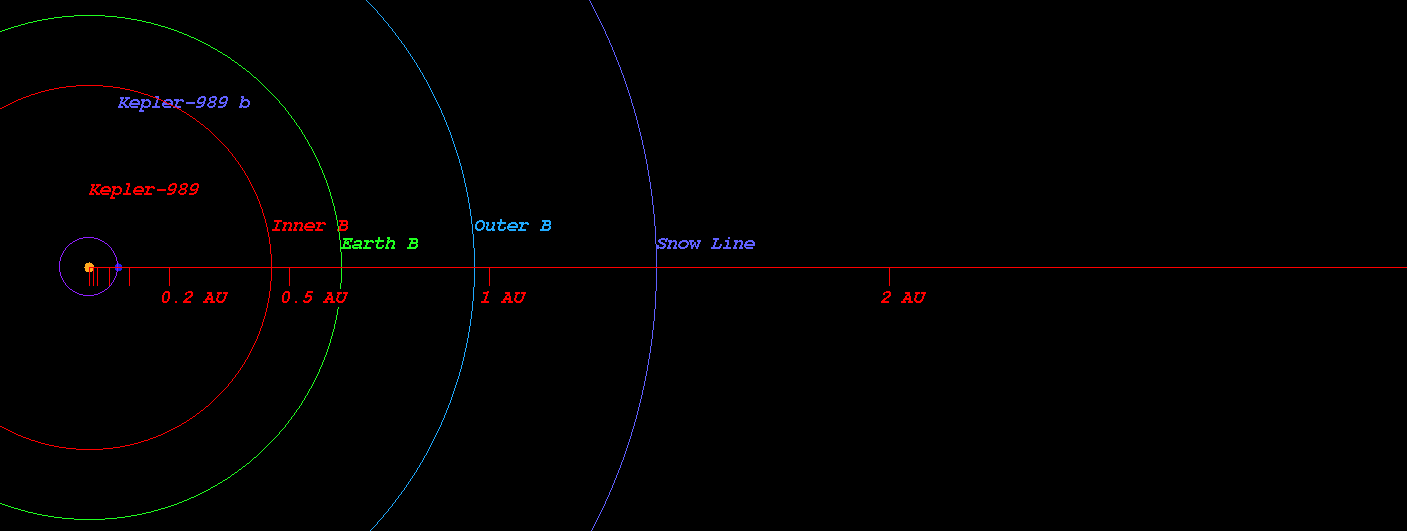

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-989)



  • Kopparapu Recent Venus for Star Kepler-989 distance : 0.490 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-989 distance : 0.621 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-989 distance : 0.600 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-989 distance : 0.658 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-989 distance : 1.117 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-989 distance : 1.179 AU

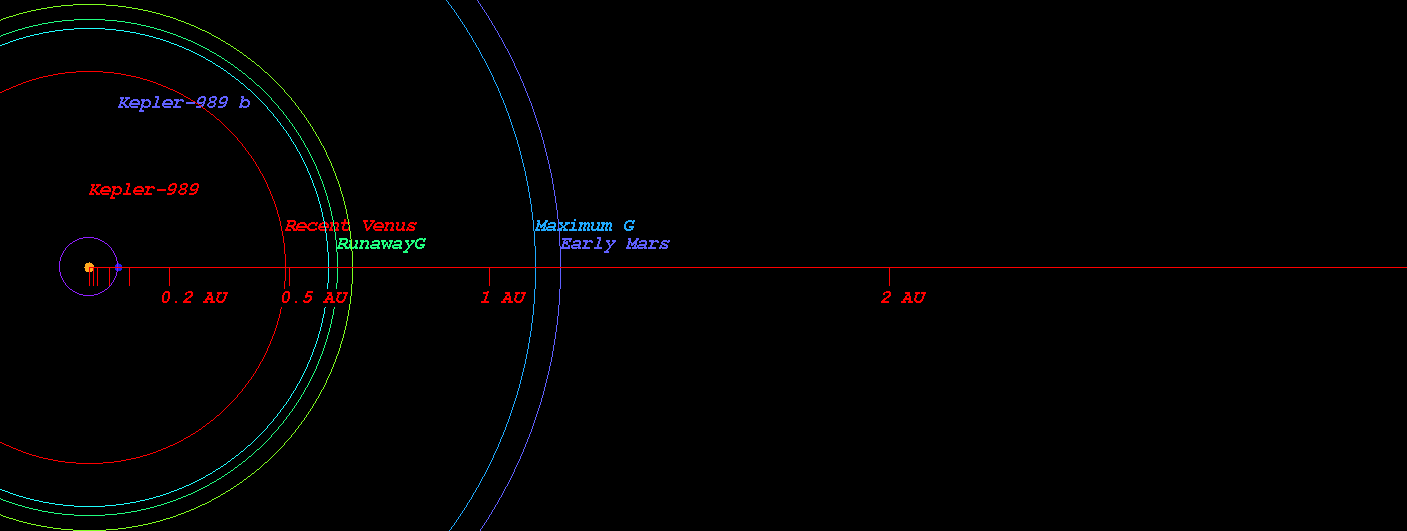

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-989)



  • Original Kopparapu Recent Venus for Star Kepler-989 distance : 0.486 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-989 distance : 0.639 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-989 distance : 0.643 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-989 distance : 1.136 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-989 distance : 1.182 AU

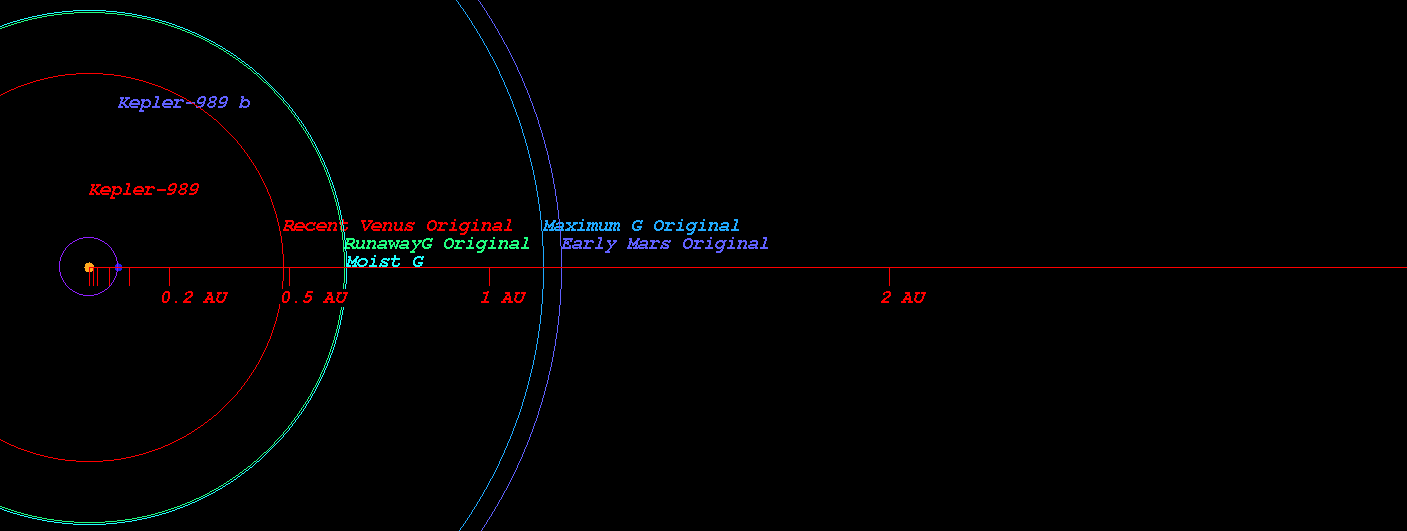

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-989)



    (Position in Stellar Map of star Kepler-989 and its Exoplanet Kepler-989 b)

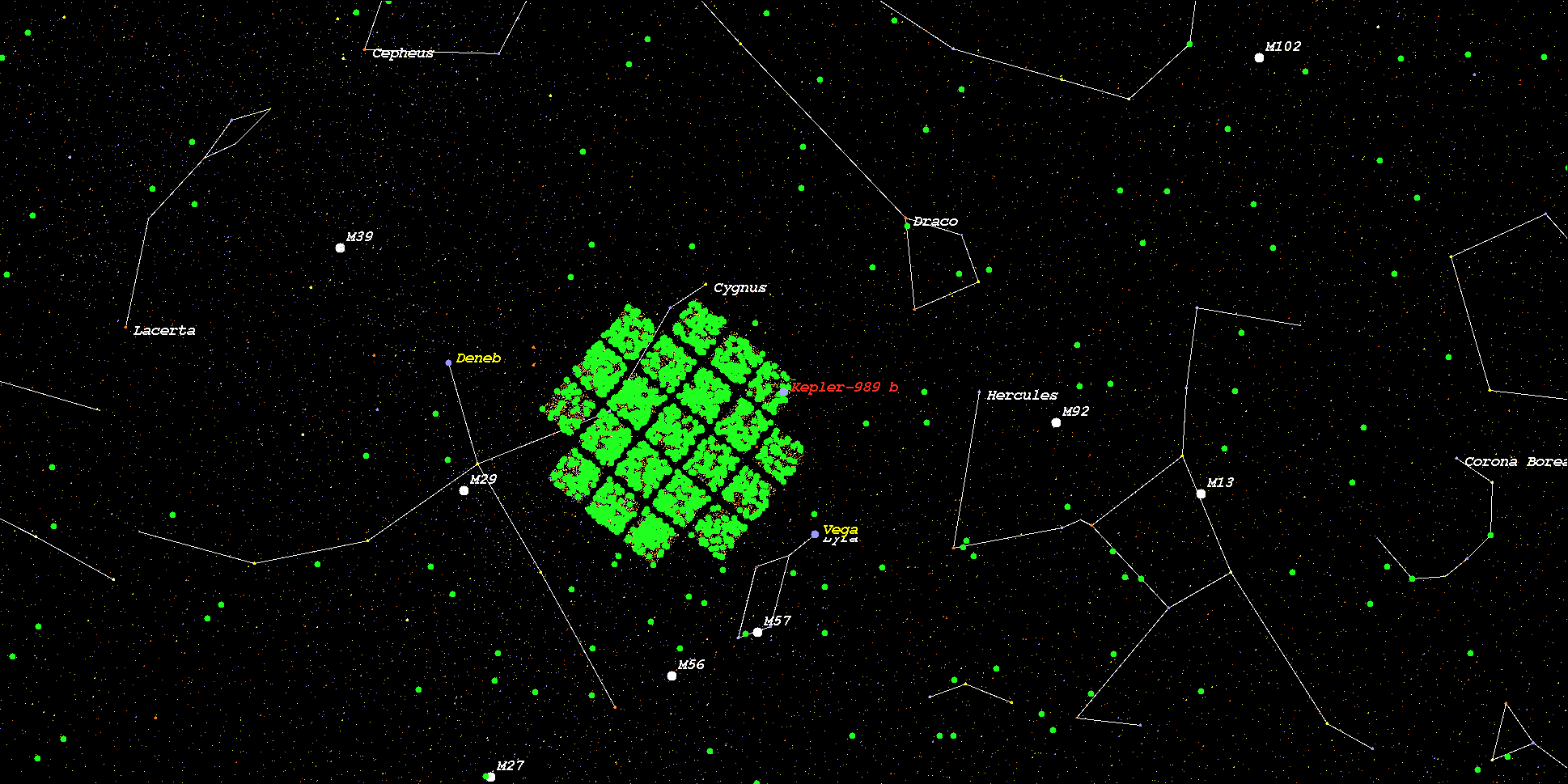

    (Zoomed position in Stellar Map of star Kepler-989 and its Exoplanet Kepler-989 b (zoom level 3))

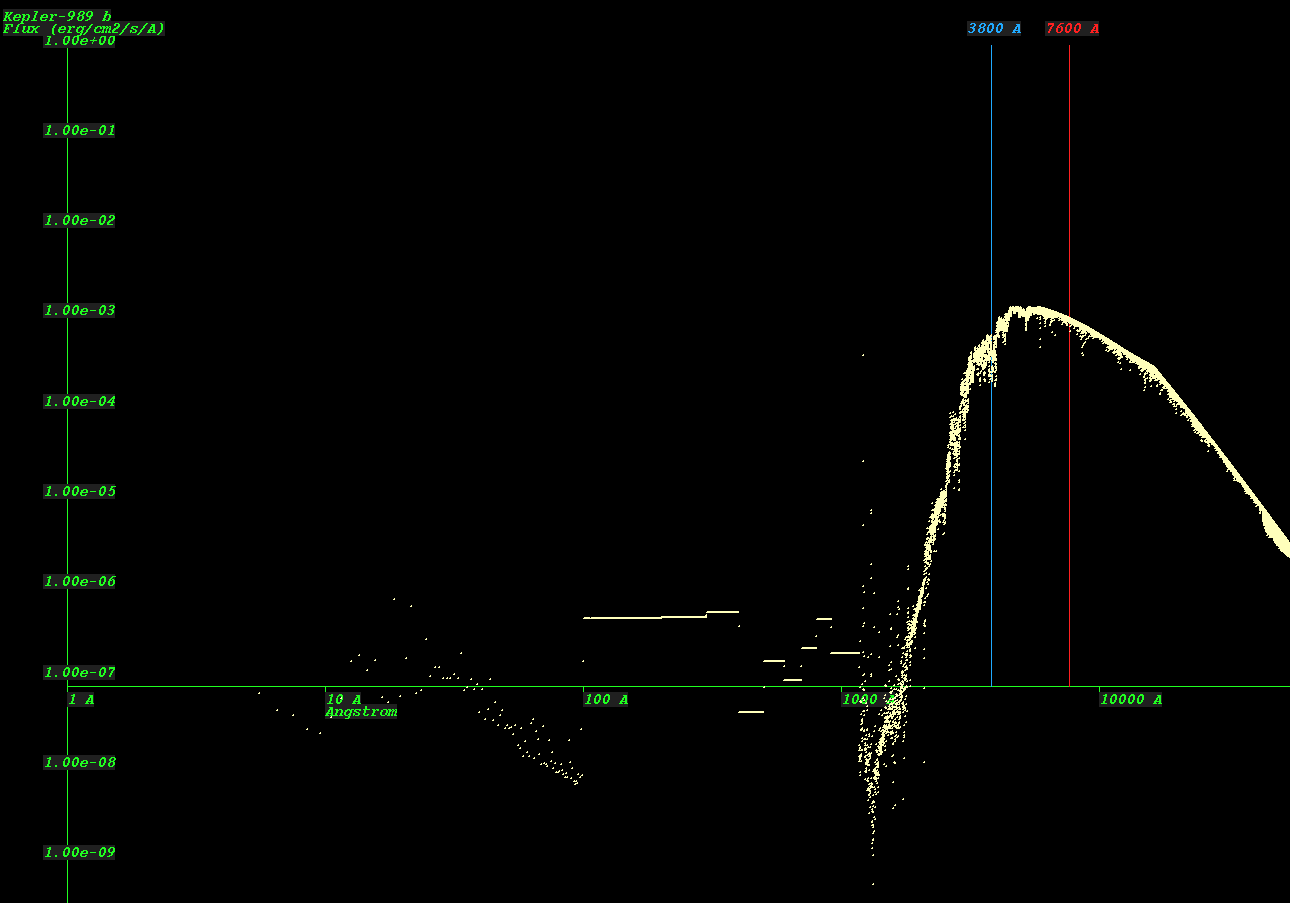

    (Synthetic Spectrum of star Kepler-989*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
