Imaginary Picture of Kepler-982 b

Display orbital revolution of Kepler-982 b around the hoststar Kepler-982
/
Exoplanet Name : Kepler-982 b
Alternate Name : "2MASS J19134024+4635255 b, K01852.01, KIC 9763348 b, KOI-1852 b, KOI-1852.01, WISE J191340.24+463525.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.2010 (Rjup) 2.2530 (Rearth)
Mass (Mjup / Me): 0.0177 (Mjup) 5.6154 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1293 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0432
Orbital Period(Observed/Estimated) 15.77 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1063
Star Radiation at Atmospheric Boundary: 252059.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1000.0 (K)
Blackbody T 0.3(K) 939.1 (K)
Blackbody T 0.7(K) 759.9 (K)
Tidally Locked Blackbody T 0.1(K) 1189.3 (K)
Tidally Locked Blackbody T 0.3(K) 1116.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-982
Alternate Name : "2MASS J19134024+4635255, KIC 9763348, KOI-1852, WISE J191340.24+463525.5"
Star Distance(LY) : 2614.0
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 6333 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 2.7
Apparent Magnitude: 12.2
Right Ascension(RA) 288.4177
Declination (DEC) 46.5904
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 788 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-982&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-982%20b/
Kepler-982 b
Kepler-982 b

  • Kepler-982 b is an exoplanet orbiting the star Kepler-982, located about 2614.0 light-years (801.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-982 has apparent magnitude of 12.2, with absolute magnitude of 2.7.

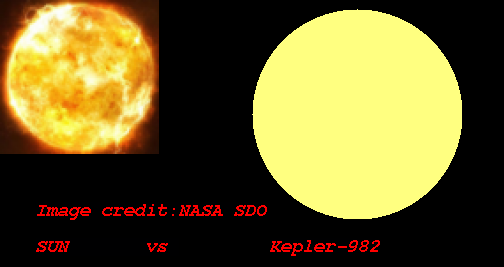

  • It is 1.2 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 6333 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-982 b orbits around the star Kepler-982 every 15.8 days with its orbital distance of 0.13 AU ( 19348288.3 km)

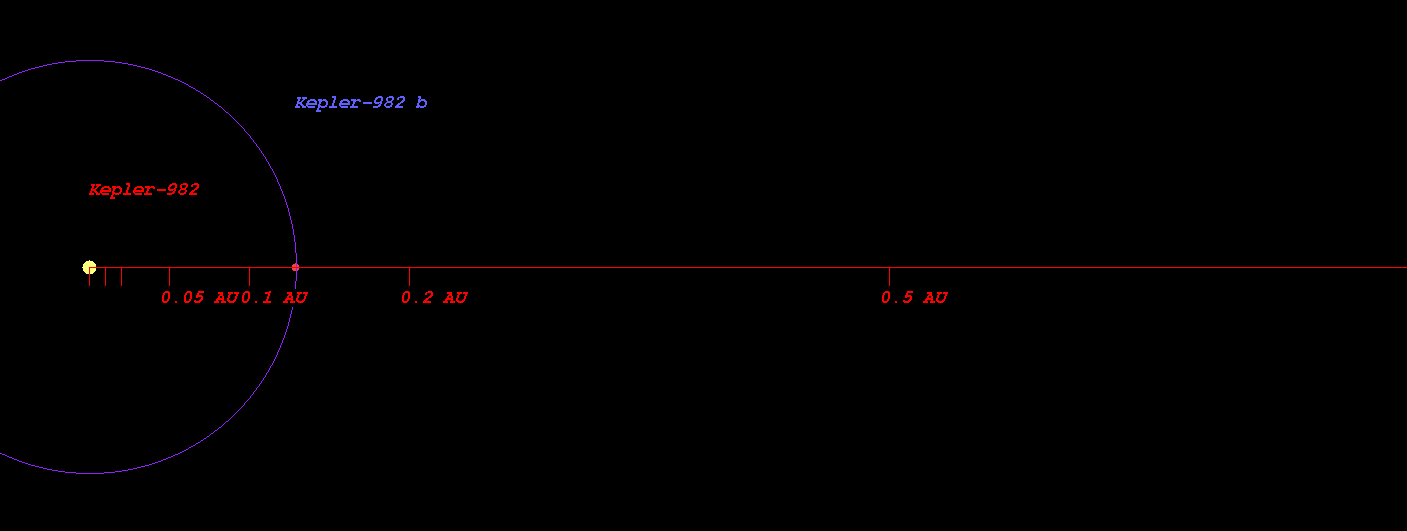

  • (Projected orbit of Kepler-982 b around its host star Kepler-982)


  • The Star Kepler-982 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.270 AU ( 190031003.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.756 AU ( 262672507.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.676 AU ( 400254772.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.937 AU ( 588992431.2 km)
  • Radiation at Planetary Boundary of Kepler-982 b : 252059.59 W/m2

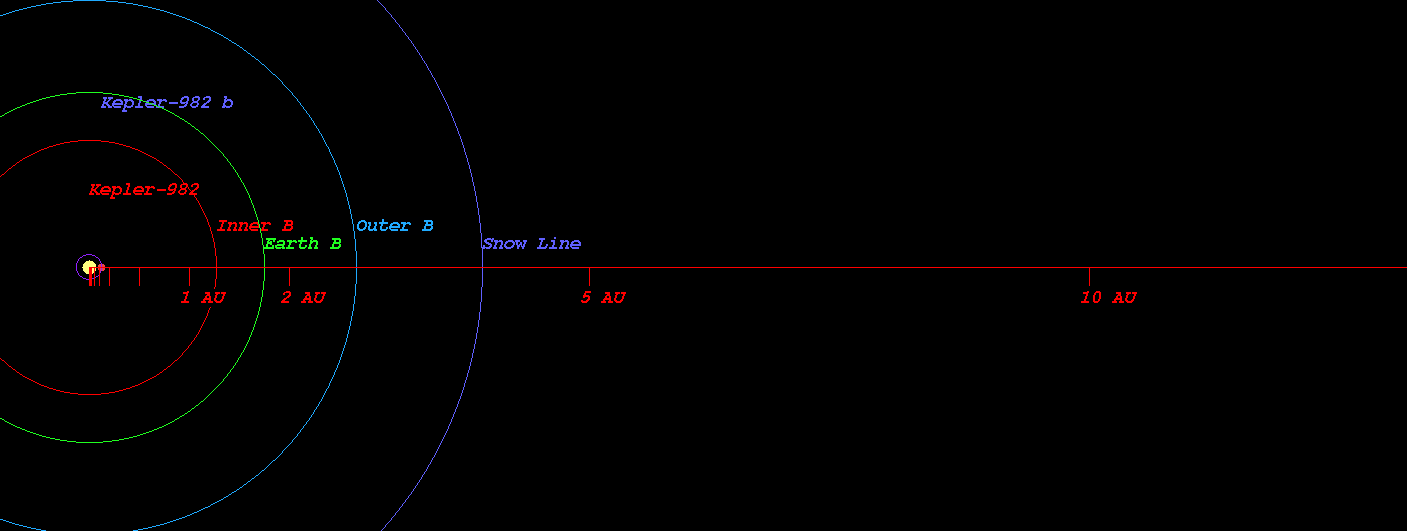

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-982)



  • Kopparapu Recent Venus for Star Kepler-982 distance : 1.273 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-982 distance : 1.612 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-982 distance : 1.557 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-982 distance : 1.706 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-982 distance : 2.812 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-982 distance : 2.966 AU

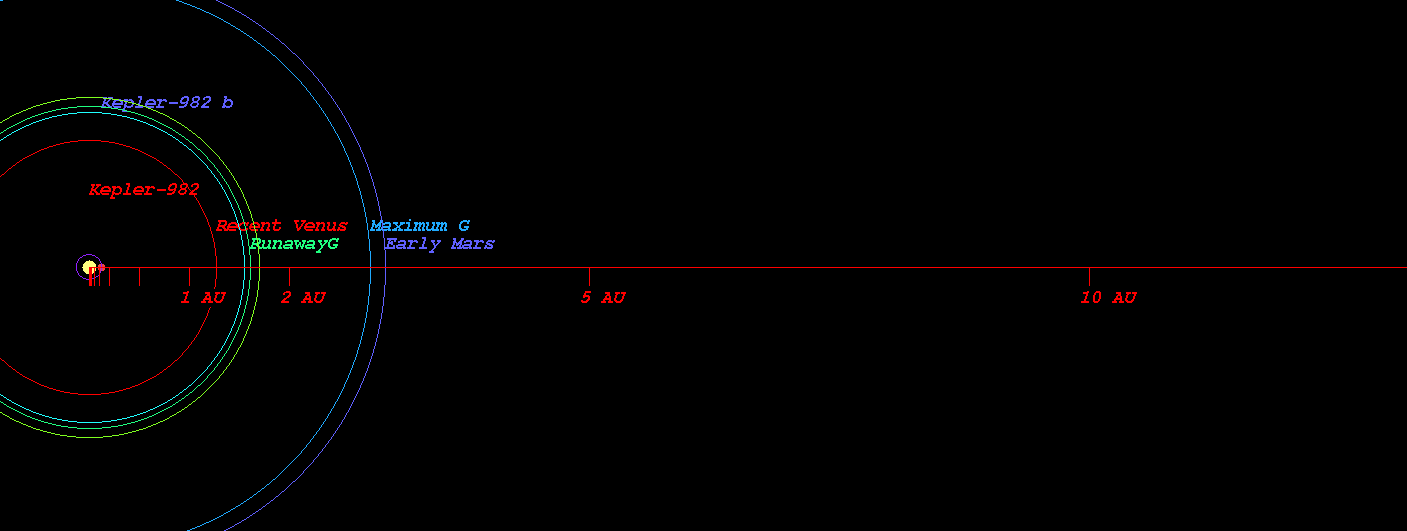

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-982)



  • Original Kopparapu Recent Venus for Star Kepler-982 distance : 1.290 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-982 distance : 1.654 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-982 distance : 1.707 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-982 distance : 2.863 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-982 distance : 2.977 AU

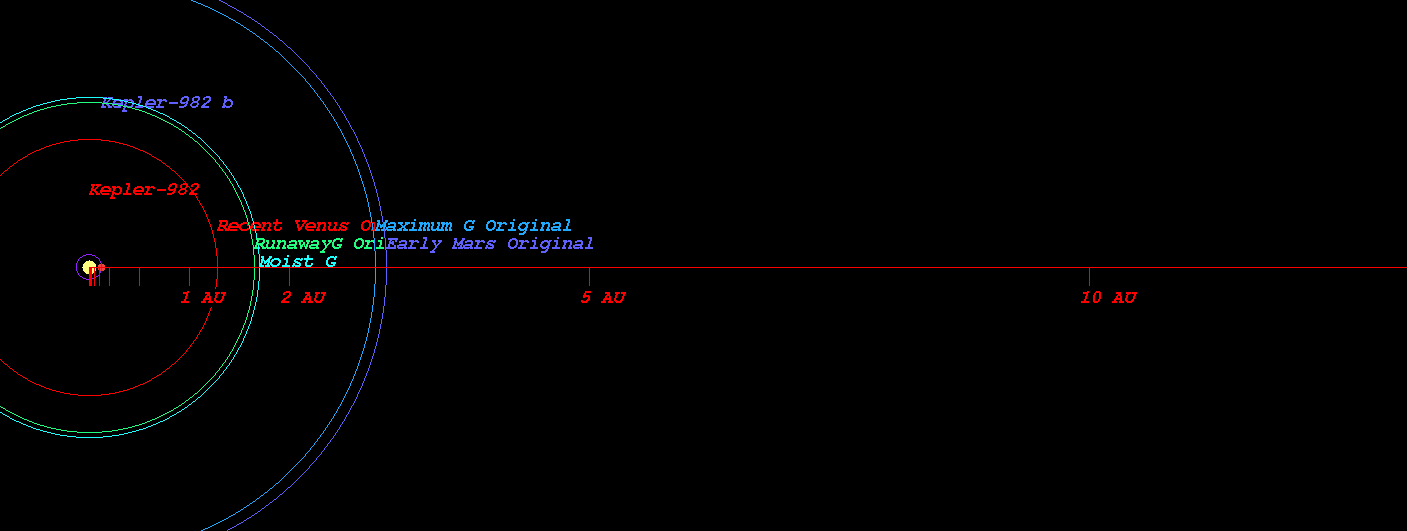

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-982)

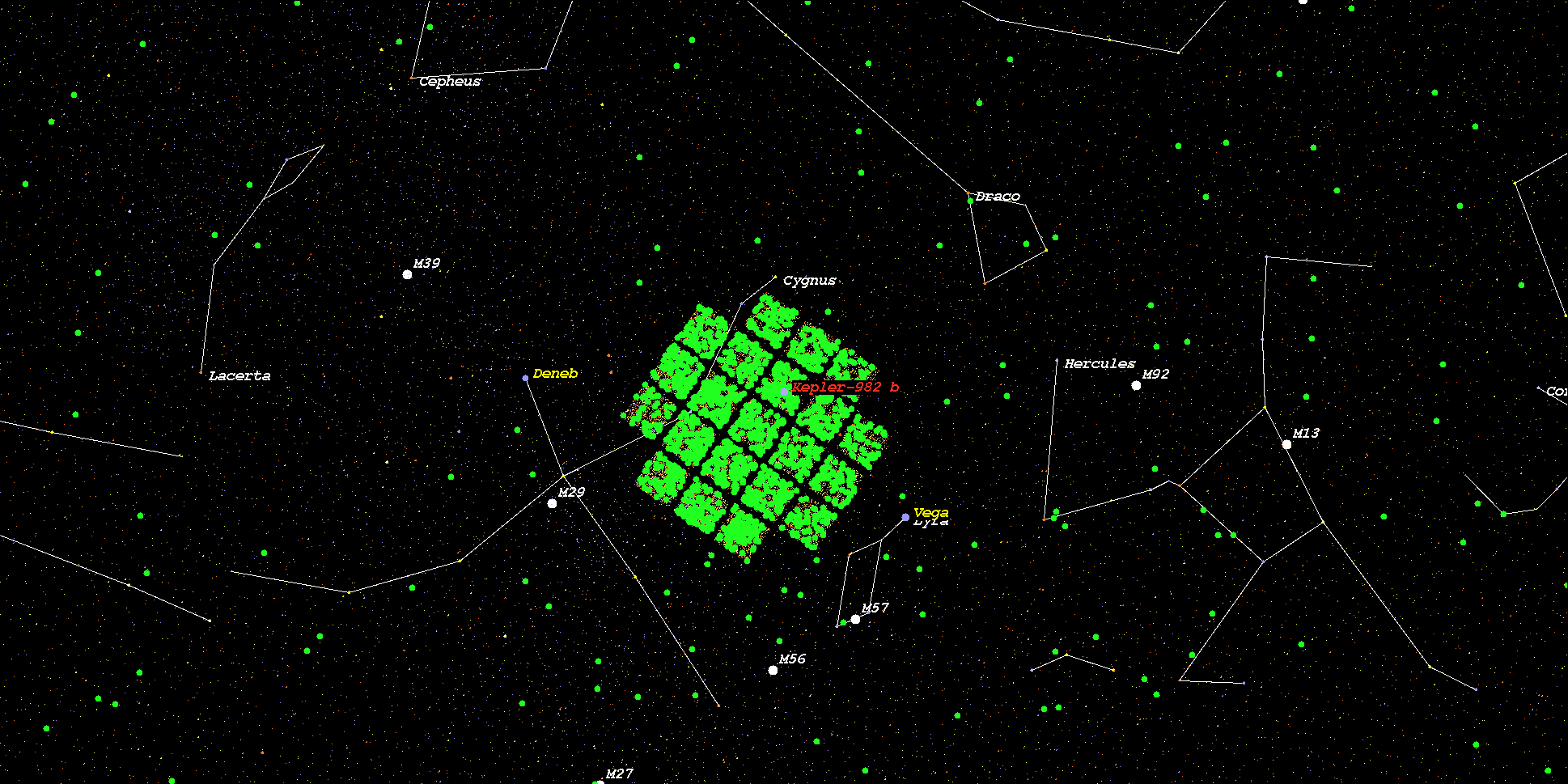

    (Position in Stellar Map of star Kepler-982 and its Exoplanet Kepler-982 b)



    (Zoomed position in Stellar Map of star Kepler-982 and its Exoplanet Kepler-982 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-982*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
