Imaginary Picture of Kepler-914 b

Display orbital revolution of Kepler-914 b around the hoststar Kepler-914
/
Exoplanet Name : Kepler-914 b
Alternate Name : "2MASS J19213888+4453575 b, K01629.01, KIC 8685497 b, KOI-1629 b, KOI-1629.01, WISE J192138.89+445357.6 b"
Status : Confirmed
Radius (Rjup / Re): 0.1230 (Rjup) 1.3787 (Rearth)
Mass (Mjup / Me): 0.0098 (Mjup) 3.1252 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0543 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0121
Orbital Period(Observed/Estimated) 4.41 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.6441
Star Radiation at Atmospheric Boundary: 778583.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1325.8 (K)
Blackbody T 0.3(K) 1245.0 (K)
Blackbody T 0.7(K) 1007.4 (K)
Tidally Locked Blackbody T 0.1(K) 1576.6 (K)
Tidally Locked Blackbody T 0.3(K) 1480.6 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-914
Alternate Name : "2MASS J19213888+4453575, KIC 8685497, KOI-1629, WISE J192138.89+445357.6"
Star Distance(LY) : 2457.1
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 4.0 (GY)
Temperature : 5804 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.2
Absolute Magnitude: 3.1
Apparent Magnitude: 12.5
Right Ascension(RA) 290.4120
Declination (DEC) 44.8993
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 745 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-914&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-914%20b/
Kepler-914 b
Kepler-914 b

  • Kepler-914 b is an exoplanet orbiting the star Kepler-914, located about 2457.1 light-years (753.3 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-914 has apparent magnitude of 12.5, with absolute magnitude of 3.1.
  • It is 1.1 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5804 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-914 b orbits around the star Kepler-914 every 4.4 days with its orbital distance of 0.05 AU ( 8127056.0 km)

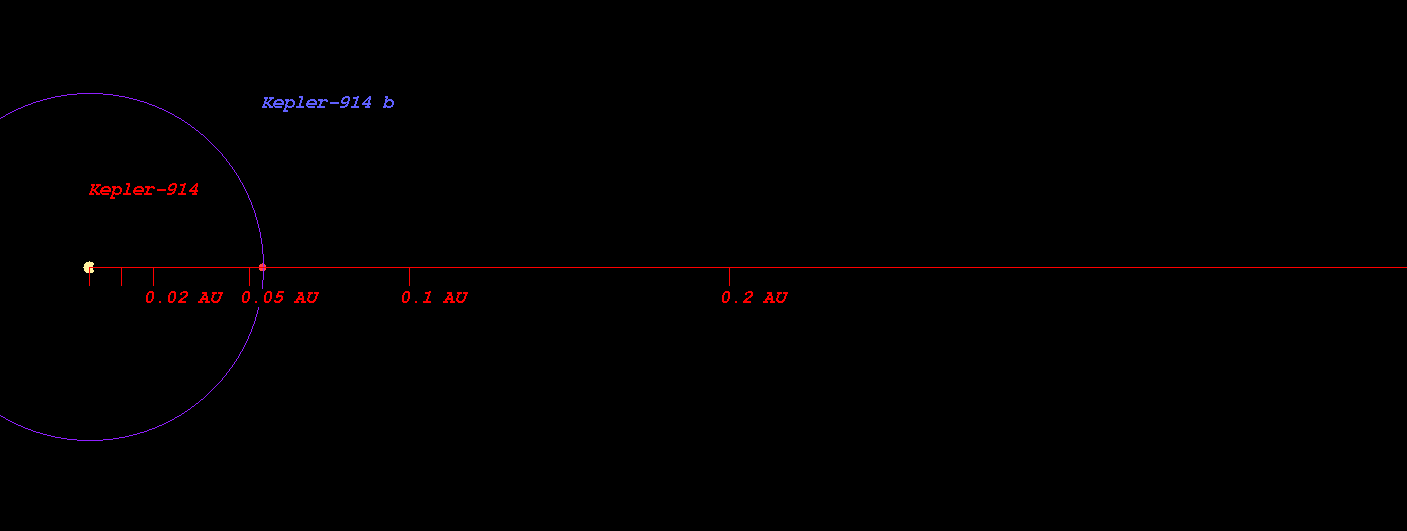

  • (Projected orbit of Kepler-914 b around its host star Kepler-914)


  • The Star Kepler-914 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.938 AU ( 140286554.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.296 AU ( 193912679.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.975 AU ( 295480010.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.907 AU ( 434811779.0 km)
  • Radiation at Planetary Boundary of Kepler-914 b : 778583.14 W/m2

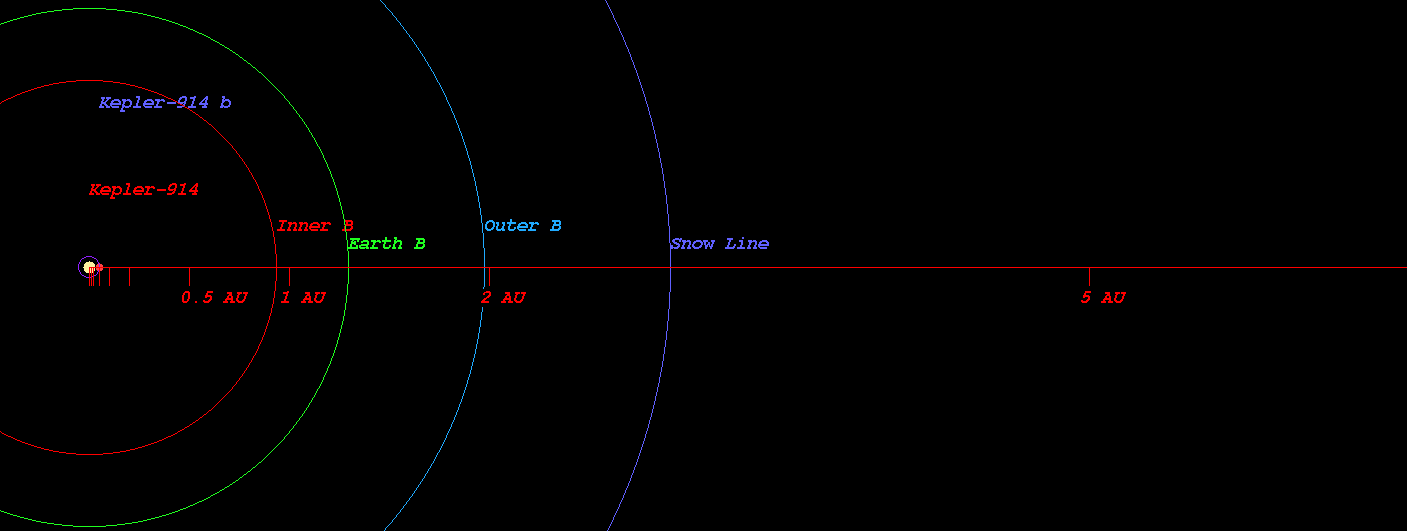

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-914)



  • Kopparapu Recent Venus for Star Kepler-914 distance : 0.970 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-914 distance : 1.229 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-914 distance : 1.187 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-914 distance : 1.301 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-914 distance : 2.169 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-914 distance : 2.287 AU

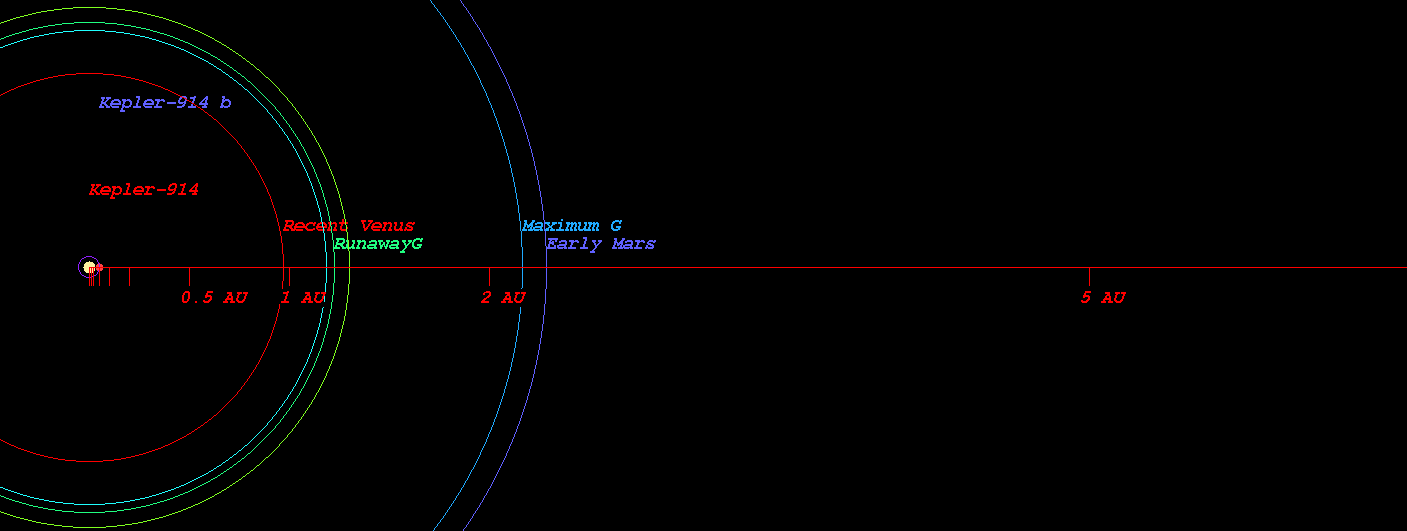

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-914)



  • Original Kopparapu Recent Venus for Star Kepler-914 distance : 0.972 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-914 distance : 1.263 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-914 distance : 1.286 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-914 distance : 2.207 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-914 distance : 2.295 AU

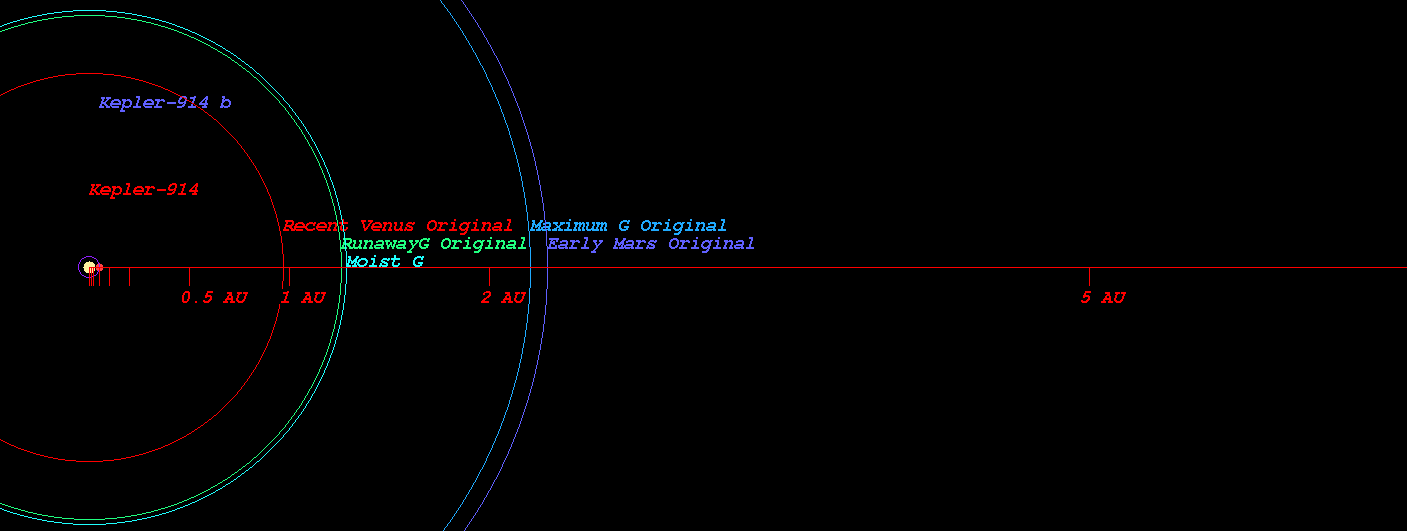

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-914)

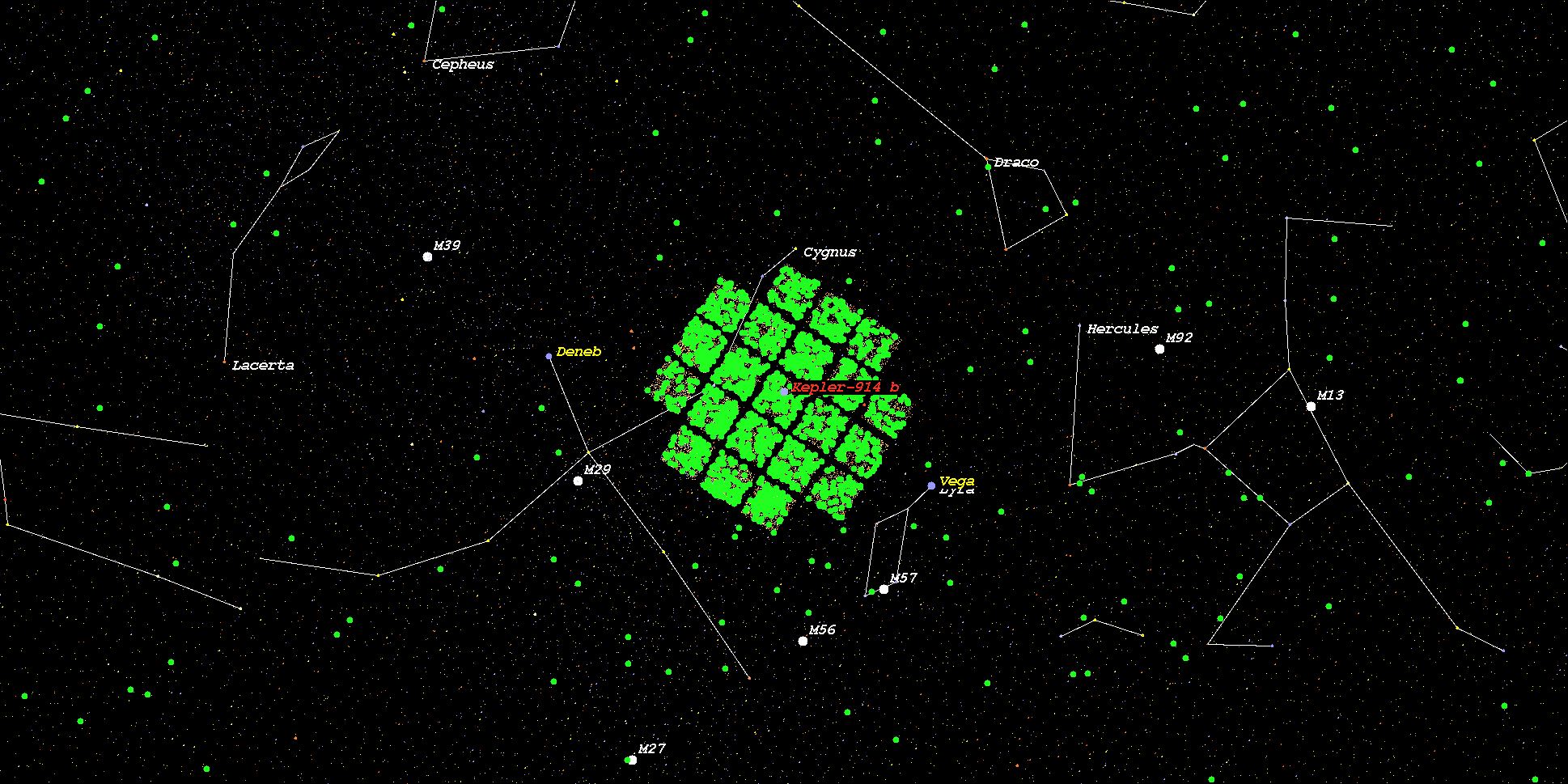

    (Position in Stellar Map of star Kepler-914 and its Exoplanet Kepler-914 b)



    (Zoomed position in Stellar Map of star Kepler-914 and its Exoplanet Kepler-914 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-914*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
