Imaginary Picture of Kepler-907 b

Display orbital revolution of Kepler-907 b around the hoststar Kepler-907
/
Exoplanet Name : Kepler-907 b
Alternate Name : "2MASS J19015438+4137578 b, K01613.01, KIC 6268648 b, KOI-1613 b, KOI-1613.01, WISE J190154.36+413757.6 b"
Status : Confirmed
Radius (Rjup / Re): 0.1070 (Rjup) 1.1994 (Rearth)
Mass (Mjup / Me): 0.0059 (Mjup) 1.8826 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1268 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0434
Orbital Period(Observed/Estimated) 15.87 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3088
Star Radiation at Atmospheric Boundary: 180604.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 920.1 (K)
Blackbody T 0.3(K) 864.0 (K)
Blackbody T 0.7(K) 699.1 (K)
Tidally Locked Blackbody T 0.1(K) 1094.2 (K)
Tidally Locked Blackbody T 0.3(K) 1027.5 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-907
Alternate Name : "2MASS J19015438+4137578, KIC 6268648, KOI-1613, WISE J190154.36+413757.6"
Star Distance(LY) : 991.8
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 5.4 (GY)
Temperature : 6099 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.2
Apparent Magnitude: 10.6
Right Ascension(RA) 285.4766
Declination (DEC) 41.6327
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 740 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-907&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-907%20b/
Kepler-907 b
Kepler-907 b

  • Kepler-907 b is an exoplanet orbiting the star Kepler-907, located about 991.8 light-years (304.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-907 has apparent magnitude of 10.6, with absolute magnitude of 3.2.

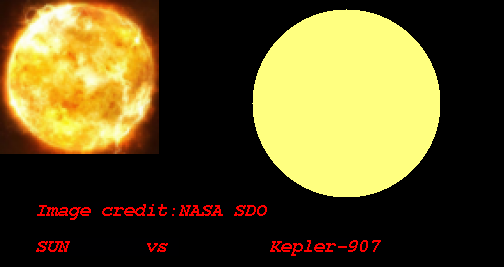

  • It is 1.1 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 6099 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-907 b orbits around the star Kepler-907 every 15.9 days with its orbital distance of 0.13 AU ( 18966569.9 km)

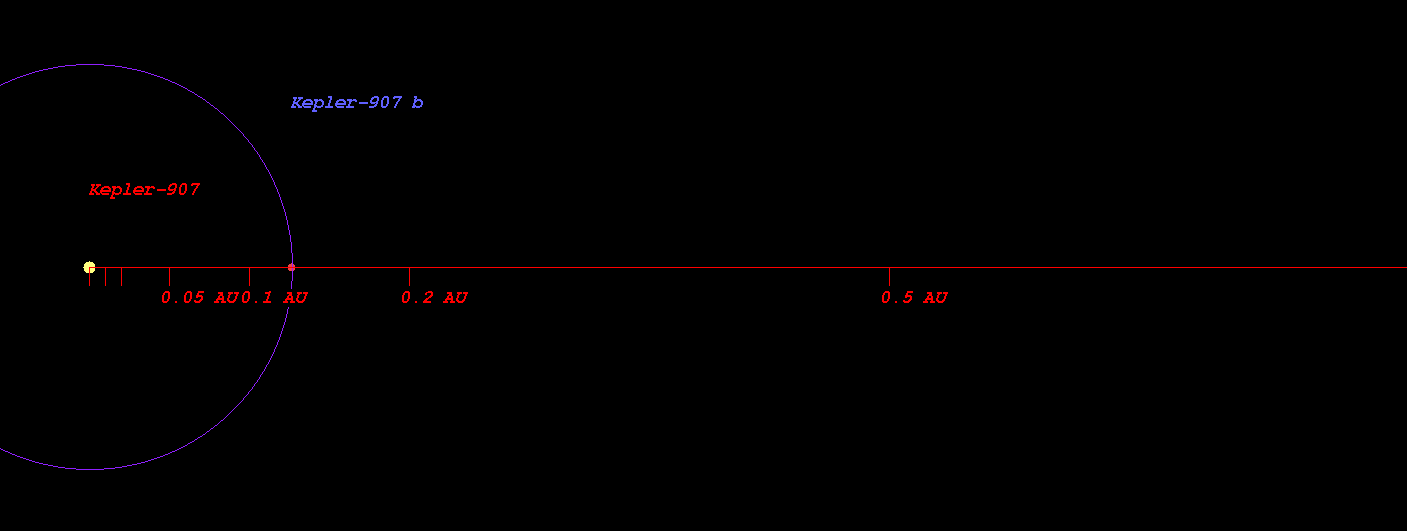

  • (Projected orbit of Kepler-907 b around its host star Kepler-907)


  • The Star Kepler-907 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.054 AU ( 157682364.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.457 AU ( 217958234.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.220 AU ( 332120115.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.267 AU ( 488729299.6 km)
  • Radiation at Planetary Boundary of Kepler-907 b : 180604.29 W/m2

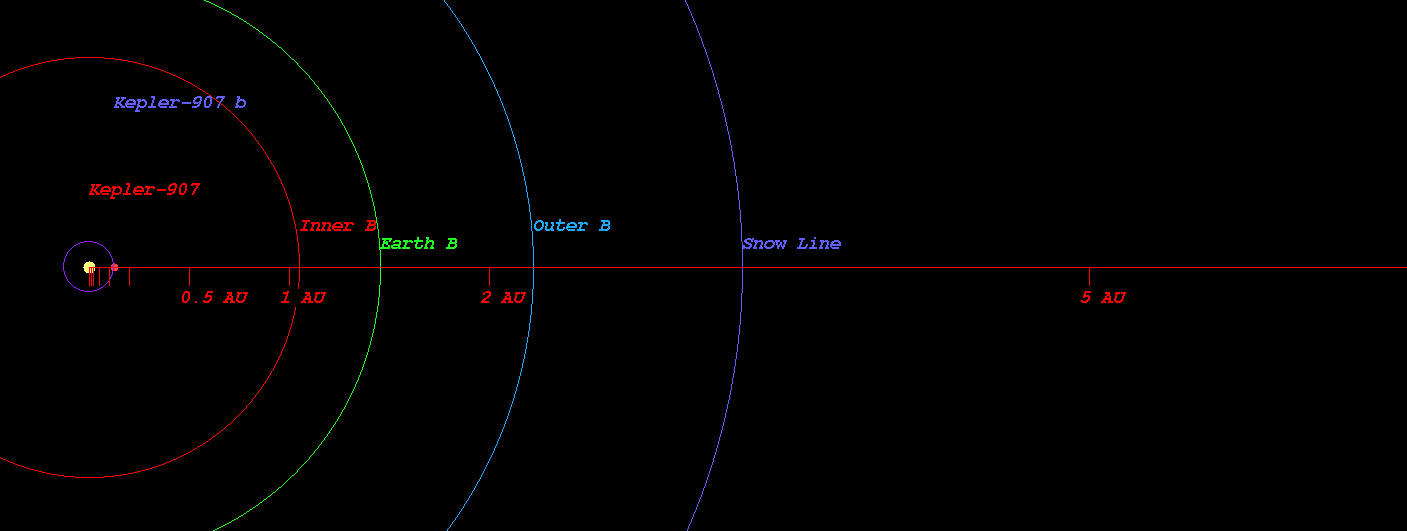

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-907)



  • Kopparapu Recent Venus for Star Kepler-907 distance : 1.071 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-907 distance : 1.357 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-907 distance : 1.310 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-907 distance : 1.436 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-907 distance : 2.378 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-907 distance : 2.508 AU

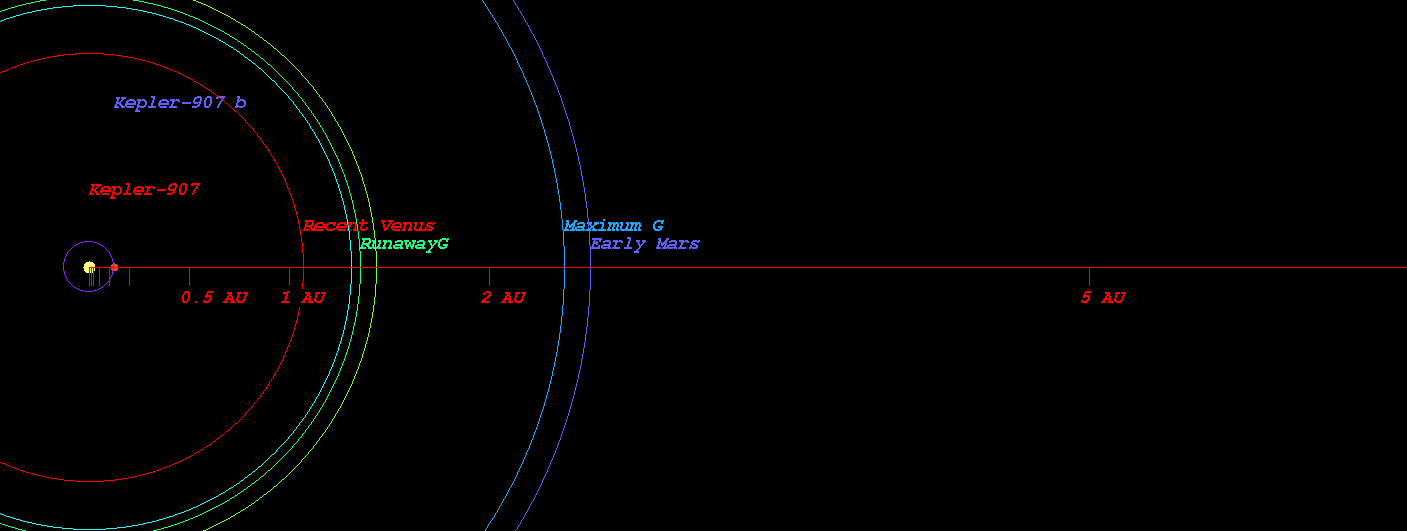

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-907)



  • Original Kopparapu Recent Venus for Star Kepler-907 distance : 1.080 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-907 distance : 1.393 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-907 distance : 1.429 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-907 distance : 2.420 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-907 distance : 2.517 AU

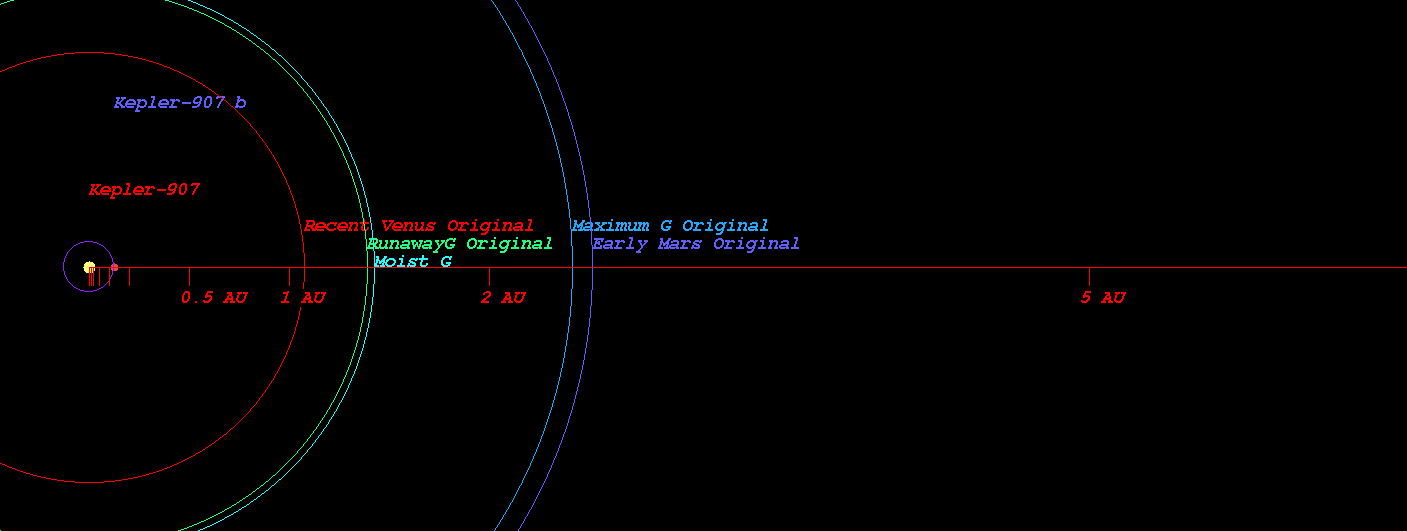

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-907)

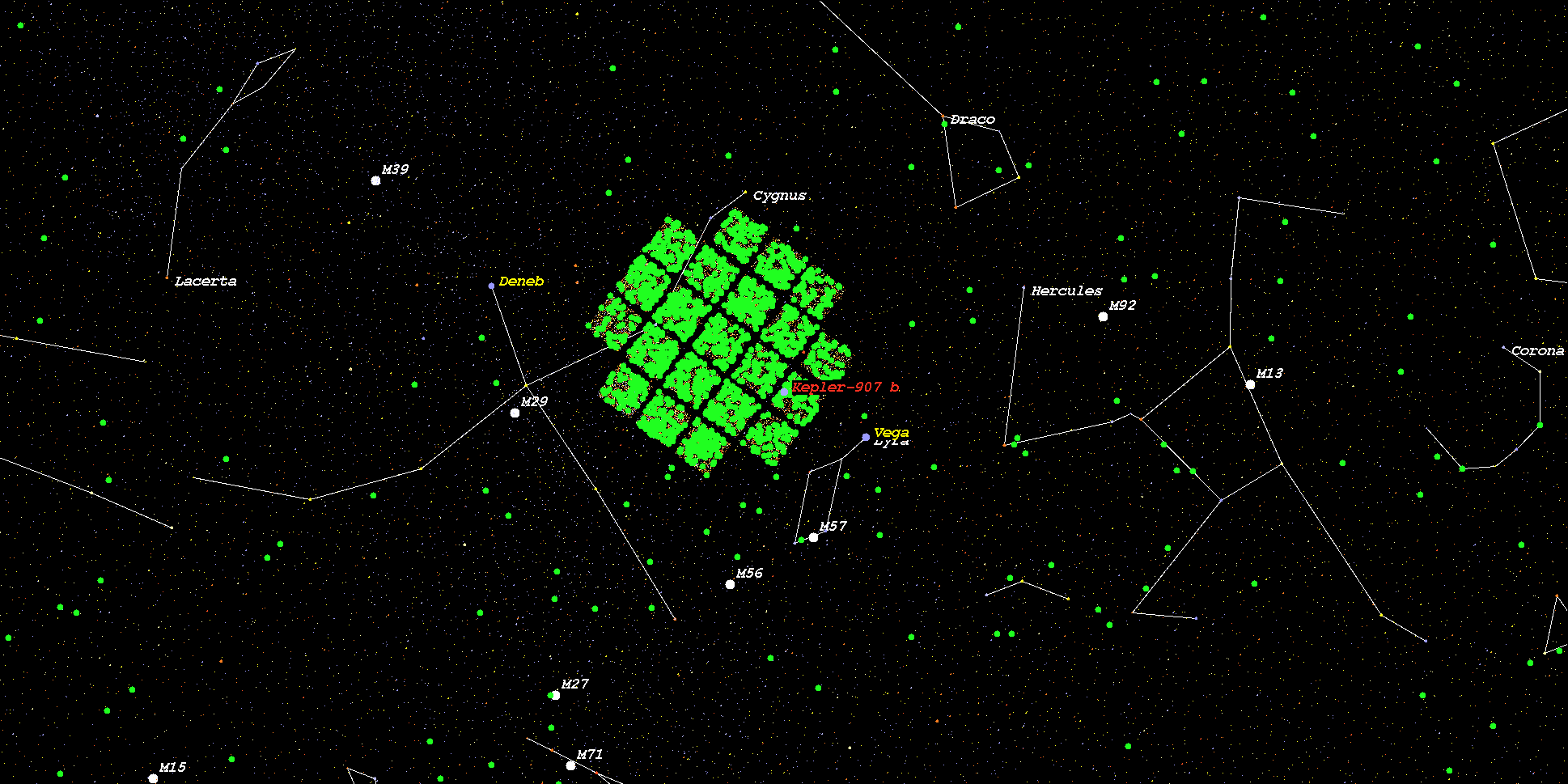

    (Position in Stellar Map of star Kepler-907 and its Exoplanet Kepler-907 b)



    (Zoomed position in Stellar Map of star Kepler-907 and its Exoplanet Kepler-907 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-907*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
