Imaginary Picture of Kepler-893 b

Display orbital revolution of Kepler-893 b around the hoststar Kepler-893
/
Exoplanet Name : Kepler-893 b
Alternate Name : "2MASS J18595112+4354468 b, K01570.01, KIC 8082001 b, KOI-1570 b, KOI-1570.01, WISE J185951.16+435446.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.2700 (Rjup) 3.0264 (Rearth)
Mass (Mjup / Me): 0.0232 (Mjup) 7.3889 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0670 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0174
Orbital Period(Observed/Estimated) 6.34 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8067
Star Radiation at Atmospheric Boundary: 395239.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1119.1 (K)
Blackbody T 0.3(K) 1050.9 (K)
Blackbody T 0.7(K) 850.3 (K)
Tidally Locked Blackbody T 0.1(K) 1330.8 (K)
Tidally Locked Blackbody T 0.3(K) 1249.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-893
Alternate Name : "2MASS J18595112+4354468, KIC 8082001, KOI-1570, WISE J185951.16+435446.9"
Star Distance(LY) : 4194.8
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 3.8 (GY)
Temperature : 6123 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.0
Absolute Magnitude: 3.6
Apparent Magnitude: 14.1
Right Ascension(RA) 284.9630
Declination (DEC) 43.9130
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 730 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-893&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-893%20b/
Kepler-893 b
Kepler-893 b

  • Kepler-893 b is an exoplanet orbiting the star Kepler-893, located about 4194.8 light-years (1286.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-893 has apparent magnitude of 14.1, with absolute magnitude of 3.6.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 6123 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-893 b orbits around the star Kepler-893 every 6.3 days with its orbital distance of 0.07 AU ( 10027489.7 km)

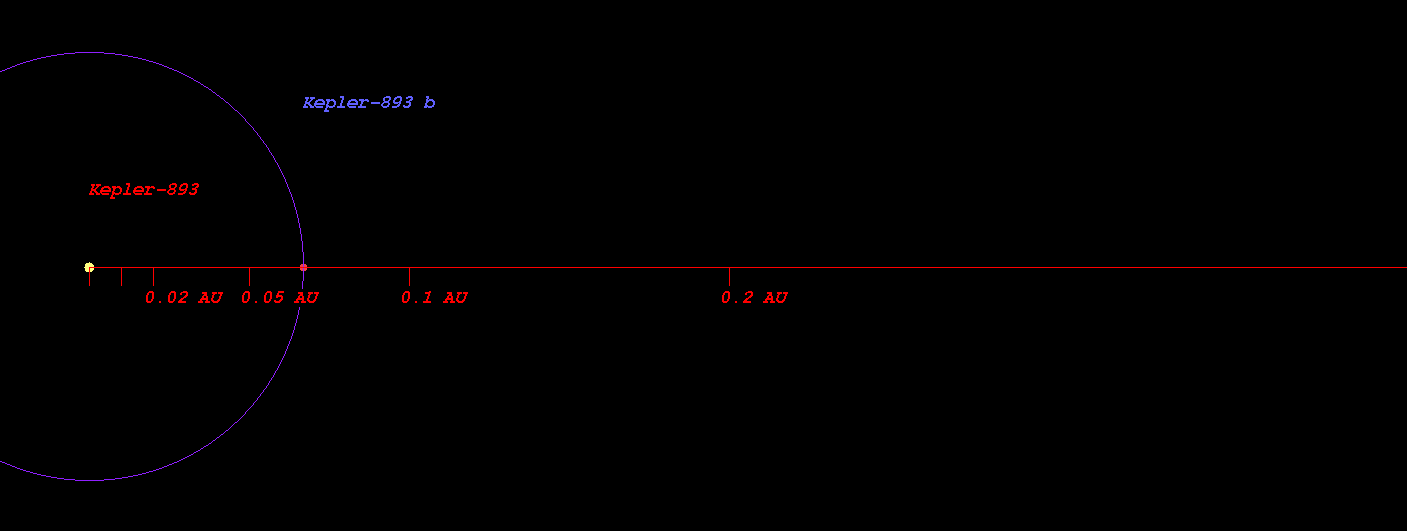

  • (Projected orbit of Kepler-893 b around its host star Kepler-893)


  • The Star Kepler-893 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.824 AU ( 123325440.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.140 AU ( 170467986.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.736 AU ( 259755487.5 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.555 AU ( 382241579.0 km)
  • Radiation at Planetary Boundary of Kepler-893 b : 395239.47 W/m2

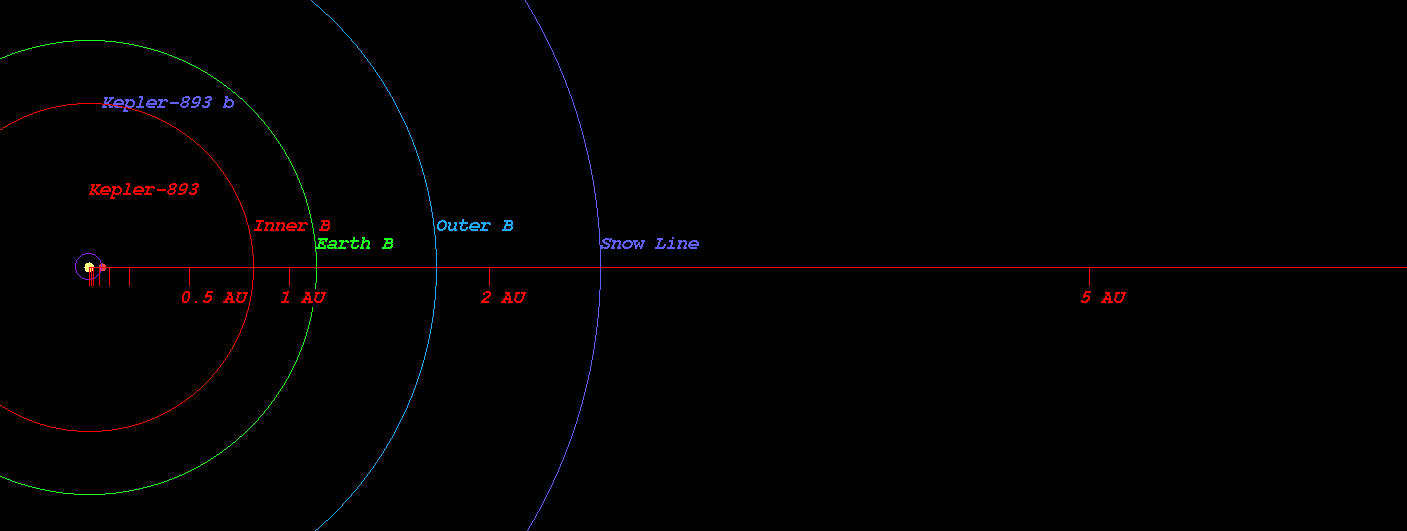

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-893)



  • Kopparapu Recent Venus for Star Kepler-893 distance : 0.837 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-893 distance : 1.060 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-893 distance : 1.023 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-893 distance : 1.122 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-893 distance : 1.856 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-893 distance : 1.957 AU

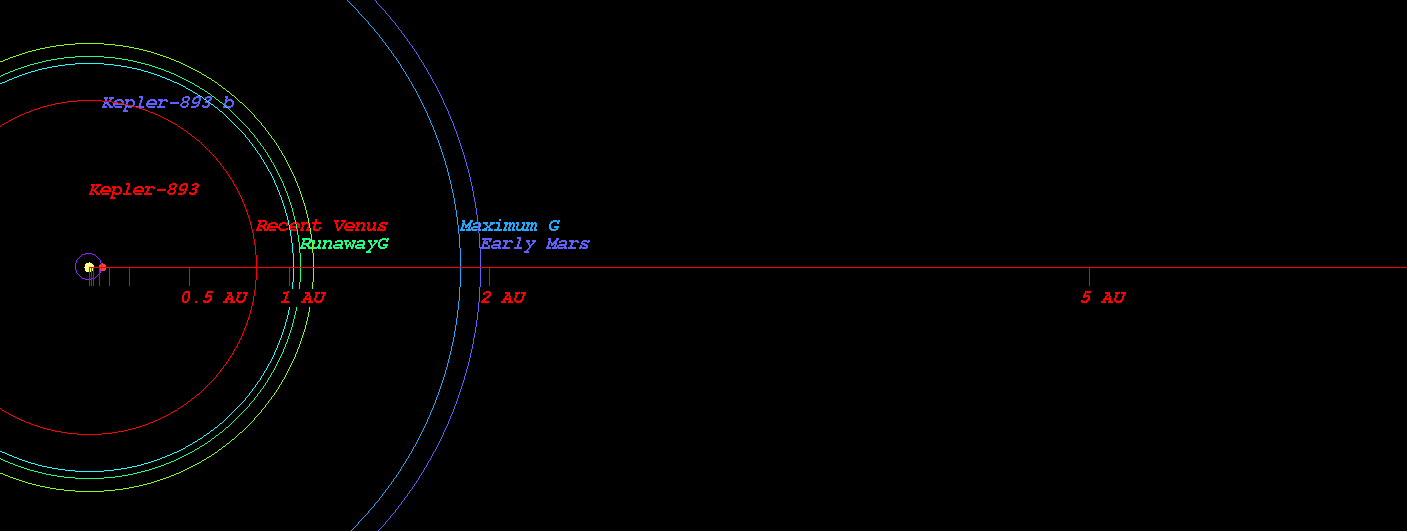

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-893)



  • Original Kopparapu Recent Venus for Star Kepler-893 distance : 0.844 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-893 distance : 1.088 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-893 distance : 1.117 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-893 distance : 1.889 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-893 distance : 1.964 AU

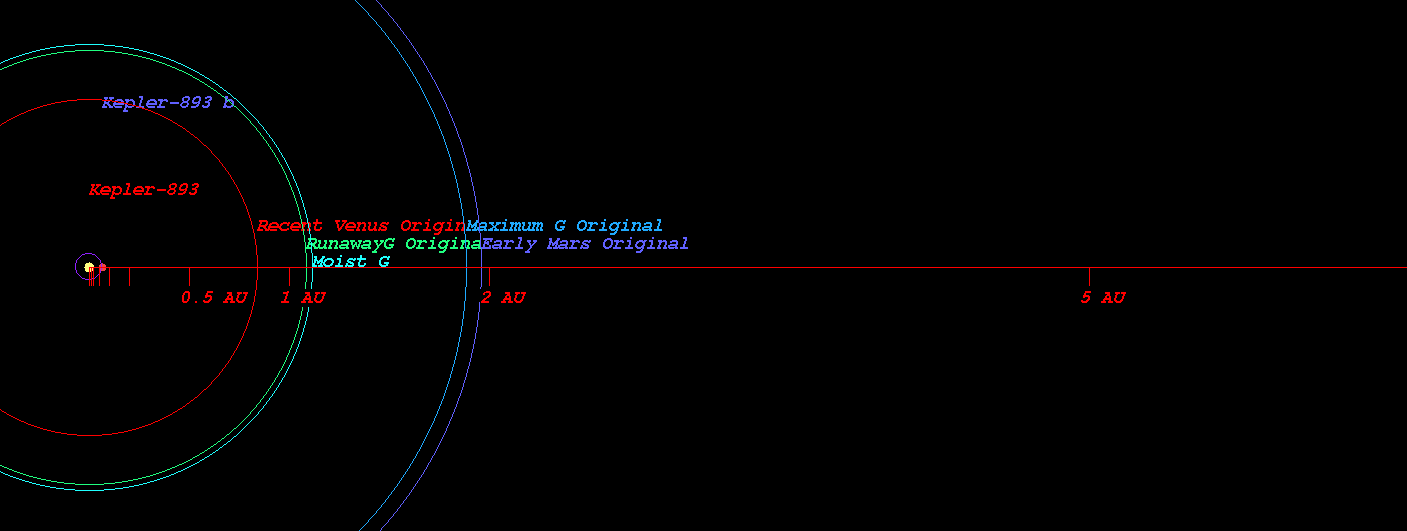

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-893)

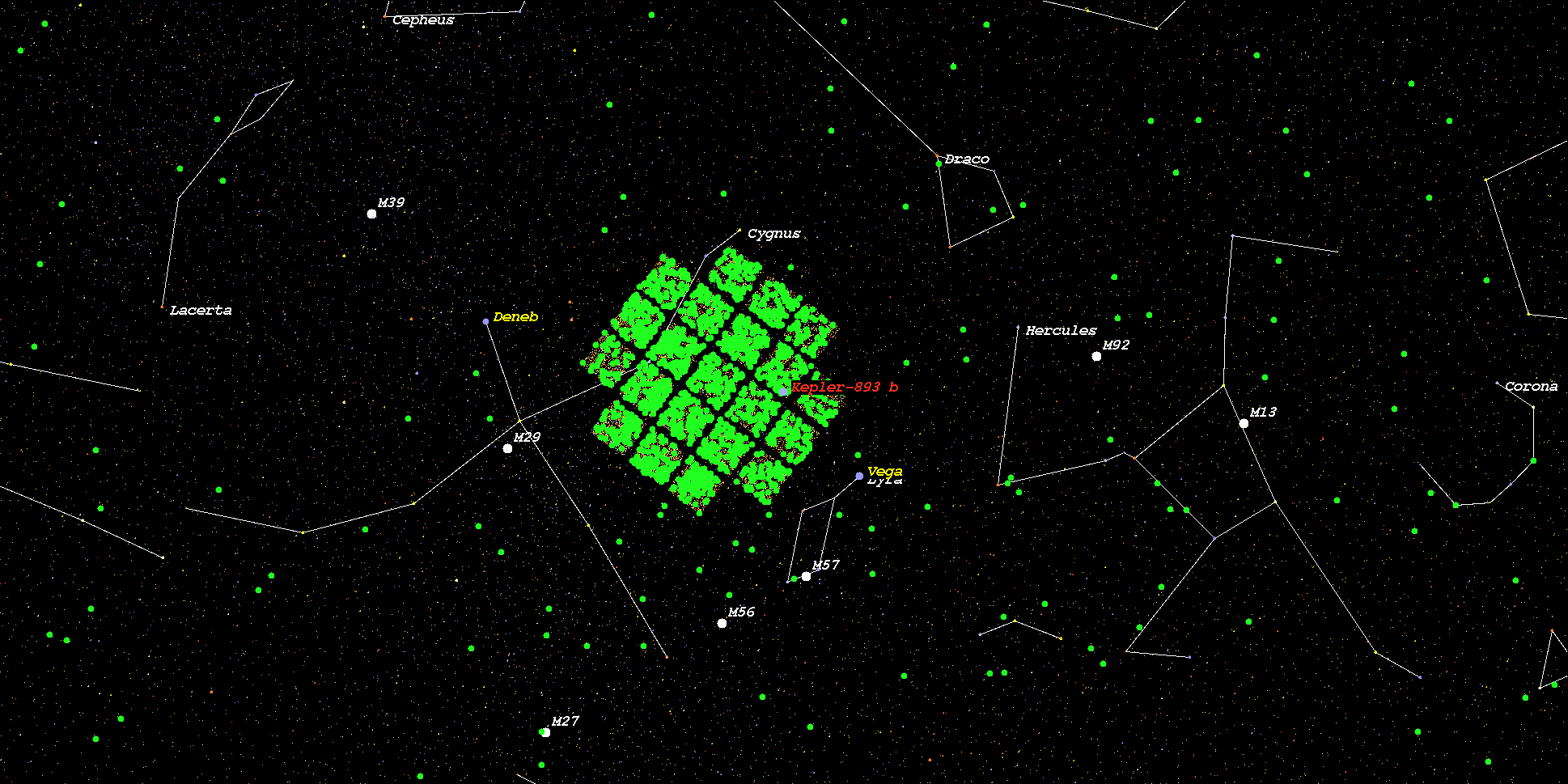

    (Position in Stellar Map of star Kepler-893 and its Exoplanet Kepler-893 b)



    (Zoomed position in Stellar Map of star Kepler-893 and its Exoplanet Kepler-893 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-893*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
