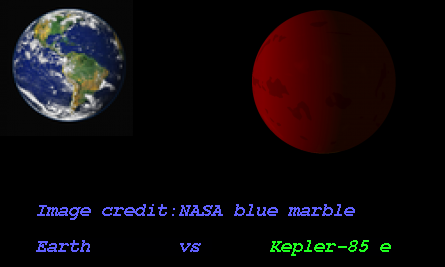

Imaginary Picture of Kepler-85 e

Display orbital revolution of Kepler-85 e around the hoststar Kepler-85
/
Exoplanet Name : Kepler-85 e
Alternate Name : "2MASS J19235362+4517251 e, K02038.04, KIC 8950568 e, KOI-2038 e, KOI-2038.04, WISE J192353.62+451725.0 e"
Status : Confirmed
Radius (Rjup / Re): 0.1130 (Rjup) 1.2666 (Rearth)
Mass (Mjup / Me): 0.0072 (Mjup) 2.2946 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1630 (AU) 0.1630 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0690
Orbital Period(Observed/Estimated) 25.22 (Days Obs.) 24.66 (Days Est.)
Surface Gravity (G Earth) 1.4303
Star Radiation at Atmospheric Boundary: 32286.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 598.3 (K)
Blackbody T 0.3(K) 561.8 (K)
Blackbody T 0.7(K) 454.6 (K)
Tidally Locked Blackbody T 0.1(K) 711.5 (K)
Tidally Locked Blackbody T 0.3(K) 668.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-85
Alternate Name : "2MASS J19235362+4517251, KIC 8950568, KOI-2038, WISE J192353.62+451725.0"
Star Distance(LY) : 2494.8
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5520 (K)
Spectral type : G7
UV portion[%]: 6.6
Visible portion[%]: 42.7
IR portion[%]: 50.7
Metalicity : 0.0
Absolute Magnitude: 5.6
Apparent Magnitude: 15.0
Right Ascension(RA) 290.9734
Declination (DEC) 45.2903
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-85&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-85%20e/
Kepler-85 e
Kepler-85 e

  • Kepler-85 e is an exoplanet orbiting the star Kepler-85, located about 2494.8 light-years (764.9 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-85 has apparent magnitude of 15.0, with absolute magnitude of 5.6.

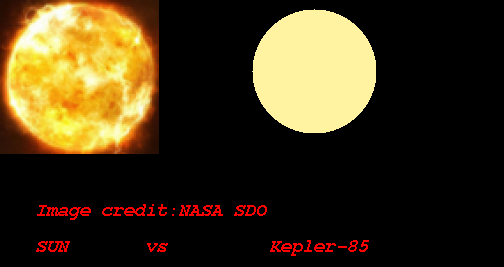

  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5520 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-85 e orbits around the star Kepler-85 every 25.2 days with its orbital distance of 0.16 AU ( 24384452.9 km)

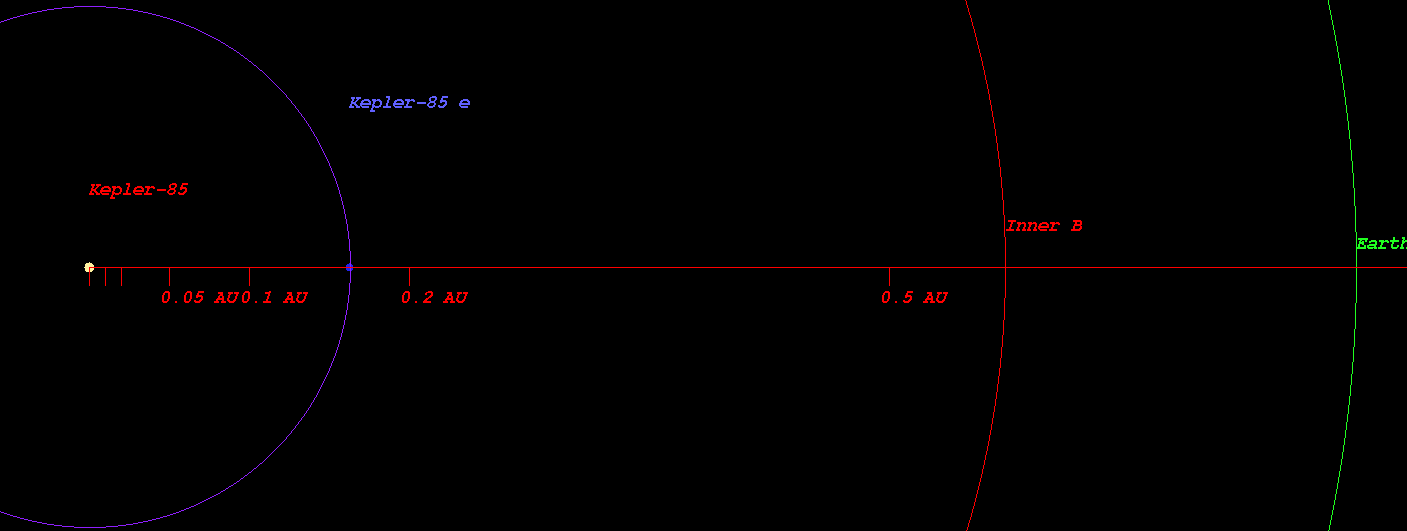

  • (Projected orbit of Kepler-85 e around its host star Kepler-85)


  • The Star Kepler-85 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.573 AU ( 85714834.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.792 AU ( 118480301.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.207 AU ( 180537760.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.776 AU ( 265669223.2 km)
  • Radiation at Planetary Boundary of Kepler-85 e : 32286.83 W/m2

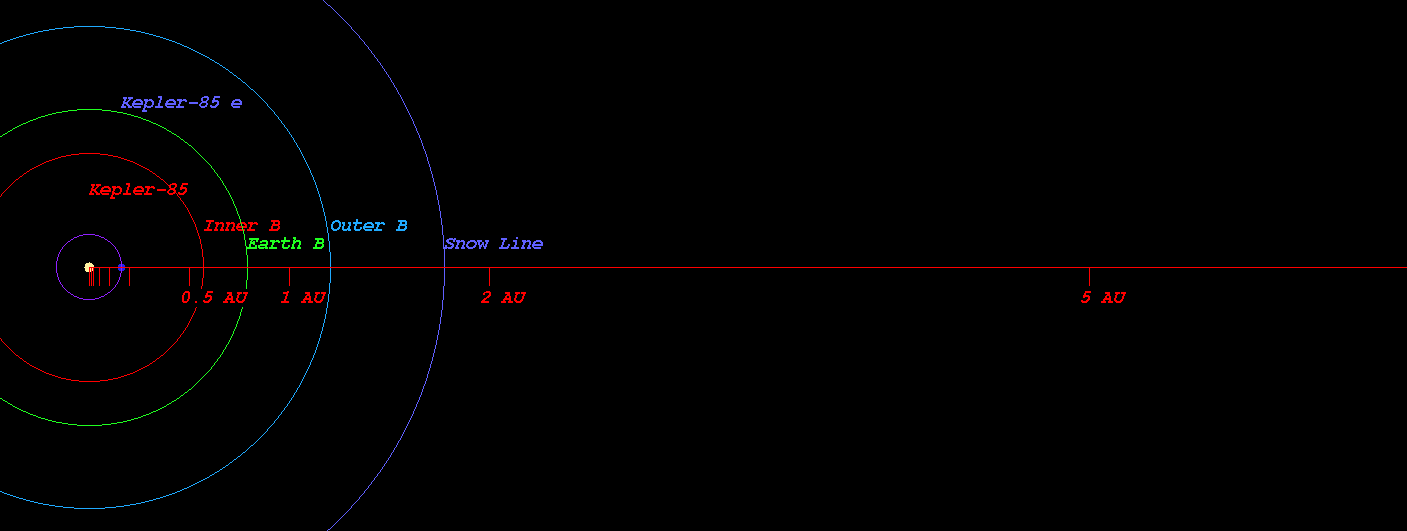

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-85)



  • Kopparapu Recent Venus for Star Kepler-85 distance : 0.603 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-85 distance : 0.764 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-85 distance : 0.737 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-85 distance : 0.809 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-85 distance : 1.358 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-85 distance : 1.433 AU

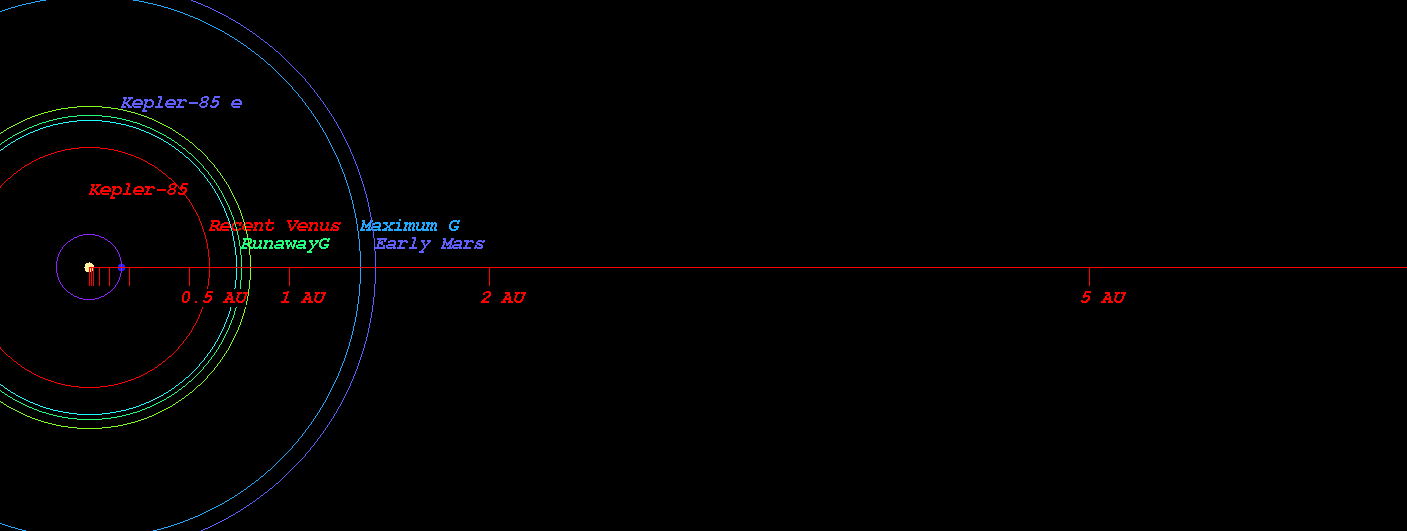

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-85)



  • Original Kopparapu Recent Venus for Star Kepler-85 distance : 0.601 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-85 distance : 0.785 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-85 distance : 0.795 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-85 distance : 1.382 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-85 distance : 1.437 AU

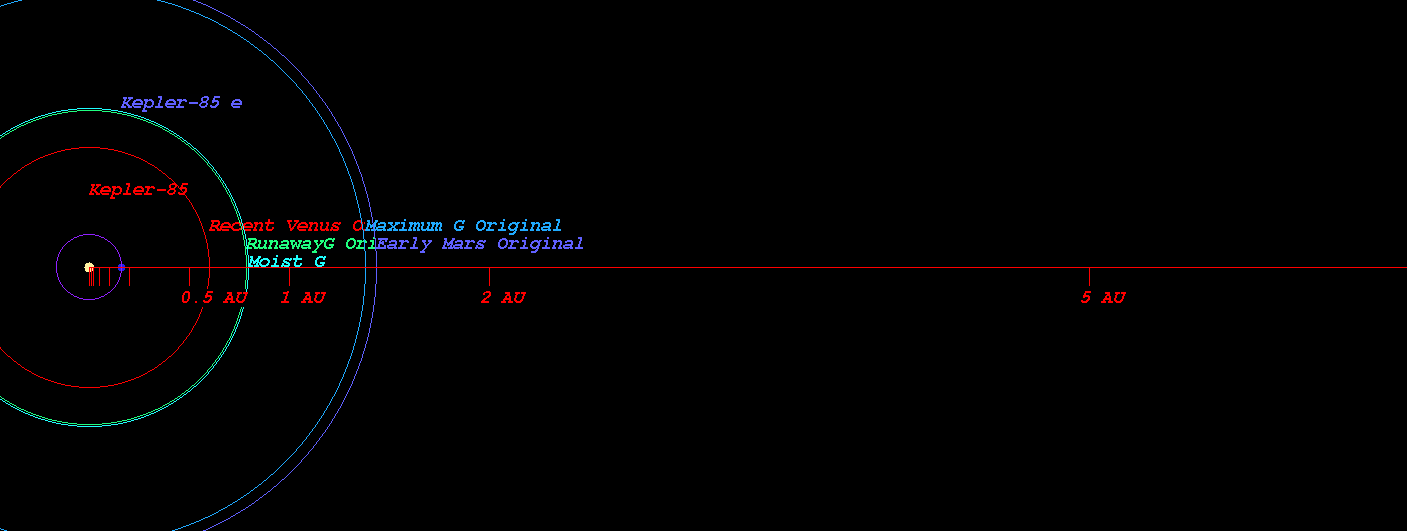

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-85)

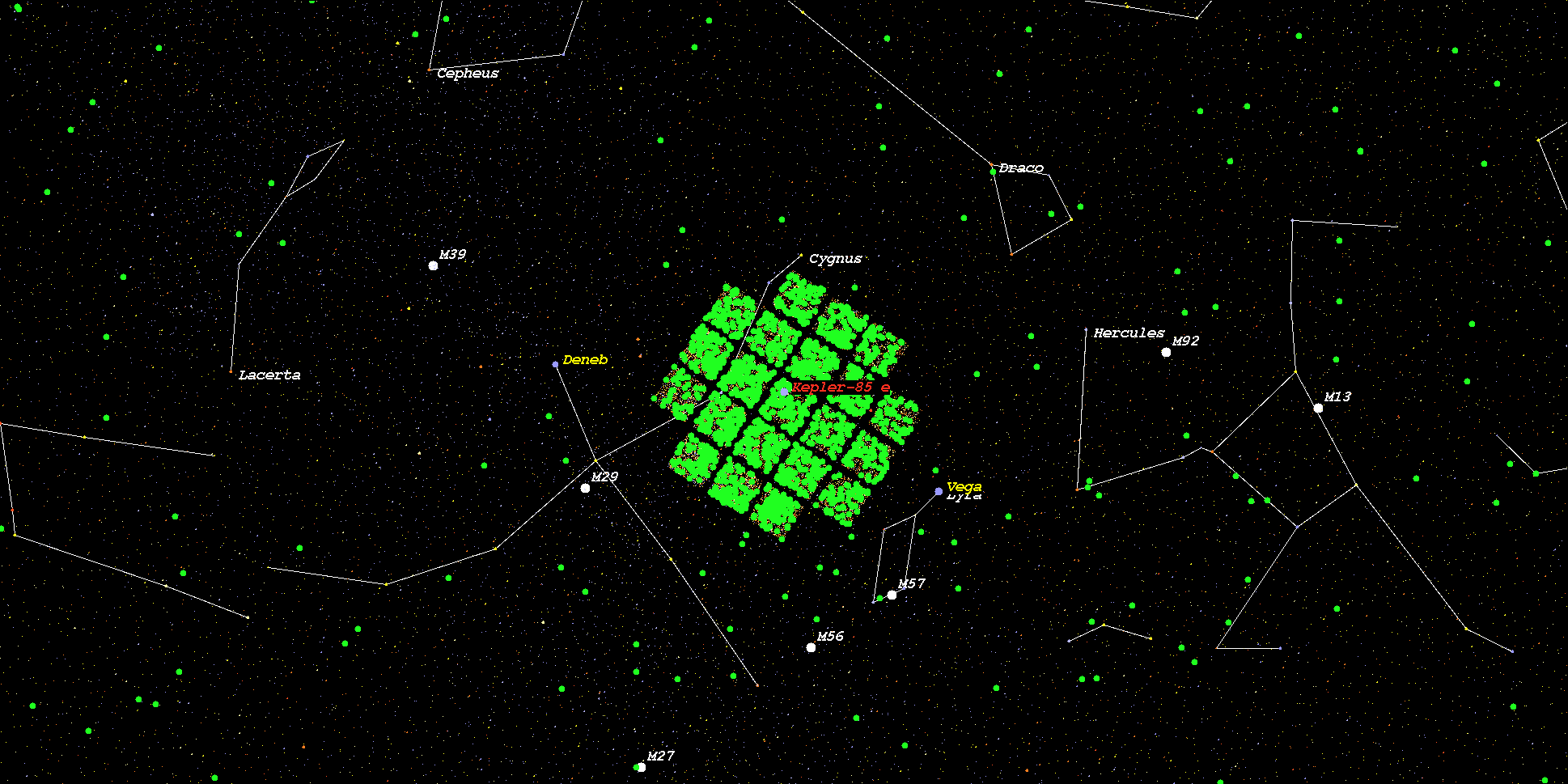

    (Position in Stellar Map of star Kepler-85 and its Exoplanet Kepler-85 e)



    (Zoomed position in Stellar Map of star Kepler-85 and its Exoplanet Kepler-85 e (zoom level 3))

    (Synthetic Spectrum of star Kepler-85*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
