Imaginary Picture of Kepler-83 d

Display orbital revolution of Kepler-83 d around the hoststar Kepler-83
/
Exoplanet Name : Kepler-83 d
Alternate Name : "2MASS J18485580+4339562 d, K00898.02, KIC 7870390 d, KOI-898 d, KOI-898.02, Kepler-83 A d, WISE J184855.80+433956.1 d"
Radius (Rjup / Re): 0.1730 (Rjup) 1.9392 (Rearth)
Mass (Mjup / Me): 0.0154 (Mjup) 4.8842 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0510 (AU) 0.0510 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0142
Orbital Period(Observed/Estimated) 5.17 (Days Obs.) 5.16 (Days Est.)
Surface Gravity (G Earth) 1.2989
Star Radiation at Atmospheric Boundary: 41281.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 636.2 (K)
Blackbody T 0.3(K) 597.4 (K)
Blackbody T 0.7(K) 483.4 (K)
Tidally Locked Blackbody T 0.1(K) 756.6 (K)
Tidally Locked Blackbody T 0.3(K) 710.5 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-83
Alternate Name : "2MASS J18485580+4339562, KIC 7870390, KOI-898, Kepler-83 A, WISE J184855.80+433956.1"
Star Distance(LY) : 1305.8
Stellar Radius(Rsun) : 0.6 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3907 (K)
Spectral type : M0 V
UV portion[%]: 2.0
Visible portion[%]: 33.4
IR portion[%]: 64.5
Metalicity : -0.2
Absolute Magnitude: 8.5
Apparent Magnitude: 16.5
Right Ascension(RA) 282.2325
Declination (DEC) 43.6656
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-83+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-83%20d/
Kepler-83 d
Kepler-83 d

  • Kepler-83 d is an exoplanet orbiting the star Kepler-83, located about 1305.8 light-years (400.4 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-83 has apparent magnitude of 16.5, with absolute magnitude of 8.5.
  • It is 0.7 times more massive and 0.6 times bigger compared with our Sun. The surface temperature is 3907 with its spectral types of M0 V
  • In this planetary system, the extrasolar planet Kepler-83 d orbits around the star Kepler-83 every 5.2 days with its orbital distance of 0.05 AU ( 7629491.4 km)

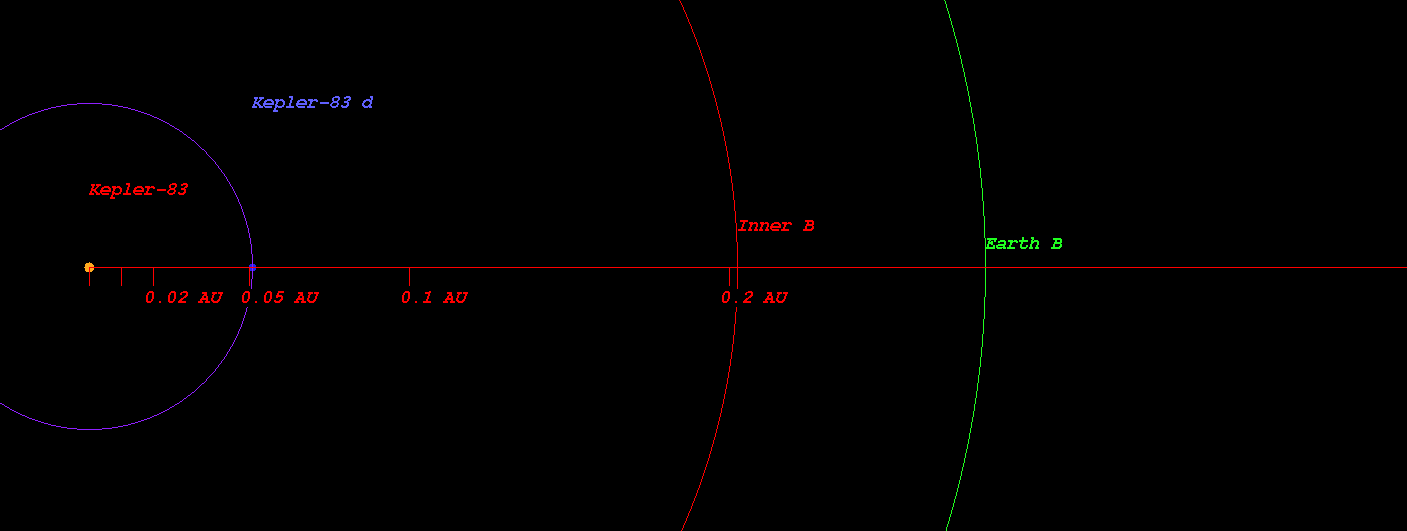

  • (Projected orbit of Kepler-83 d around its host star Kepler-83)


  • The Star Kepler-83 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.203 AU ( 30325321.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.280 AU ( 41917518.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.427 AU ( 63873022.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.628 AU ( 93991950.5 km)
  • Radiation at Planetary Boundary of Kepler-83 d : 41281.84 W/m2

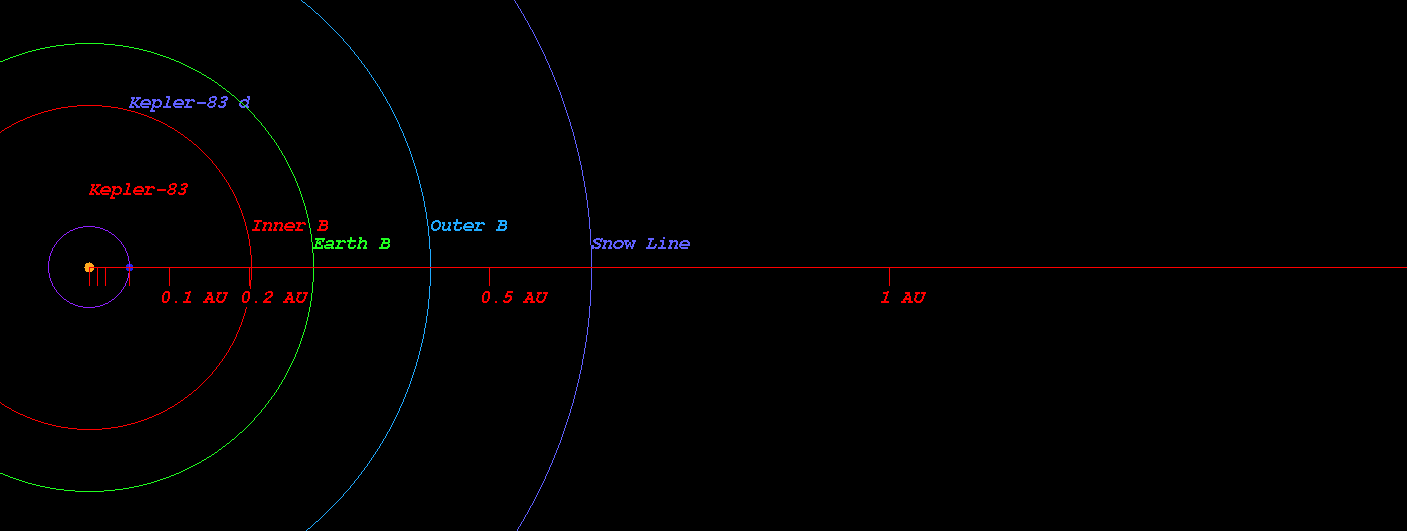

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-83)



  • Kopparapu Recent Venus for Star Kepler-83 distance : 0.228 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-83 distance : 0.288 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-83 distance : 0.278 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-83 distance : 0.306 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-83 distance : 0.549 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-83 distance : 0.579 AU

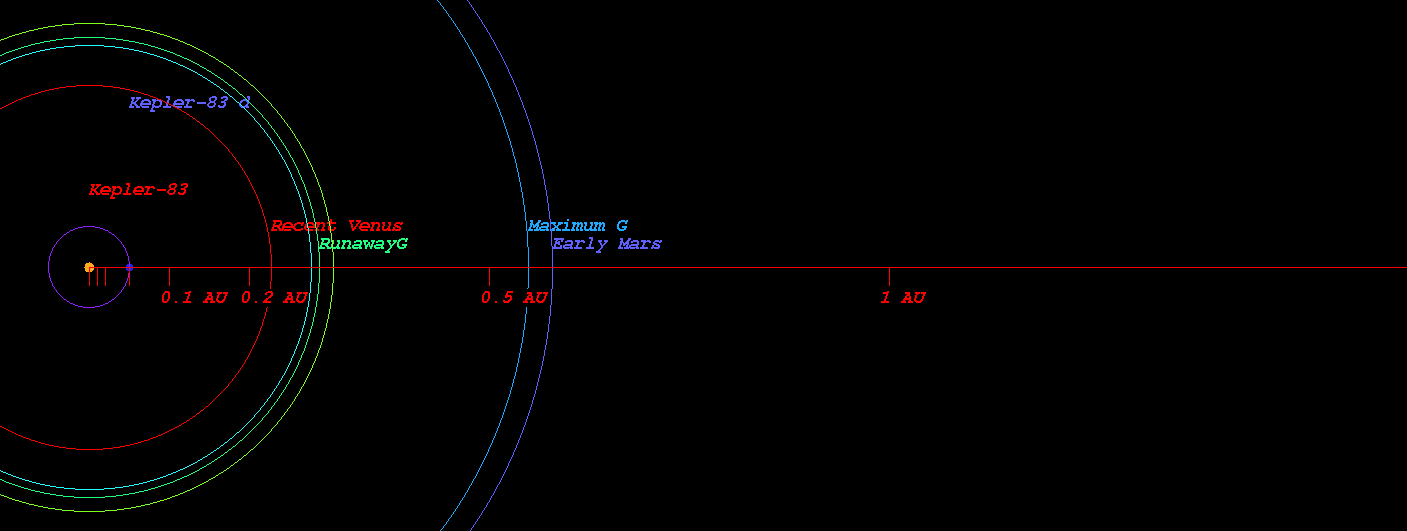

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-83)



  • Original Kopparapu Recent Venus for Star Kepler-83 distance : 0.225 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-83 distance : 0.298 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-83 distance : 0.298 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-83 distance : 0.558 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-83 distance : 0.580 AU

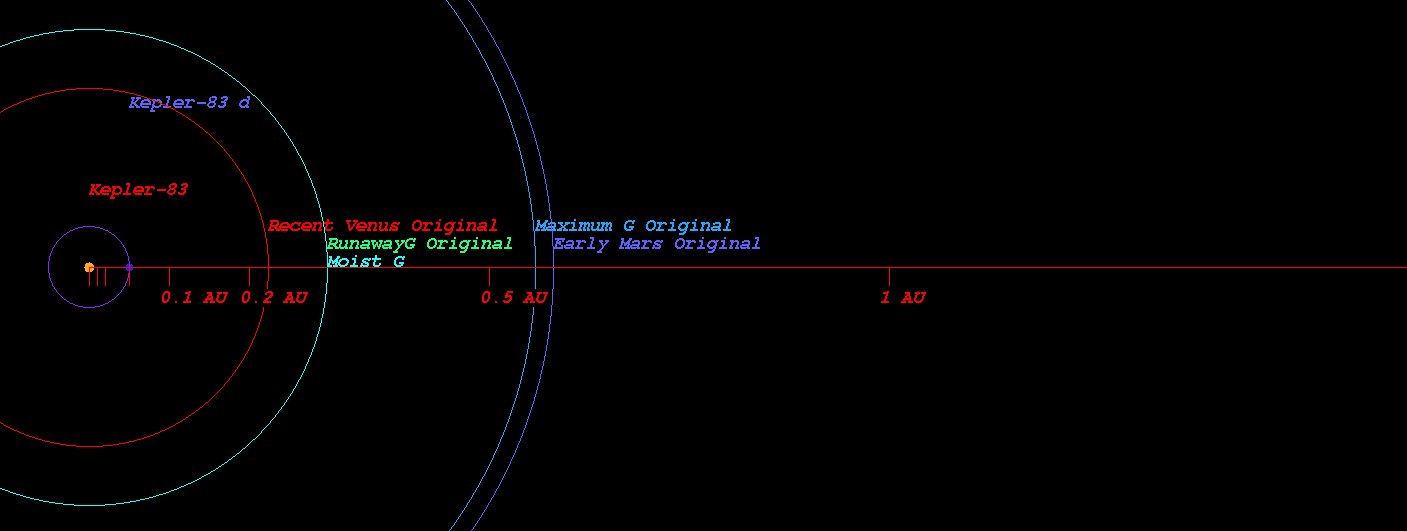

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-83)



    (Position in Stellar Map of star Kepler-83 and its Exoplanet Kepler-83 d)

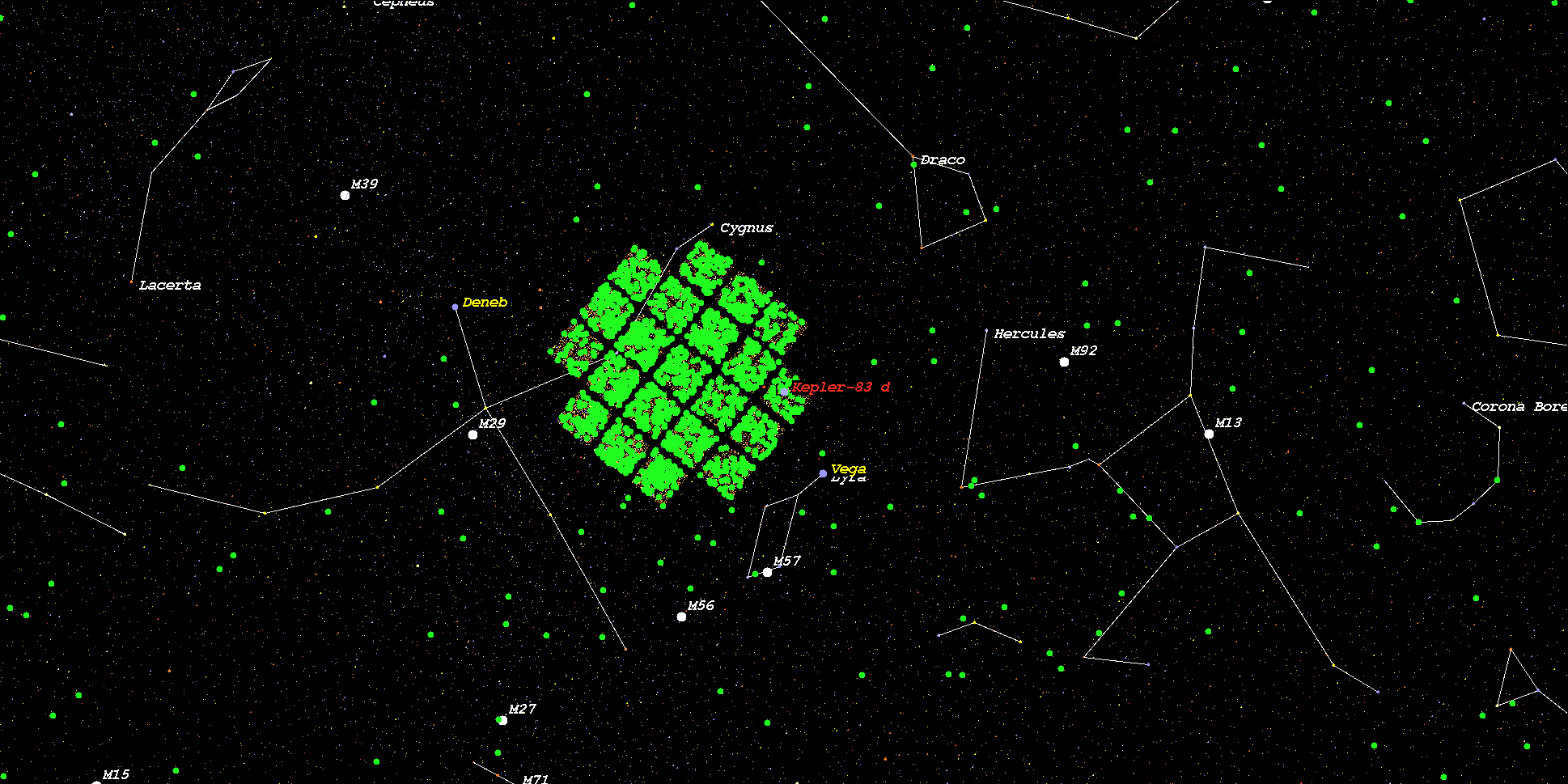

    (Zoomed position in Stellar Map of star Kepler-83 and its Exoplanet Kepler-83 d (zoom level 3))

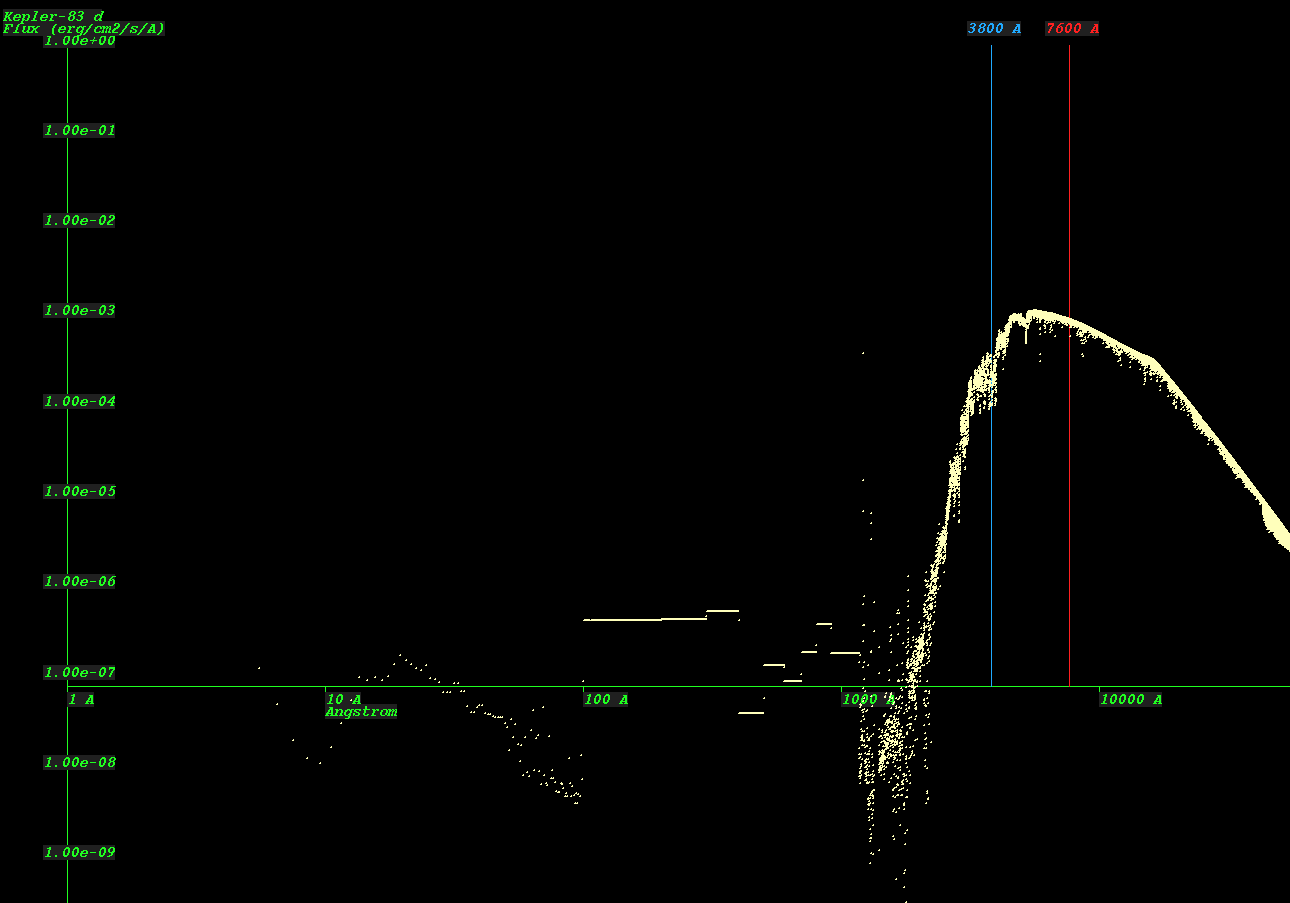

    (Synthetic Spectrum of star Kepler-83*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
