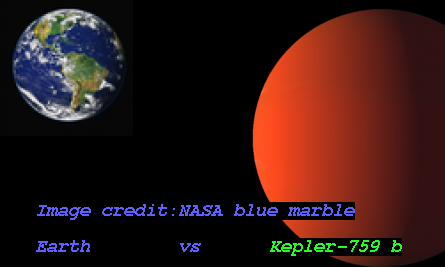

Imaginary Picture of Kepler-759 b

Display orbital revolution of Kepler-759 b around the hoststar Kepler-759
/
Exoplanet Name : Kepler-759 b
Alternate Name : "2MASS J19203156+4122534 b, K01061.01, KIC 6037187 b, KOI-1061 b, KOI-1061.01, WISE J192031.57+412253.4 b"
Status : Confirmed
Radius (Rjup / Re): 0.2030 (Rjup) 2.2754 (Rearth)
Mass (Mjup / Me): 0.0178 (Mjup) 5.6674 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2388 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1145
Orbital Period(Observed/Estimated) 41.81 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0946
Star Radiation at Atmospheric Boundary: 93393.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 780.2 (K)
Blackbody T 0.3(K) 732.7 (K)
Blackbody T 0.7(K) 592.8 (K)
Tidally Locked Blackbody T 0.1(K) 927.9 (K)
Tidally Locked Blackbody T 0.3(K) 871.4 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-759
Alternate Name : "2MASS J19203156+4122534, KIC 6037187, KOI-1061, WISE J192031.57+412253.4"
Star Distance(LY) : 5291.0
Stellar Radius(Rsun) : 1.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 3.9 (GY)
Temperature : 5907 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 2.3
Apparent Magnitude: 13.3
Right Ascension(RA) 290.1315
Declination (DEC) 41.3815
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 655 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-759%20b/
Kepler-759 b
Kepler-759 b

  • Kepler-759 b is an exoplanet orbiting the star Kepler-759, located about 5291.0 light-years (1622.2 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-759 has apparent magnitude of 13.3, with absolute magnitude of 2.3.

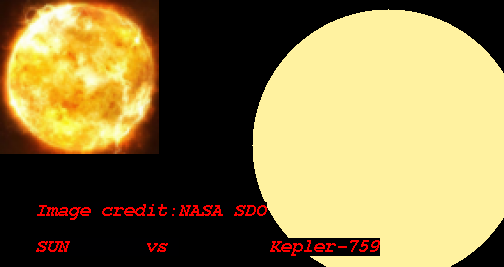

  • It is 1.0 times more massive and 1.9 times bigger compared with our Sun. The surface temperature is 5907 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-759 b orbits around the star Kepler-759 every 41.8 days with its orbital distance of 0.24 AU ( 35730191.9 km)

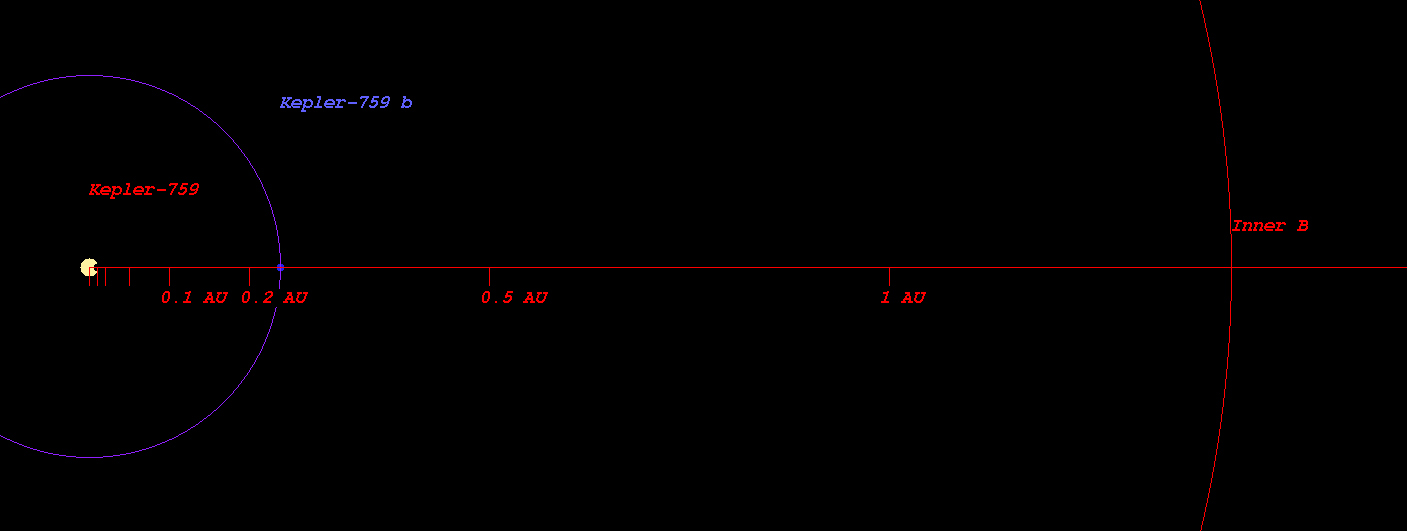

  • (Projected orbit of Kepler-759 b around its host star Kepler-759)


  • The Star Kepler-759 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.428 AU ( 213611196.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.974 AU ( 295266496.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.008 AU ( 449920798.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.426 AU ( 662078164.5 km)
  • Radiation at Planetary Boundary of Kepler-759 b : 93393.52 W/m2

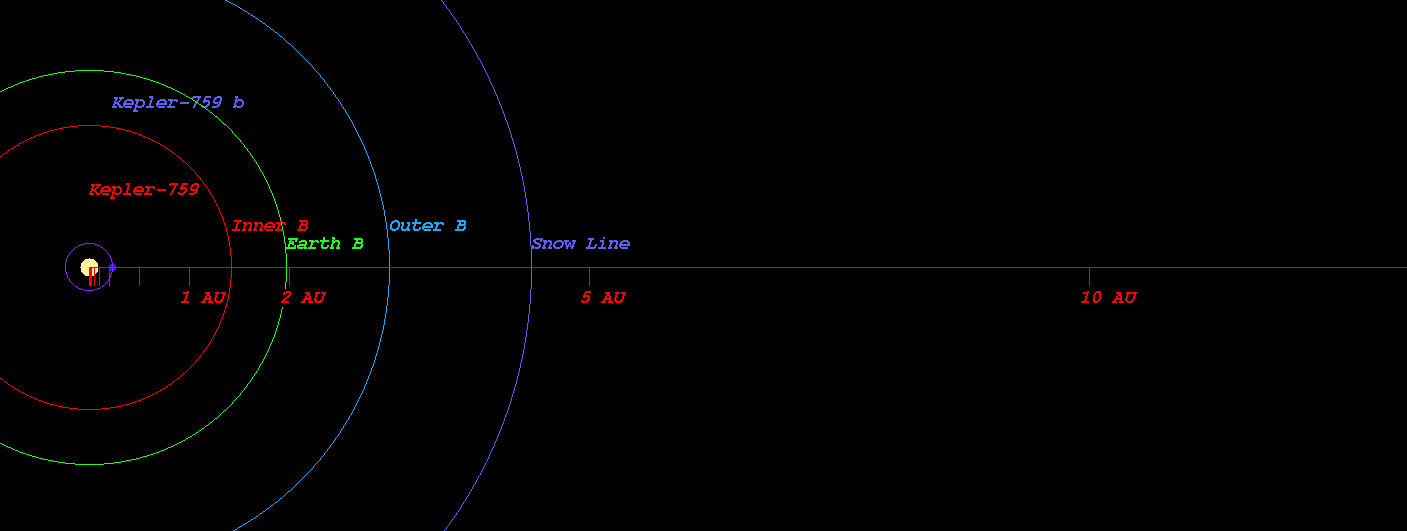

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-759)



  • Kopparapu Recent Venus for Star Kepler-759 distance : 1.468 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-759 distance : 1.860 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-759 distance : 1.796 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-759 distance : 1.969 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-759 distance : 3.273 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-759 distance : 3.452 AU

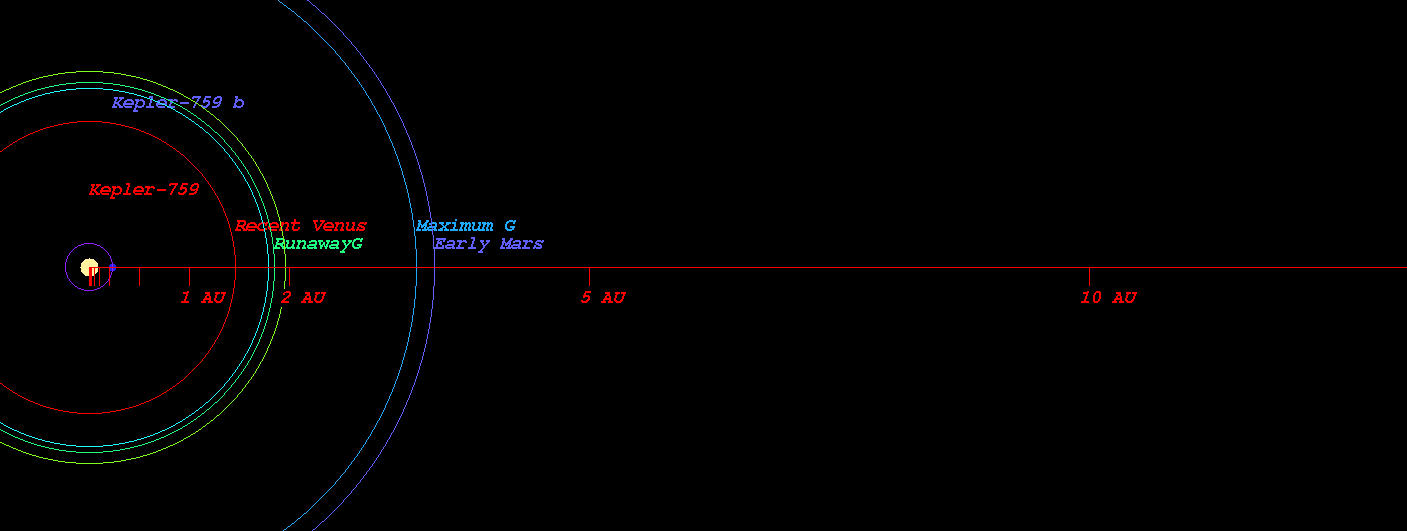

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-759)



  • Original Kopparapu Recent Venus for Star Kepler-759 distance : 1.474 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-759 distance : 1.910 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-759 distance : 1.951 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-759 distance : 3.331 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-759 distance : 3.464 AU

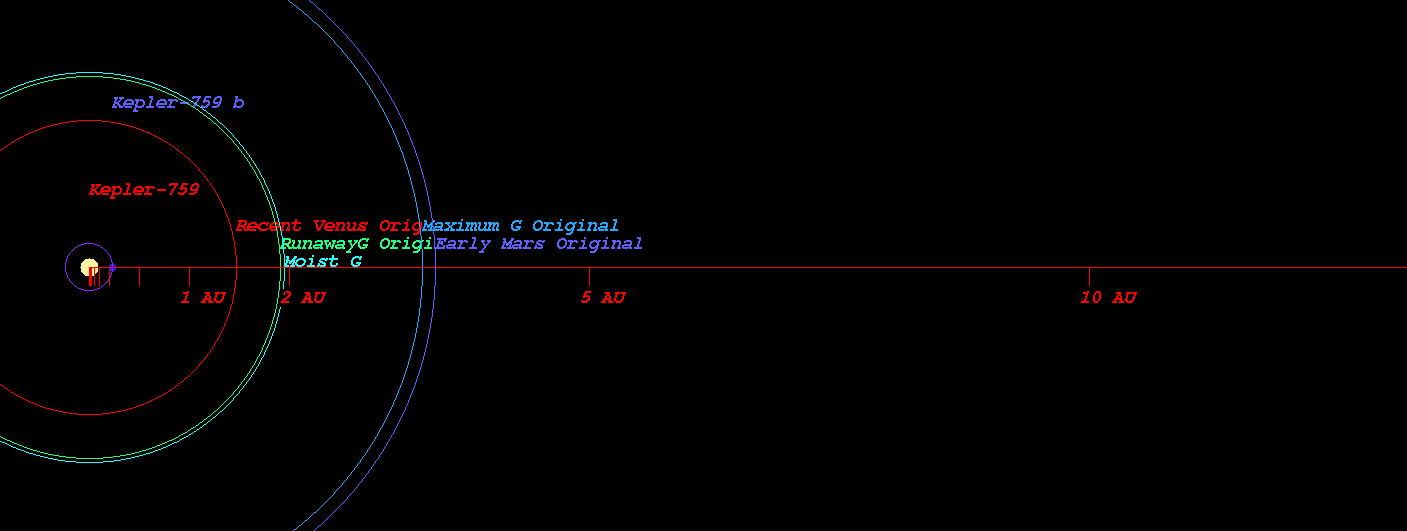

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-759)

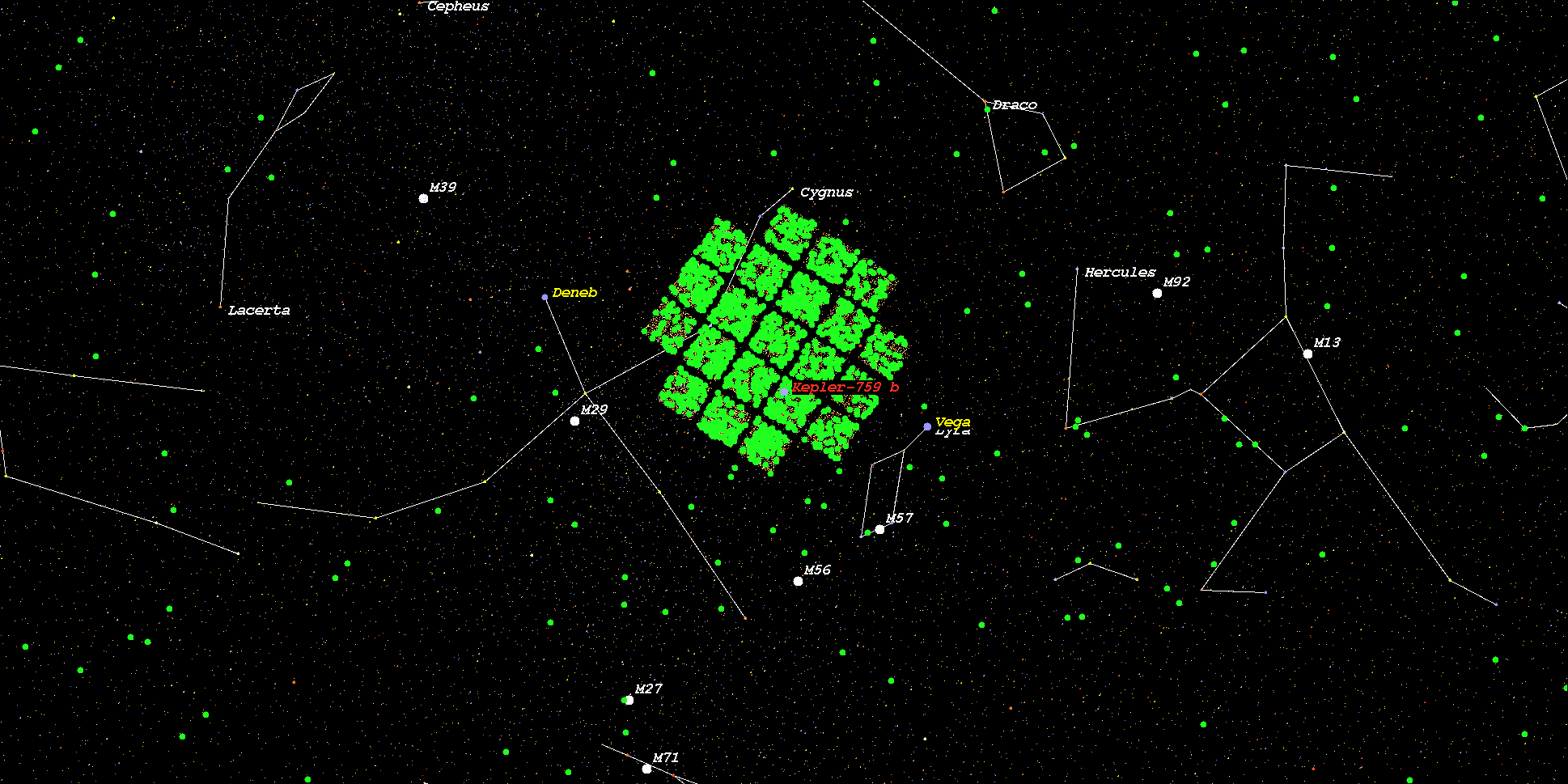

    (Position in Stellar Map of star Kepler-759 and its Exoplanet Kepler-759 b)



    (Zoomed position in Stellar Map of star Kepler-759 and its Exoplanet Kepler-759 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-759*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
