Imaginary Picture of Kepler-724 b

Display orbital revolution of Kepler-724 b around the hoststar Kepler-724
/
Exoplanet Name : Kepler-724 b
Alternate Name : "2MASS J19334916+4447340 b, K00916.01, KIC 8628973 b, KOI-916 b, KOI-916.01, WISE J193349.16+444734.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.2940 (Rjup) 3.2954 (Rearth)
Mass (Mjup / Me): 0.0252 (Mjup) 7.9979 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0420 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0091
Orbital Period(Observed/Estimated) 3.31 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7365
Star Radiation at Atmospheric Boundary: 492980.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1182.6 (K)
Blackbody T 0.3(K) 1110.6 (K)
Blackbody T 0.7(K) 898.6 (K)
Tidally Locked Blackbody T 0.1(K) 1406.4 (K)
Tidally Locked Blackbody T 0.3(K) 1320.8 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-724
Alternate Name : "2MASS J19334916+4447340, KIC 8628973, KOI-916, WISE J193349.16+444734.0"
Star Distance(LY) : 2783.1
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.4 (GY)
Temperature : 5611 (K)
Spectral type : G7
UV portion[%]: 6.6
Visible portion[%]: 42.7
IR portion[%]: 50.7
Metalicity : -0.0
Absolute Magnitude: 4.2
Apparent Magnitude: 13.9
Right Ascension(RA) 293.4548
Declination (DEC) 44.7928
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 616 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-724&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-724%20b/
Kepler-724 b
Kepler-724 b

  • Kepler-724 b is an exoplanet orbiting the star Kepler-724, located about 2783.1 light-years (853.3 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-724 has apparent magnitude of 13.9, with absolute magnitude of 4.2.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5611 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-724 b orbits around the star Kepler-724 every 3.3 days with its orbital distance of 0.04 AU ( 6284399.2 km)

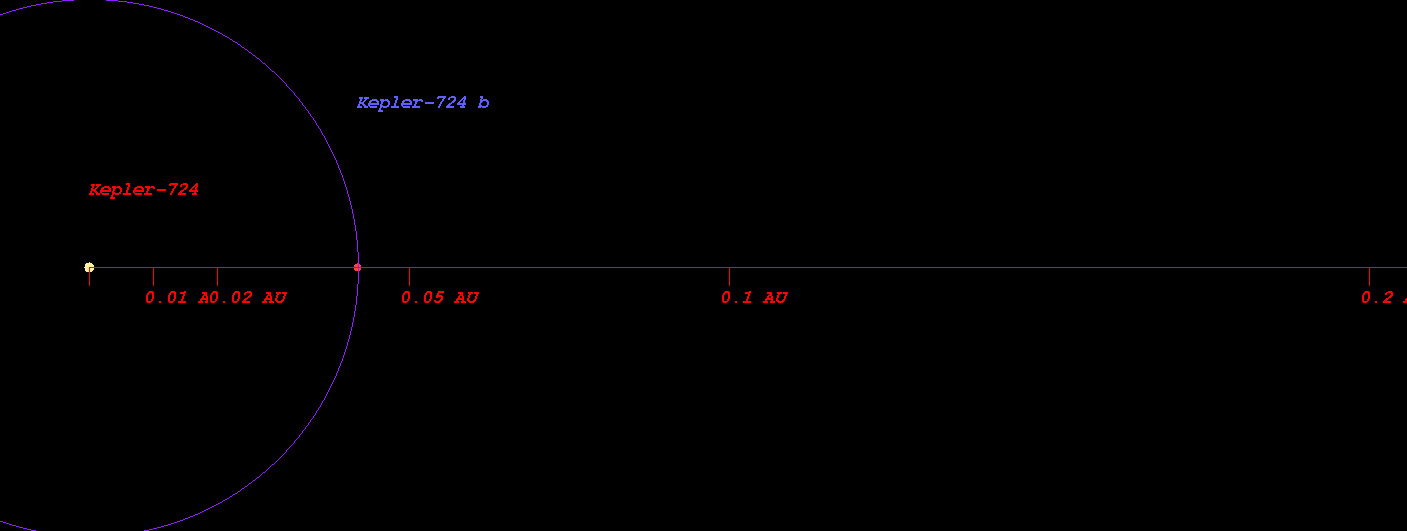

  • (Projected orbit of Kepler-724 b around its host star Kepler-724)


  • The Star Kepler-724 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.577 AU ( 86319519.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.798 AU ( 119316133.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.215 AU ( 181811383.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.788 AU ( 267543414.7 km)
  • Radiation at Planetary Boundary of Kepler-724 b : 492980.68 W/m2

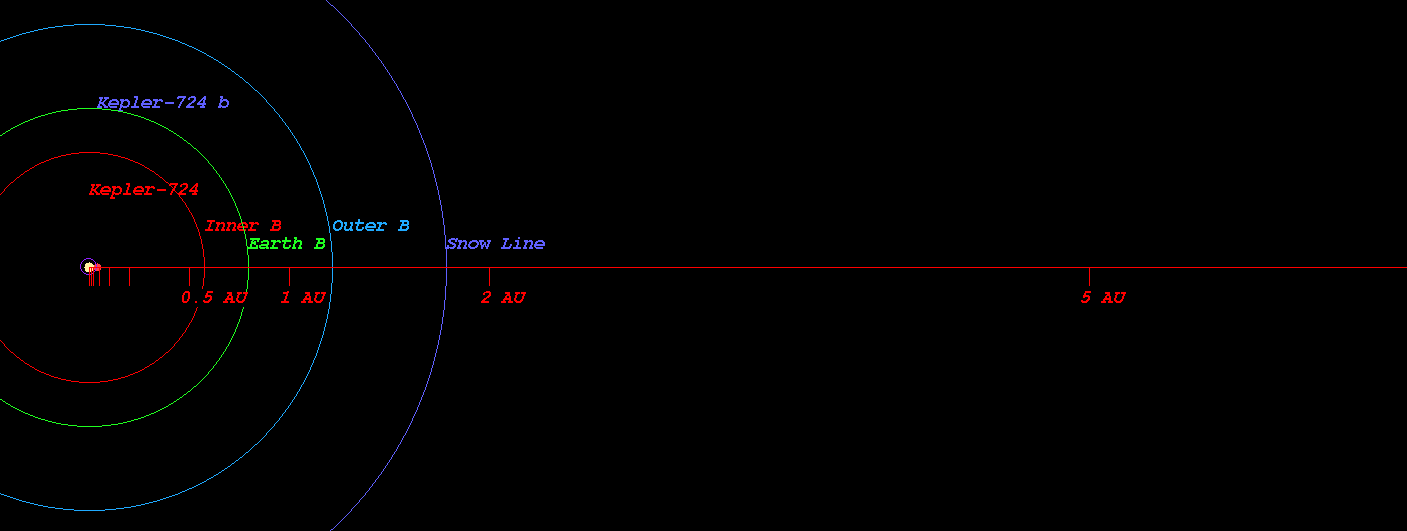

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-724)



  • Kopparapu Recent Venus for Star Kepler-724 distance : 0.604 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-724 distance : 0.765 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-724 distance : 0.739 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-724 distance : 0.810 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-724 distance : 1.357 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-724 distance : 1.431 AU

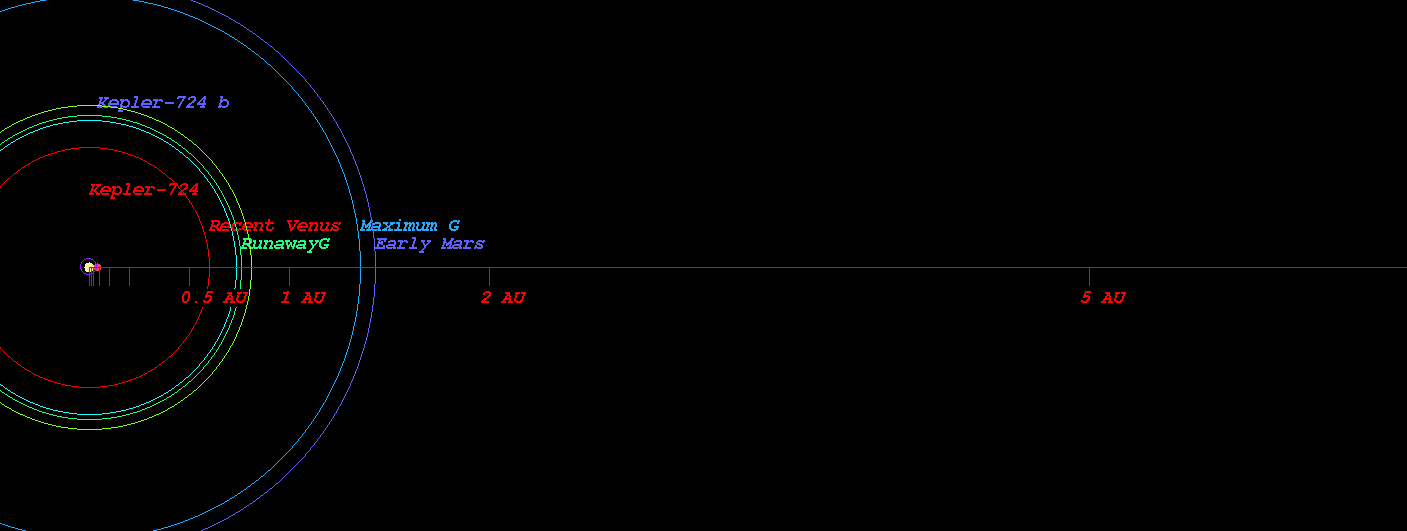

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-724)



  • Original Kopparapu Recent Venus for Star Kepler-724 distance : 0.603 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-724 distance : 0.786 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-724 distance : 0.798 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-724 distance : 1.381 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-724 distance : 1.436 AU

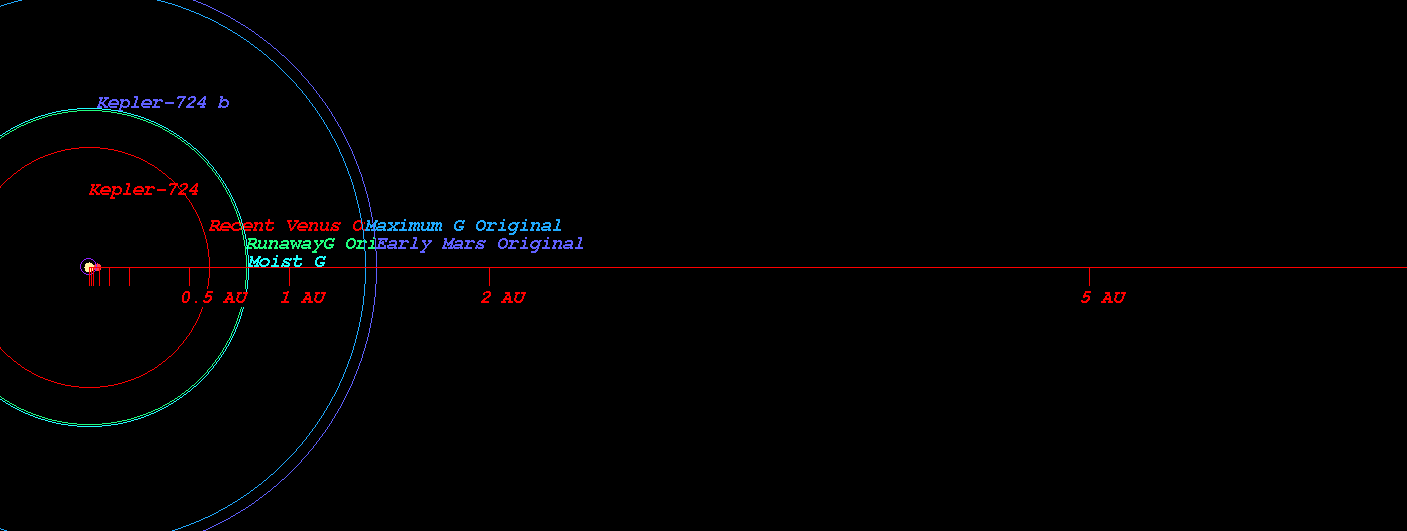

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-724)



    (Position in Stellar Map of star Kepler-724 and its Exoplanet Kepler-724 b)

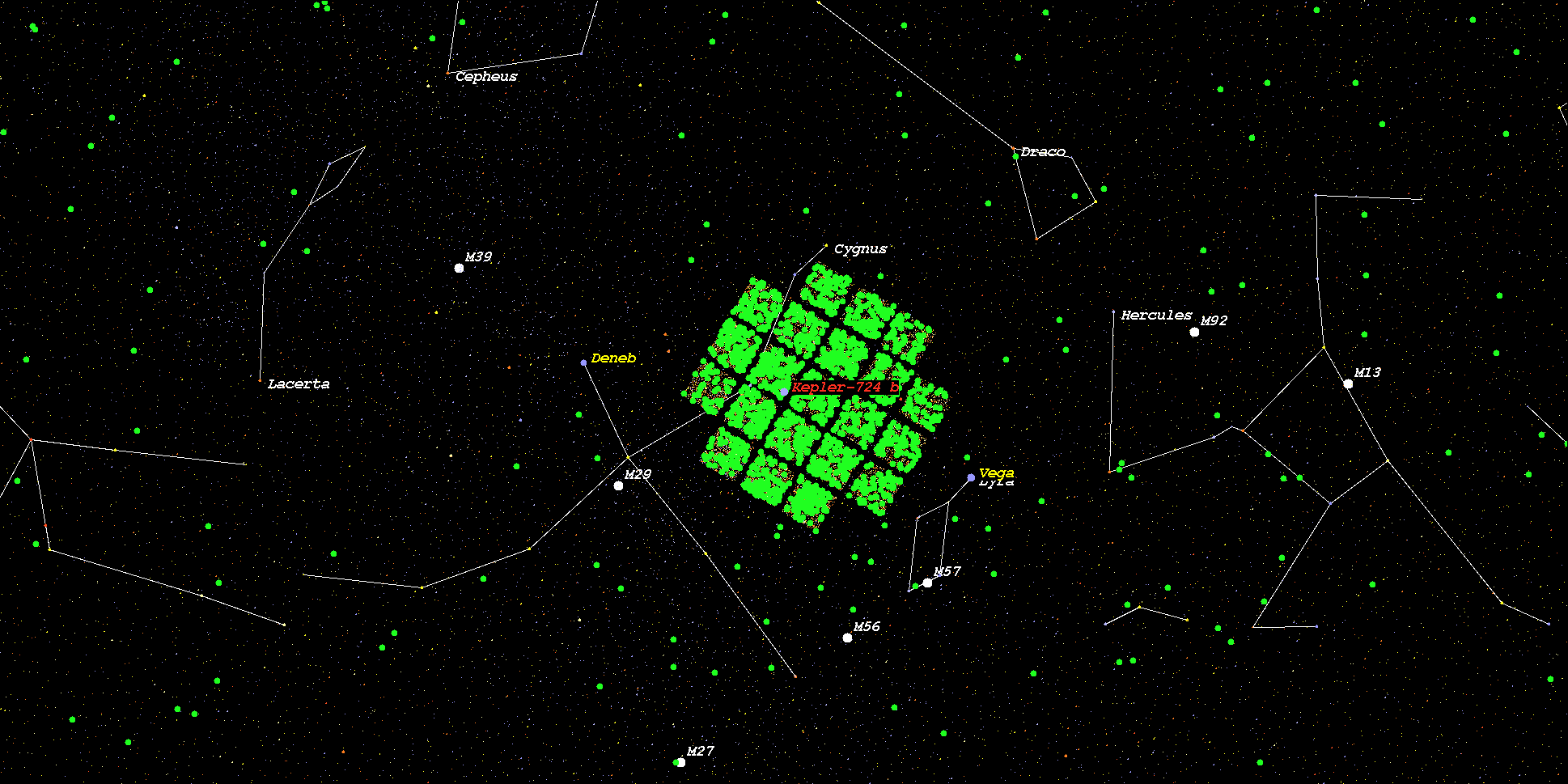

    (Zoomed position in Stellar Map of star Kepler-724 and its Exoplanet Kepler-724 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-724*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
