Imaginary Picture of Kepler-716 b

Display orbital revolution of Kepler-716 b around the hoststar Kepler-716
/
Exoplanet Name : Kepler-716 b
Alternate Name : "2MASS J19213437+4321500 b, K00892.01, KIC 7678434 b, KOI-892 b, KOI-892.01, WISE J192134.36+432149.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.2590 (Rjup) 2.9031 (Rearth)
Mass (Mjup / Me): 0.0224 (Mjup) 7.1085 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0875 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0284
Orbital Period(Observed/Estimated) 10.37 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8434
Star Radiation at Atmospheric Boundary: 57874.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 692.3 (K)
Blackbody T 0.3(K) 650.1 (K)
Blackbody T 0.7(K) 526.0 (K)
Tidally Locked Blackbody T 0.1(K) 823.2 (K)
Tidally Locked Blackbody T 0.3(K) 773.1 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-716
Alternate Name : "2MASS J19213437+4321500, KIC 7678434, KOI-892, WISE J192134.36+432149.9"
Star Distance(LY) : 2070.5
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5064 (K)
Spectral type : K1
UV portion[%]: 3.9
Visible portion[%]: 38.4
IR portion[%]: 57.6
Metalicity : 0.0
Absolute Magnitude: 4.7
Apparent Magnitude: 13.7
Right Ascension(RA) 290.3932
Declination (DEC) 43.3639
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 607 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-716%20b/
Kepler-716 b
Kepler-716 b

  • Kepler-716 b is an exoplanet orbiting the star Kepler-716, located about 2070.5 light-years (634.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-716 has apparent magnitude of 13.7, with absolute magnitude of 4.7.
  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 5064 with its spectral types of K1
  • In this planetary system, the extrasolar planet Kepler-716 b orbits around the star Kepler-716 every 10.4 days with its orbital distance of 0.09 AU ( 13085515.2 km)

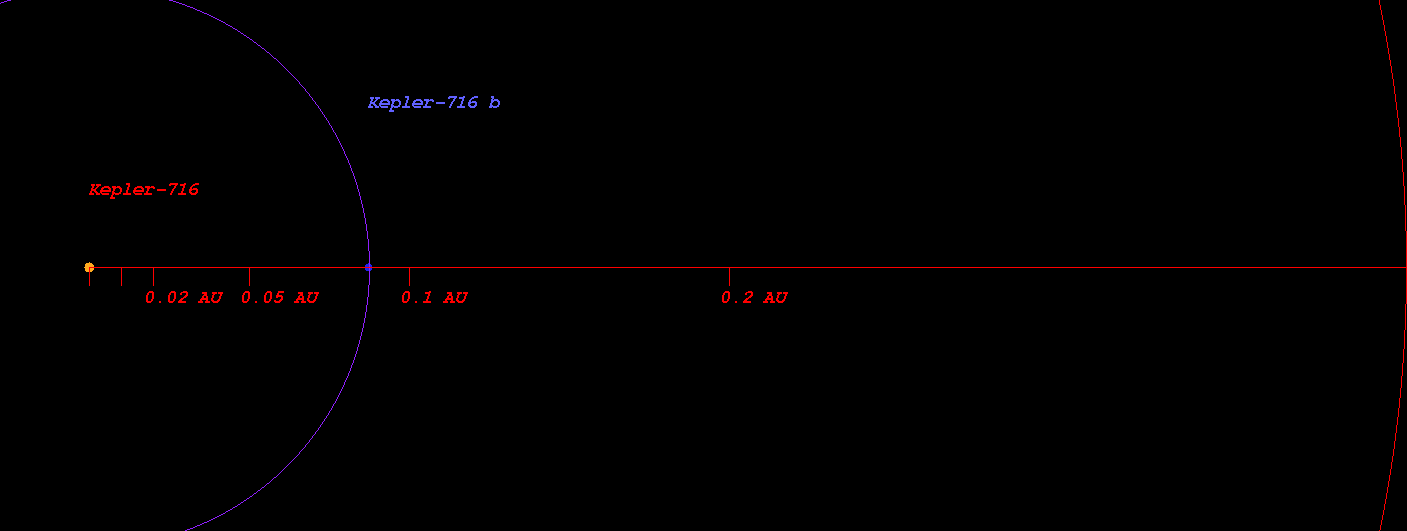

  • (Projected orbit of Kepler-716 b around its host star Kepler-716)


  • The Star Kepler-716 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.412 AU ( 61583407.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.569 AU ( 85124362.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.867 AU ( 129710690.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.276 AU ( 190874963.6 km)
  • Radiation at Planetary Boundary of Kepler-716 b : 57874.22 W/m2

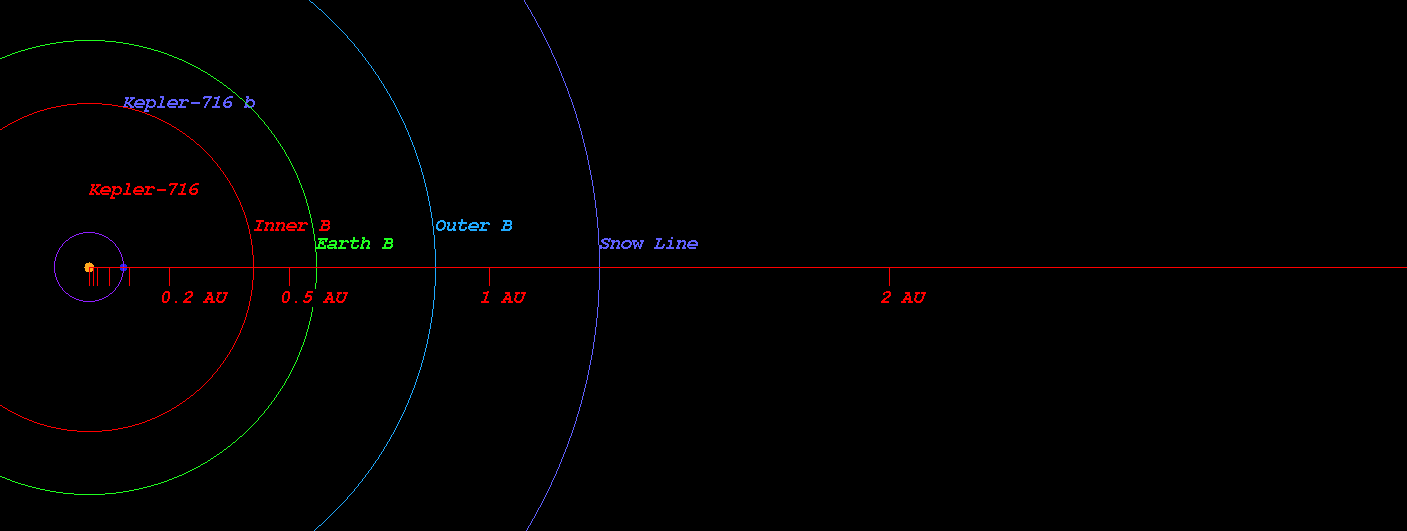

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-716)



  • Kopparapu Recent Venus for Star Kepler-716 distance : 0.444 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-716 distance : 0.562 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-716 distance : 0.543 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-716 distance : 0.596 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-716 distance : 1.016 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-716 distance : 1.072 AU

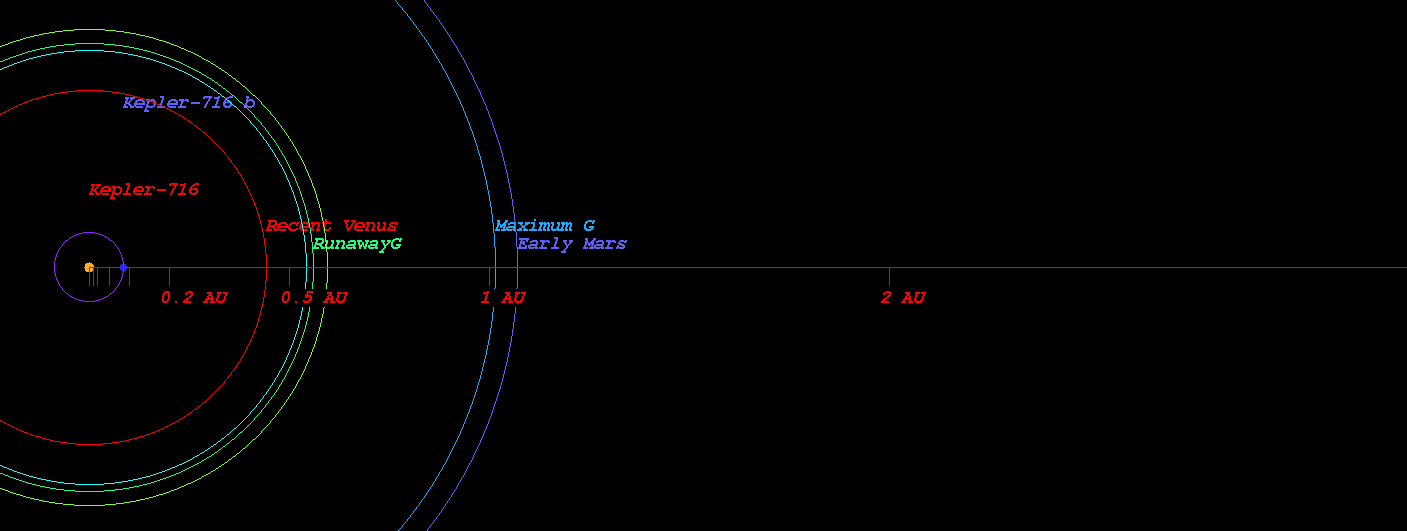

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-716)



  • Original Kopparapu Recent Venus for Star Kepler-716 distance : 0.440 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-716 distance : 0.579 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-716 distance : 0.582 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-716 distance : 1.033 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-716 distance : 1.075 AU

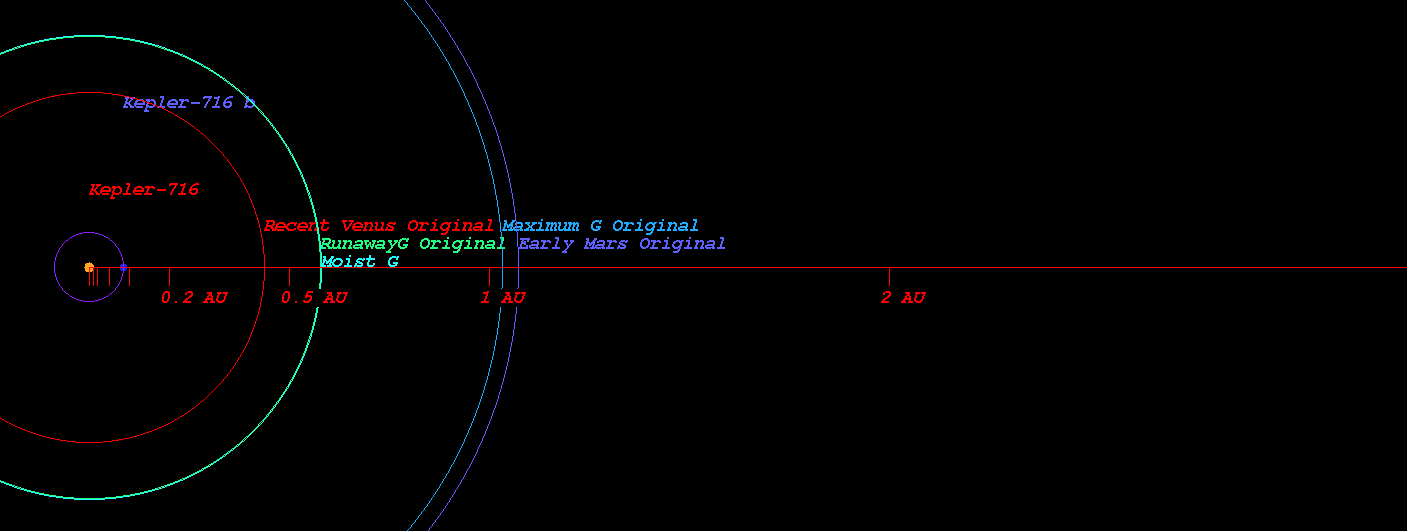

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-716)



    (Position in Stellar Map of star Kepler-716 and its Exoplanet Kepler-716 b)

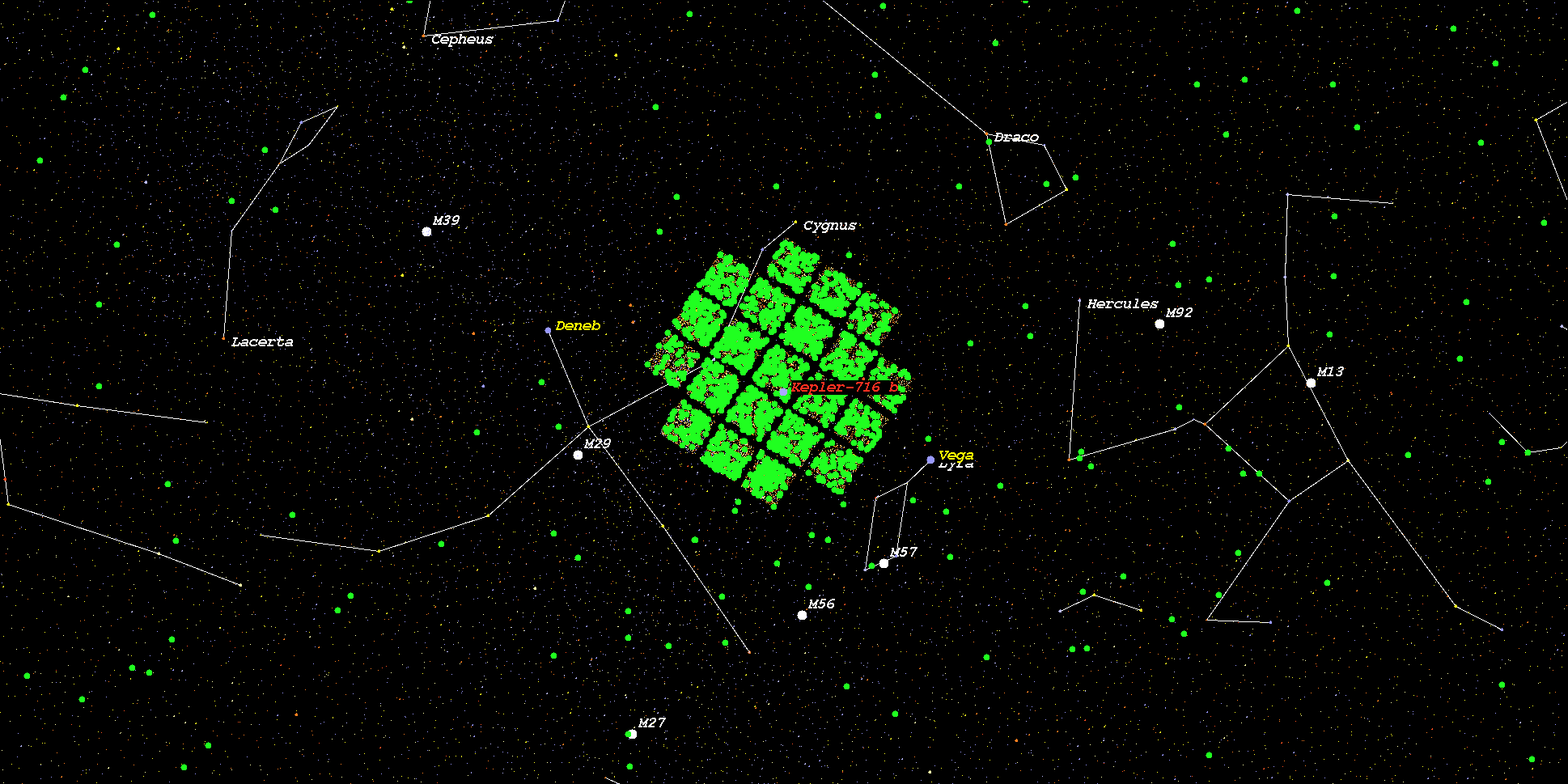

    (Zoomed position in Stellar Map of star Kepler-716 and its Exoplanet Kepler-716 b (zoom level 3))

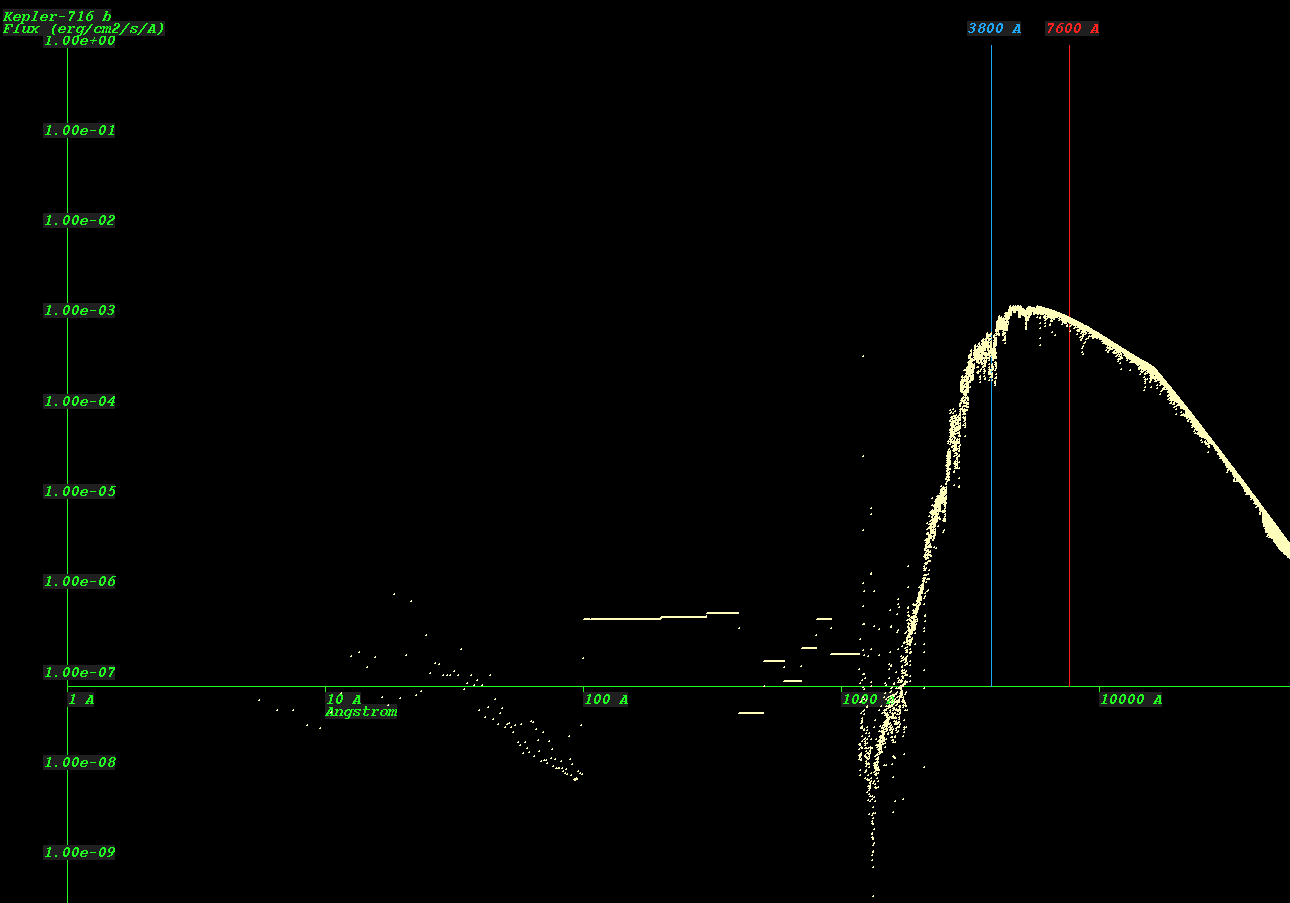

    (Synthetic Spectrum of star Kepler-716*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
