Imaginary Picture of Kepler-701 b

Display orbital revolution of Kepler-701 b around the hoststar Kepler-701
/
Exoplanet Name : Kepler-701 b
Alternate Name : "2MASS J19155860+4137598 b, K00849.01, KIC 6276477 b, KOI-849 b, KOI-849.01, WISE J191558.60+413759.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.2530 (Rjup) 2.8359 (Rearth)
Mass (Mjup / Me): 0.0219 (Mjup) 6.9552 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0891 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0284
Orbital Period(Observed/Estimated) 10.36 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8648
Star Radiation at Atmospheric Boundary: 104102.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 801.7 (K)
Blackbody T 0.3(K) 752.9 (K)
Blackbody T 0.7(K) 609.2 (K)
Tidally Locked Blackbody T 0.1(K) 953.4 (K)
Tidally Locked Blackbody T 0.3(K) 895.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-701
Alternate Name : "2MASS J19155860+4137598, KIC 6276477, KOI-849, WISE J191558.60+413759.8"
Star Distance(LY) : 2524.4
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.5 (GY)
Temperature : 5507 (K)
Spectral type : G7
UV portion[%]: 6.1
Visible portion[%]: 41.9
IR portion[%]: 52.0
Metalicity : 0.0
Absolute Magnitude: 4.2
Apparent Magnitude: 13.7
Right Ascension(RA) 288.9942
Declination (DEC) 41.6333
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 595 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-701%20b/
Kepler-701 b
Kepler-701 b

  • Kepler-701 b is an exoplanet orbiting the star Kepler-701, located about 2524.4 light-years (774.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-701 has apparent magnitude of 13.7, with absolute magnitude of 4.2.
  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5507 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-701 b orbits around the star Kepler-701 every 10.4 days with its orbital distance of 0.09 AU ( 13329141.1 km)

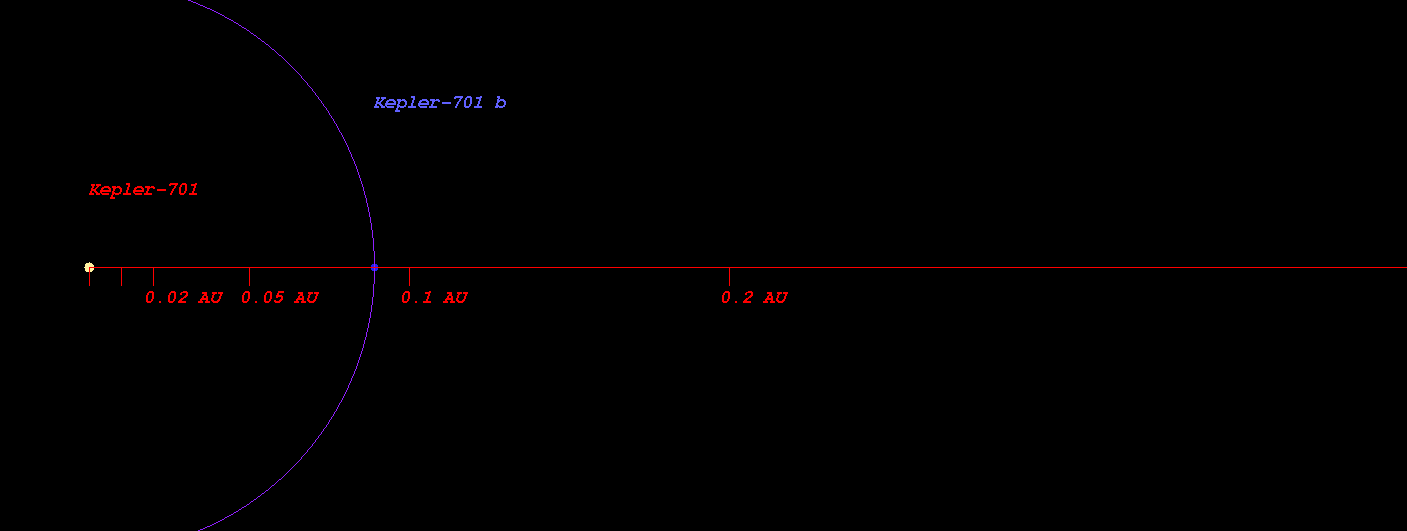

  • (Projected orbit of Kepler-701 b around its host star Kepler-701)


  • The Star Kepler-701 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.562 AU ( 84132158.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.777 AU ( 116292629.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.185 AU ( 177204231.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.743 AU ( 260763789.0 km)
  • Radiation at Planetary Boundary of Kepler-701 b : 104102.02 W/m2

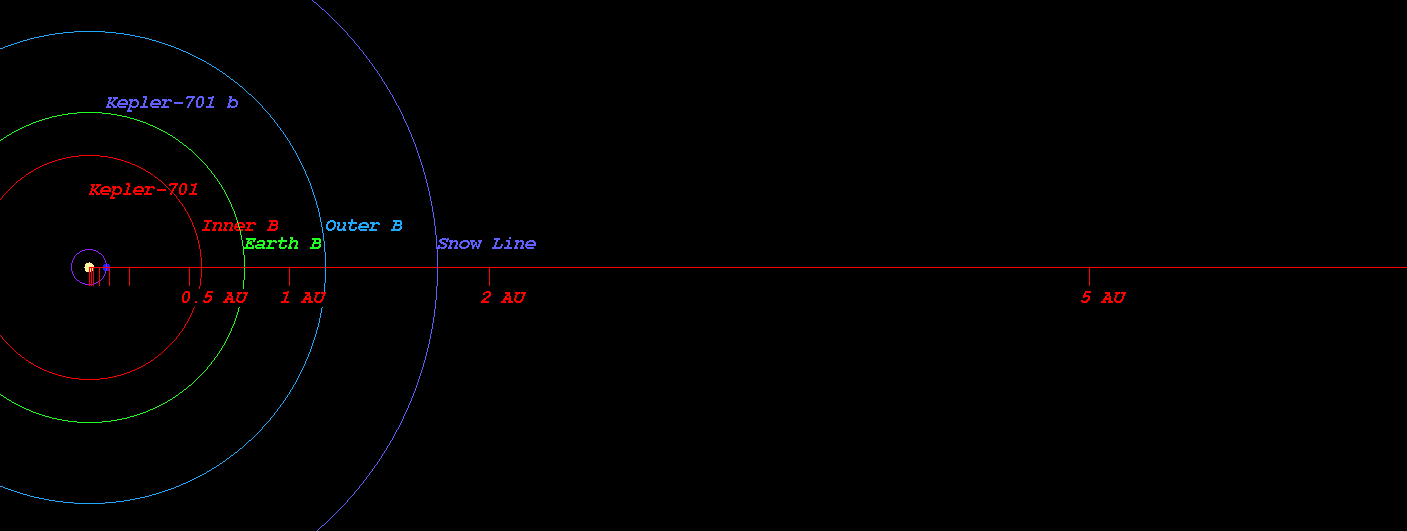

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-701)



  • Kopparapu Recent Venus for Star Kepler-701 distance : 0.592 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-701 distance : 0.750 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-701 distance : 0.724 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-701 distance : 0.794 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-701 distance : 1.335 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-701 distance : 1.408 AU

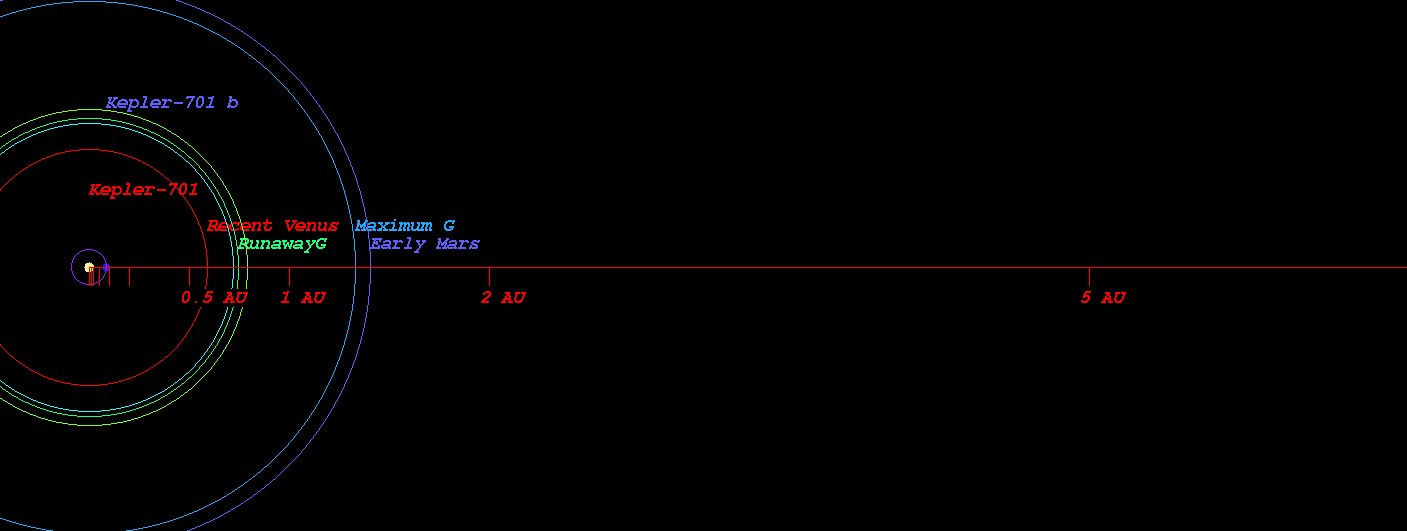

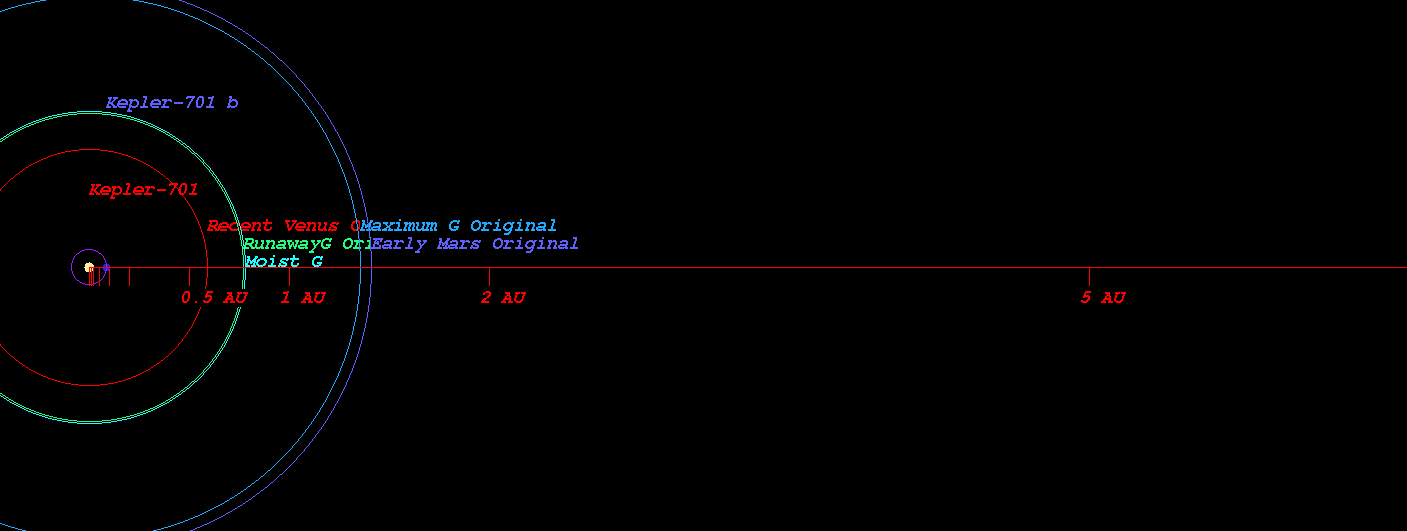

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-701)



  • Original Kopparapu Recent Venus for Star Kepler-701 distance : 0.590 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-701 distance : 0.771 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-701 distance : 0.781 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-701 distance : 1.358 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-701 distance : 1.412 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-701)

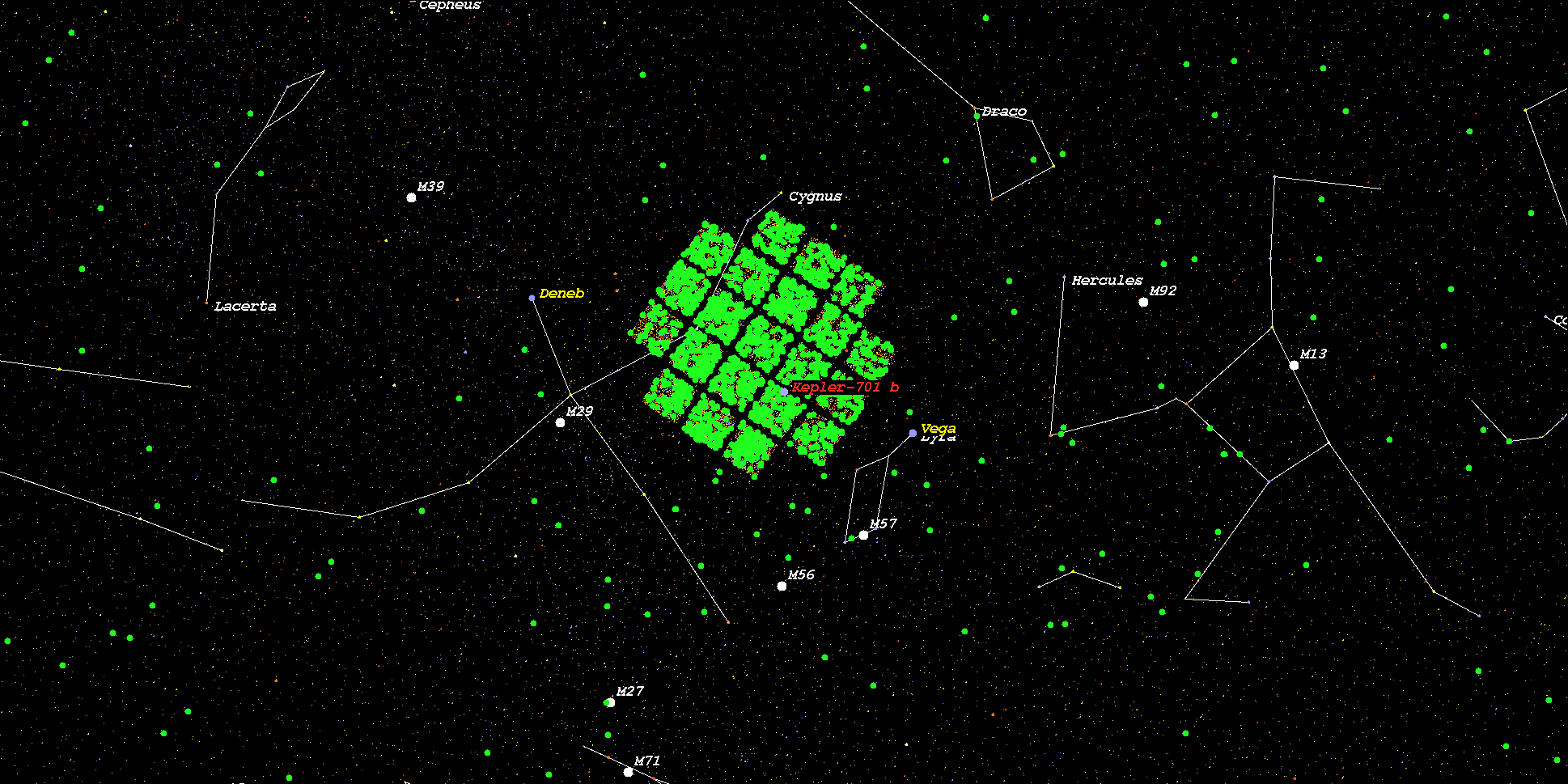

    (Position in Stellar Map of star Kepler-701 and its Exoplanet Kepler-701 b)



    (Zoomed position in Stellar Map of star Kepler-701 and its Exoplanet Kepler-701 b (zoom level 3))

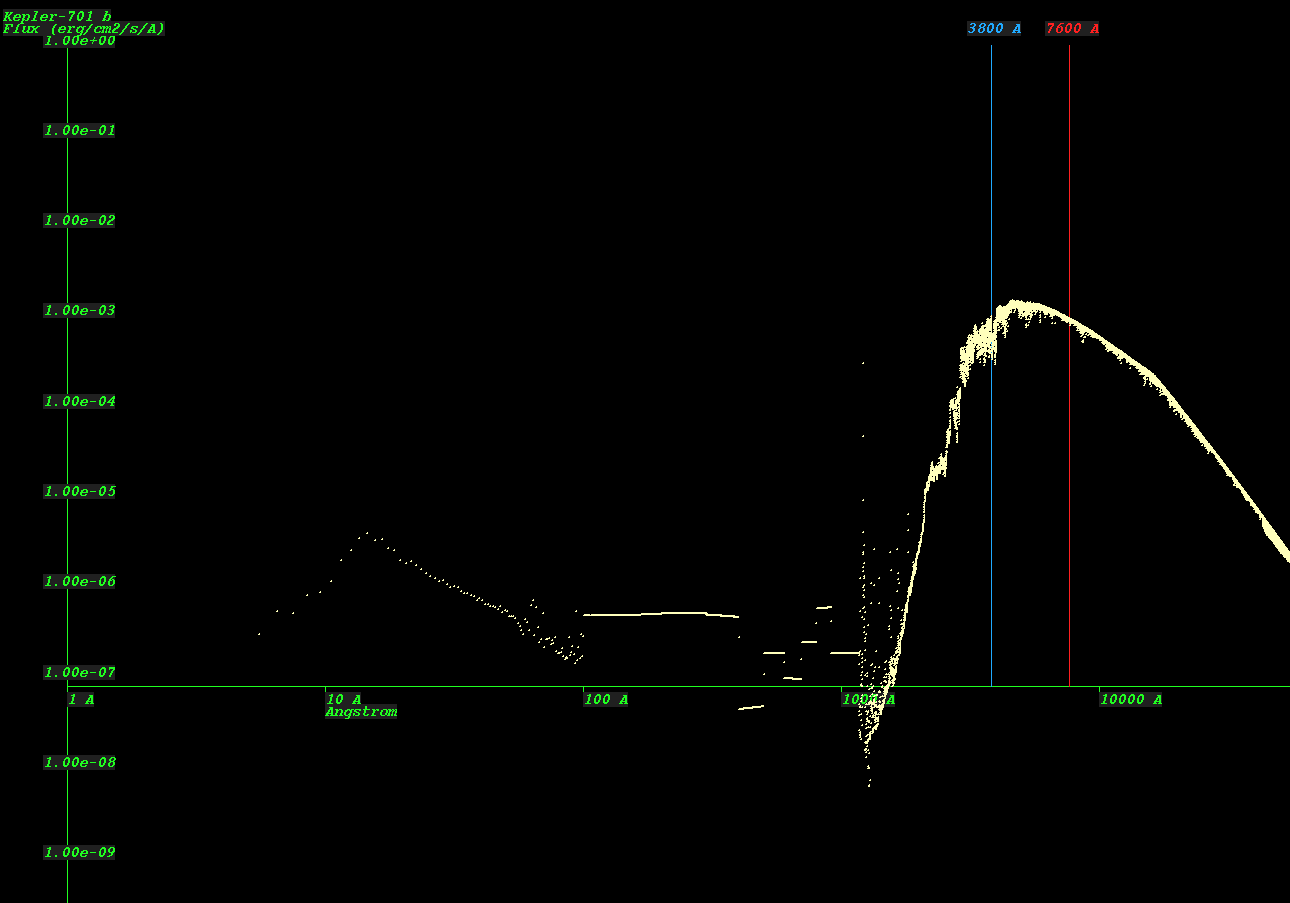

    (Synthetic Spectrum of star Kepler-701*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
