Imaginary Picture of Kepler-664 b

Display orbital revolution of Kepler-664 b around the hoststar Kepler-664
/
Exoplanet Name : Kepler-664 b
Alternate Name : "2MASS J19150117+4813343 b, K00755.01, KIC 10854555 b, KOI-755 b, KOI-755.01, WISE J191501.17+481334.2 b"
Status : Confirmed
Radius (Rjup / Re): 0.2370 (Rjup) 2.6565 (Rearth)
Mass (Mjup / Me): 0.0206 (Mjup) 6.5453 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0364 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0069
Orbital Period(Observed/Estimated) 2.53 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.9275
Star Radiation at Atmospheric Boundary: 939384.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1389.5 (K)
Blackbody T 0.3(K) 1304.9 (K)
Blackbody T 0.7(K) 1055.8 (K)
Tidally Locked Blackbody T 0.1(K) 1652.4 (K)
Tidally Locked Blackbody T 0.3(K) 1551.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-664
Alternate Name : "2MASS J19150117+4813343, KIC 10854555, KOI-755, WISE J191501.17+481334.2"
Star Distance(LY) : 3953.3
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.7 (GY)
Temperature : 6025 (K)
Spectral type : G3
UV portion[%]: 7.8
Visible portion[%]: 44.7
IR portion[%]: 47.6
Metalicity : 0.1
Absolute Magnitude: 3.9
Apparent Magnitude: 14.4
Right Ascension(RA) 288.7549
Declination (DEC) 48.2262
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 570 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-664+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-664%20b/
Kepler-664 b
Kepler-664 b

  • Kepler-664 b is an exoplanet orbiting the star Kepler-664, located about 3953.3 light-years (1212.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-664 has apparent magnitude of 14.4, with absolute magnitude of 3.9.

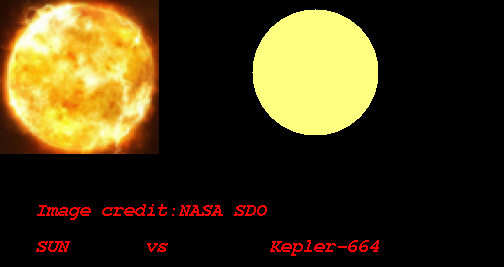

  • It is 1.0 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 6025 with its spectral types of G3
  • In this planetary system, the extrasolar planet Kepler-664 b orbits around the star Kepler-664 every 2.5 days with its orbital distance of 0.04 AU ( 5447718.6 km)

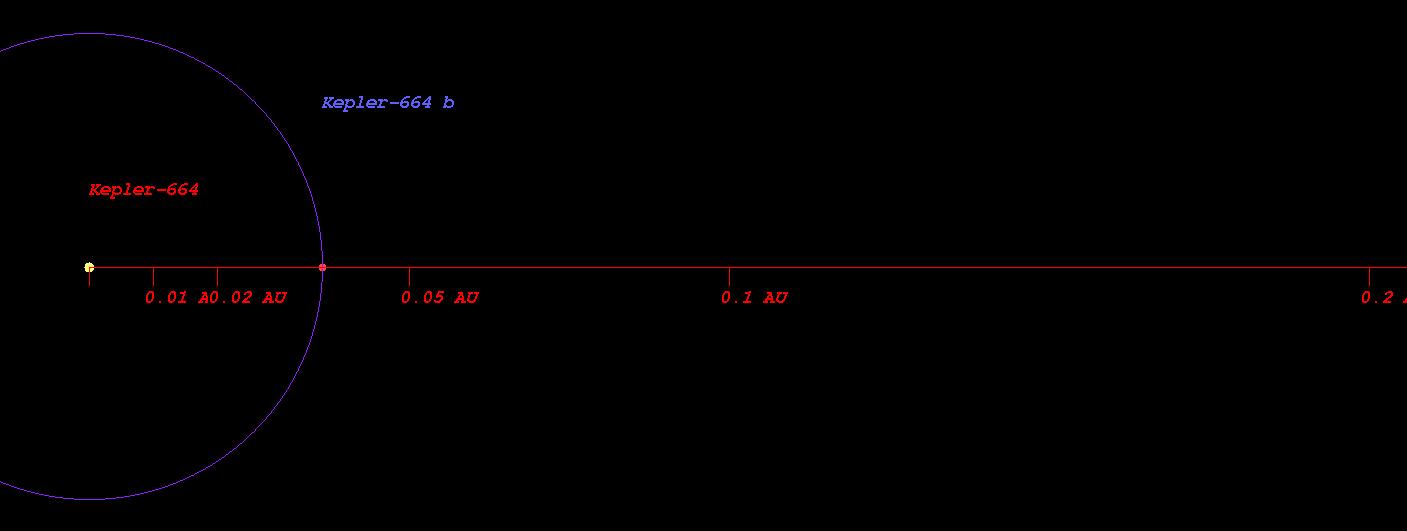

  • (Projected orbit of Kepler-664 b around its host star Kepler-664)


  • The Star Kepler-664 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.690 AU ( 103292010.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.954 AU ( 142776552.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.454 AU ( 217559868.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.140 AU ( 320148877.7 km)
  • Radiation at Planetary Boundary of Kepler-664 b : 939384.82 W/m2

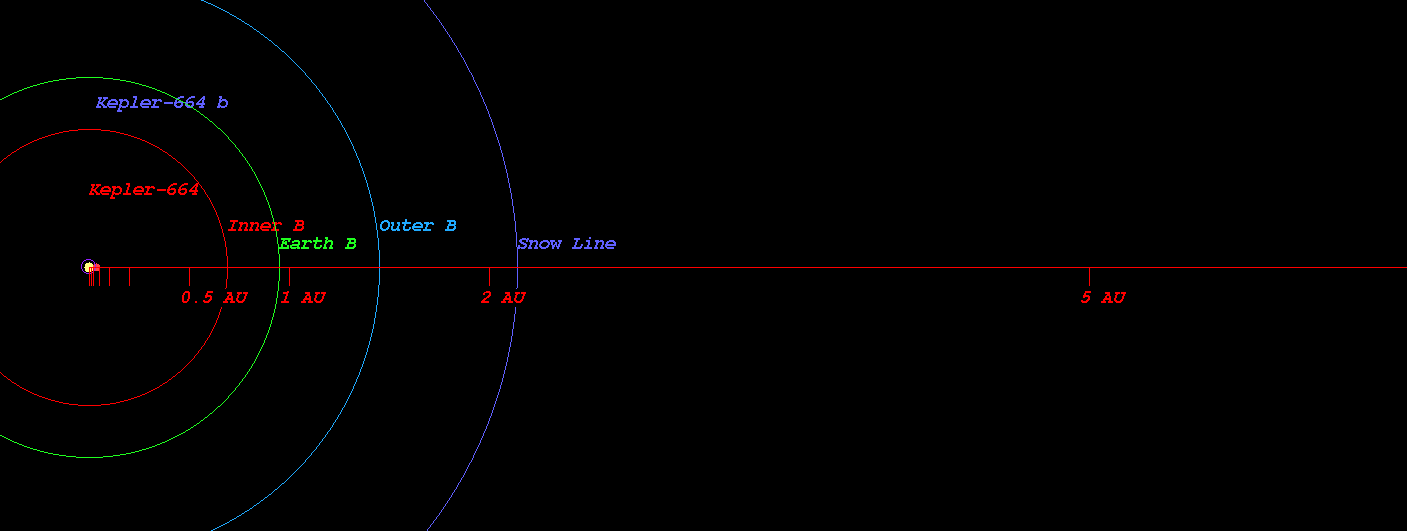

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-664)



  • Kopparapu Recent Venus for Star Kepler-664 distance : 0.705 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-664 distance : 0.893 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-664 distance : 0.862 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-664 distance : 0.945 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-664 distance : 1.567 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-664 distance : 1.653 AU

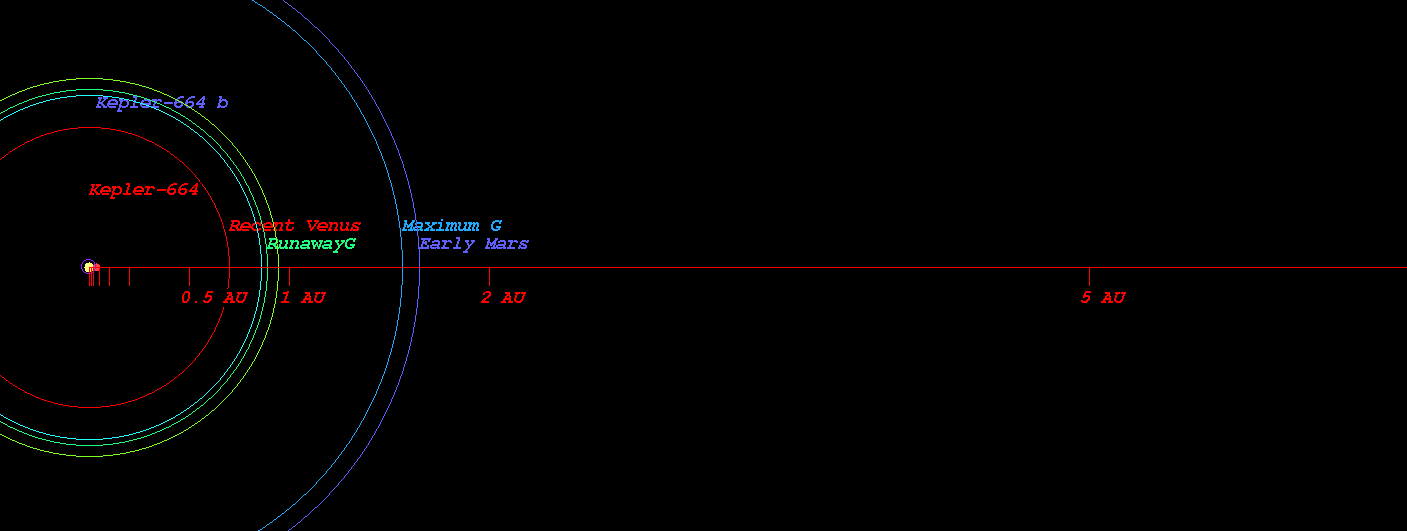

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-664)



  • Original Kopparapu Recent Venus for Star Kepler-664 distance : 0.710 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-664 distance : 0.917 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-664 distance : 0.939 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-664 distance : 1.595 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-664 distance : 1.659 AU

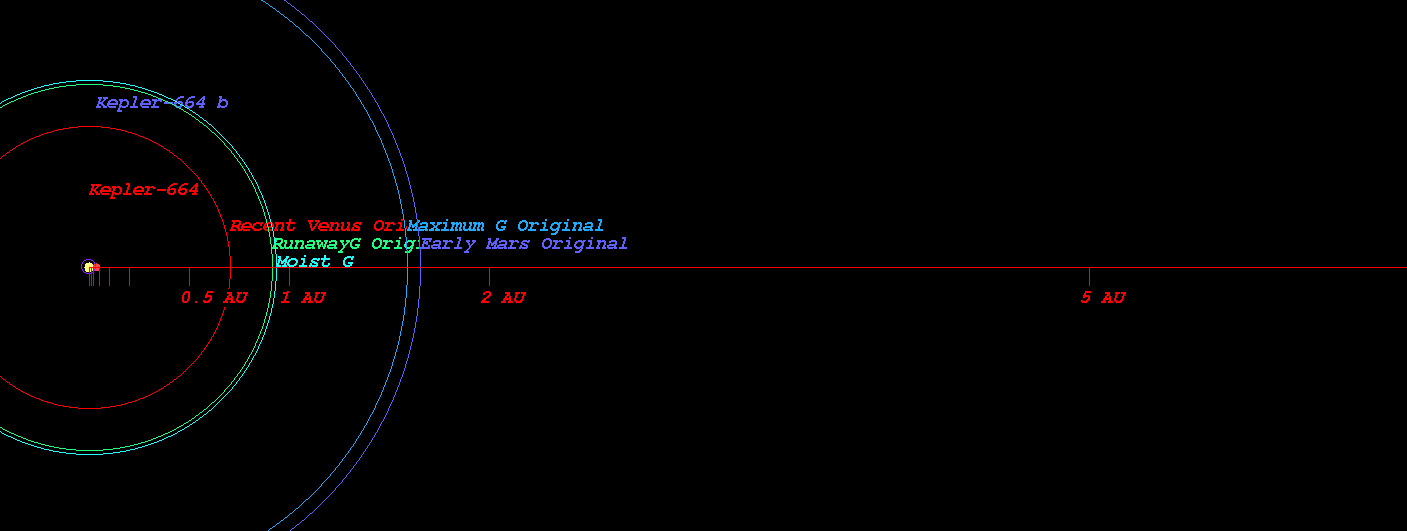

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-664)

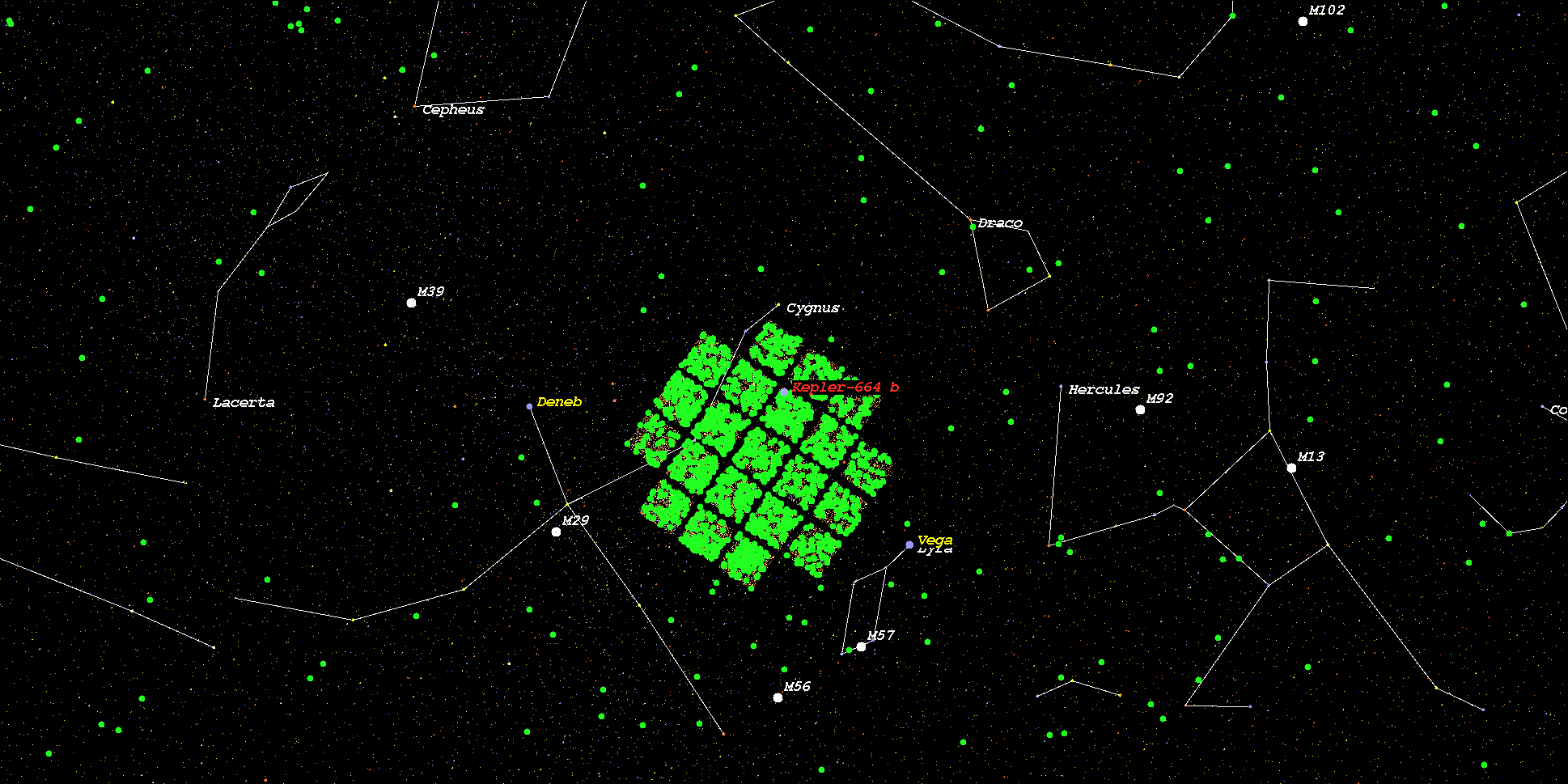

    (Position in Stellar Map of star Kepler-664 and its Exoplanet Kepler-664 b)



    (Zoomed position in Stellar Map of star Kepler-664 and its Exoplanet Kepler-664 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-664*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
