Imaginary Picture of Kepler-652 b

Display orbital revolution of Kepler-652 b around the hoststar Kepler-652
/
Exoplanet Name : Kepler-652 b
Alternate Name : "2MASS J19120194+4628248 b, K00714.01, KIC 9702072 b, KOI-714 b, KOI-714.01, WISE J191201.93+462824.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.2220 (Rjup) 2.4884 (Rearth)
Mass (Mjup / Me): 0.0194 (Mjup) 6.1591 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0503 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0114
Orbital Period(Observed/Estimated) 4.18 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.9947
Star Radiation at Atmospheric Boundary: 289453.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1035.2 (K)
Blackbody T 0.3(K) 972.2 (K)
Blackbody T 0.7(K) 786.6 (K)
Tidally Locked Blackbody T 0.1(K) 1231.1 (K)
Tidally Locked Blackbody T 0.3(K) 1156.1 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-652
Alternate Name : "2MASS J19120194+4628248, KIC 9702072, KOI-714, WISE J191201.93+462824.8"
Star Distance(LY) : 1286.4
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 1.5 (GY)
Temperature : 5393 (K)
Spectral type : G7
UV portion[%]: 6.8
Visible portion[%]: 43.1
IR portion[%]: 50.0
Metalicity : 0.2
Absolute Magnitude: 4.2
Apparent Magnitude: 12.2
Right Ascension(RA) 288.0081
Declination (DEC) 46.4736
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 558 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-652+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-652%20b/
Kepler-652 b
Kepler-652 b

  • Kepler-652 b is an exoplanet orbiting the star Kepler-652, located about 1286.4 light-years (394.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-652 has apparent magnitude of 12.2, with absolute magnitude of 4.2.
  • It is 1.0 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5393 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-652 b orbits around the star Kepler-652 every 4.2 days with its orbital distance of 0.05 AU ( 7522785.9 km)

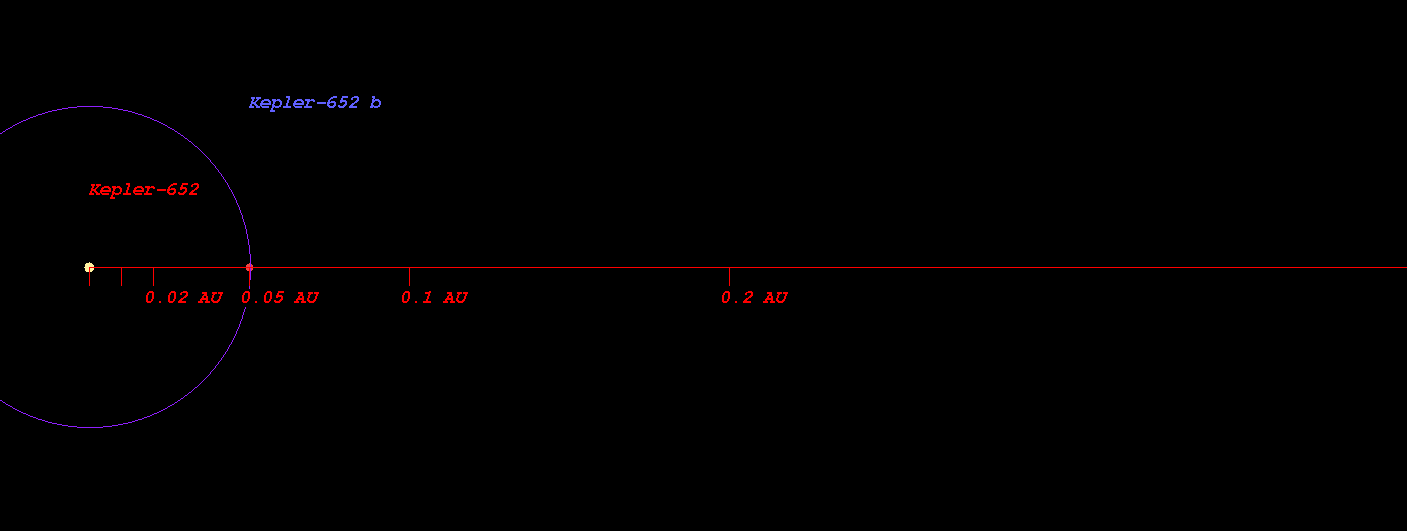

  • (Projected orbit of Kepler-652 b around its host star Kepler-652)


  • The Star Kepler-652 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.529 AU ( 79176853.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.732 AU ( 109443103.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.115 AU ( 166767069.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.640 AU ( 245405048.0 km)
  • Radiation at Planetary Boundary of Kepler-652 b : 289453.29 W/m2

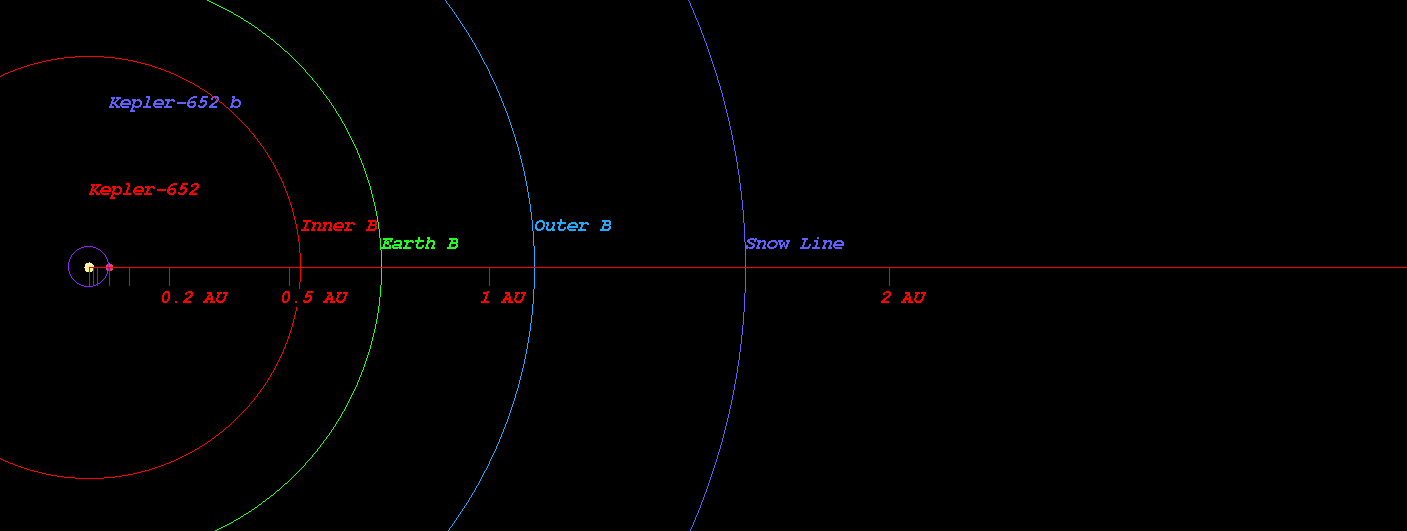

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-652)



  • Kopparapu Recent Venus for Star Kepler-652 distance : 0.561 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-652 distance : 0.710 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-652 distance : 0.686 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-652 distance : 0.753 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-652 distance : 1.269 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-652 distance : 1.338 AU

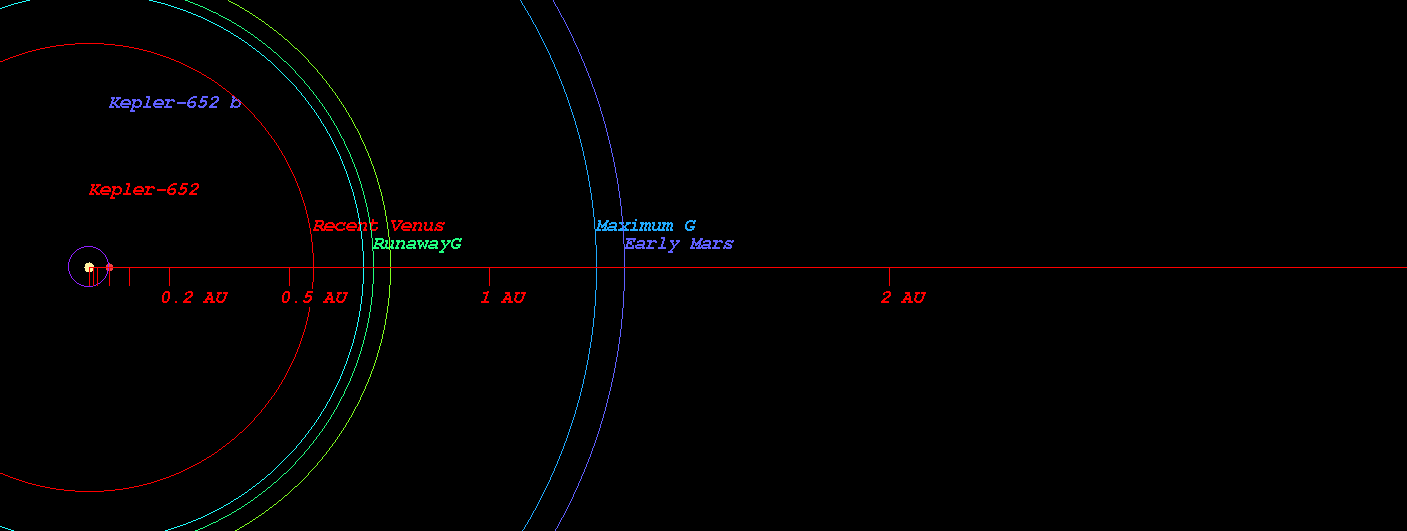

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-652)



  • Original Kopparapu Recent Venus for Star Kepler-652 distance : 0.558 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-652 distance : 0.731 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-652 distance : 0.738 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-652 distance : 1.291 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-652 distance : 1.342 AU

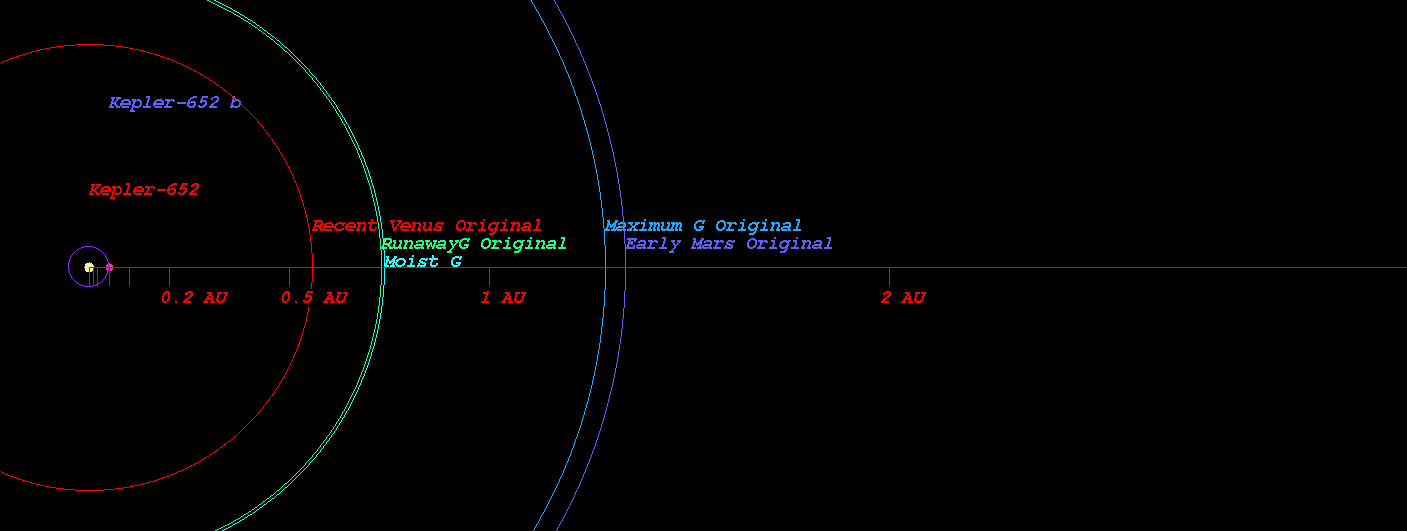

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-652)



    (Position in Stellar Map of star Kepler-652 and its Exoplanet Kepler-652 b)



    (Zoomed position in Stellar Map of star Kepler-652 and its Exoplanet Kepler-652 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-652*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
