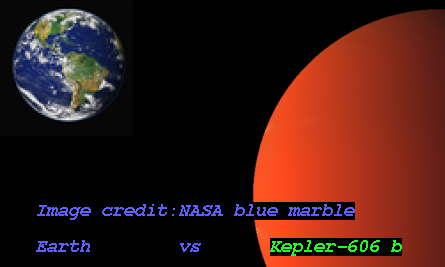

Imaginary Picture of Kepler-606 b

Display orbital revolution of Kepler-606 b around the hoststar Kepler-606
/
Exoplanet Name : Kepler-606 b
Alternate Name : "2MASS J19294257+4422525 b, K00575.01, KIC 8367113 b, KOI-575 b, KOI-575.01, WISE J192942.57+442252.4 b"
Status : Confirmed
Radius (Rjup / Re): 0.2950 (Rjup) 3.3067 (Rearth)
Mass (Mjup / Me): 0.0252 (Mjup) 8.0231 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1711 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0666
Orbital Period(Observed/Estimated) 24.32 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7338
Star Radiation at Atmospheric Boundary: 96970.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 787.6 (K)
Blackbody T 0.3(K) 739.6 (K)
Blackbody T 0.7(K) 598.4 (K)
Tidally Locked Blackbody T 0.1(K) 936.6 (K)
Tidally Locked Blackbody T 0.3(K) 879.6 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-606
Alternate Name : "2MASS J19294257+4422525, KIC 8367113, KOI-575, WISE J192942.57+442252.4"
Star Distance(LY) : 3966.5
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 6244 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 3.2
Apparent Magnitude: 13.6
Right Ascension(RA) 292.4274
Declination (DEC) 44.3813
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 525 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-606%20b/
Kepler-606 b
Kepler-606 b

  • Kepler-606 b is an exoplanet orbiting the star Kepler-606, located about 3966.5 light-years (1216.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-606 has apparent magnitude of 13.6, with absolute magnitude of 3.2.

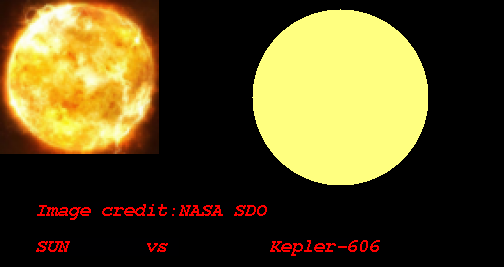

  • It is 1.1 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 6244 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-606 b orbits around the star Kepler-606 every 24.3 days with its orbital distance of 0.17 AU ( 25594695.9 km)

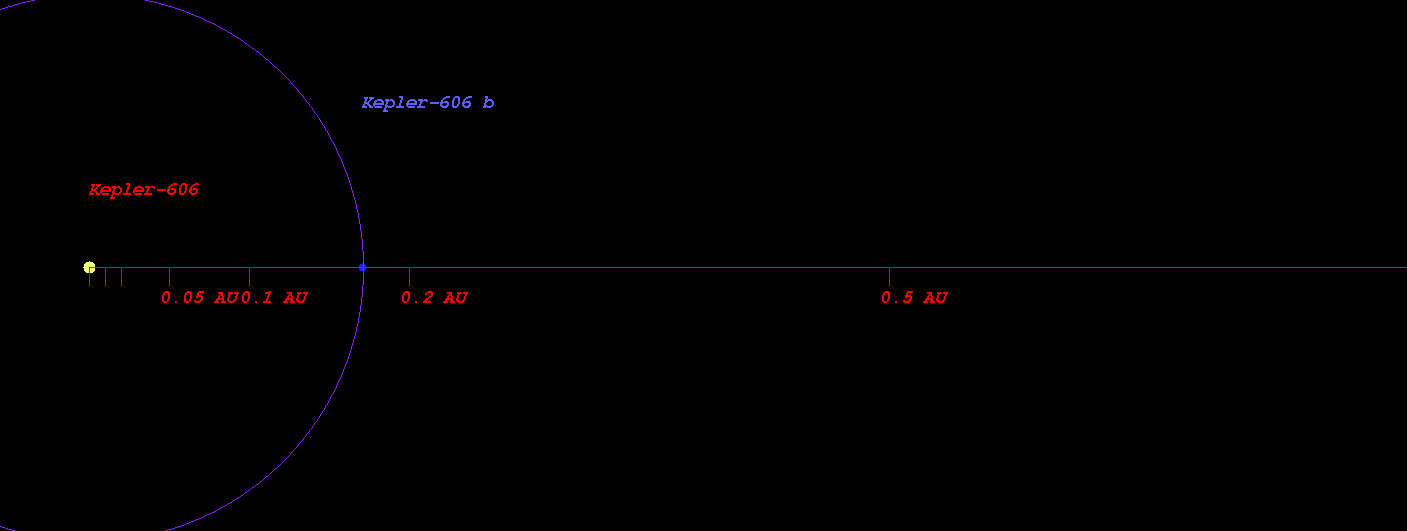

  • (Projected orbit of Kepler-606 b around its host star Kepler-606)


  • The Star Kepler-606 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.042 AU ( 155919007.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.441 AU ( 215520814.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.195 AU ( 328406026.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.230 AU ( 483263854.8 km)
  • Radiation at Planetary Boundary of Kepler-606 b : 96970.04 W/m2

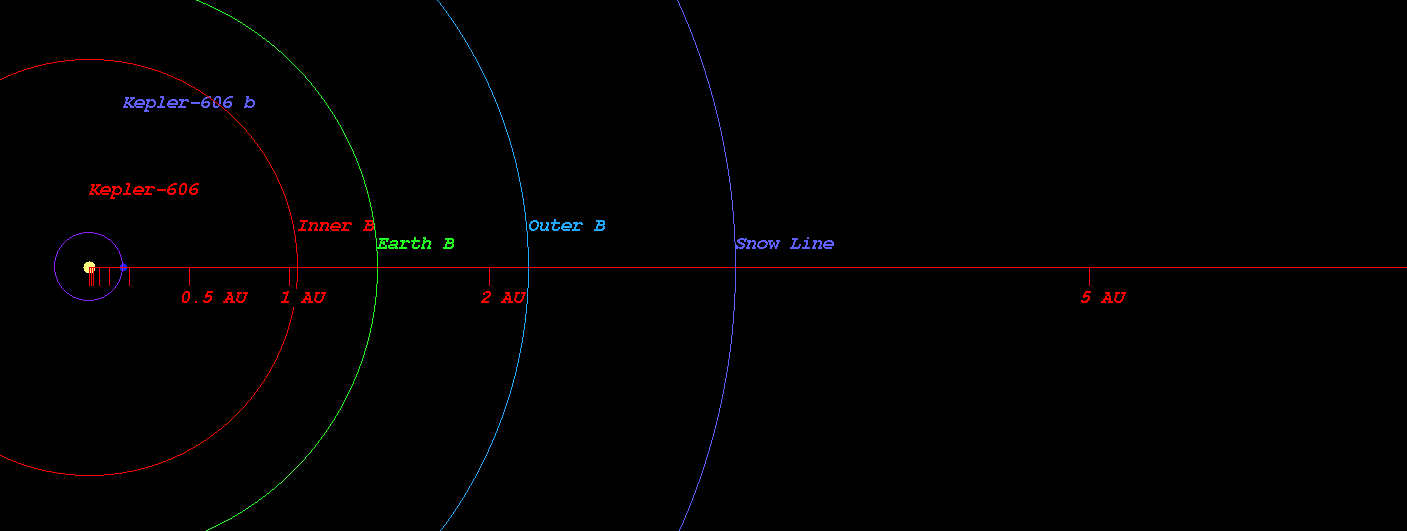

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-606)



  • Kopparapu Recent Venus for Star Kepler-606 distance : 1.050 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-606 distance : 1.330 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-606 distance : 1.284 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-606 distance : 1.407 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-606 distance : 2.324 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-606 distance : 2.451 AU

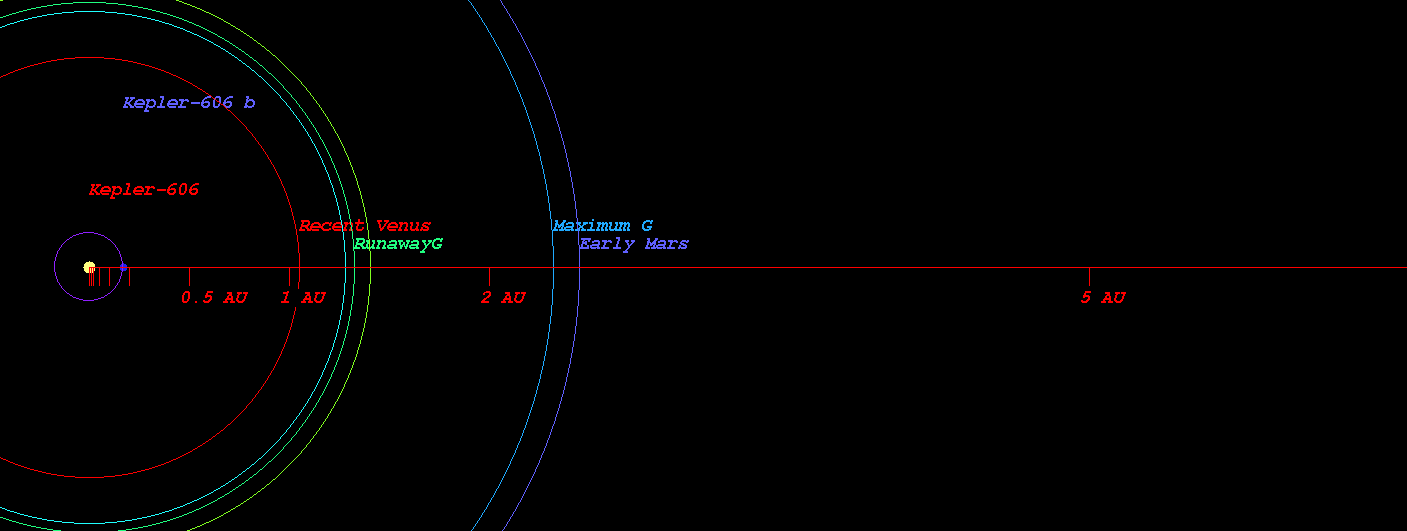

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-606)



  • Original Kopparapu Recent Venus for Star Kepler-606 distance : 1.062 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-606 distance : 1.364 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-606 distance : 1.405 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-606 distance : 2.365 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-606 distance : 2.460 AU

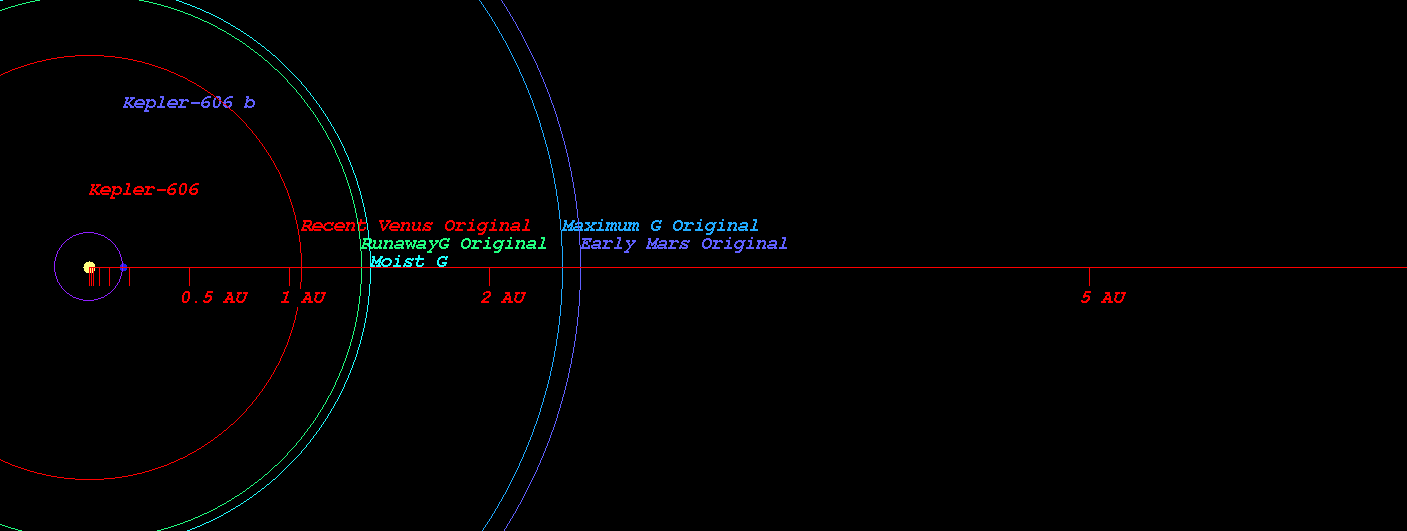

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-606)



    (Position in Stellar Map of star Kepler-606 and its Exoplanet Kepler-606 b)

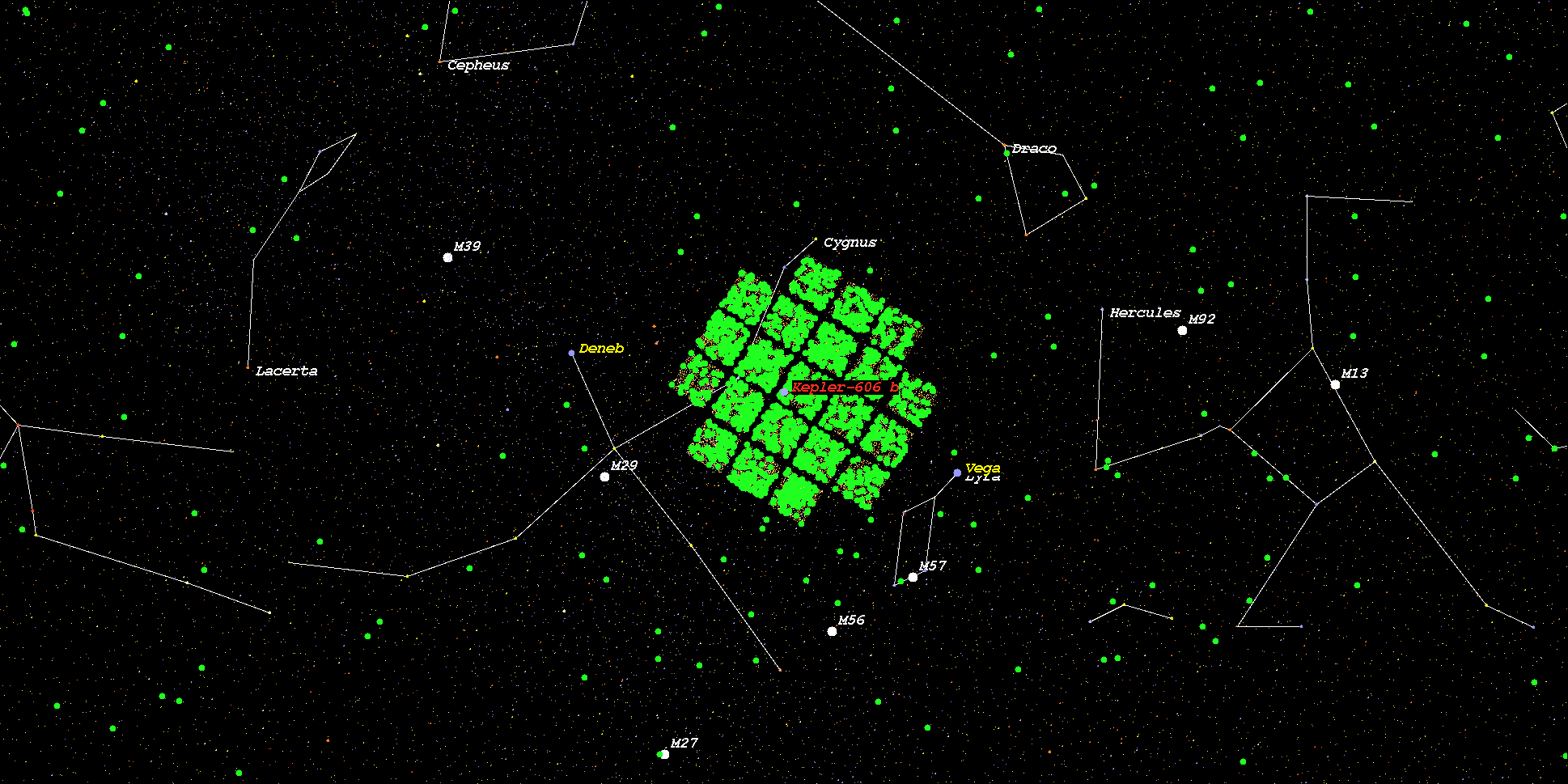

    (Zoomed position in Stellar Map of star Kepler-606 and its Exoplanet Kepler-606 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-606*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
