Imaginary Picture of Kepler-565 b

Display orbital revolution of Kepler-565 b around the hoststar Kepler-565
/
Exoplanet Name : Kepler-565 b
Alternate Name : "2MASS J18542830+4711480 b, K00472.01, KIC 10123064 b, KOI-472 b, KOI-472.01, WISE J185428.32+471148.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.3250 (Rjup) 3.6429 (Rearth)
Mass (Mjup / Me): 0.0276 (Mjup) 8.7793 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0510 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0116
Orbital Period(Observed/Estimated) 4.24 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6615
Star Radiation at Atmospheric Boundary: 399334.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1122.0 (K)
Blackbody T 0.3(K) 1053.6 (K)
Blackbody T 0.7(K) 852.5 (K)
Tidally Locked Blackbody T 0.1(K) 1334.2 (K)
Tidally Locked Blackbody T 0.3(K) 1253.0 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-565
Alternate Name : "2MASS J18542830+4711480, KIC 10123064, KOI-472, WISE J185428.32+471148.1"
Star Distance(LY) : 2661.2
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.1 (GY)
Temperature : 5873 (K)
Spectral type : G3
UV portion[%]: 7.7
Visible portion[%]: 44.6
IR portion[%]: 47.7
Metalicity : -0.0
Absolute Magnitude: 4.3
Apparent Magnitude: 13.9
Right Ascension(RA) 283.6179
Declination (DEC) 47.1967
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 488 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-565%20b/
Kepler-565 b
Kepler-565 b

  • Kepler-565 b is an exoplanet orbiting the star Kepler-565, located about 2661.2 light-years (815.9 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-565 has apparent magnitude of 13.9, with absolute magnitude of 4.3.
  • It is 1.0 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5873 with its spectral types of G3
  • In this planetary system, the extrasolar planet Kepler-565 b orbits around the star Kepler-565 every 4.2 days with its orbital distance of 0.05 AU ( 7622667.2 km)

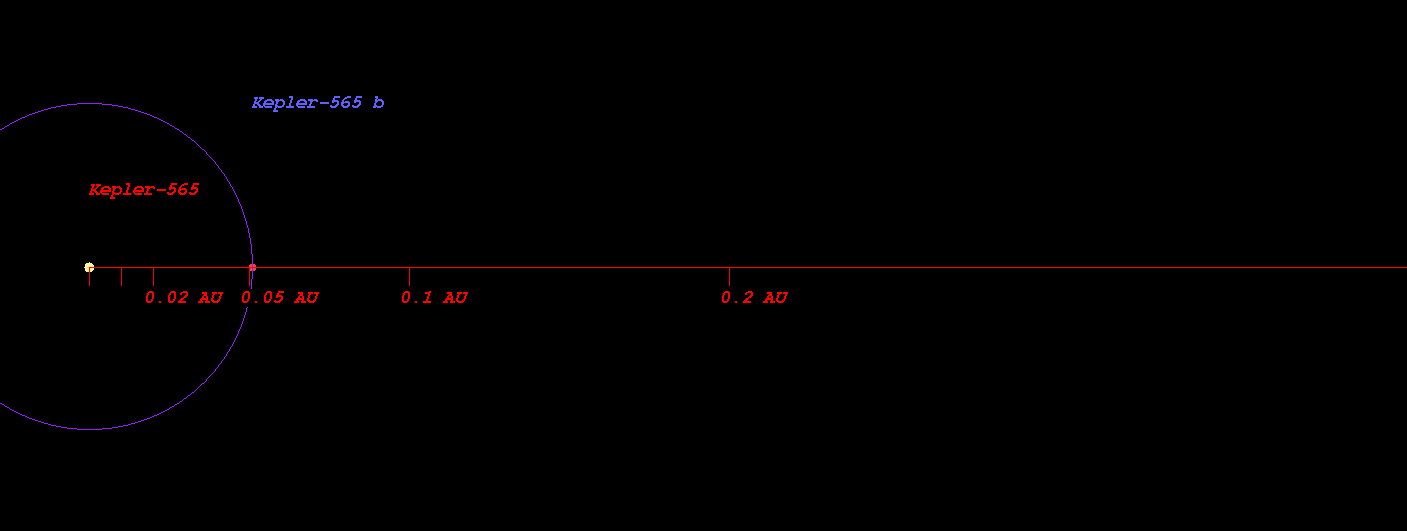

  • (Projected orbit of Kepler-565 b around its host star Kepler-565)


  • The Star Kepler-565 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.630 AU ( 94233579.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.871 AU ( 130255433.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.327 AU ( 198480454.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.952 AU ( 292072684.0 km)
  • Radiation at Planetary Boundary of Kepler-565 b : 399334.53 W/m2

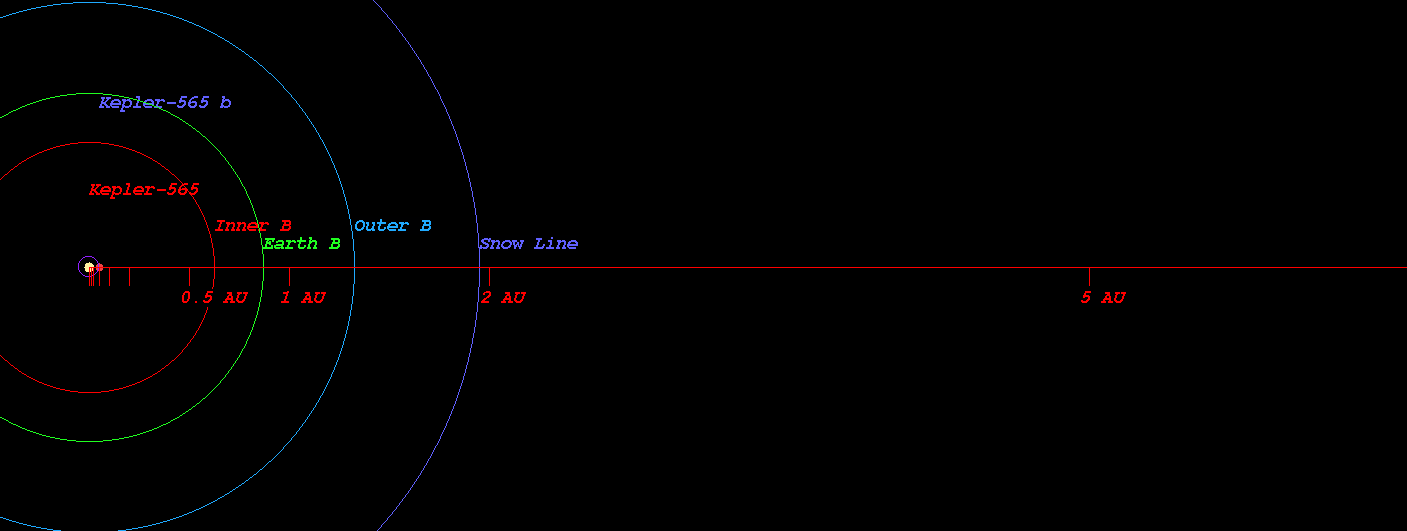

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-565)



  • Kopparapu Recent Venus for Star Kepler-565 distance : 0.649 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-565 distance : 0.822 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-565 distance : 0.794 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-565 distance : 0.870 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-565 distance : 1.448 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-565 distance : 1.527 AU

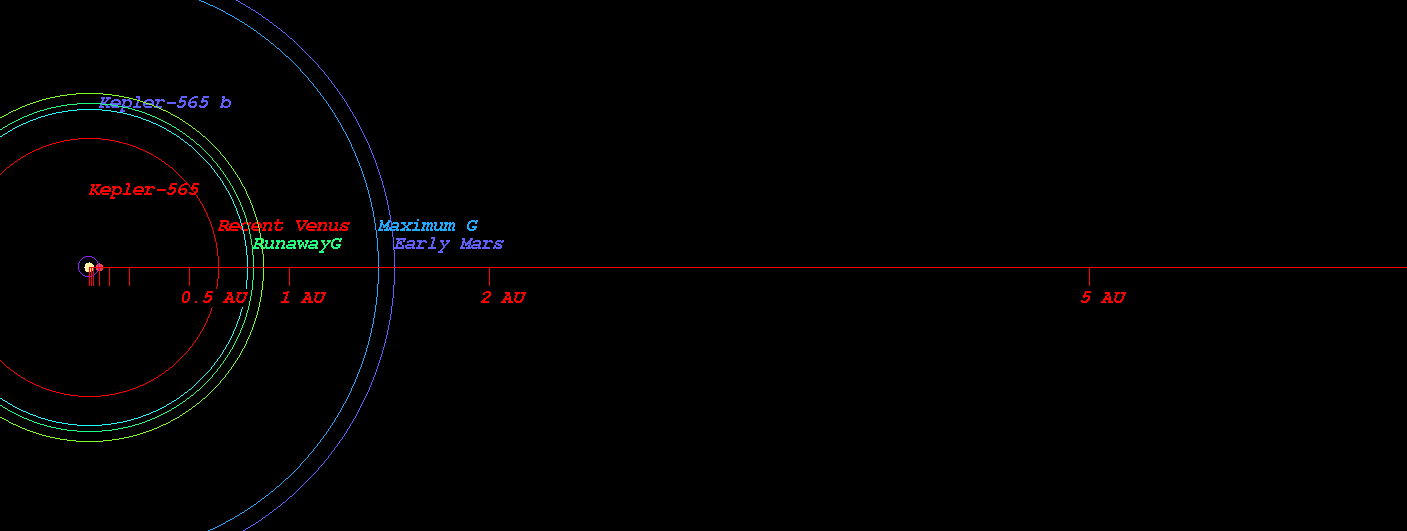

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-565)



  • Original Kopparapu Recent Venus for Star Kepler-565 distance : 0.651 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-565 distance : 0.844 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-565 distance : 0.862 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-565 distance : 1.474 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-565 distance : 1.533 AU

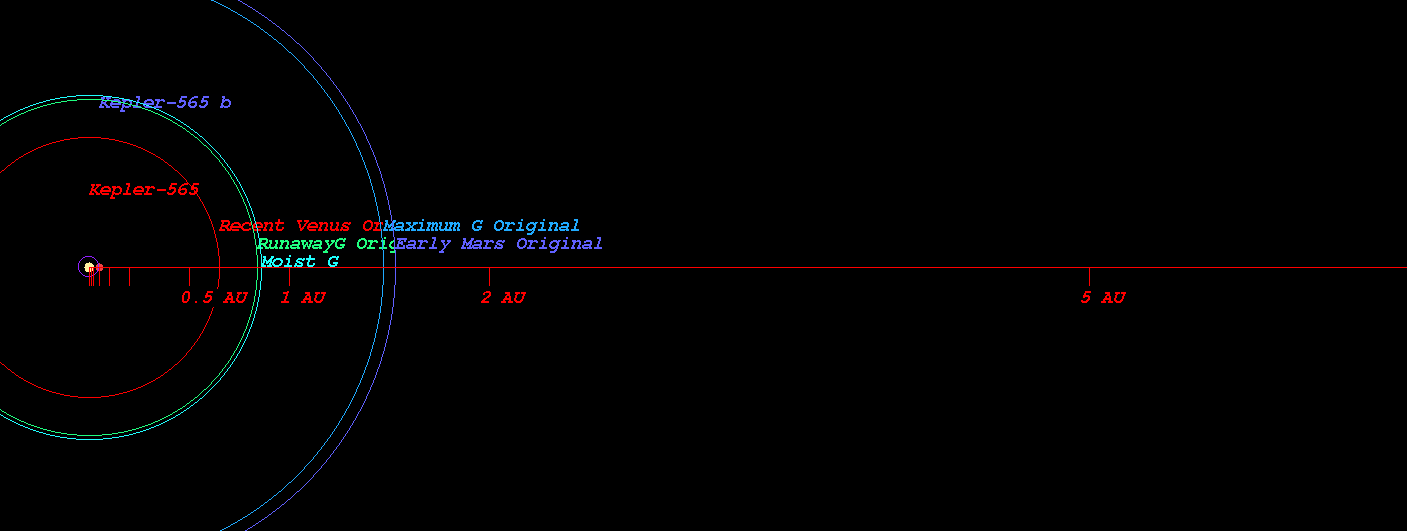

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-565)

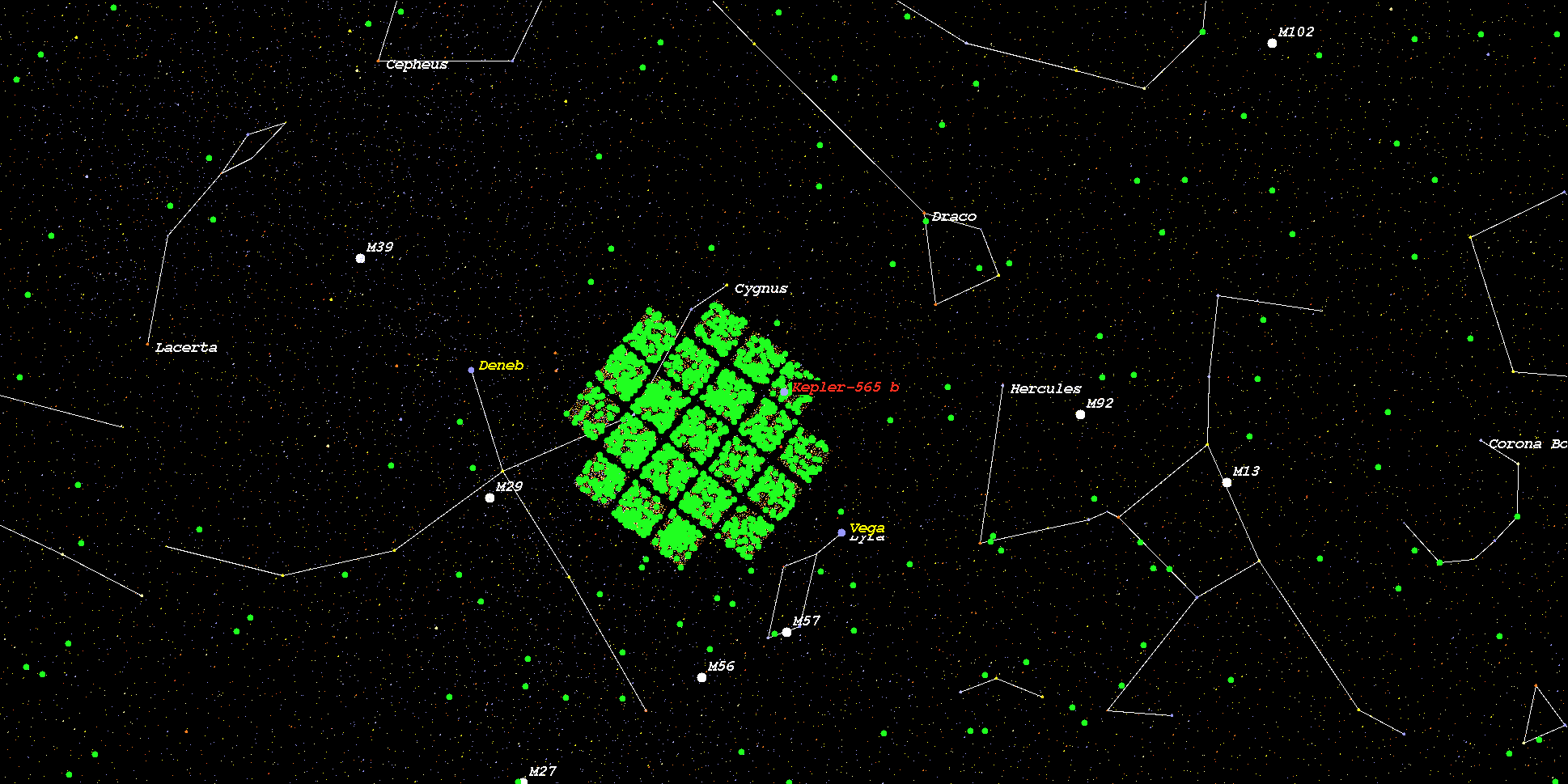

    (Position in Stellar Map of star Kepler-565 and its Exoplanet Kepler-565 b)



    (Zoomed position in Stellar Map of star Kepler-565 and its Exoplanet Kepler-565 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-565*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
