Imaginary Picture of Kepler-563 b

Display orbital revolution of Kepler-563 b around the hoststar Kepler-563
/
Exoplanet Name : Kepler-563 b
Alternate Name : "2MASS J19294710+4617231 b, K00468.01, KIC 9589524 b, KOI-468 b, KOI-468.01, WISE J192947.08+461723.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.2760 (Rjup) 3.0937 (Rearth)
Mass (Mjup / Me): 0.0237 (Mjup) 7.5415 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1434 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0607
Orbital Period(Observed/Estimated) 22.18 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7880
Star Radiation at Atmospheric Boundary: 24994.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 561.2 (K)
Blackbody T 0.3(K) 527.0 (K)
Blackbody T 0.7(K) 426.4 (K)
Tidally Locked Blackbody T 0.1(K) 667.4 (K)
Tidally Locked Blackbody T 0.3(K) 626.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-563
Alternate Name : "2MASS J19294710+4617231, KIC 9589524, KOI-468, WISE J192947.08+461723.1"
Star Distance(LY) : 1843.0
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 5.4 (GY)
Temperature : 5157 (K)
Spectral type : K1
UV portion[%]: 3.7
Visible portion[%]: 37.9
IR portion[%]: 58.4
Metalicity : -0.1
Absolute Magnitude: 4.6
Apparent Magnitude: 13.4
Right Ascension(RA) 292.4463
Declination (DEC) 46.2898
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 486 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-563%20b/
Kepler-563 b
Kepler-563 b

  • Kepler-563 b is an exoplanet orbiting the star Kepler-563, located about 1843.0 light-years (565.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-563 has apparent magnitude of 13.4, with absolute magnitude of 4.6.
  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5157 with its spectral types of K1
  • In this planetary system, the extrasolar planet Kepler-563 b orbits around the star Kepler-563 every 22.2 days with its orbital distance of 0.14 AU ( 21458174.1 km)

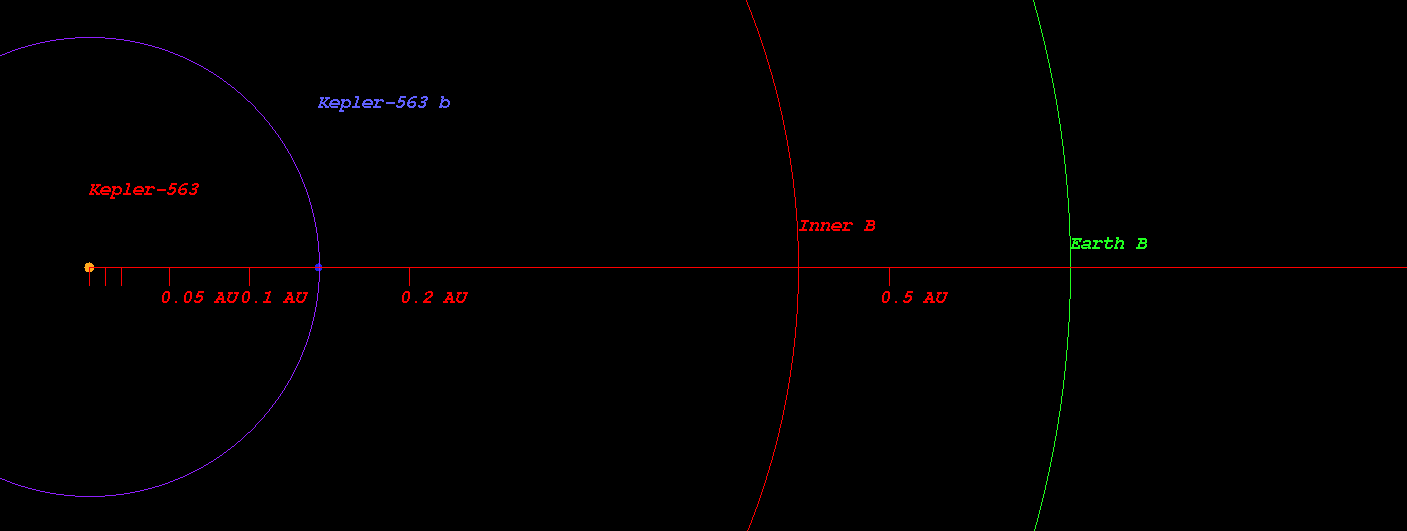

  • (Projected orbit of Kepler-563 b around its host star Kepler-563)


  • The Star Kepler-563 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.444 AU ( 66365611.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.613 AU ( 91734618.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.934 AU ( 139783257.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.375 AU ( 205697187.3 km)
  • Radiation at Planetary Boundary of Kepler-563 b : 24994.25 W/m2

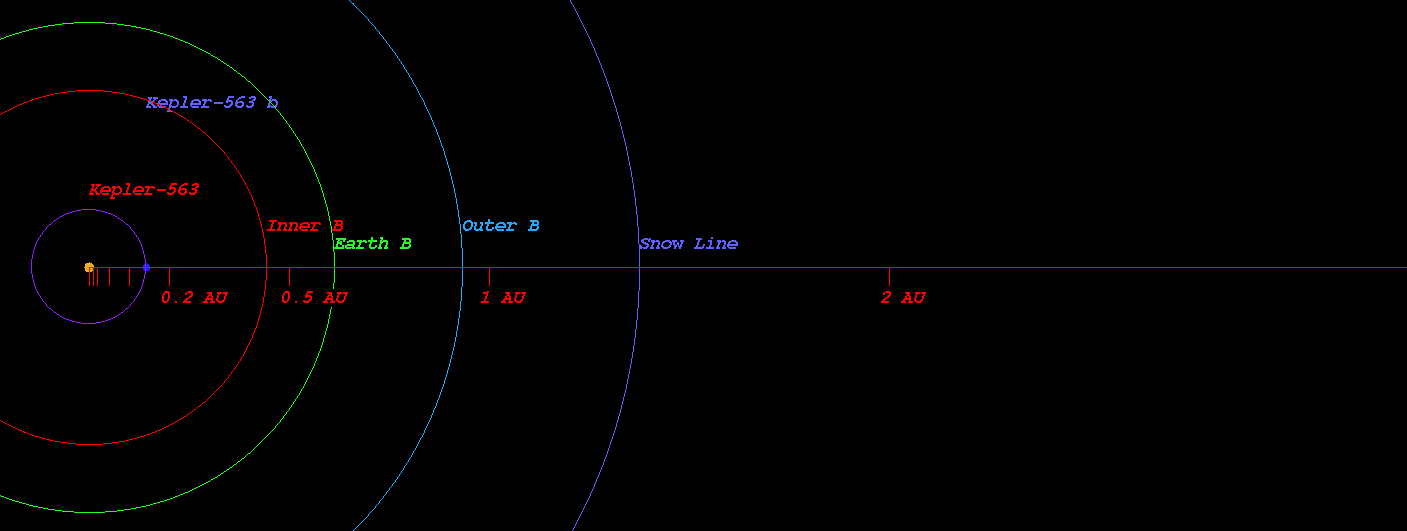

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-563)



  • Kopparapu Recent Venus for Star Kepler-563 distance : 0.476 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-563 distance : 0.603 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-563 distance : 0.582 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-563 distance : 0.639 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-563 distance : 1.086 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-563 distance : 1.146 AU

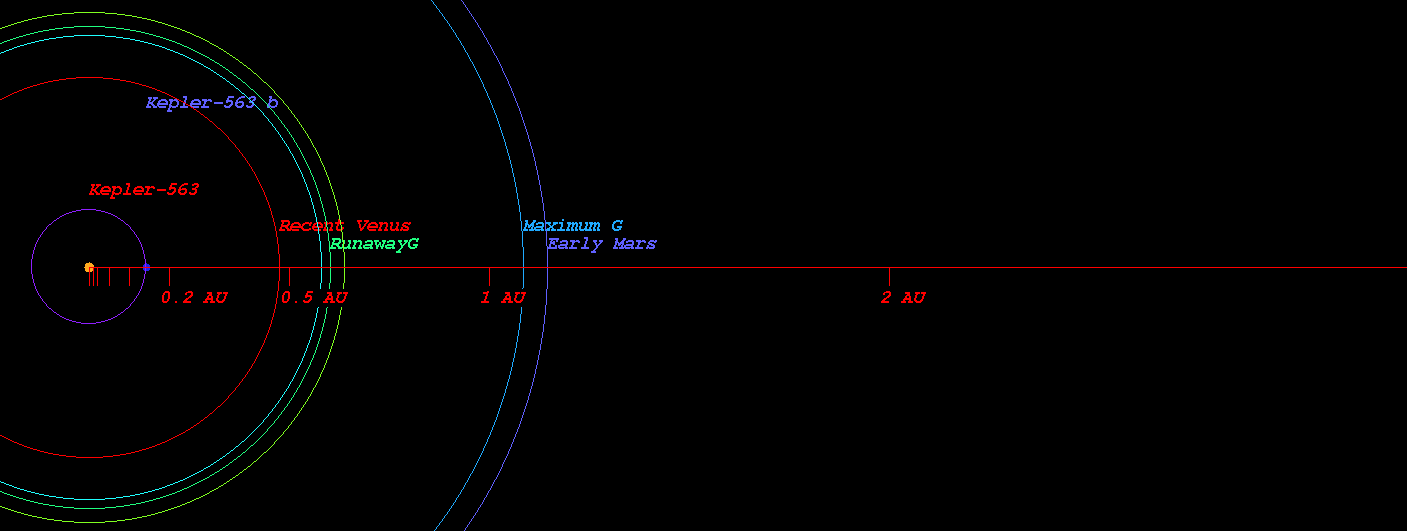

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-563)



  • Original Kopparapu Recent Venus for Star Kepler-563 distance : 0.472 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-563 distance : 0.621 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-563 distance : 0.625 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-563 distance : 1.105 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-563 distance : 1.149 AU

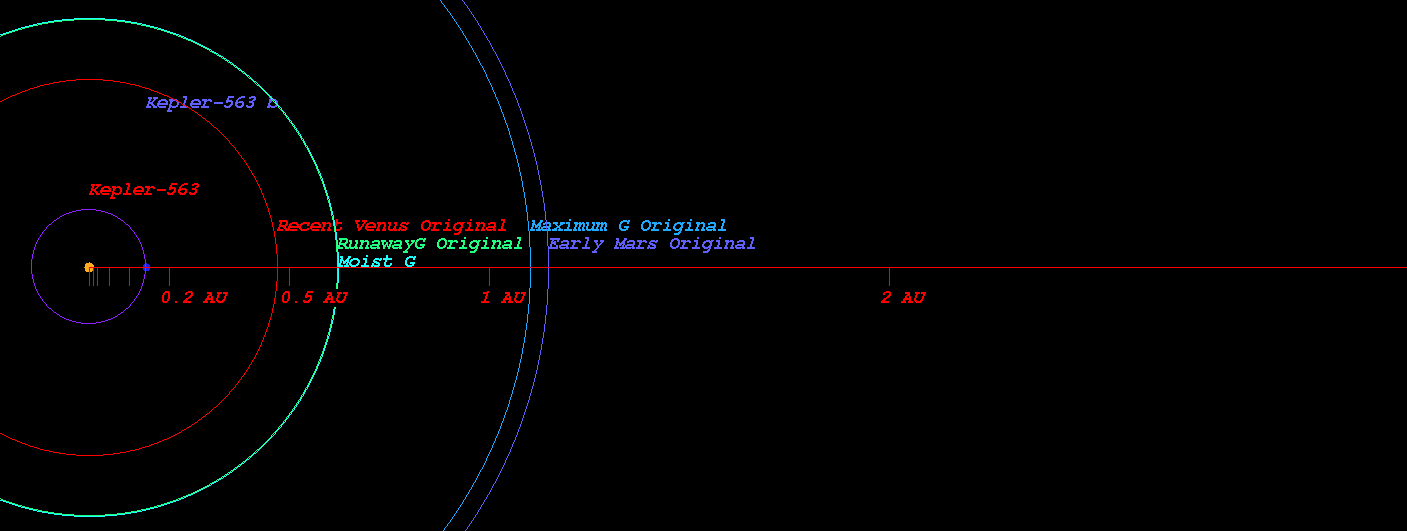

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-563)



    (Position in Stellar Map of star Kepler-563 and its Exoplanet Kepler-563 b)

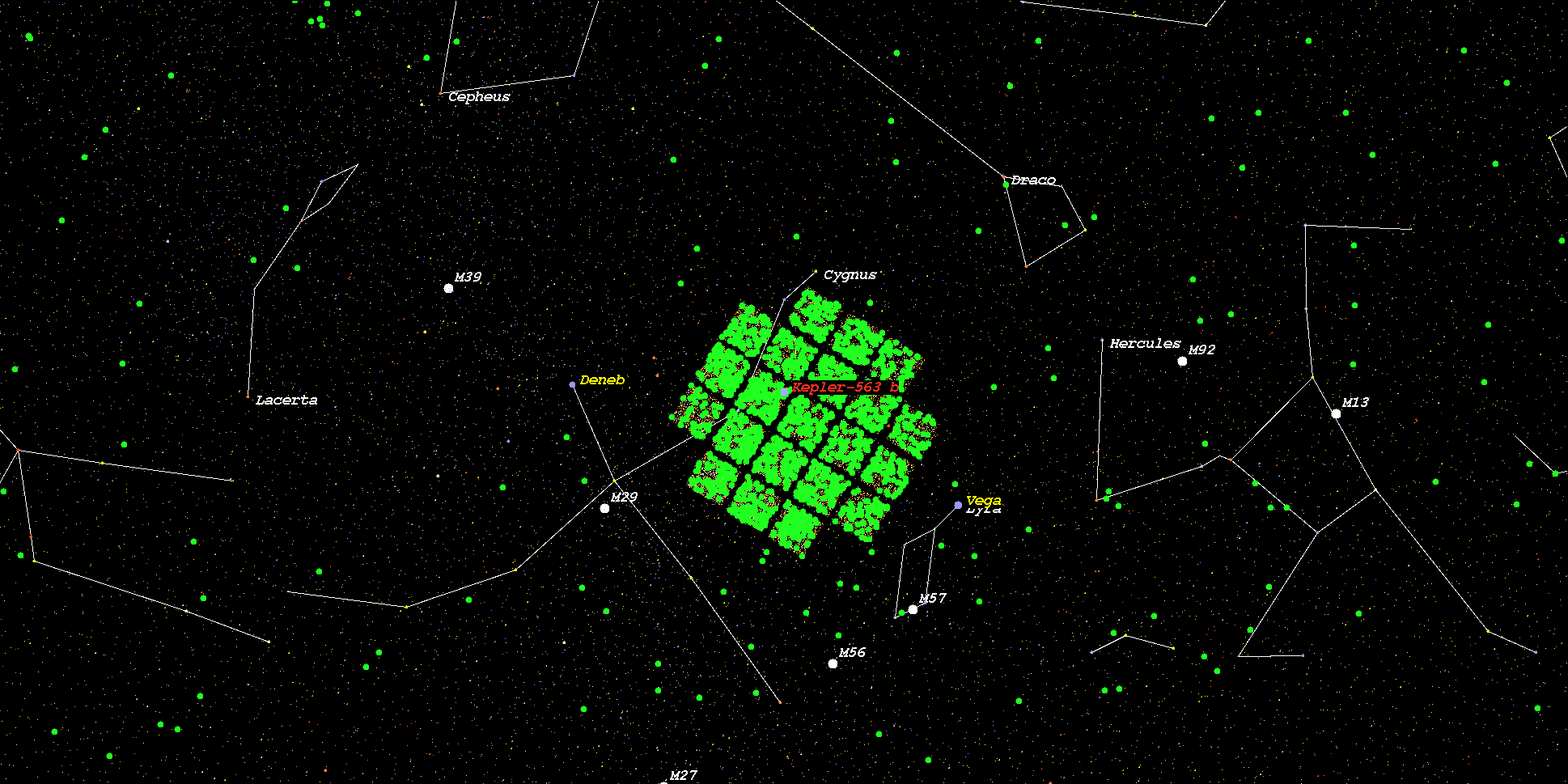

    (Zoomed position in Stellar Map of star Kepler-563 and its Exoplanet Kepler-563 b (zoom level 3))

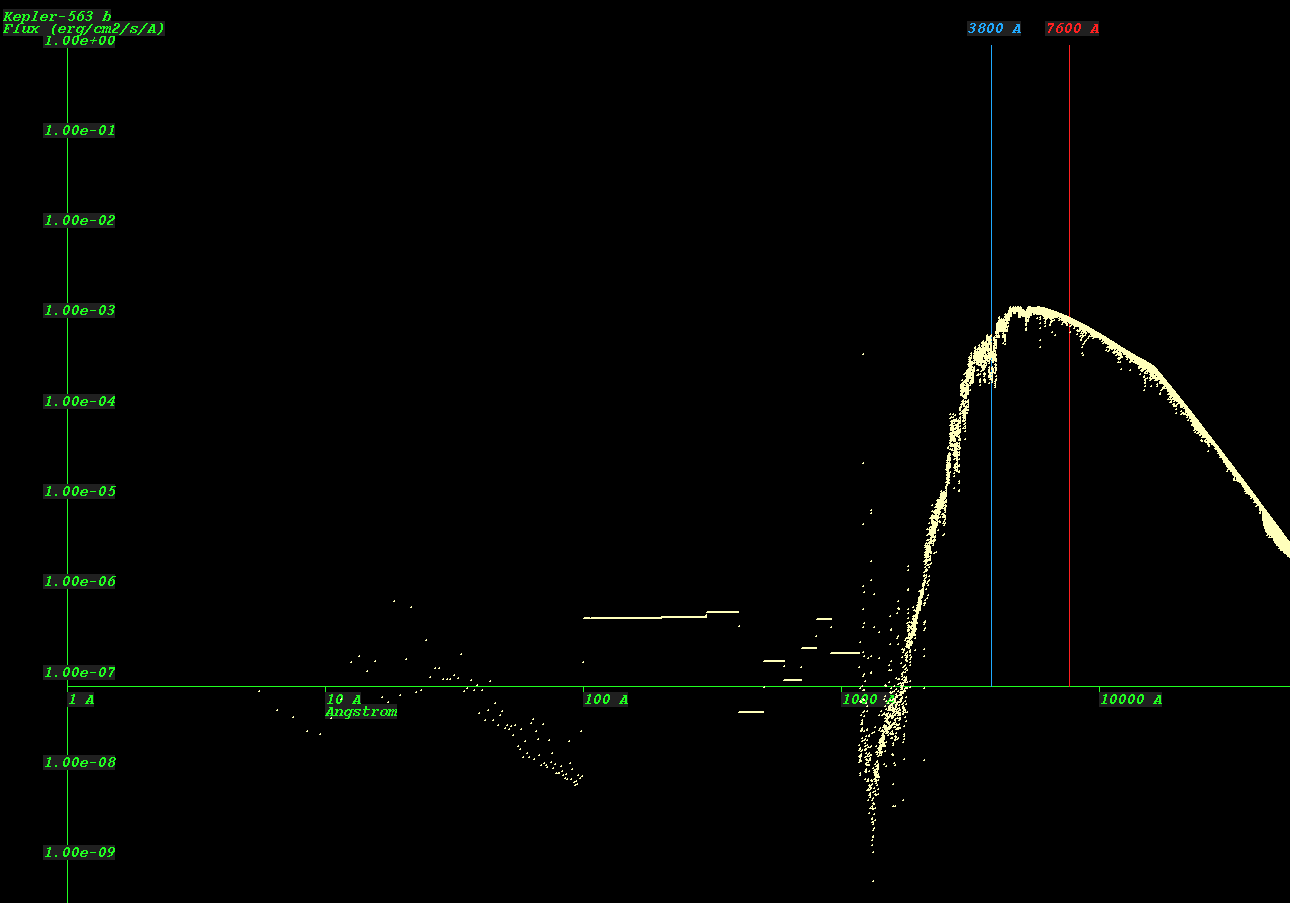

    (Synthetic Spectrum of star Kepler-563*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
