Exoplanet Name : |
Kepler-409 b |
|
Alternate Name : |
"2MASS J19344300+4651099 b, K01925.01, KIC 9955598 b, KOI-1925.01, WISE J193443.00+465109.9 b" |
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.1060 |
(Rjup) |
1.1882 |
(Rearth) |
|
Mass (Mjup / Me): |
0.0692 |
(Mjup) |
22.0077 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
0.0000 |
(AU) |
0.3201 |
(AU Est.) |
|
Eccentricity : |
0.0000 |
|
Orbital Period(Yrs) |
0.1888 |
|
Orbital Period(Observed/Estimated) |
68.96 |
(Days Obs.) |
0.00 |
(Days Est.) |
|
Surface Gravity (G Earth) |
15.5894 |
|
Star Radiation at Atmospheric Boundary: |
8305.2 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
426.1 |
(K) |
|
Blackbody T 0.3(K) |
400.1 |
(K) |
|
Blackbody T 0.7(K) |
323.7 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
506.7 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
475.8 |
(K) |
|
Size Class: |
Earth-size |
|
Mass Class: |
|
|
Detection Type : |
Primary Transit |
|
Mass Detection : |
Radial Velocity |
|
Radius Detection : |
Primary Transit |
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
Kepler-409 |
|
Alternate Name : |
"KOI-1925, KIC 9955598, 2MASS J19344300+4651099, WISE J193443.00+465109.9" |
|
Star Distance(LY) : |
226.3 |
|
Stellar Radius(Rsun) : |
0.9 |
(Rsun Measured) |
|
Stellar Mass(Msun) : |
0.9 |
(Msun Measured) |
0.9 |
(Msun Estimated) |
|
Star Age : |
6.8 |
(GY) |
|
Temperature : |
5416 |
(K) |
|
Spectral type : |
G7 |
|
UV portion[%]: |
6.7 |
|
Visible portion[%]: |
42.9 |
|
IR portion[%]: |
50.4 |
|
Metalicity : |
0.1 |
|
Absolute Magnitude: |
5.2 |
|
Apparent Magnitude: |
9.4 |
|
Right Ascension(RA) |
293.6792 |
|
Declination (DEC) |
46.8528 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
03556-00878 |
|
Discovered by |
|
|
Discovery Paper - Authors |
"Geoffrey W. Marcy, Howard Isaacson, Andrew W. Howard et al. The Astrophysical Journal, Supplement Series 210:20(70pp) 2014 February, doi:10.1088/0067-0049/210/2/20" |
|
Discovery Paper - Title |
"Masses, Radii, and Orbits of Small Kepler Planets: The Transition from Gaseous to Rocky Planets" |
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-409+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/Kepler-409%20b/ |
 |
 |
 |
 |
/
Kepler-409 b
Kepler-409 b

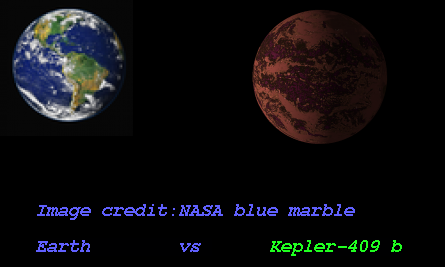

Kepler-409 b is an exoplanet orbiting the star Kepler-409, located about 226.3 light-years (69.4 pc) away from Solar System. Its discovery was publicly announced on 2014.

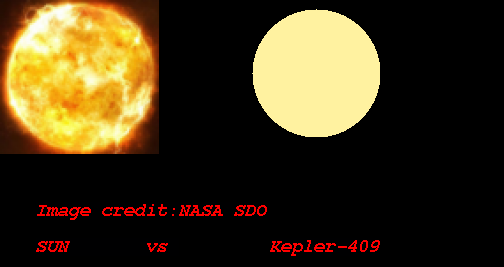

The host star Kepler-409 has apparent magnitude of 9.4, with absolute magnitude of 5.2. It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5416 with its spectral types of G7
In this planetary system, the extrasolar planet Kepler-409 b orbits around the star Kepler-409 every 69.0 days with its orbital distance of 0.32 AU ( 47883511.2 km)

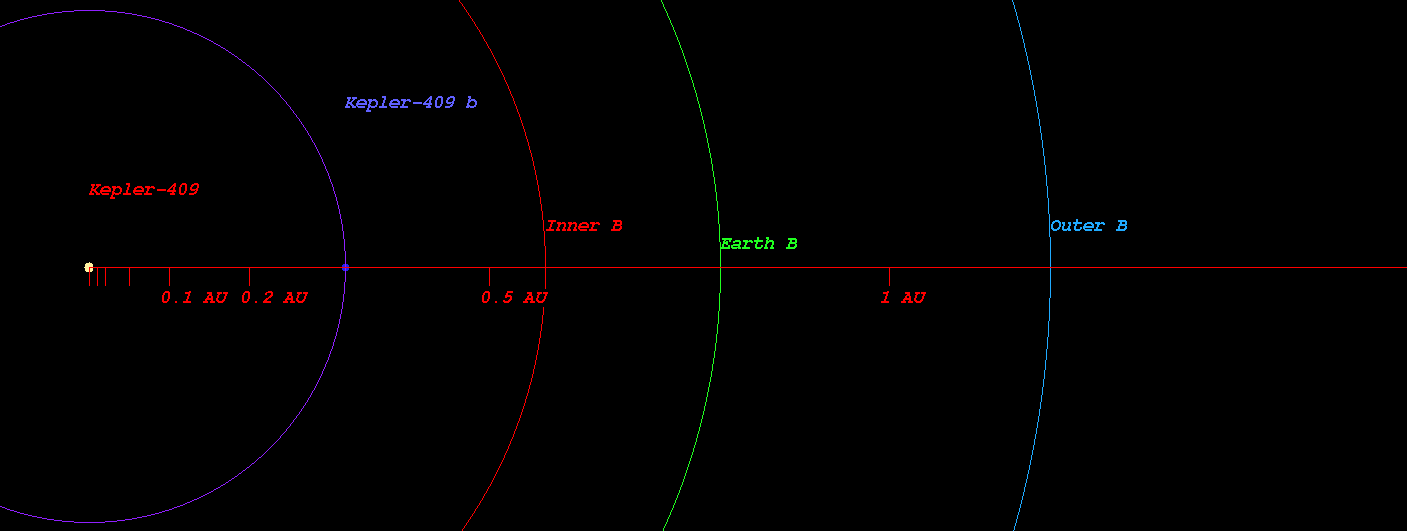

(Projected orbit of Kepler-409 b around its host star Kepler-409)
The Star Kepler-409 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.571 AU ( 85367342.2 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 0.789 AU ( 117999976.1 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 1.202 AU ( 179805850.2 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 1.769 AU ( 264592185.4 km)
Radiation at Planetary Boundary of Kepler-409 b : 8305.22 W/m2

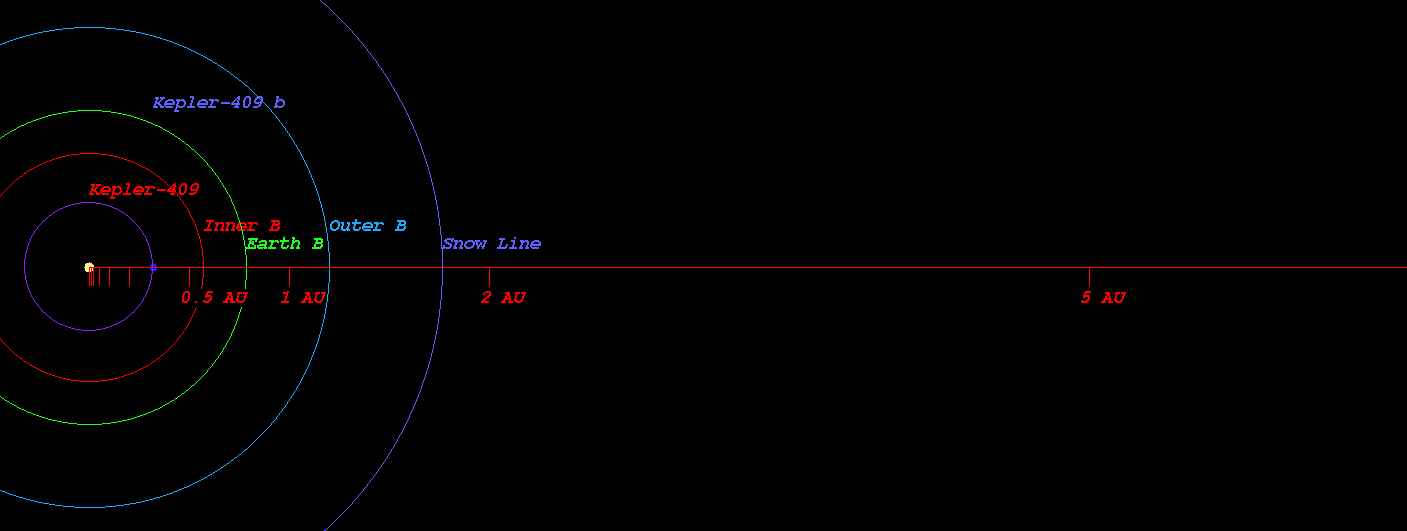

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-409)
Kopparapu Recent Venus for Star Kepler-409 distance : 0.604 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-409 distance : 0.765 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-409 distance : 0.739 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-409 distance : 0.810 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-409 distance : 1.365 AU
Kopparapu Outer Boundary for Early Mars for Star Kepler-409 distance : 1.440 AU

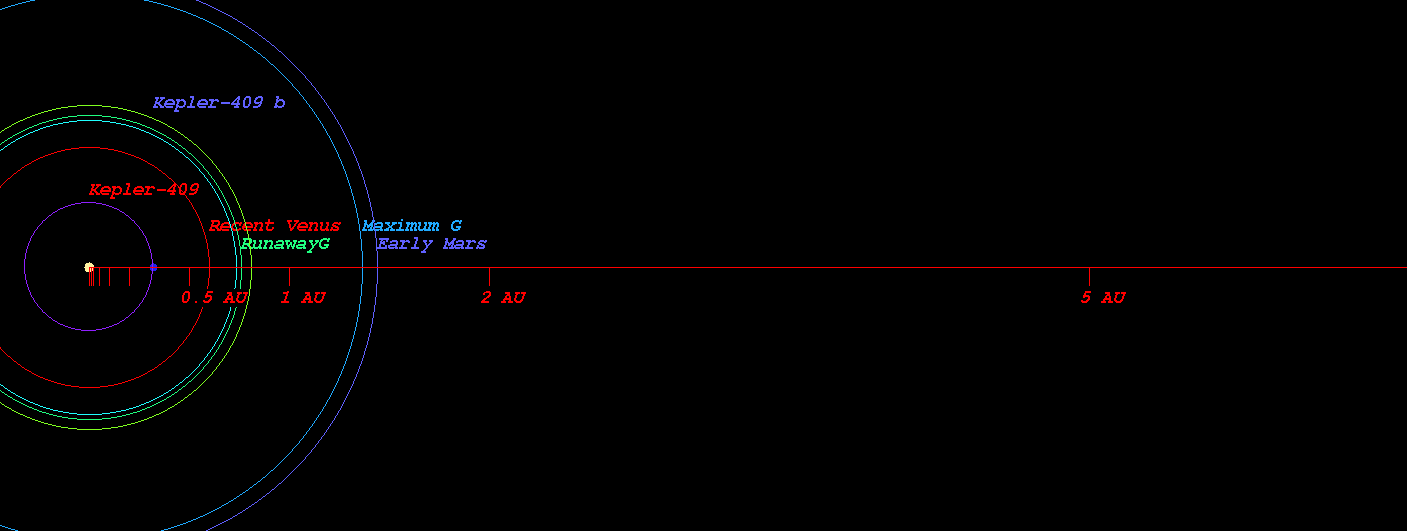

(Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-409)
Original Kopparapu Recent Venus for Star Kepler-409 distance : 0.601 AU
Original Kopparapu Runaway Greenhouse for Star Kepler-409 distance : 0.787 AU
Original Kopparapu Moist Greenhouse for Star Kepler-409 distance : 0.795 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-409 distance : 1.389 AU
Original Kopparapu Outer Boundary for Early Mars for Star Kepler-409 distance : 1.444 AU

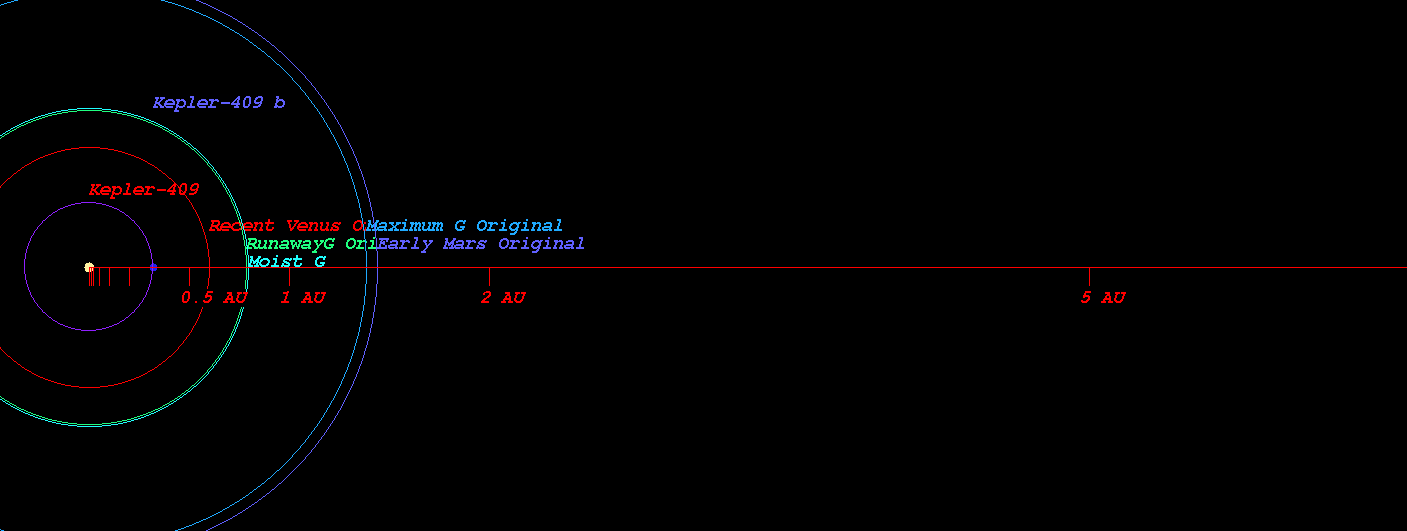

(Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-409)

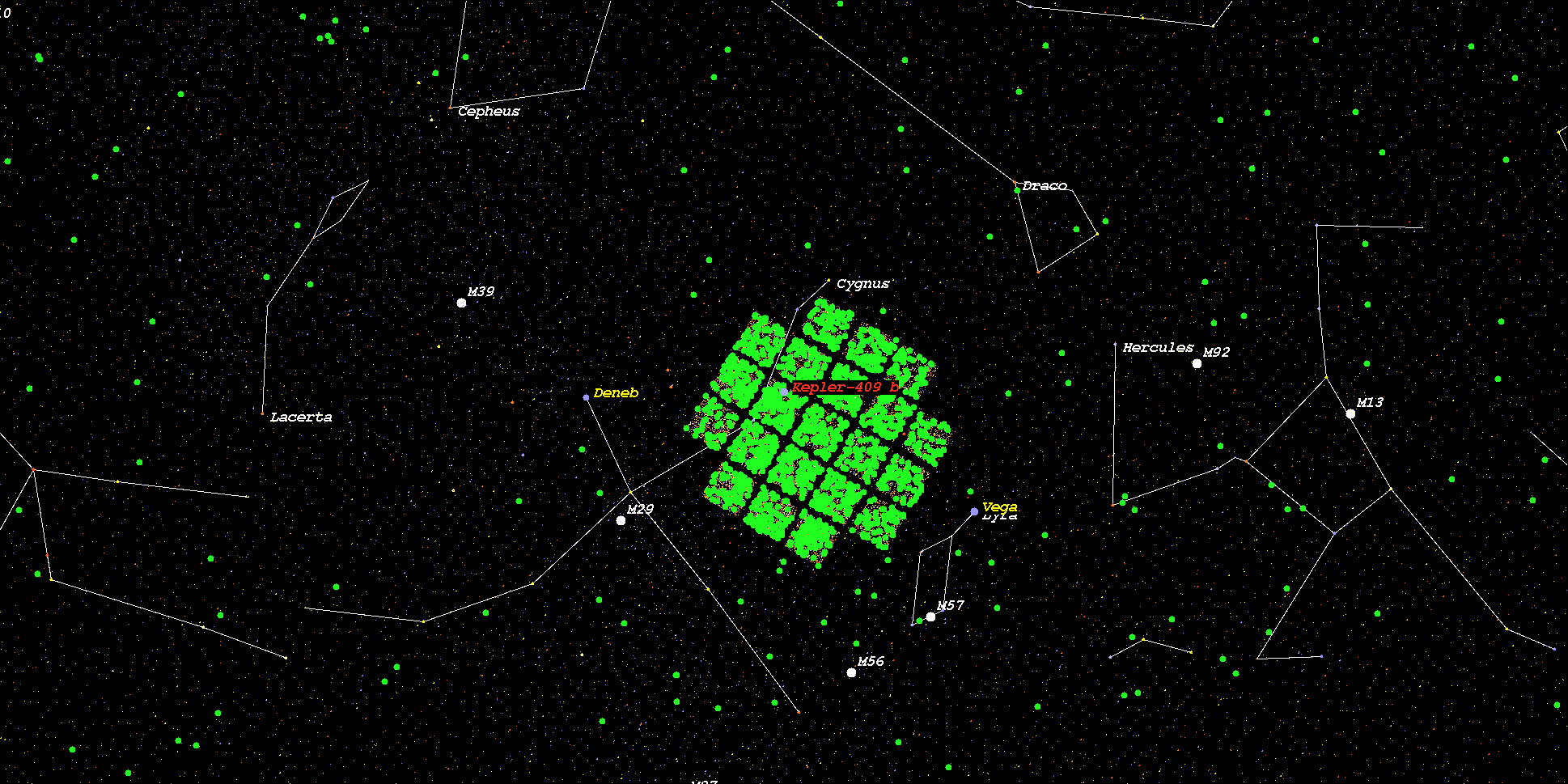

(Position in Stellar Map of star Kepler-409 and its Exoplanet Kepler-409 b)
(Zoomed position in Stellar Map of star Kepler-409 and its Exoplanet Kepler-409 b (zoom level 3))
(Synthetic Spectrum of star Kepler-409*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
