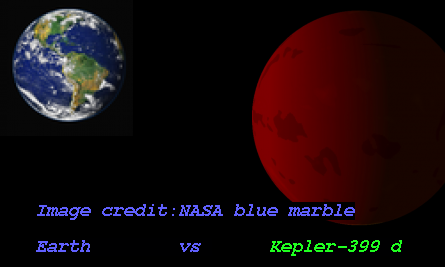

Imaginary Picture of Kepler-399 d

Display orbital revolution of Kepler-399 d around the hoststar Kepler-399
/
Exoplanet Name : Kepler-399 d
Alternate Name : "2MASS J19580041+4040148 d, K02707.01, KIC 5480640 d, KOI-2707 d, KOI-2707.01, WISE J195800.41+404014.5 d"
Status : Confirmed
Radius (Rjup / Re): 0.1690 (Rjup) 1.8943 (Rearth)
Mass (Mjup / Me): 0.0150 (Mjup) 4.7791 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.2610 (AU) 0.2610 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1589
Orbital Period(Observed/Estimated) 58.03 (Days Obs.) 45.42 (Days Est.)
Surface Gravity (G Earth) 1.3318
Star Radiation at Atmospheric Boundary: 21341.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 539.4 (K)
Blackbody T 0.3(K) 506.6 (K)
Blackbody T 0.7(K) 409.9 (K)
Tidally Locked Blackbody T 0.1(K) 641.5 (K)
Tidally Locked Blackbody T 0.3(K) 602.4 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-399
Alternate Name : "2MASS J19580041+4040148, KIC 5480640, KOI-2707, WISE J195800.41+404014.5"
Star Distance(LY) : 2205.2
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5467 (K)
Spectral type : G7
UV portion[%]: 6.7
Visible portion[%]: 43.0
IR portion[%]: 50.3
Metalicity : -0.8
Absolute Magnitude: 4.0
Apparent Magnitude: 13.2
Right Ascension(RA) 299.5017
Declination (DEC) 40.6708
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-399+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-399%20d/
Kepler-399 d
Kepler-399 d

  • Kepler-399 d is an exoplanet orbiting the star Kepler-399, located about 2205.2 light-years (676.1 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-399 has apparent magnitude of 13.2, with absolute magnitude of 4.0.

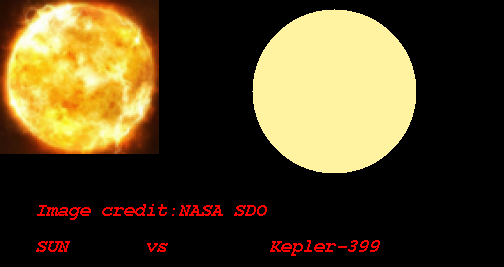

  • It is 1.1 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 5467 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-399 d orbits around the star Kepler-399 every 58.0 days with its orbital distance of 0.26 AU ( 39045044.3 km)

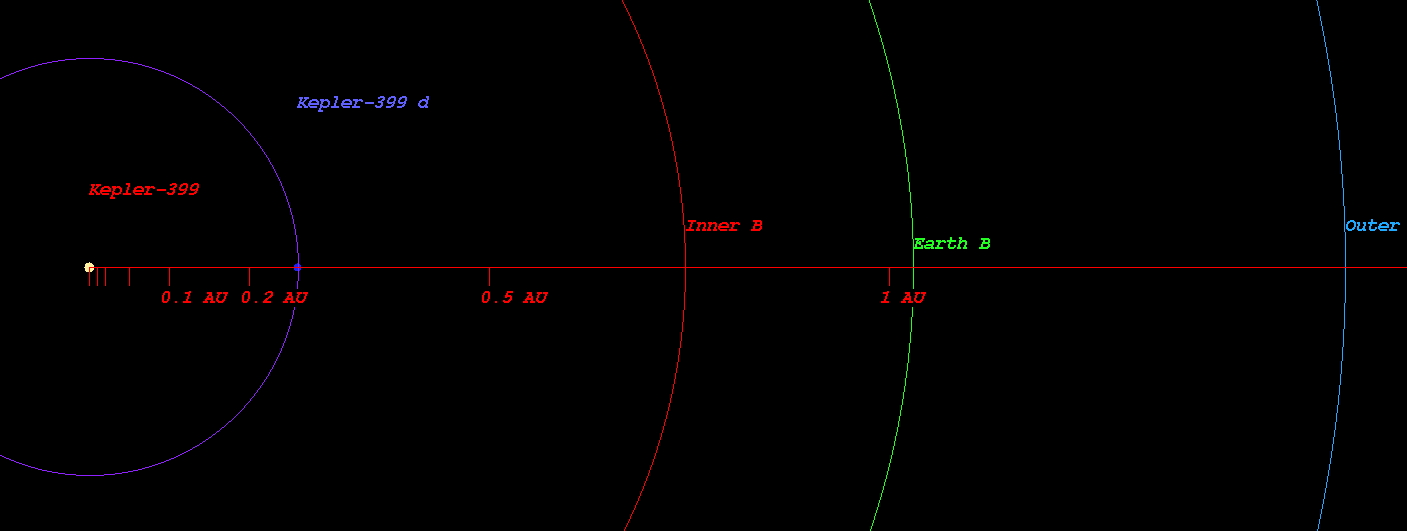

  • (Projected orbit of Kepler-399 d around its host star Kepler-399)


  • The Star Kepler-399 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.746 AU ( 111585750.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.031 AU ( 154240668.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.571 AU ( 235028645.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.312 AU ( 345854947.1 km)
  • Radiation at Planetary Boundary of Kepler-399 d : 21341.51 W/m2

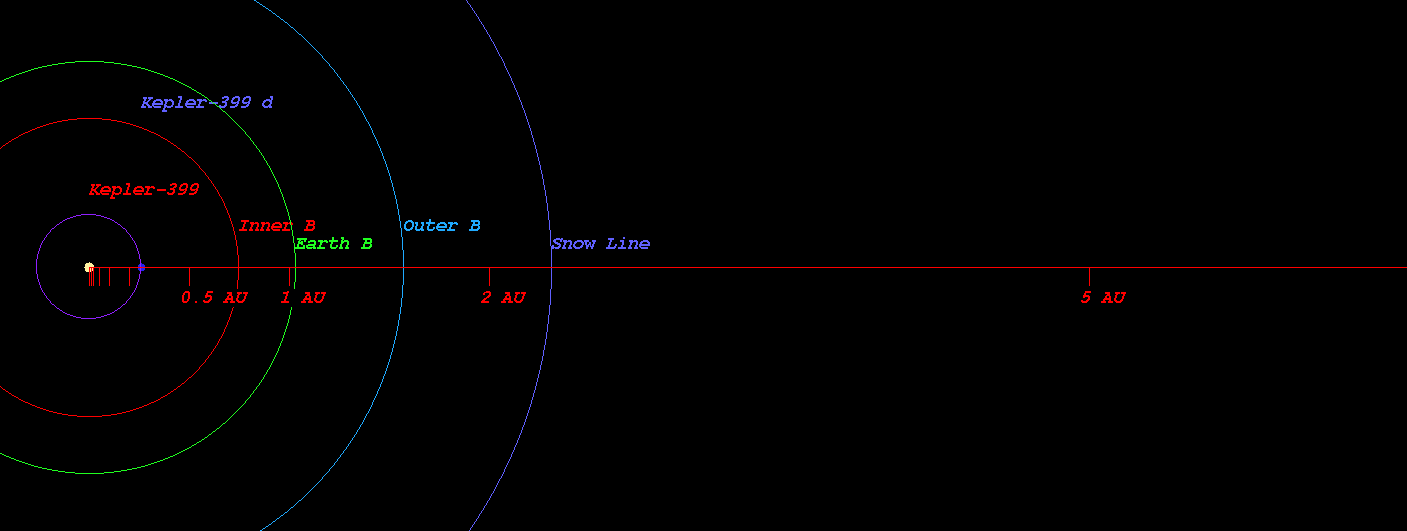

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-399)



  • Kopparapu Recent Venus for Star Kepler-399 distance : 0.787 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-399 distance : 0.997 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-399 distance : 0.963 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-399 distance : 1.056 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-399 distance : 1.777 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-399 distance : 1.874 AU

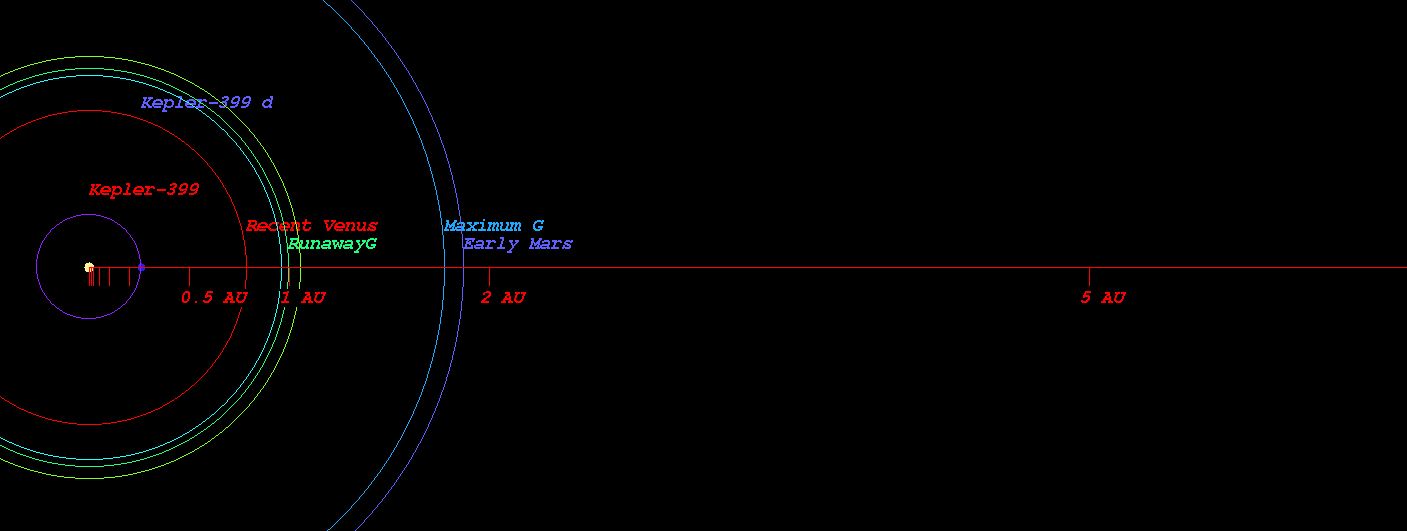

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-399)



  • Original Kopparapu Recent Venus for Star Kepler-399 distance : 0.784 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-399 distance : 1.026 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-399 distance : 1.037 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-399 distance : 1.807 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-399 distance : 1.880 AU

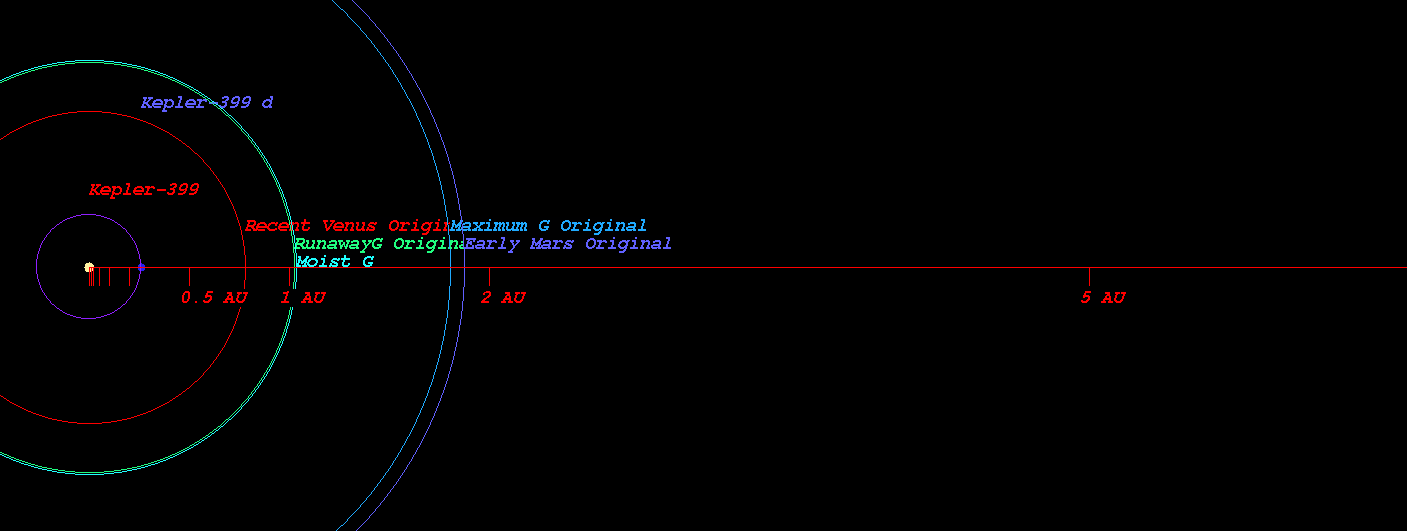

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-399)

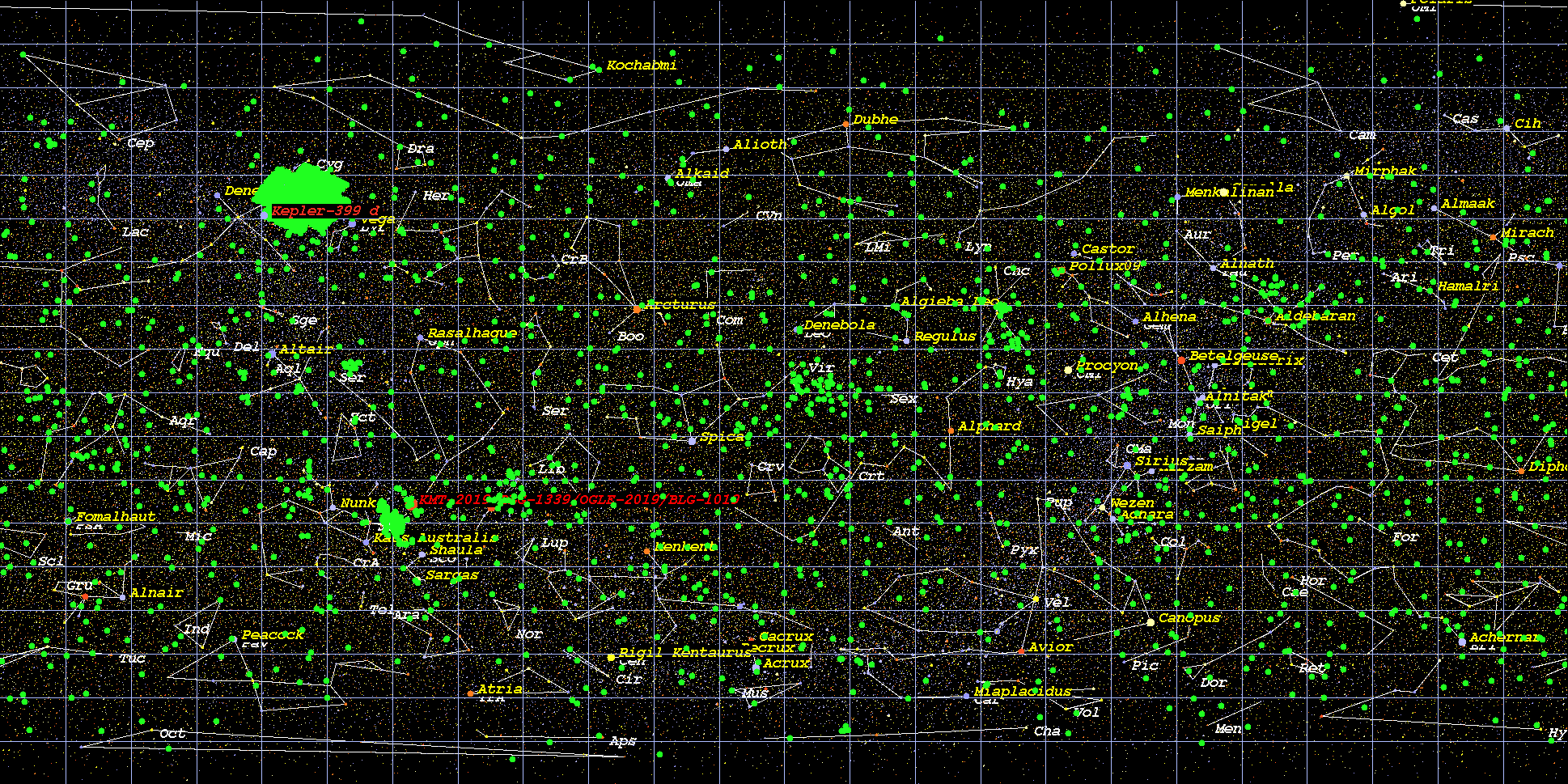

    (Position in Stellar Map of star Kepler-399 and its Exoplanet Kepler-399 d)

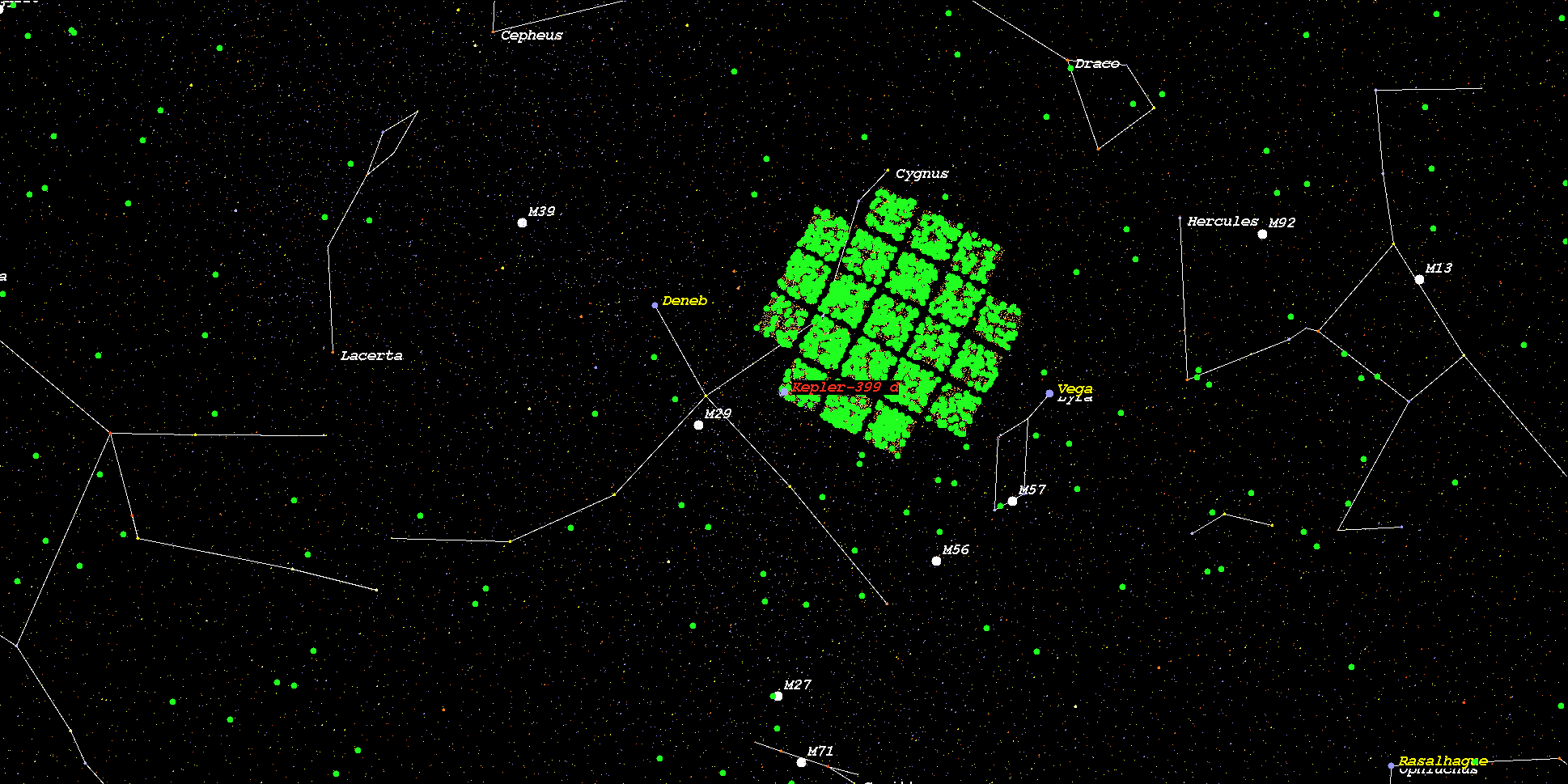

    (Zoomed position in Stellar Map of star Kepler-399 and its Exoplanet Kepler-399 d (zoom level 3))

    (Synthetic Spectrum of star Kepler-399*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
