Imaginary Picture of Kepler-36 c

Display orbital revolution of Kepler-36 c around the hoststar Kepler-36
/
Exoplanet Name : Kepler-36 c
Alternate Name : "2MASS J19250004+4913545 c, K00277.01, KIC 11401755 c, KOI-277 c, KOI-277.01, WISE J192500.03+491354.5 c"
Status : Confirmed
Radius (Rjup / Re): 0.3280 (Rjup) 3.6766 (Rearth)
Mass (Mjup / Me): 0.0224 (Mjup) 7.1313 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1283 (AU) 0.1283 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0444
Orbital Period(Observed/Estimated) 16.22 (Days Obs.) 16.54 (Days Est.)
Surface Gravity (G Earth) 0.5276
Star Radiation at Atmospheric Boundary: 259827.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1007.7 (K)
Blackbody T 0.3(K) 946.3 (K)
Blackbody T 0.7(K) 765.7 (K)
Tidally Locked Blackbody T 0.1(K) 1198.3 (K)
Tidally Locked Blackbody T 0.3(K) 1125.3 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-36
Alternate Name : "2MASS J19250004+4913545, KIC 11401755, KOI-277, WISE J192500.03+491354.5"
Star Distance(LY) : 1560.6
Stellar Radius(Rsun) : 1.7 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 6.9 (GY)
Temperature : 5979 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.2
Absolute Magnitude: 3.6
Apparent Magnitude: 12.0
Right Ascension(RA) 291.2502
Declination (DEC) 49.2318
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Joshua A. Carter, Eric Agol, William J. Chaplin, Sarbani Basu, Timothy R. Bedding, Lars A. Buchhave, J_rgen Christensen-Dalsgaard, Katherine M. Deck, Yvonne Elsworth, Daniel C. Fabrycky, Eric B. Ford, Jonathan J. Fortney, Steven J. Hale, Rasmus Handberg, Saskia Hekker, Matthew J. Holman, Daniel Huber, Christopher Karoff, Steven D. Kawaler, Hans Kjeldsen, Jack J. Lissauer, Eric D. Lopez, Mikkel N. Lund, Mia Lundkvist, Travis S. Metcalfe, Andrea Miglio, Leslie A. Rogers, Dennis Stello, William J. Borucki, Steve Bryson, Jessie L. Christiansen, William D. Cochran, John C. Geary, Ronald L. Gilliland, Michael R. Haas, Jennifer Hall, Andrew W. Howard, Jon M. Jenkins, Todd Klaus, David G. Koch, David W. Latham, Phillip J. MacQueen, Dimitar Sasselov, Jason H. Steffen, Joseph D. Twicken, Joshua N. Winn"
Discovery Paper - Title Kepler-36: A Pair of Planets with Neighboring Orbits and Dissimilar Densities
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-36+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-36%20c/
Kepler-36 c
Kepler-36 c

  • Kepler-36 c is an exoplanet orbiting the star Kepler-36, located about 1560.6 light-years (478.5 pc) away from Solar System. Its discovery was publicly announced on 2012.
  • The host star Kepler-36 has apparent magnitude of 12.0, with absolute magnitude of 3.6.
  • It is 1.0 times more massive and 1.7 times bigger compared with our Sun. The surface temperature is 5979 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-36 c orbits around the star Kepler-36 every 16.2 days with its orbital distance of 0.13 AU ( 19193406.8 km)

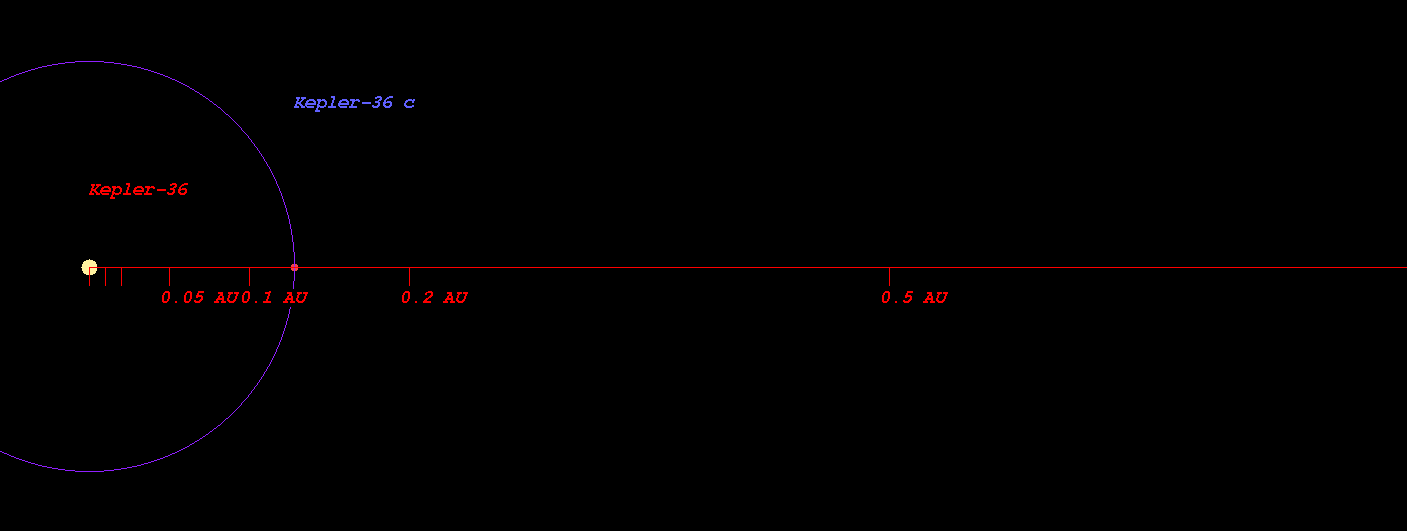

  • (Projected orbit of Kepler-36 c around its host star Kepler-36)


  • The Star Kepler-36 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.279 AU ( 191392652.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.768 AU ( 264554663.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.695 AU ( 403122760.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.965 AU ( 593212802.4 km)
  • Radiation at Planetary Boundary of Kepler-36 c : 259827.91 W/m2

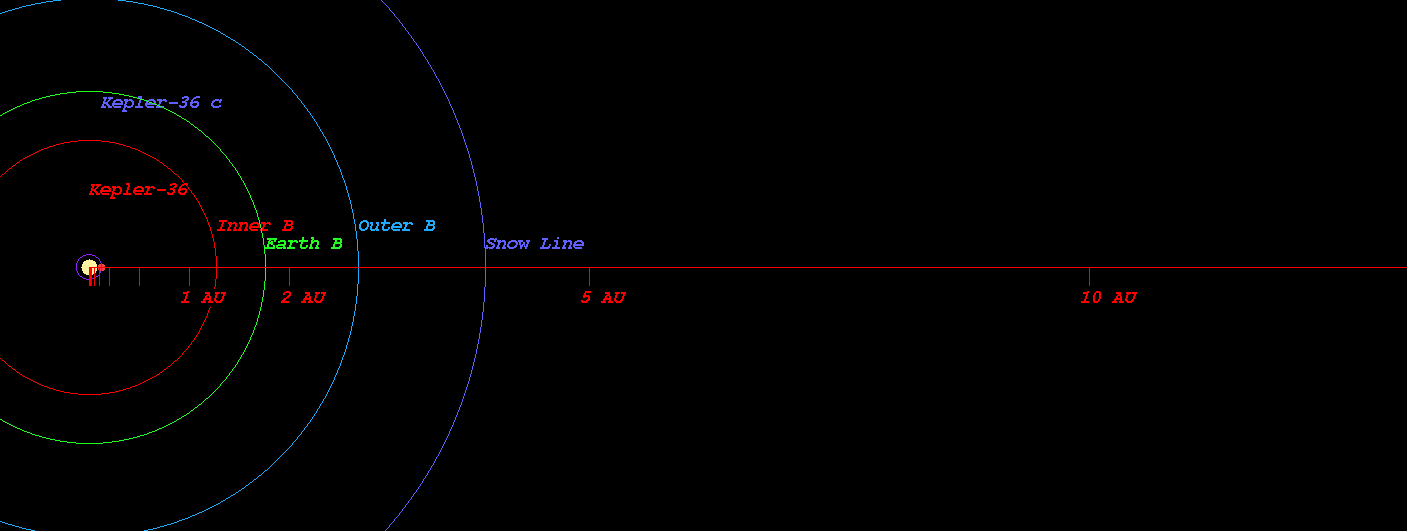

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-36)



  • Kopparapu Recent Venus for Star Kepler-36 distance : 1.310 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-36 distance : 1.659 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-36 distance : 1.602 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-36 distance : 1.756 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-36 distance : 2.915 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-36 distance : 3.074 AU

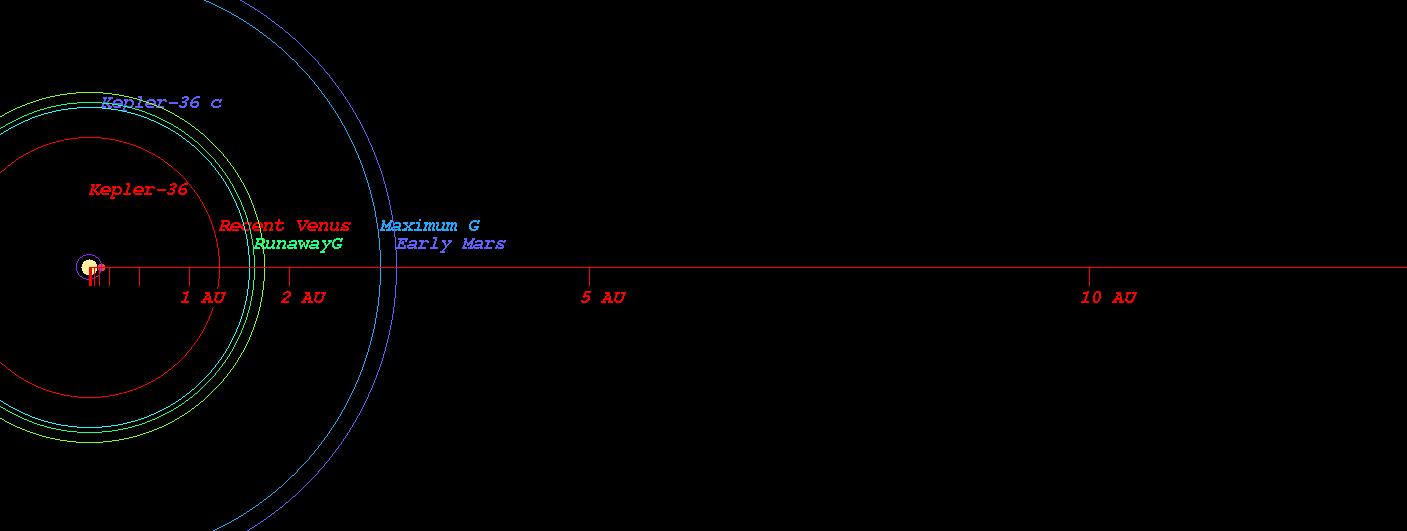

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-36)



  • Original Kopparapu Recent Venus for Star Kepler-36 distance : 1.317 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-36 distance : 1.704 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-36 distance : 1.743 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-36 distance : 2.967 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-36 distance : 3.085 AU

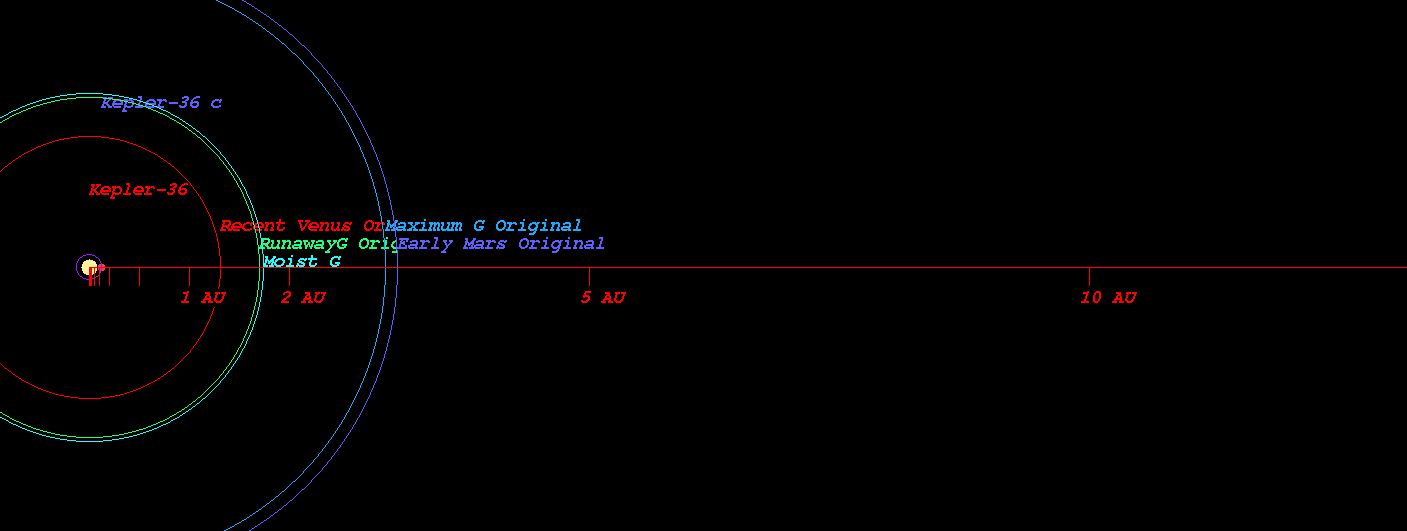

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-36)

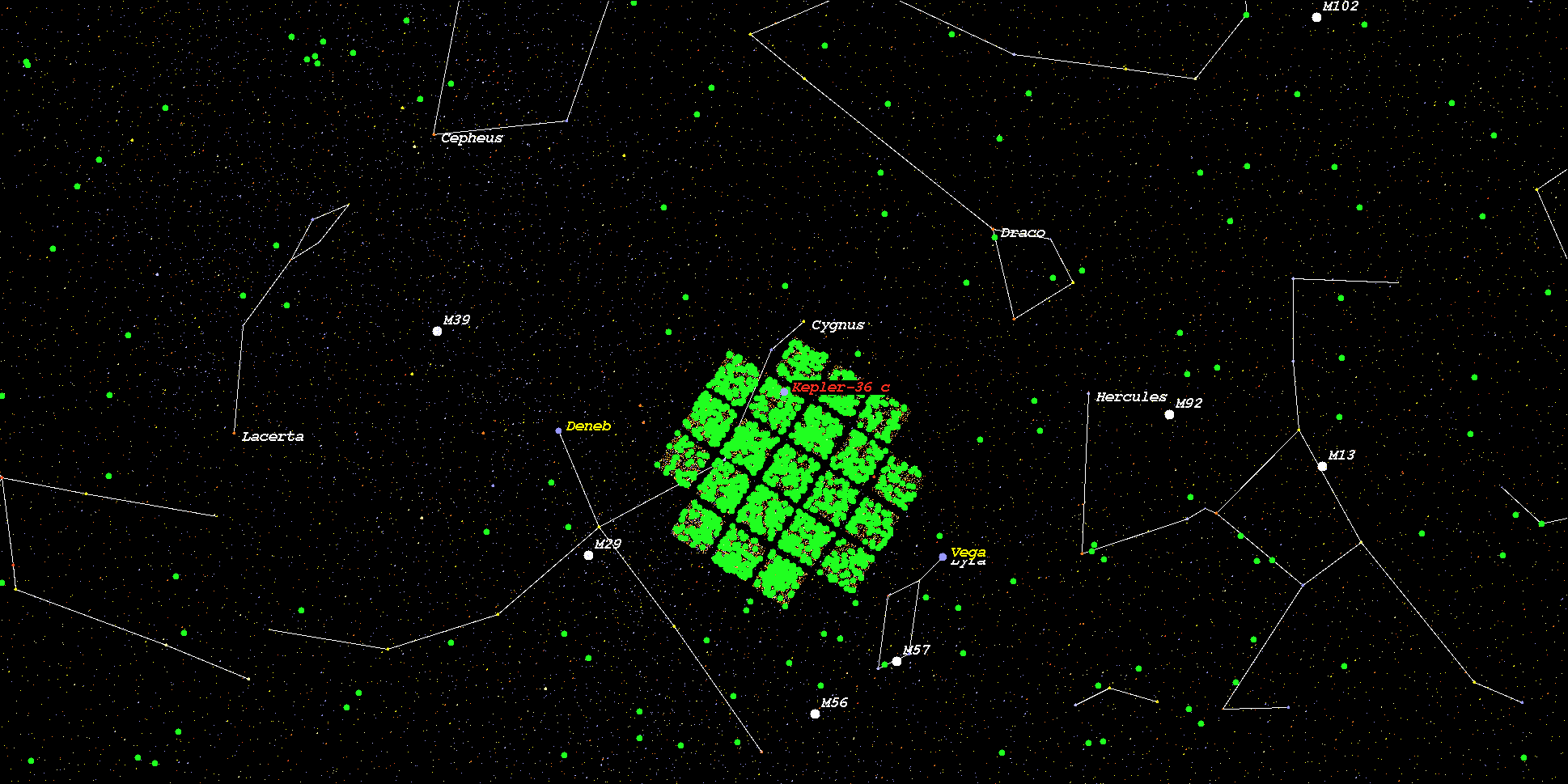

    (Position in Stellar Map of star Kepler-36 and its Exoplanet Kepler-36 c)



    (Zoomed position in Stellar Map of star Kepler-36 and its Exoplanet Kepler-36 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-36*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
