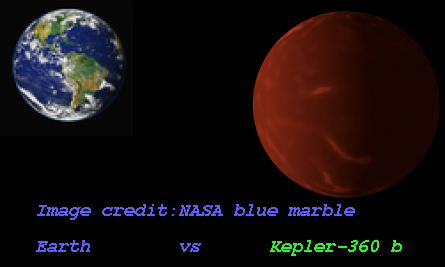

Imaginary Picture of Kepler-360 b

Display orbital revolution of Kepler-360 b around the hoststar Kepler-360
/
Exoplanet Name : Kepler-360 b
Alternate Name : "2MASS J19050833+4446535 b, K02111.01, KIC 8612275 b, KOI-2111 b, KOI-2111.01, WISE J190508.33+444653.7 b"
Status : Confirmed
Radius (Rjup / Re): 0.1470 (Rjup) 1.6477 (Rearth)
Mass (Mjup / Me): 0.0132 (Mjup) 4.1977 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0440 (AU) 0.0440 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0090
Orbital Period(Observed/Estimated) 3.29 (Days Obs.) 3.46 (Days Est.)
Surface Gravity (G Earth) 1.5461
Star Radiation at Atmospheric Boundary: 526474.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1202.2 (K)
Blackbody T 0.3(K) 1129.0 (K)
Blackbody T 0.7(K) 913.5 (K)
Tidally Locked Blackbody T 0.1(K) 1429.7 (K)
Tidally Locked Blackbody T 0.3(K) 1342.6 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-360
Alternate Name : "2MASS J19050833+4446535, KIC 8612275, KOI-2111, WISE J190508.33+444653.7"
Star Distance(LY) : 2856.7
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5604 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.9
Apparent Magnitude: 13.6
Right Ascension(RA) 286.2847
Declination (DEC) 44.7816
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-360+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-360%20b/
Kepler-360 b
Kepler-360 b

  • Kepler-360 b is an exoplanet orbiting the star Kepler-360, located about 2856.7 light-years (875.9 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-360 has apparent magnitude of 13.6, with absolute magnitude of 3.9.

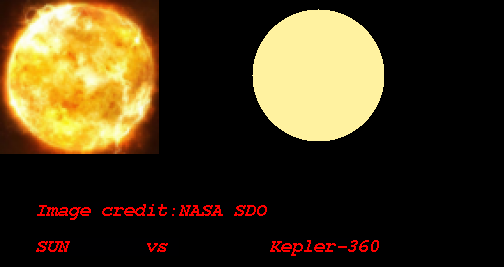

  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5604 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-360 b orbits around the star Kepler-360 every 3.3 days with its orbital distance of 0.04 AU ( 6582306.3 km)

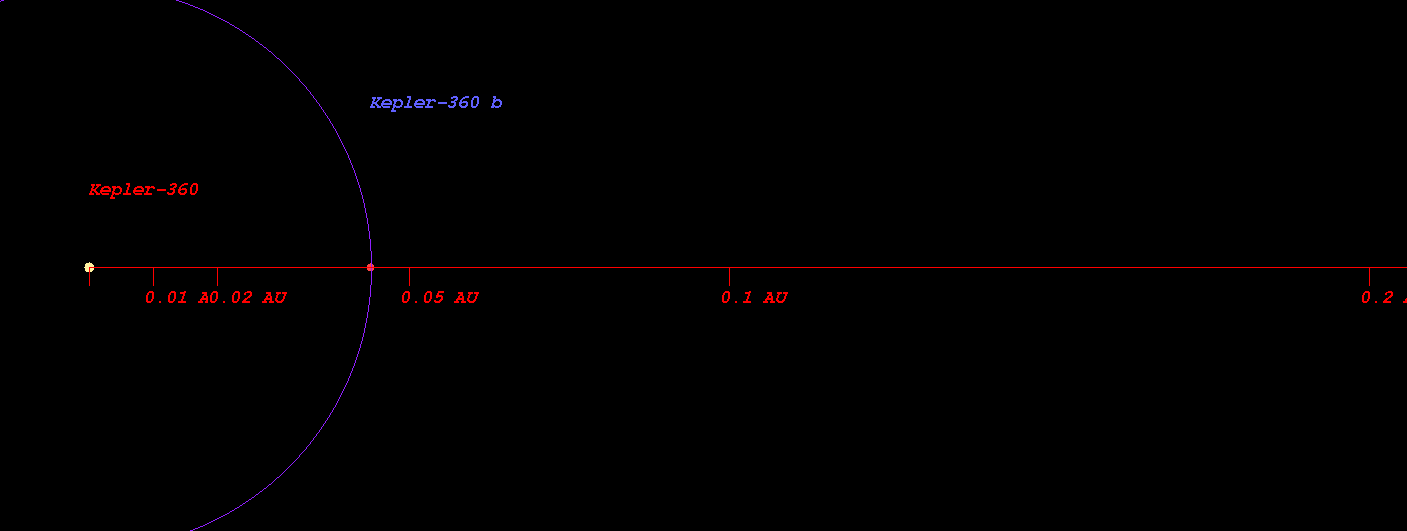

  • (Projected orbit of Kepler-360 b around its host star Kepler-360)


  • The Star Kepler-360 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.625 AU ( 93432301.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.863 AU ( 129147857.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.315 AU ( 196792754.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.936 AU ( 289589159.0 km)
  • Radiation at Planetary Boundary of Kepler-360 b : 526474.48 W/m2

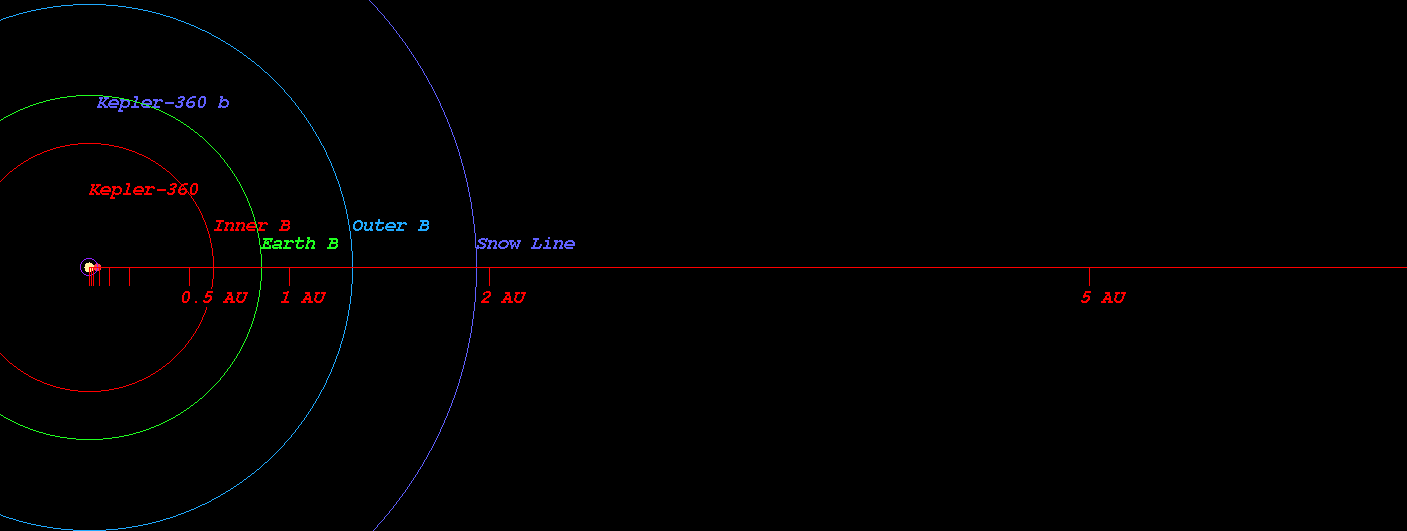

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-360)



  • Kopparapu Recent Venus for Star Kepler-360 distance : 0.654 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-360 distance : 0.828 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-360 distance : 0.800 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-360 distance : 0.877 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-360 distance : 1.470 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-360 distance : 1.550 AU

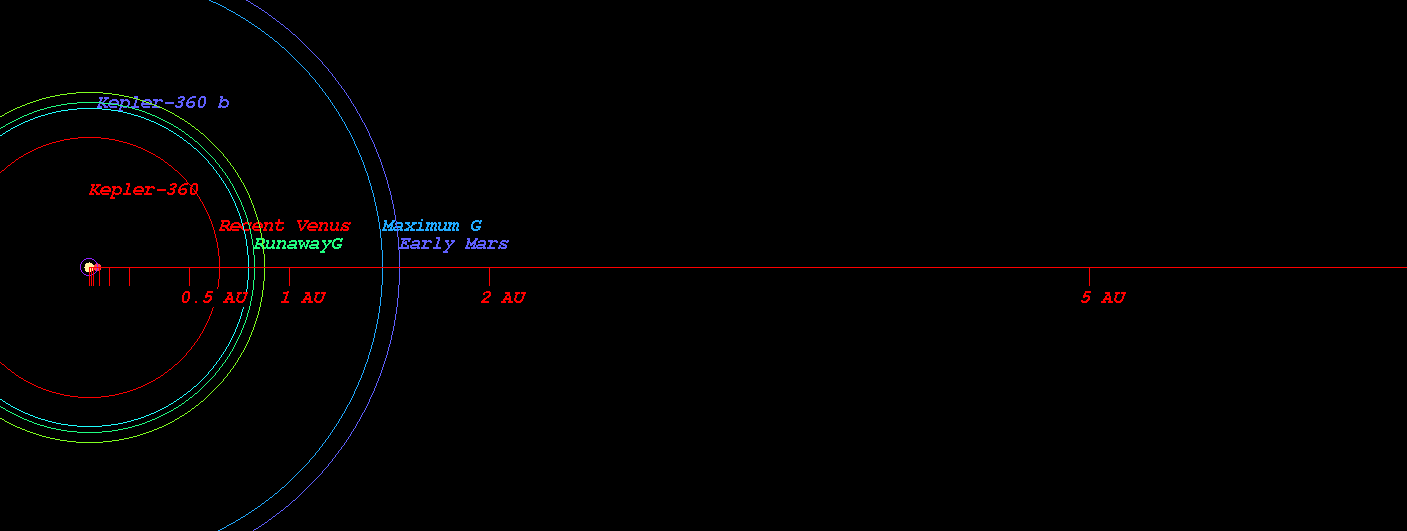

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-360)



  • Original Kopparapu Recent Venus for Star Kepler-360 distance : 0.653 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-360 distance : 0.852 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-360 distance : 0.864 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-360 distance : 1.495 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-360 distance : 1.555 AU

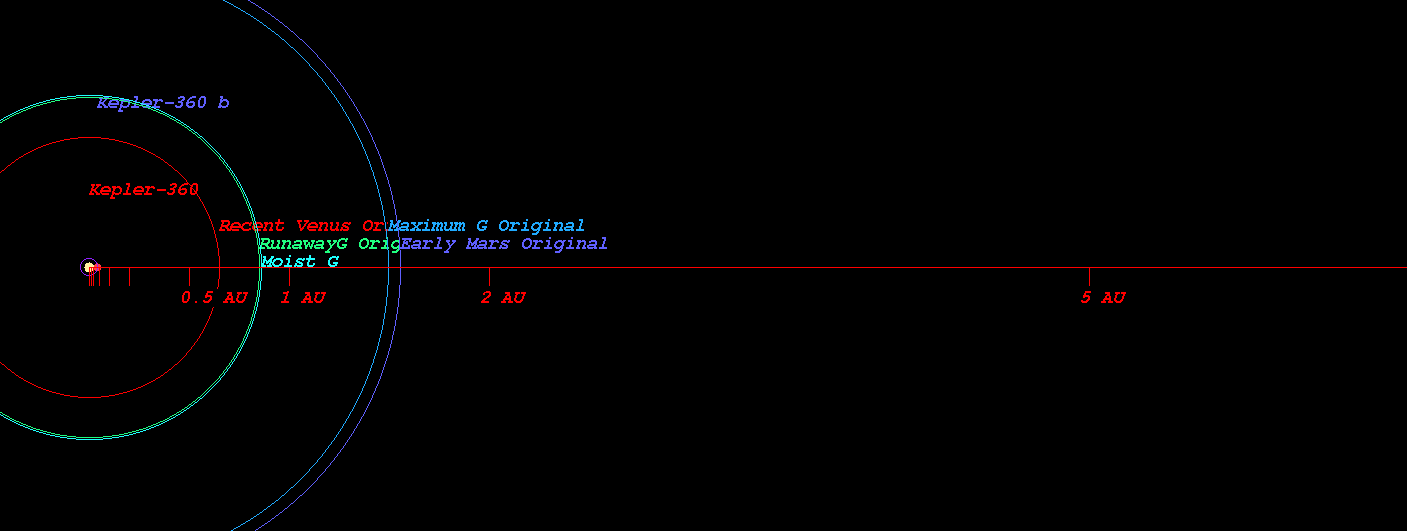

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-360)

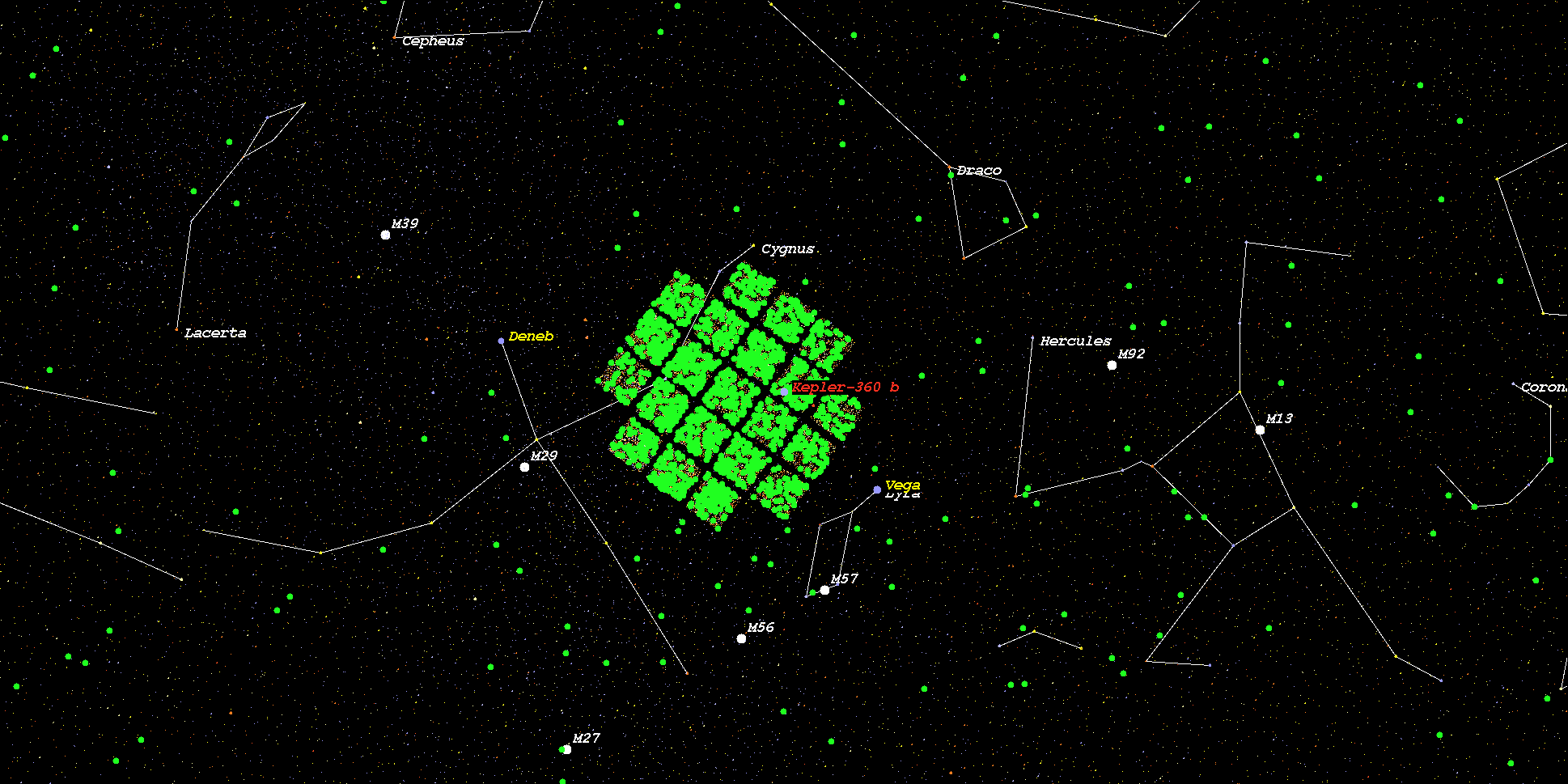

    (Position in Stellar Map of star Kepler-360 and its Exoplanet Kepler-360 b)



    (Zoomed position in Stellar Map of star Kepler-360 and its Exoplanet Kepler-360 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-360*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
