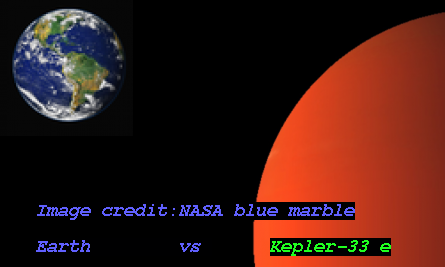

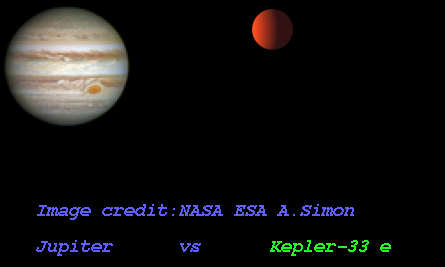

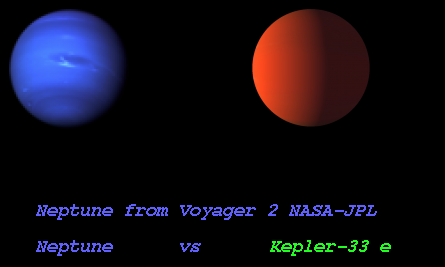

Imaginary Picture of Kepler-33 e

Display orbital revolution of Kepler-33 e around the hoststar Kepler-33
/
Exoplanet Name : Kepler-33 e
Alternate Name : "2MASS J19161861+4600187 e, GSC 03542-01616 e, K00707.03, KIC 9458613 e, KOI-707 e, KOI-707.03, WISE J191618.60+460018.7
Status : Confirmed
Radius (Rjup / Re): 0.3590 (Rjup) 4.0240 (Rearth)
Mass (Mjup / Me): 0.0303 (Mjup) 9.6305 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.2138 (AU) 0.2138 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0870
Orbital Period(Observed/Estimated) 31.78 (Days Obs.) 31.79 (Days Est.)
Surface Gravity (G Earth) 0.5947
Star Radiation at Atmospheric Boundary: 91913.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 777.1 (K)
Blackbody T 0.3(K) 729.8 (K)
Blackbody T 0.7(K) 590.5 (K)
Tidally Locked Blackbody T 0.1(K) 924.2 (K)
Tidally Locked Blackbody T 0.3(K) 867.9 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-33
Alternate Name : "2MASS J19161861+4600187, GSC 03542-01616, KIC 9458613, KOI-707, WISE J191618.60+460018.7"
Star Distance(LY) : 3941.9
Stellar Radius(Rsun) : 1.7 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 4.3 (GY)
Temperature : 5947 (K)
Spectral type : G1
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.0
Absolute Magnitude: 3.6
Apparent Magnitude: 14.0
Right Ascension(RA) 289.0775
Declination (DEC) 46.0052
Hubble Space Telescope Guide Star Catalog (GSC) ID 03542-01616
Discovered by
Discovery Paper - Authors "Lissauer,ack.; Marcy,eoffrey.; Rowe,ason.; Bryson,tephen.; Adams,lisabeth; Buchhave,ars.; Ciardi,avid.; Cochran,illiam.; Fabrycky,aniel.; Ford,ric.; Fressin,rancois; Geary,ohn; Gilliland,onald.; Holman,atthew.; Howell,teve.; Jenkins,on.; Kinemuchi,aren; Koch,avid.; Morehead,obert.; Ragozzine,arin; Seader,hawn.; Tanenbaum,eter.; Torres,uillermo; Twicken,oseph."
Discovery Paper - Title Almost All of Kepler's Multiple-planet Candidates Are Planets
Discovery Paper - Journal "The Astrophysical Journal,olume 750,umber 2"
Discovery Paper - URL http://iopscience.iop.org/article/10.1088/0004-637X/750/2/112/meta
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-33+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-33%20e/
Kepler-33 e
Kepler-33 e

  • Kepler-33 e is an exoplanet orbiting the star Kepler-33, located about 3941.9 light-years (1208.6 pc) away from Solar System. Its discovery was publicly announced on 2011.
  • The host star Kepler-33 has apparent magnitude of 14.0, with absolute magnitude of 3.6.

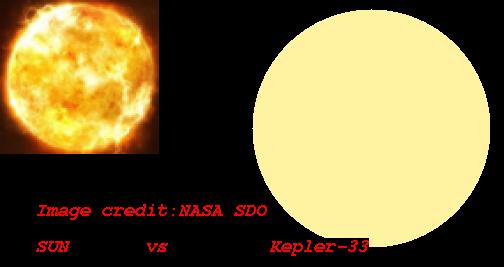

  • It is 1.3 times more massive and 1.7 times bigger compared with our Sun. The surface temperature is 5947 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-33 e orbits around the star Kepler-33 every 31.8 days with its orbital distance of 0.21 AU ( 31984024.8 km)

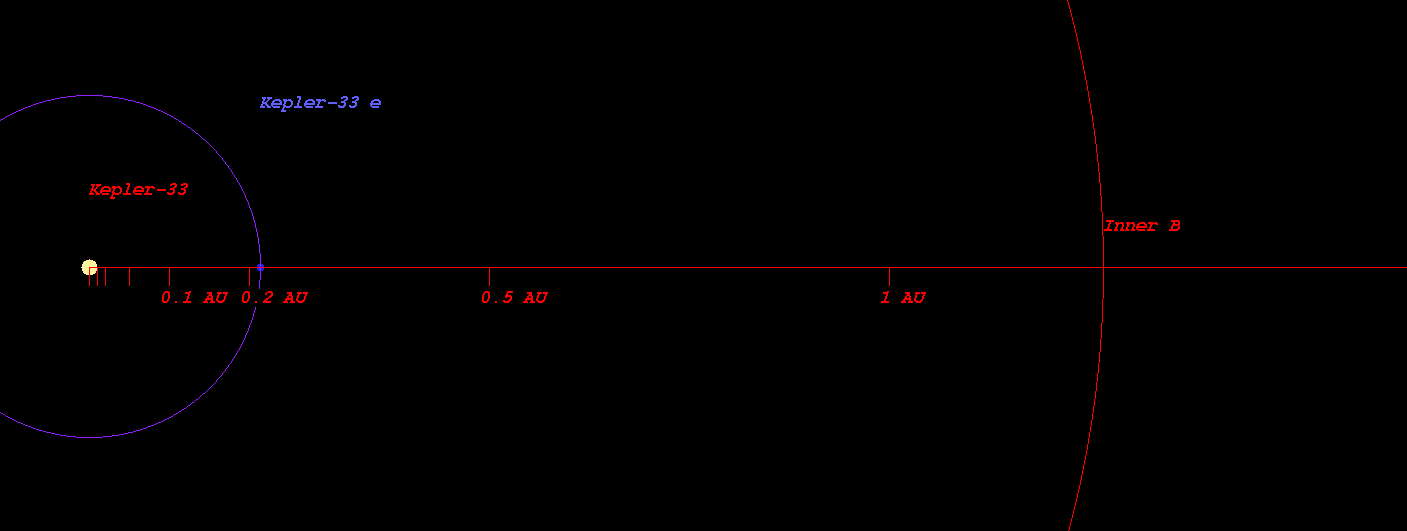

  • (Projected orbit of Kepler-33 e around its host star Kepler-33)


  • The Star Kepler-33 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.268 AU ( 189693298.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.753 AU ( 262205710.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.671 AU ( 399543477.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.930 AU ( 587945729.7 km)
  • Radiation at Planetary Boundary of Kepler-33 e : 91913.05 W/m2

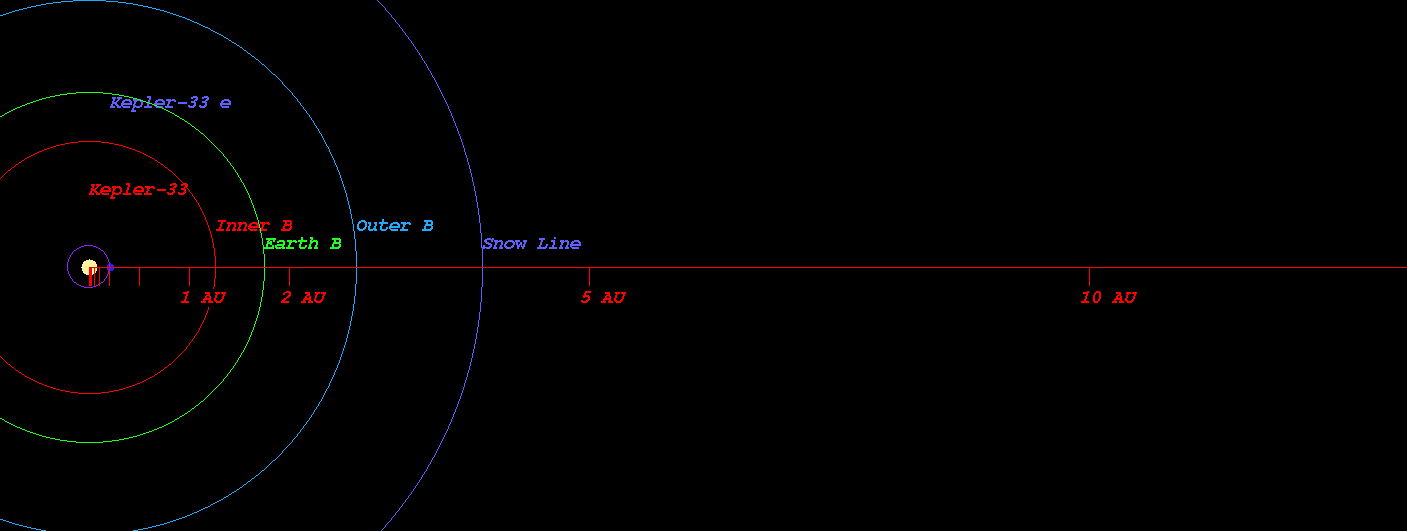

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-33)



  • Kopparapu Recent Venus for Star Kepler-33 distance : 1.301 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-33 distance : 1.647 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-33 distance : 1.591 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-33 distance : 1.744 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-33 distance : 2.897 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-33 distance : 3.055 AU

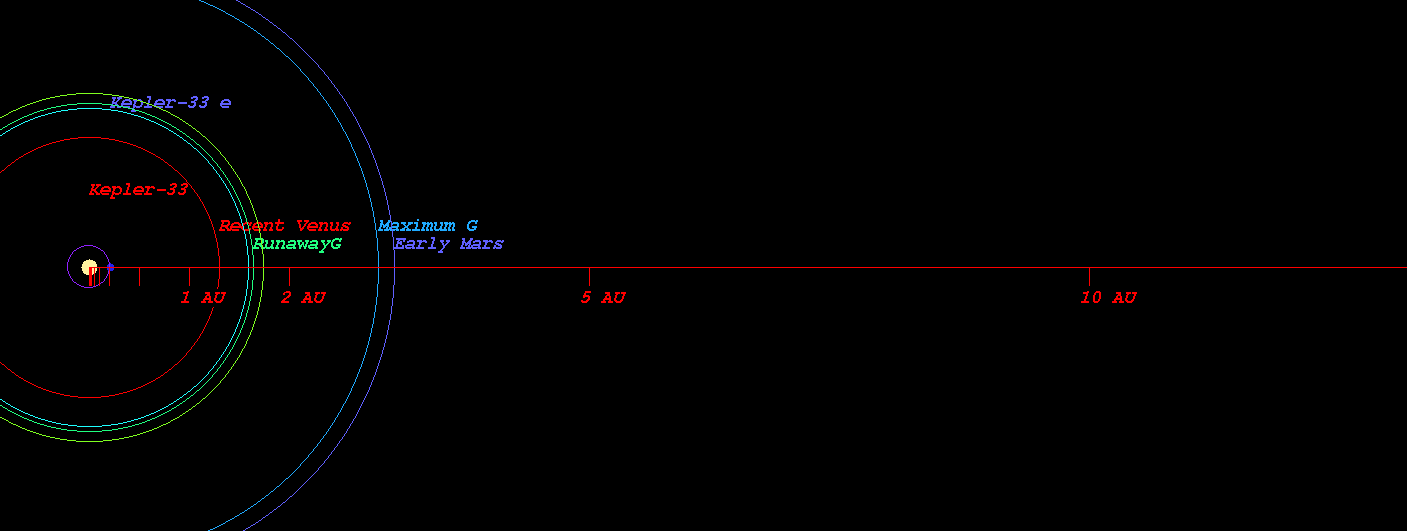

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-33)



  • Original Kopparapu Recent Venus for Star Kepler-33 distance : 1.307 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-33 distance : 1.692 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-33 distance : 1.729 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-33 distance : 2.948 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-33 distance : 3.066 AU

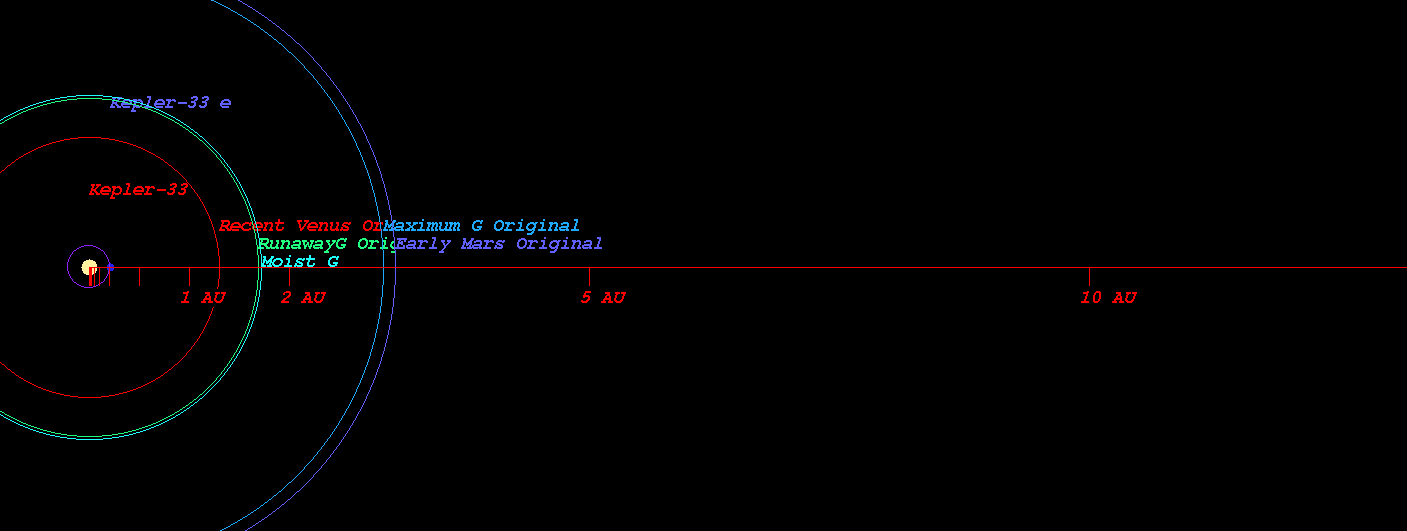

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-33)



    (Position in Stellar Map of star Kepler-33 and its Exoplanet Kepler-33 e)

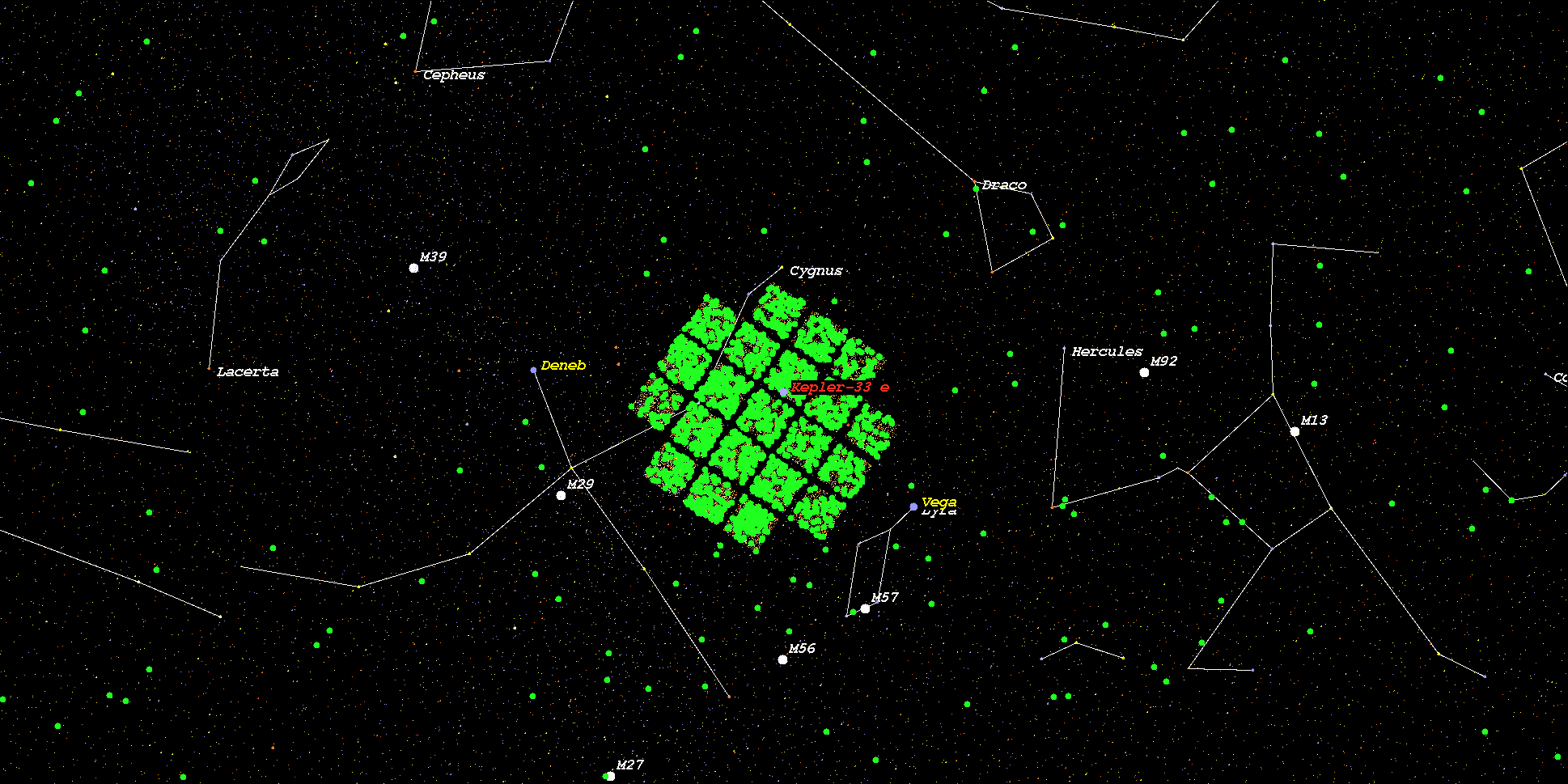

    (Zoomed position in Stellar Map of star Kepler-33 and its Exoplanet Kepler-33 e (zoom level 3))

    (Synthetic Spectrum of star Kepler-33*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
