Imaginary Picture of Kepler-323 c

Display orbital revolution of Kepler-323 c around the hoststar Kepler-323
/
Exoplanet Name : Kepler-323 c
Alternate Name : "2MASS J19253173+3807388 c, K01824.01, KIC 2989404 c, KOI-1824 c, KOI-1824.01, WISE J192531.74+380738.9 c"
Status : Confirmed
Radius (Rjup / Re): 0.1450 (Rjup) 1.6253 (Rearth)
Mass (Mjup / Me): 0.0130 (Mjup) 4.1446 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0460 (AU) 0.0460 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0097
Orbital Period(Observed/Estimated) 3.55 (Days Obs.) 3.45 (Days Est.)
Surface Gravity (G Earth) 1.5690
Star Radiation at Atmospheric Boundary: 871659.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1363.7 (K)
Blackbody T 0.3(K) 1280.7 (K)
Blackbody T 0.7(K) 1036.2 (K)
Tidally Locked Blackbody T 0.1(K) 1621.8 (K)
Tidally Locked Blackbody T 0.3(K) 1523.0 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-323
Alternate Name : "2MASS J19253173+3807388, KIC 2989404, KOI-1824, WISE J192531.74+380738.9"
Star Distance(LY) : 1483.5
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5935 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.4
Apparent Magnitude: 11.7
Right Ascension(RA) 291.3822
Declination (DEC) 38.1275
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-323+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-323%20c/
Kepler-323 c
Kepler-323 c

  • Kepler-323 c is an exoplanet orbiting the star Kepler-323, located about 1483.5 light-years (454.8 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-323 has apparent magnitude of 11.7, with absolute magnitude of 3.4.
  • It is 1.1 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5935 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-323 c orbits around the star Kepler-323 every 3.6 days with its orbital distance of 0.05 AU ( 6881502.1 km)

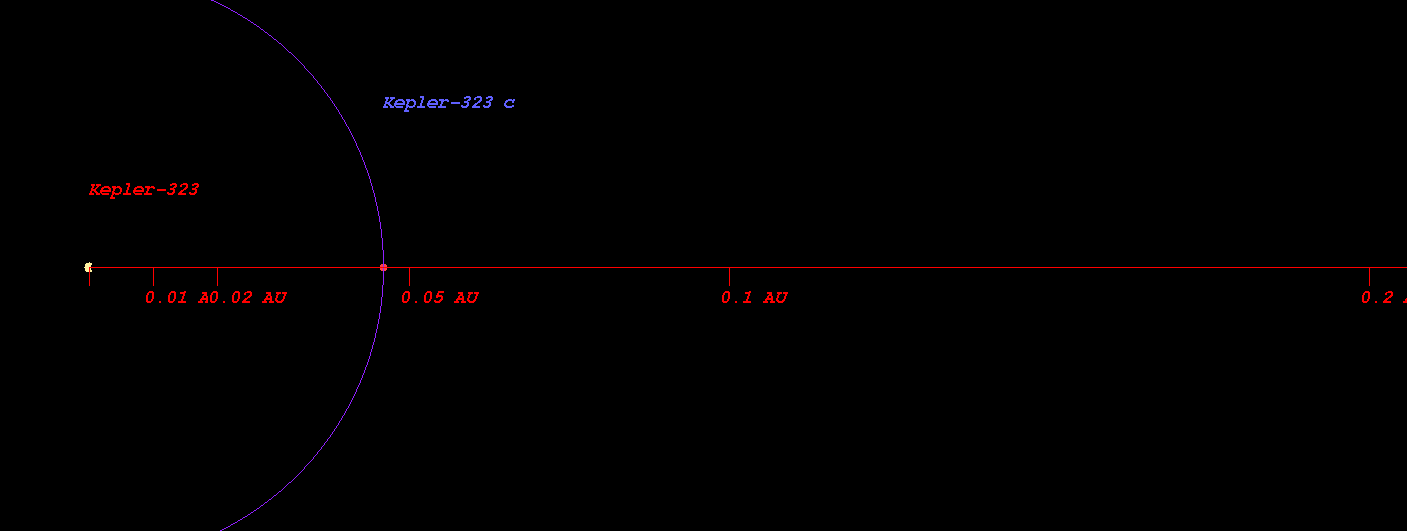

  • (Projected orbit of Kepler-323 c around its host star Kepler-323)


  • The Star Kepler-323 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.840 AU ( 125685992.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.161 AU ( 173730886.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.770 AU ( 264727425.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.604 AU ( 389558003.0 km)
  • Radiation at Planetary Boundary of Kepler-323 c : 871659.12 W/m2

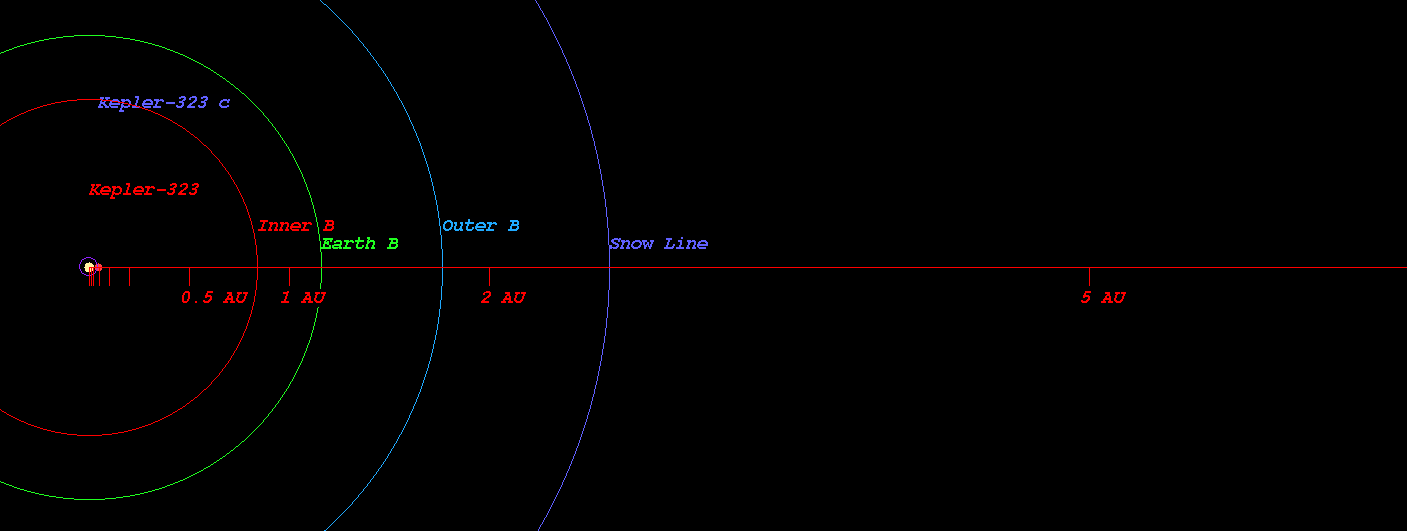

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-323)



  • Kopparapu Recent Venus for Star Kepler-323 distance : 0.863 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-323 distance : 1.092 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-323 distance : 1.055 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-323 distance : 1.156 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-323 distance : 1.921 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-323 distance : 2.026 AU

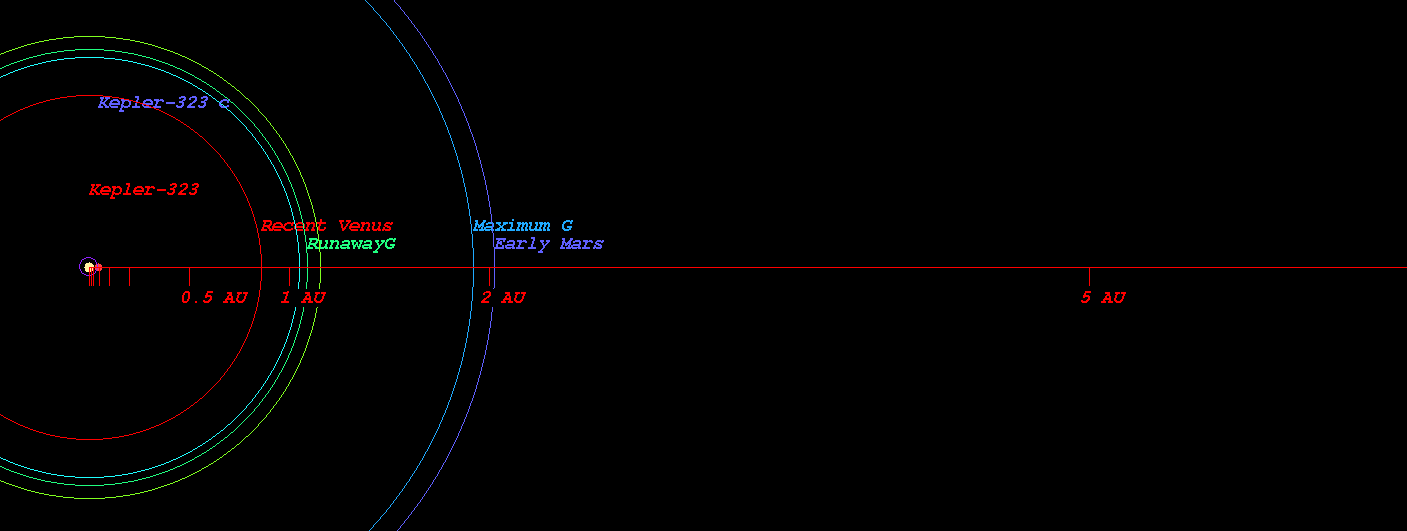

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-323)



  • Original Kopparapu Recent Venus for Star Kepler-323 distance : 0.866 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-323 distance : 1.122 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-323 distance : 1.146 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-323 distance : 1.955 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-323 distance : 2.033 AU

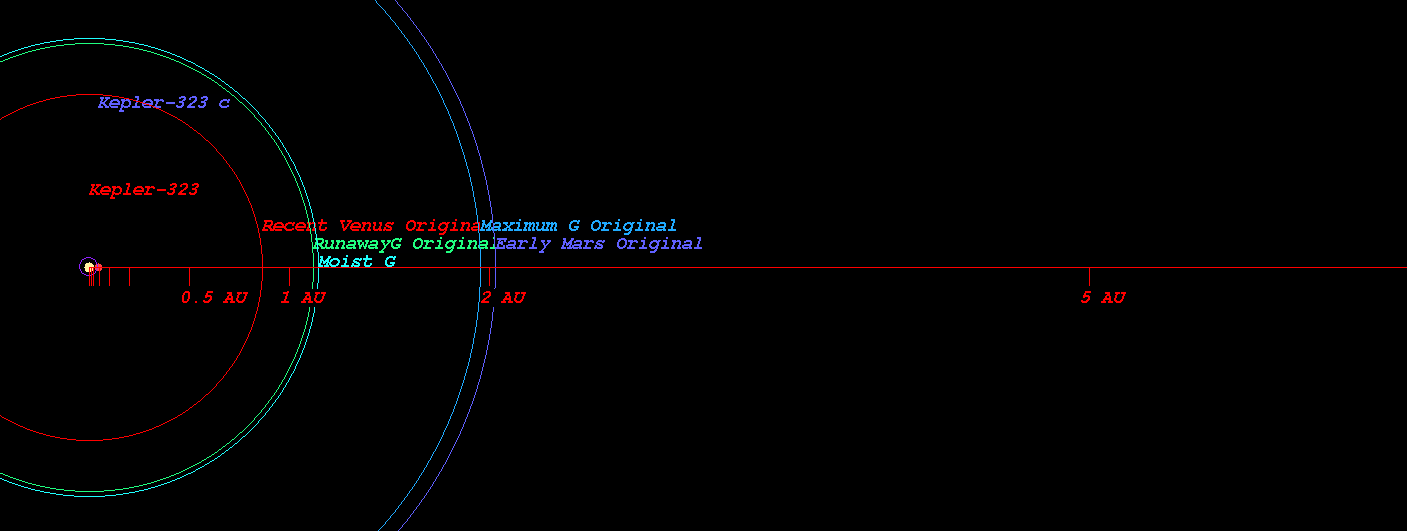

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-323)



    (Position in Stellar Map of star Kepler-323 and its Exoplanet Kepler-323 c)



    (Zoomed position in Stellar Map of star Kepler-323 and its Exoplanet Kepler-323 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-323*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
