Imaginary Picture of Kepler-321 b

Display orbital revolution of Kepler-321 b around the hoststar Kepler-321
/
Exoplanet Name : Kepler-321 b
Alternate Name : "2MASS J19374888+4408447 b, K01809.02, KIC 8240797 b, KOI-1809 b, KOI-1809.02, WISE J193748.89+440844.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.1580 (Rjup) 1.7710 (Rearth)
Mass (Mjup / Me): 0.0141 (Mjup) 4.4891 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0570 (AU) 0.0570 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0135
Orbital Period(Observed/Estimated) 4.92 (Days Obs.) 4.95 (Days Est.)
Surface Gravity (G Earth) 1.4312
Star Radiation at Atmospheric Boundary: 404300.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1125.4 (K)
Blackbody T 0.3(K) 1056.9 (K)
Blackbody T 0.7(K) 855.1 (K)
Tidally Locked Blackbody T 0.1(K) 1338.4 (K)
Tidally Locked Blackbody T 0.3(K) 1256.9 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-321
Alternate Name : "2MASS J19374888+4408447, KIC 8240797, KOI-1809, WISE J193748.89+440844.8"
Star Distance(LY) : 1253.9
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5741 (K)
Spectral type : G3
UV portion[%]: 7.7
Visible portion[%]: 44.6
IR portion[%]: 47.7
Metalicity : 0.0
Absolute Magnitude: 3.7
Apparent Magnitude: 11.6
Right Ascension(RA) 294.4537
Declination (DEC) 44.1458
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-321+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-321%20b/
Kepler-321 b
Kepler-321 b

  • Kepler-321 b is an exoplanet orbiting the star Kepler-321, located about 1253.9 light-years (384.4 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-321 has apparent magnitude of 11.6, with absolute magnitude of 3.7.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5741 with its spectral types of G3
  • In this planetary system, the extrasolar planet Kepler-321 b orbits around the star Kepler-321 every 4.9 days with its orbital distance of 0.06 AU ( 8527078.6 km)

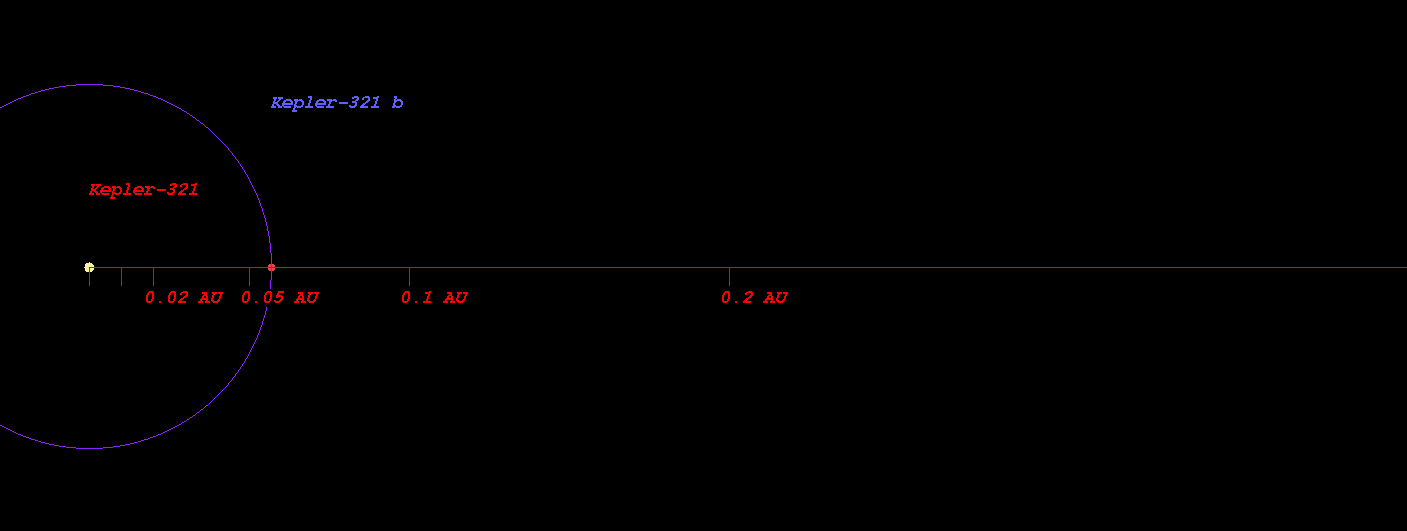

  • (Projected orbit of Kepler-321 b around its host star Kepler-321)


  • The Star Kepler-321 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.709 AU ( 106067529.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.980 AU ( 146613044.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.493 AU ( 223405835.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.198 AU ( 328751473.1 km)
  • Radiation at Planetary Boundary of Kepler-321 b : 404300.04 W/m2

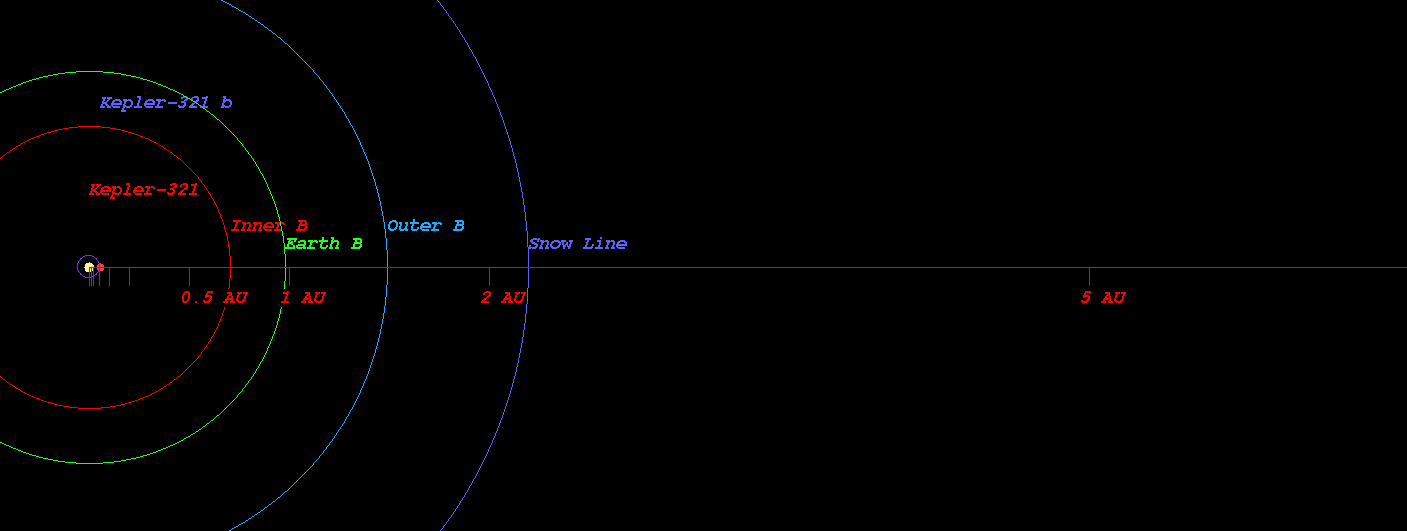

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-321)



  • Kopparapu Recent Venus for Star Kepler-321 distance : 0.737 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-321 distance : 0.933 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-321 distance : 0.901 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-321 distance : 0.988 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-321 distance : 1.649 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-321 distance : 1.739 AU

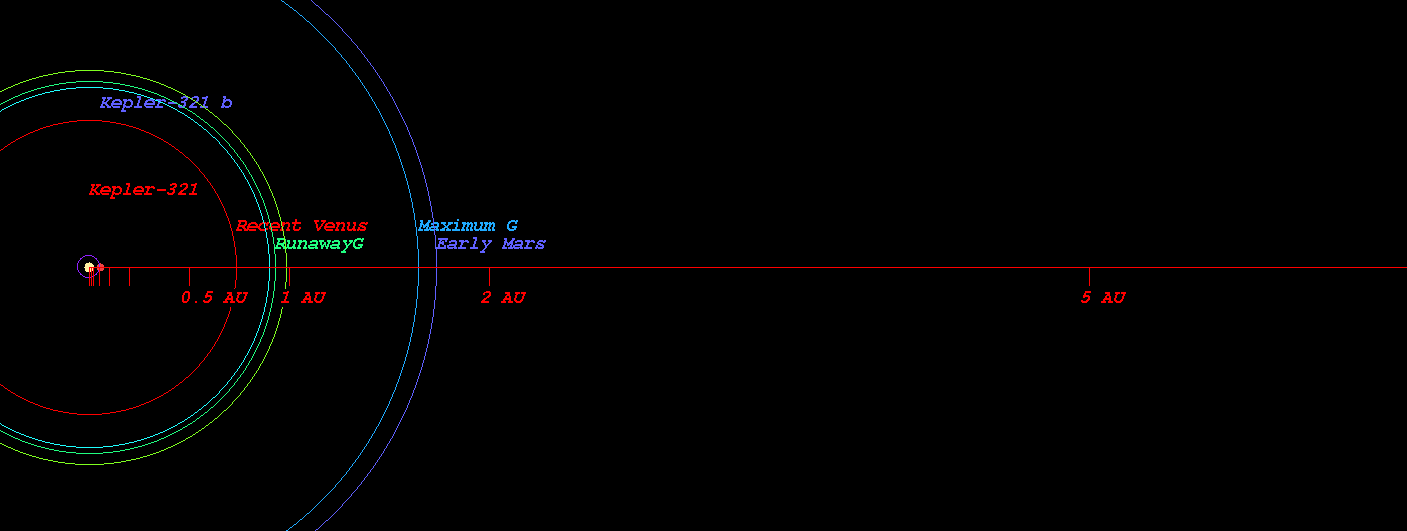

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-321)



  • Original Kopparapu Recent Venus for Star Kepler-321 distance : 0.737 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-321 distance : 0.959 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-321 distance : 0.975 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-321 distance : 1.678 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-321 distance : 1.745 AU

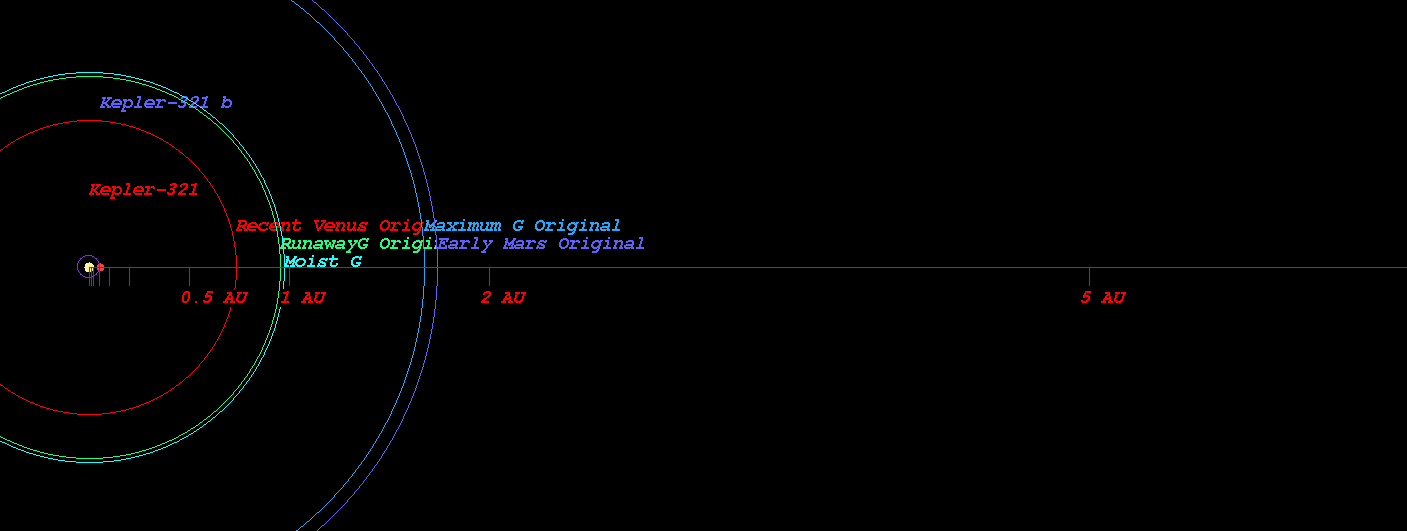

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-321)

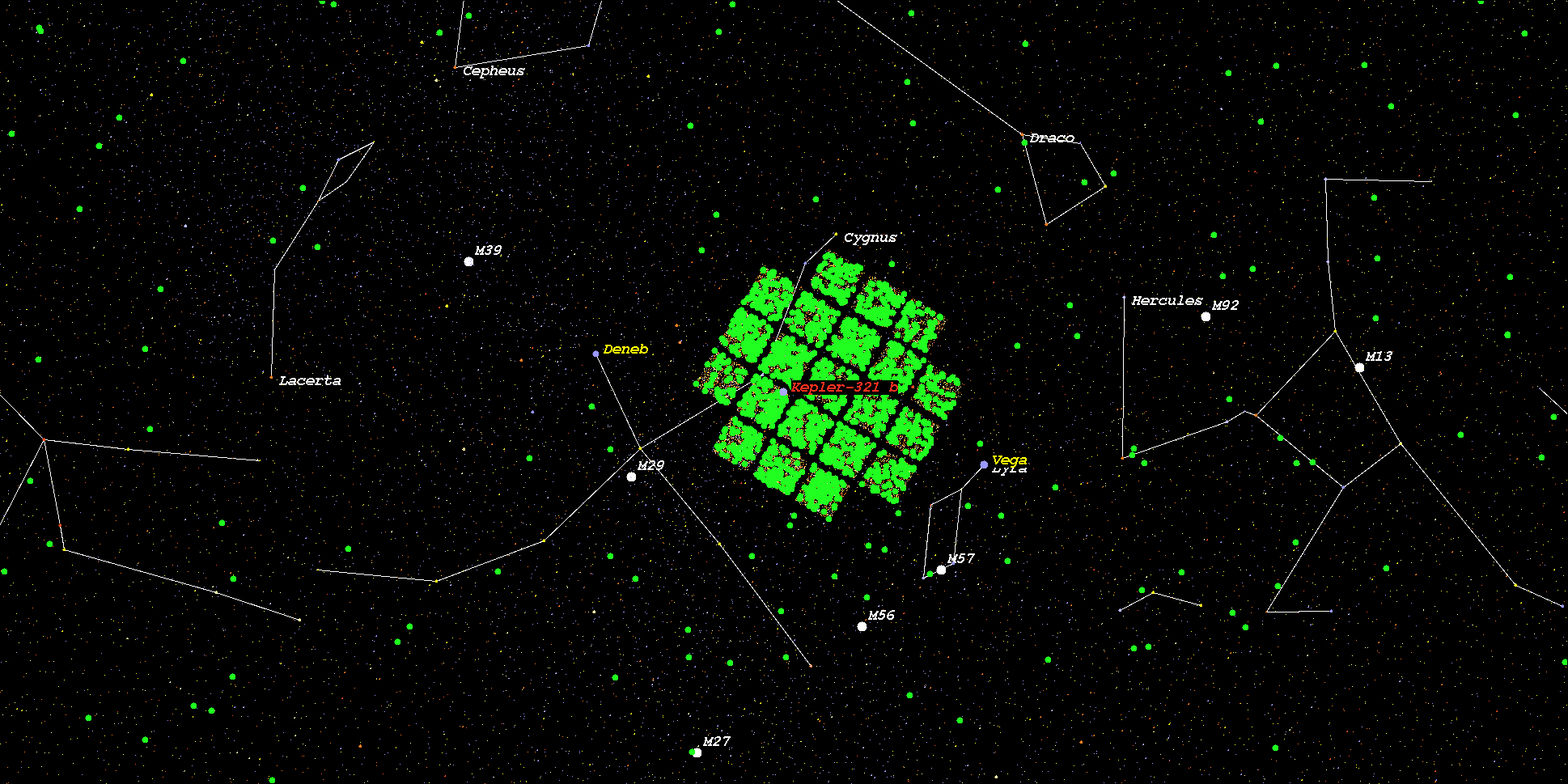

    (Position in Stellar Map of star Kepler-321 and its Exoplanet Kepler-321 b)



    (Zoomed position in Stellar Map of star Kepler-321 and its Exoplanet Kepler-321 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-321*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
