Kepler-317

Display orbital revolution around the star Kepler-317

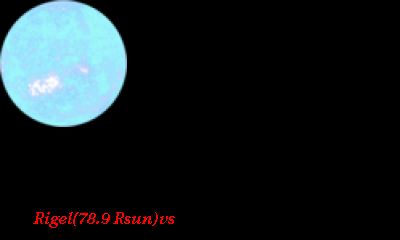

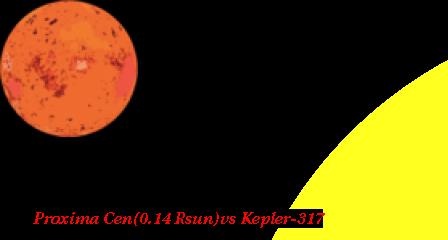

Imaginary Picture of Star Kepler-317
Star Name : Kepler-317
Alternate Name : "2MASS J19394653+3901554, KIC 3967760, KOI-1760, WISE J193946.53+390155.3"
Star Distance (LY/pc): 3150.1777 (LY) 965.8500 (pc)
Stellar Radius (Rsun): 0.0000 (Rsun, measured) 0.9400 (Rsun, estimated)
Stellar Mass (Msun): 0.9500 (Msun/observed) 0.9500 (Msun/estimated)
Spectral type : G7
Metalicity : 0.2580
Absolute Magnitude : 4.17
Apparent Magnitude : 14.10
Right Ascension(RA) : 294.94389
Declination(DEC) : 39.03206
  • This is the Kepler-317 . The star Kepler-317 islocated about 3150.2 light-years (965.9 pc) away from our Solar System.
  • The star Kepler-317 has apparent magnitude of 14.1, with absolute magnitude of 4.2.

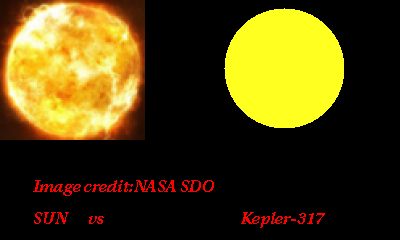

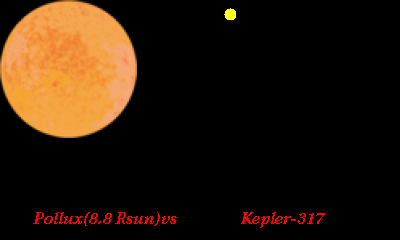

  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5497 with its spectral types of G7
  • Number of Extrasolar Planets : 2
  • Name of the 1 Planet Kepler-317 b radius 0.186000 mass 0.016433 orbital distance 0.061000
  • Name of the 2 Planet Kepler-317 c radius 0.153000 mass 0.013703 orbital distance 0.083000

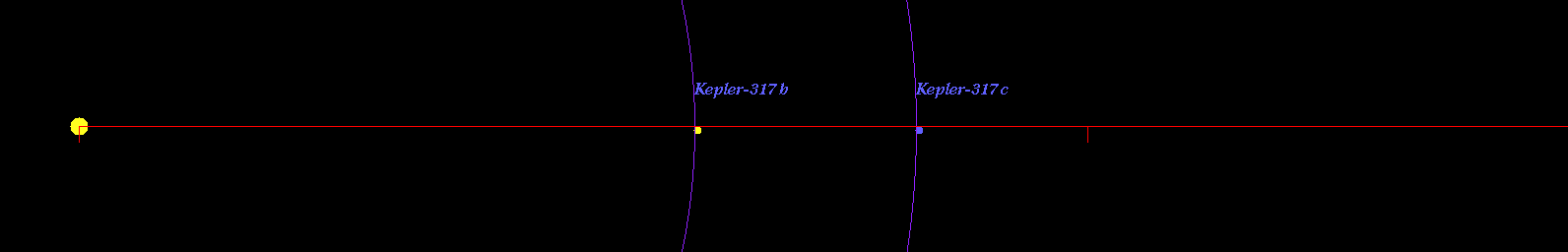

    (Illustration of the Kepler-317's Planetary System)



    The Star Kepler-317 's habitable zone is located at the following distance

    Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.615 AU ( 92052892.6 km)
    Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.851 AU ( 127241153.9 km)
    Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.296 AU ( 193887360.1 km)
    Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.907 AU ( 285313744.0 km)
    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-317)



    Kopparapu's Recent Venus for Star Kepler-317 distance : 0.648 AU
    Kopparapu's Runaway Greenhouse for Earth-sized planet for Star Kepler-317 distance : 0.821 AU
    Kopparapu's Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-317 distance : 0.793 AU
    Kopparapu's Runaway Greenhouse for Mars-sized planet for Star Kepler-317 distance : 0.870 AU
    Kopparapu's Outer Boundary for Maximum Greenhouse for Star Kepler-317 distance : 1.462 AU
    Kopparapu's Outer Boundary for Early Mars for Star Kepler-317 distance : 1.542 AU

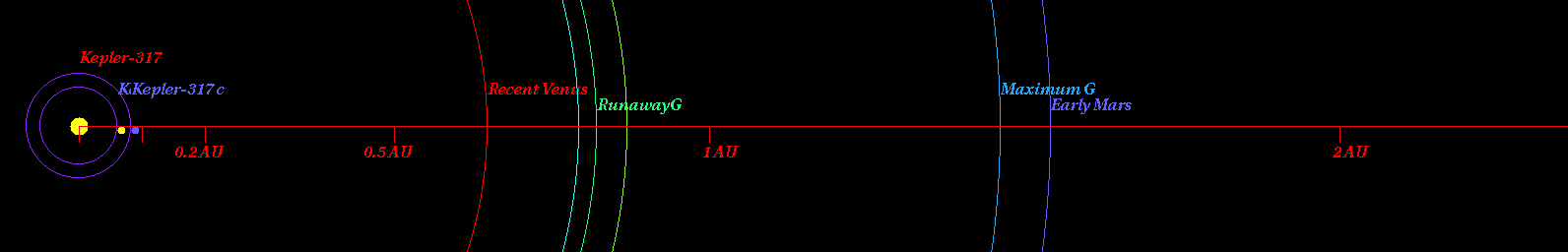

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-317)



  • Original Kopparapu Recent Venus for Star Kepler-317 distance : 0.646 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-317 distance : 0.845 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-317 distance : 0.855 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-317 distance : 1.487 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-317 distance : 1.547 AU

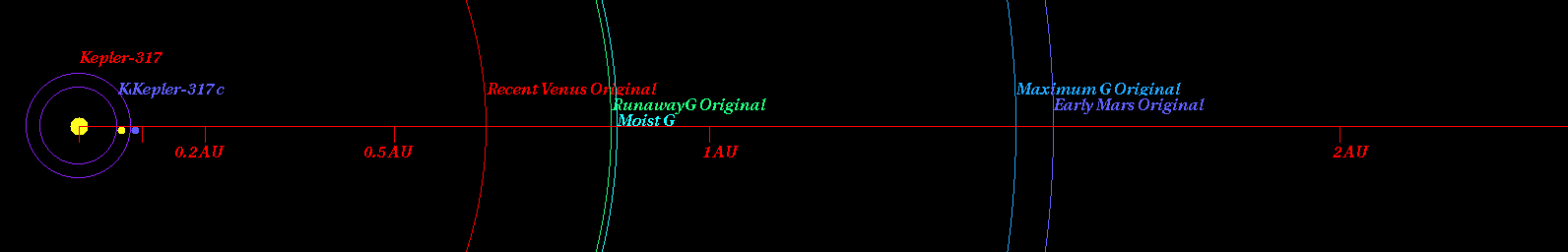

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-317)

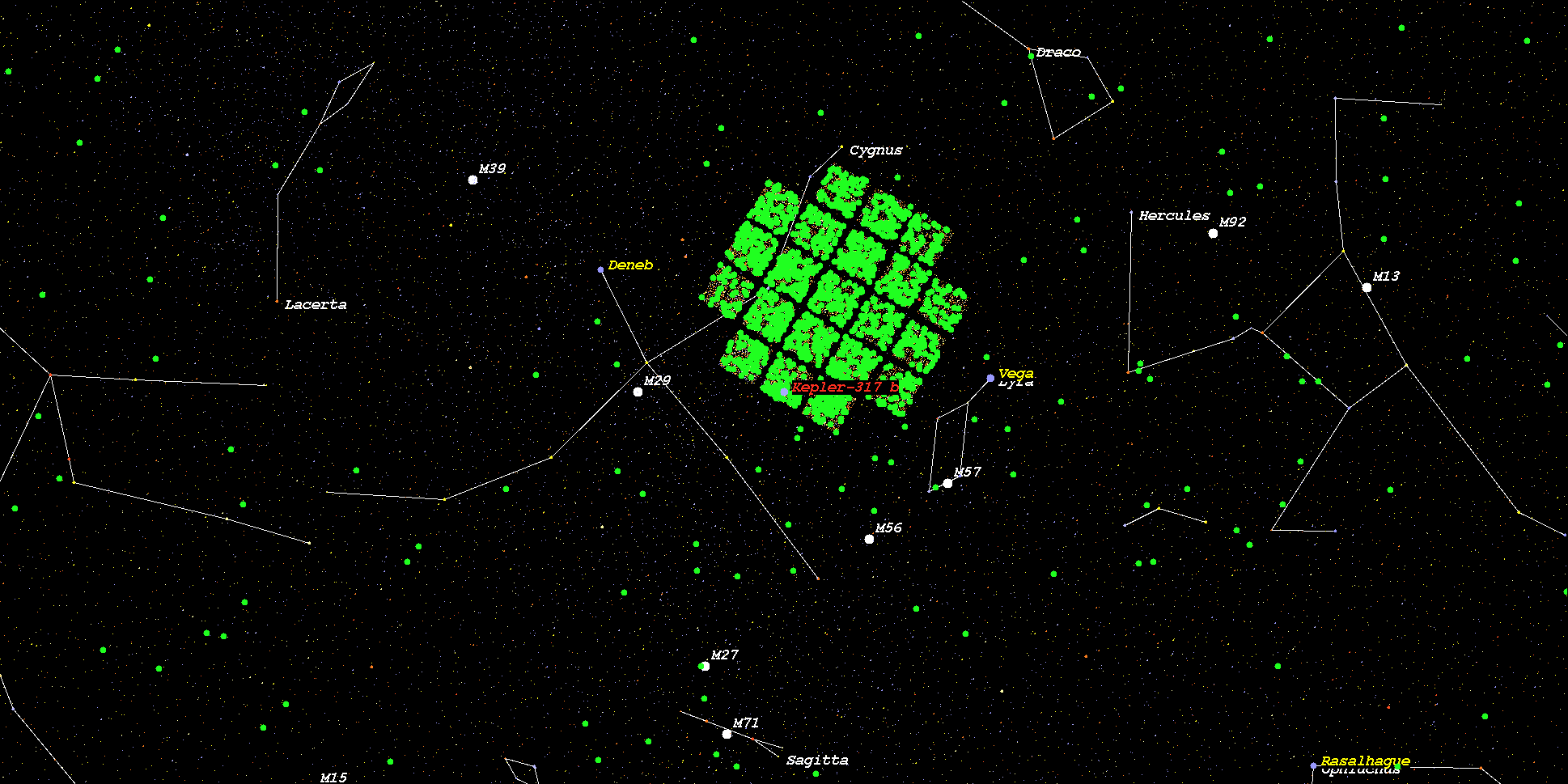

    (Position in Stellar Map of star Kepler-317 )



    (Zoomed position in Stellar Map of star Kepler-317 (zoom level 3))

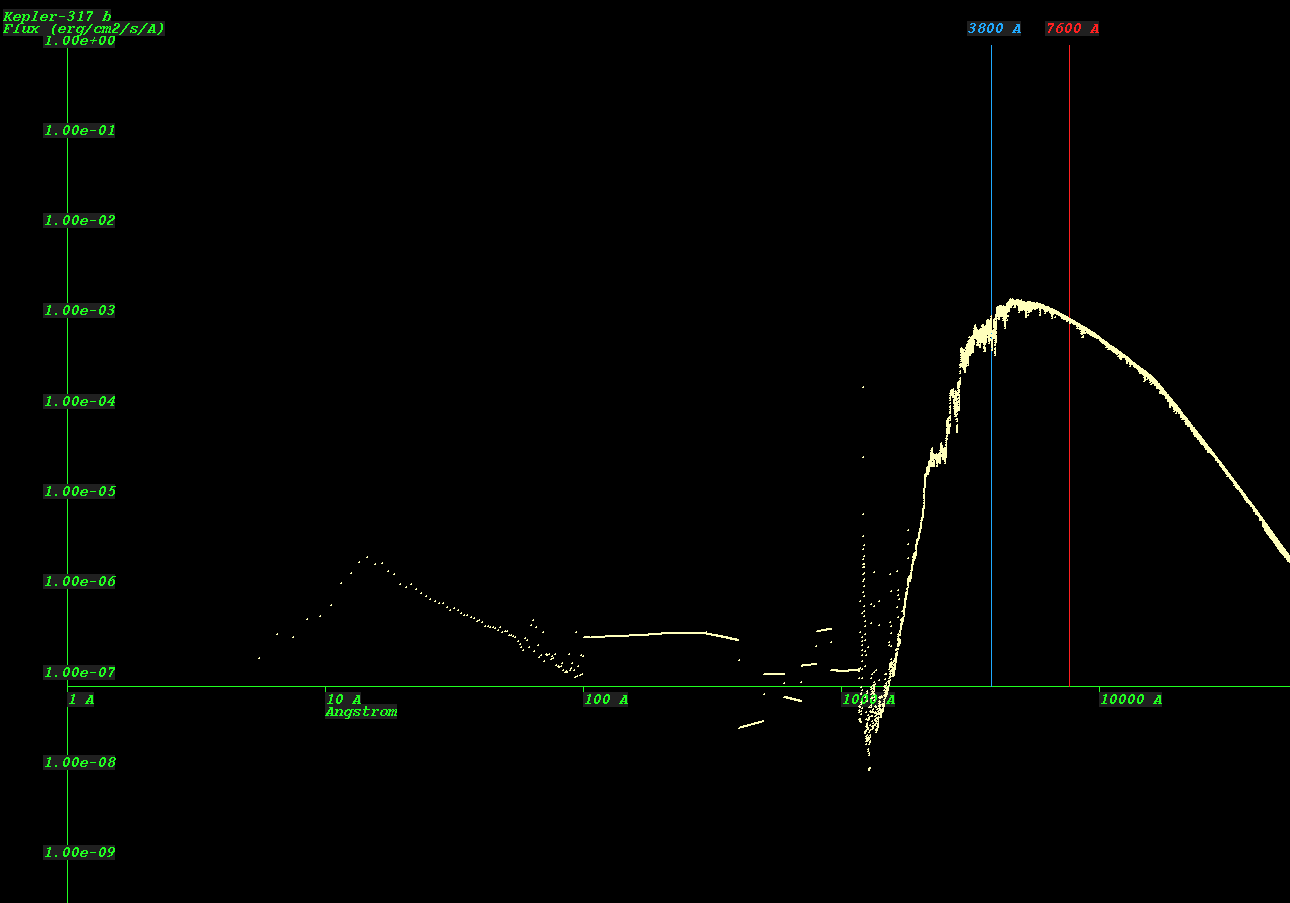

    (Synthetic Spectrum of star 2MASS J19361857+4224080*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
