Imaginary Picture of Kepler-310 d

Display orbital revolution of Kepler-310 d around the hoststar Kepler-310
/
Exoplanet Name : Kepler-310 d
Alternate Name : "2MASS J19152144+4659122 d, K01598.02, KIC 10004738 d, KOI-1598 d, KOI-1598.02, WISE J191521.43+465912.3 d"
Status : Confirmed
Radius (Rjup / Re): 0.2200 (Rjup) 2.4660 (Rearth)
Mass (Mjup / Me): 0.0192 (Mjup) 6.1075 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.3920 (AU) 0.3920 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.2543
Orbital Period(Observed/Estimated) 92.88 (Days Obs.) 97.23 (Days Est.)
Surface Gravity (G Earth) 1.0043
Star Radiation at Atmospheric Boundary: 5090.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 377.0 (K)
Blackbody T 0.3(K) 354.0 (K)
Blackbody T 0.7(K) 286.5 (K)
Tidally Locked Blackbody T 0.1(K) 448.3 (K)
Tidally Locked Blackbody T 0.3(K) 421.0 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-310
Alternate Name : "2MASS J19152144+4659122, KIC 10004738, KOI-1598, WISE J191521.43+465912.3"
Star Distance(LY) : 1963.6
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5451 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.3
Absolute Magnitude: 4.2
Apparent Magnitude: 13.1
Right Ascension(RA) 288.8394
Declination (DEC) 46.9867
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-310+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-310%20d/
Kepler-310 d
Kepler-310 d

  • Kepler-310 d is an exoplanet orbiting the star Kepler-310, located about 1963.6 light-years (602.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-310 has apparent magnitude of 13.1, with absolute magnitude of 4.2.
  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5451 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-310 d orbits around the star Kepler-310 every 92.9 days with its orbital distance of 0.39 AU ( 58642365.3 km)

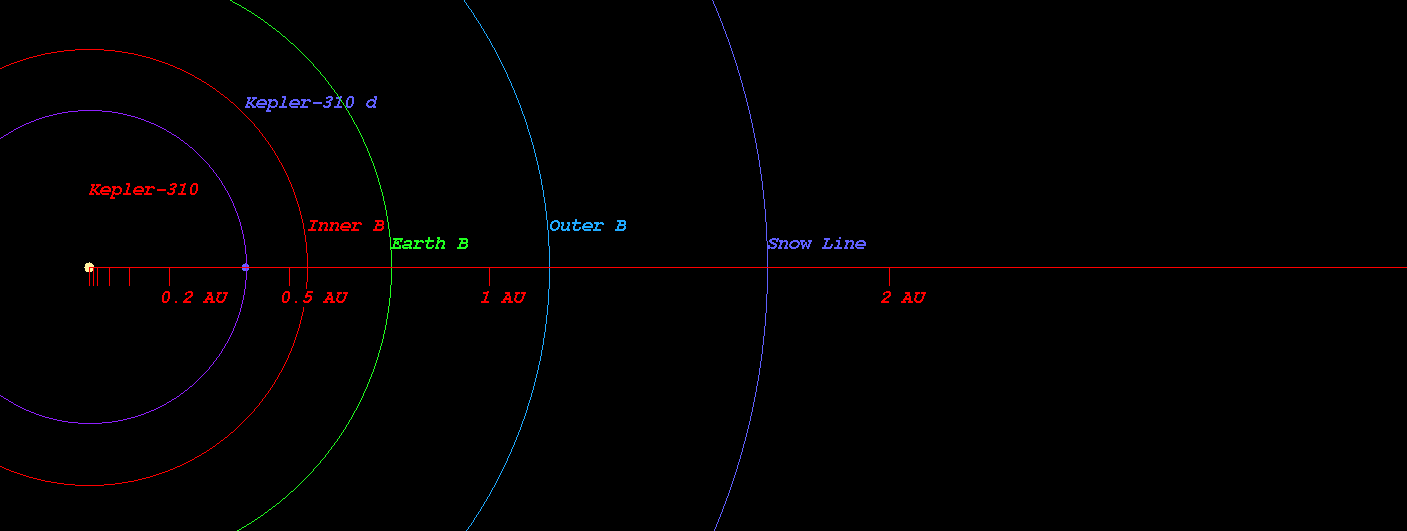

  • (Projected orbit of Kepler-310 d around its host star Kepler-310)


  • The Star Kepler-310 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.547 AU ( 81852020.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.756 AU ( 113140882.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.152 AU ( 172401666.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.696 AU ( 253696604.8 km)
  • Radiation at Planetary Boundary of Kepler-310 d : 5090.67 W/m2

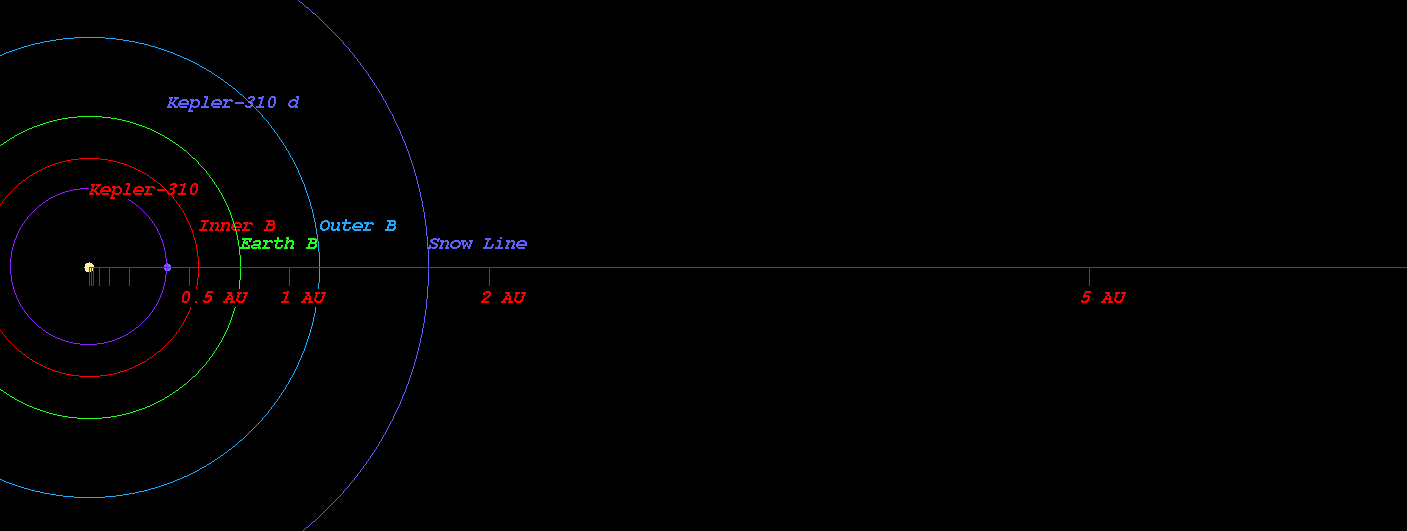

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-310)



  • Kopparapu Recent Venus for Star Kepler-310 distance : 0.578 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-310 distance : 0.732 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-310 distance : 0.707 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-310 distance : 0.775 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-310 distance : 1.305 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-310 distance : 1.377 AU

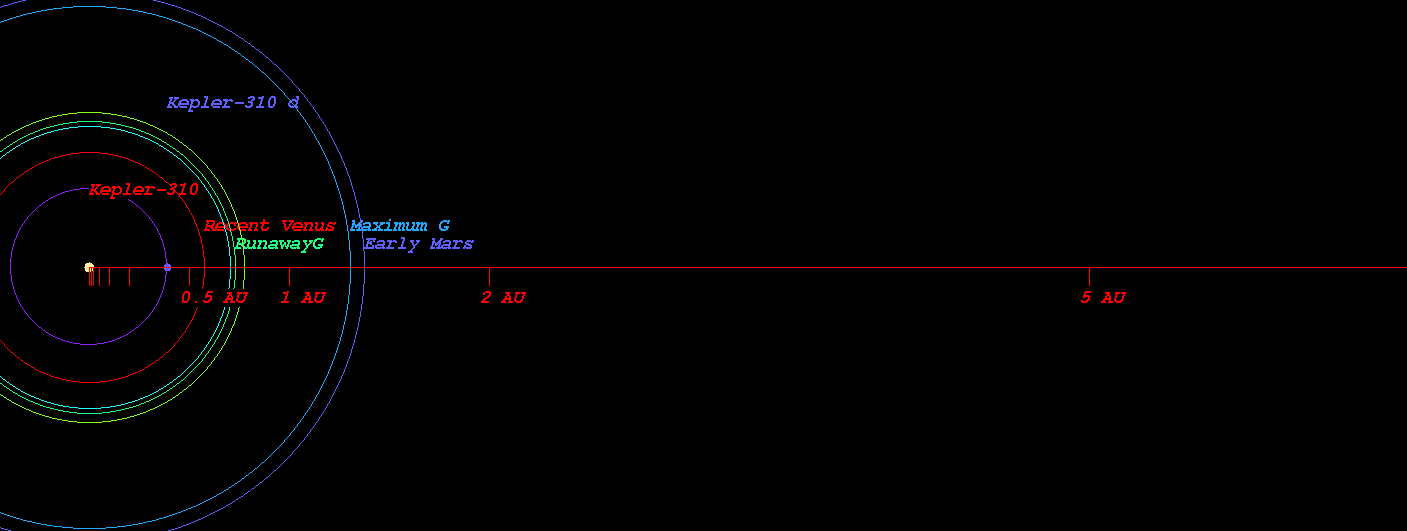

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-310)



  • Original Kopparapu Recent Venus for Star Kepler-310 distance : 0.575 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-310 distance : 0.753 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-310 distance : 0.761 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-310 distance : 1.328 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-310 distance : 1.381 AU

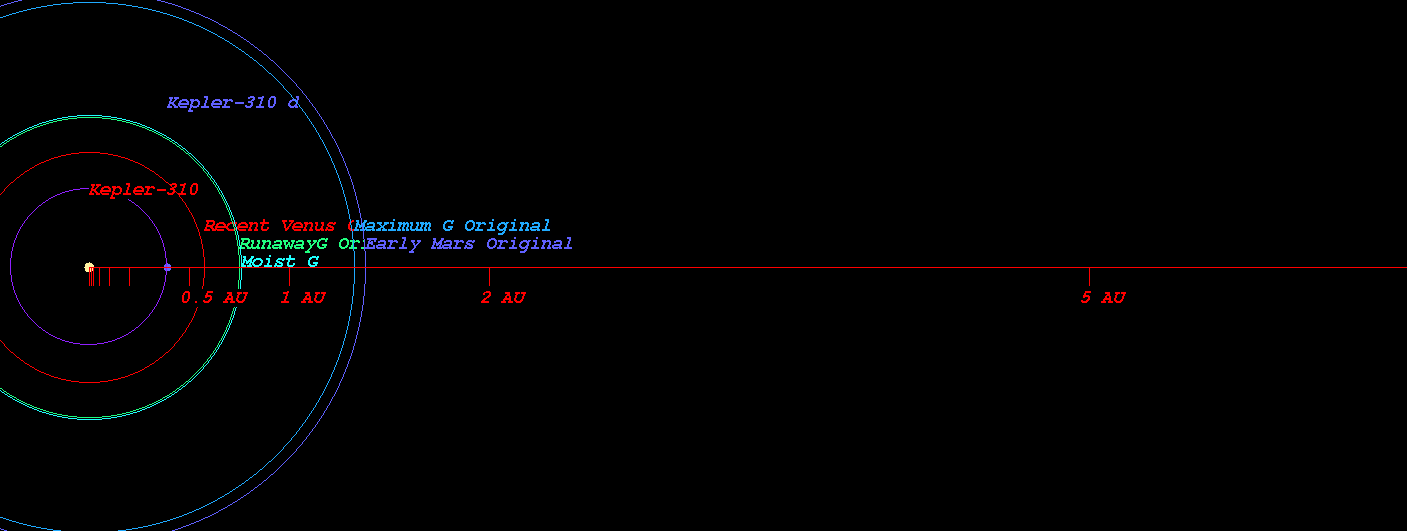

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-310)



    (Position in Stellar Map of star Kepler-310 and its Exoplanet Kepler-310 d)

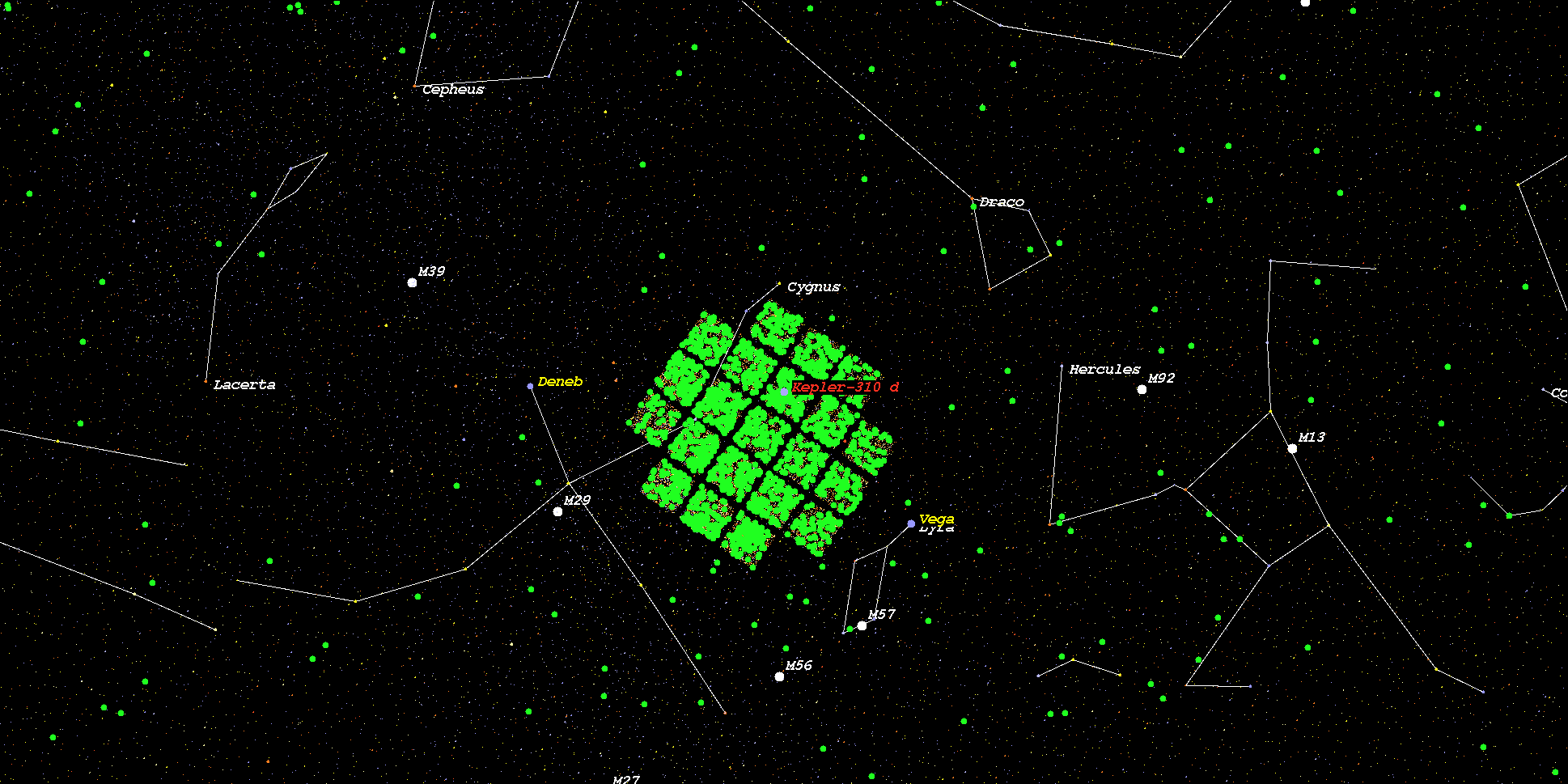

    (Zoomed position in Stellar Map of star Kepler-310 and its Exoplanet Kepler-310 d (zoom level 3))

    (Synthetic Spectrum of star Kepler-310*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
