Imaginary Picture of Kepler-29 b

Display orbital revolution of Kepler-29 b around the hoststar Kepler-29
/
Exoplanet Name : Kepler-29 b
Alternate Name : "2MASS J19532359+4729284 b, K00738.01, KIC 10358759 b, KOI-738 b, KOI-738.01, WISE J195323.60+472928.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.2270 (Rjup) 2.5444 (Rearth)
Mass (Mjup / Me): 0.0157 (Mjup) 5.0012 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0900 (AU) 0.0900 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0283
Orbital Period(Observed/Estimated) 10.34 (Days Obs.) 11.31 (Days Est.)
Surface Gravity (G Earth) 0.7725
Star Radiation at Atmospheric Boundary: 70860.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 728.2 (K)
Blackbody T 0.3(K) 683.8 (K)
Blackbody T 0.7(K) 553.3 (K)
Tidally Locked Blackbody T 0.1(K) 866.0 (K)
Tidally Locked Blackbody T 0.3(K) 813.2 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : TTV
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-29
Alternate Name : "2MASS J19532359+4729284, KIC 10358759, KOI-738, WISE J195323.60+472928.3"
Star Distance(LY) : 2717.9
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5378 (K)
Spectral type : G7
UV portion[%]: 6.3
Visible portion[%]: 42.2
IR portion[%]: 51.5
Metalicity : -0.4
Absolute Magnitude: 5.9
Apparent Magnitude: 15.5
Right Ascension(RA) 298.3483
Declination (DEC) 47.4912
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Daniel C. Fabrycky, Eric B. Ford, Jason H. Steffen, Jason F. Rowe, Joshua A. Carter, Althea V. Moorhead, Natalie M. Batalha, William J. Borucki, Steve Bryson, Lars A. Buchhave"
Discovery Paper - Title TRANSIT TIMING OBSERVATIONS FROM KEPLER. IV. CONFIRMATION OF FOUR MULTIPLE-PLANET SYSTEMS BY SIMPLE PHYSICAL MODELS
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-29+&submit=SIMBAD+search0
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-29%20b/
Kepler-29 b
Kepler-29 b

  • Kepler-29 b is an exoplanet orbiting the star Kepler-29, located about 2717.9 light-years (833.3 pc) away from Solar System. Its discovery was publicly announced on 2011.
  • The host star Kepler-29 has apparent magnitude of 15.5, with absolute magnitude of 5.9.
  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 5378 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-29 b orbits around the star Kepler-29 every 10.3 days with its orbital distance of 0.09 AU ( 13463808.4 km)

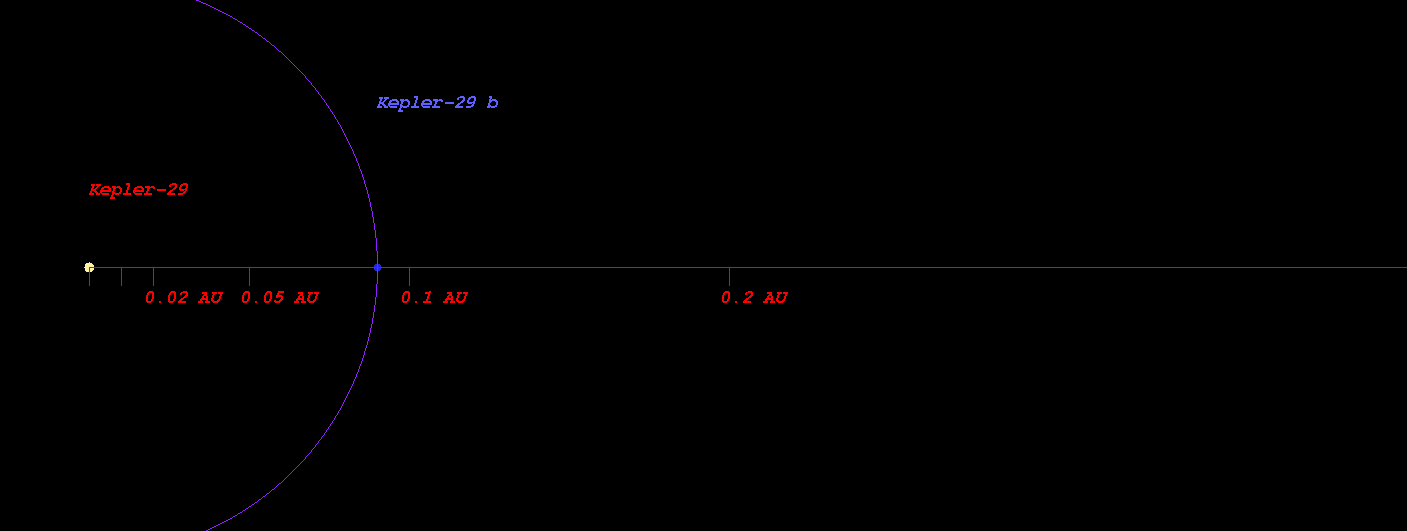

  • (Projected orbit of Kepler-29 b around its host star Kepler-29)


  • The Star Kepler-29 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.469 AU ( 70113444.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.648 AU ( 96915103.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.987 AU ( 147677170.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.453 AU ( 217313426.2 km)
  • Radiation at Planetary Boundary of Kepler-29 b : 70860.82 W/m2

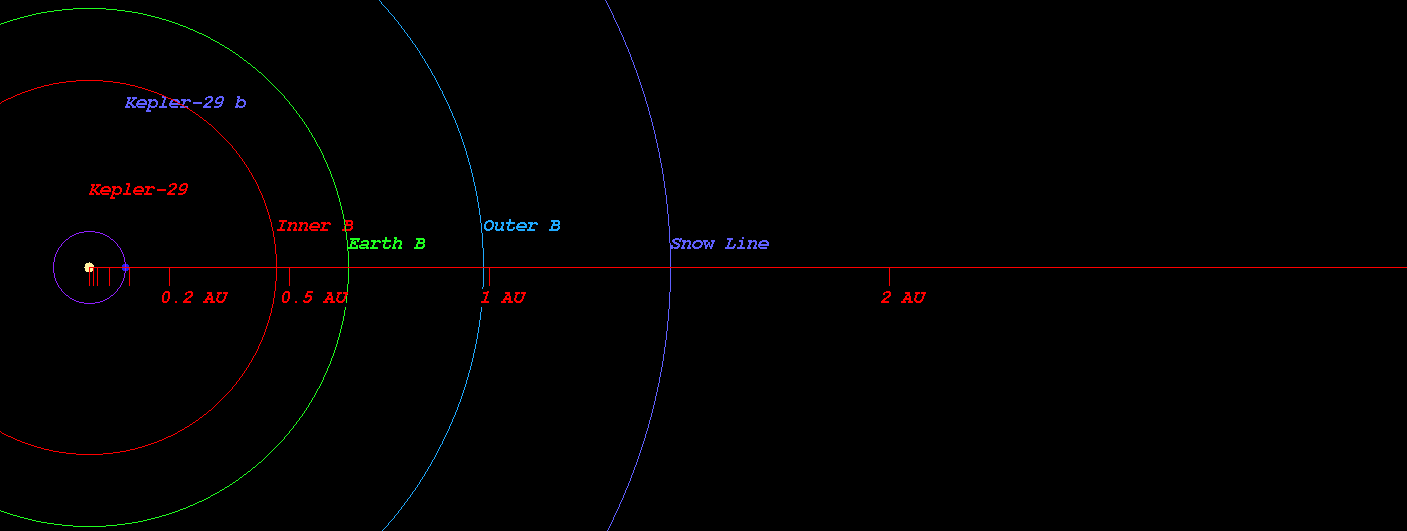

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-29)



  • Kopparapu Recent Venus for Star Kepler-29 distance : 0.497 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-29 distance : 0.630 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-29 distance : 0.608 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-29 distance : 0.667 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-29 distance : 1.125 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-29 distance : 1.187 AU

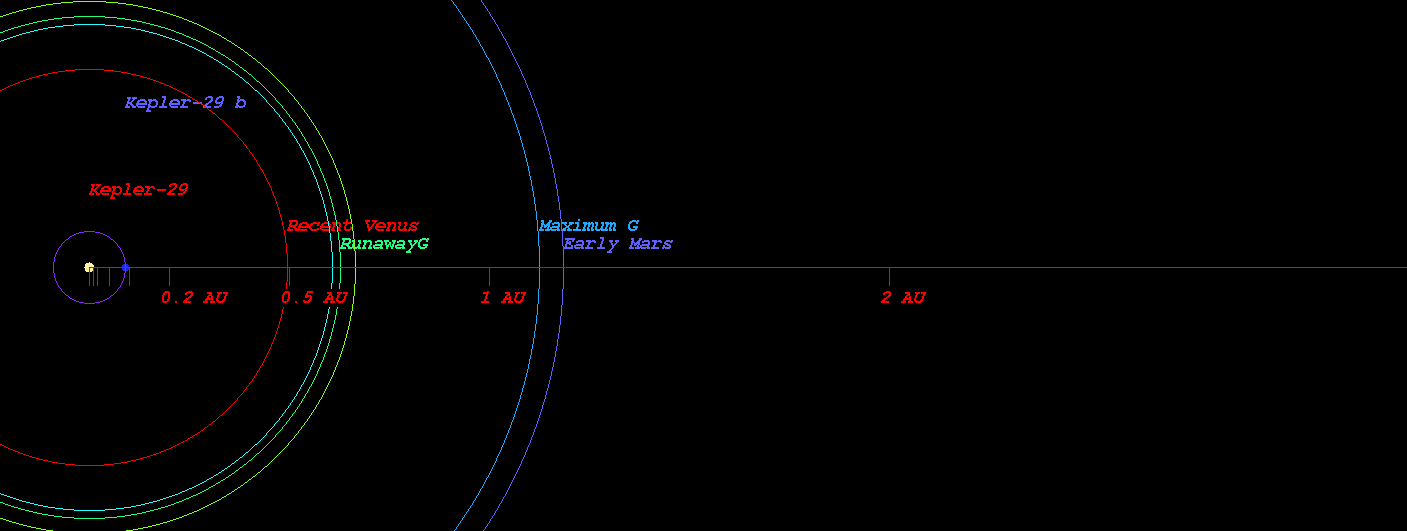

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-29)



  • Original Kopparapu Recent Venus for Star Kepler-29 distance : 0.494 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-29 distance : 0.648 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-29 distance : 0.654 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-29 distance : 1.145 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-29 distance : 1.190 AU

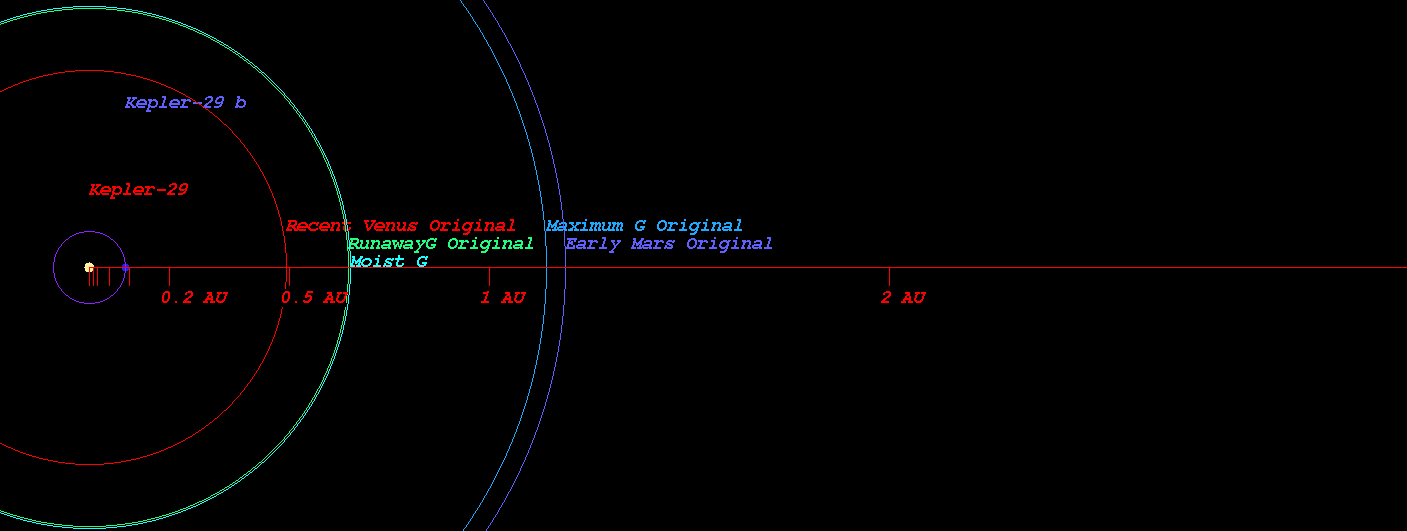

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-29)

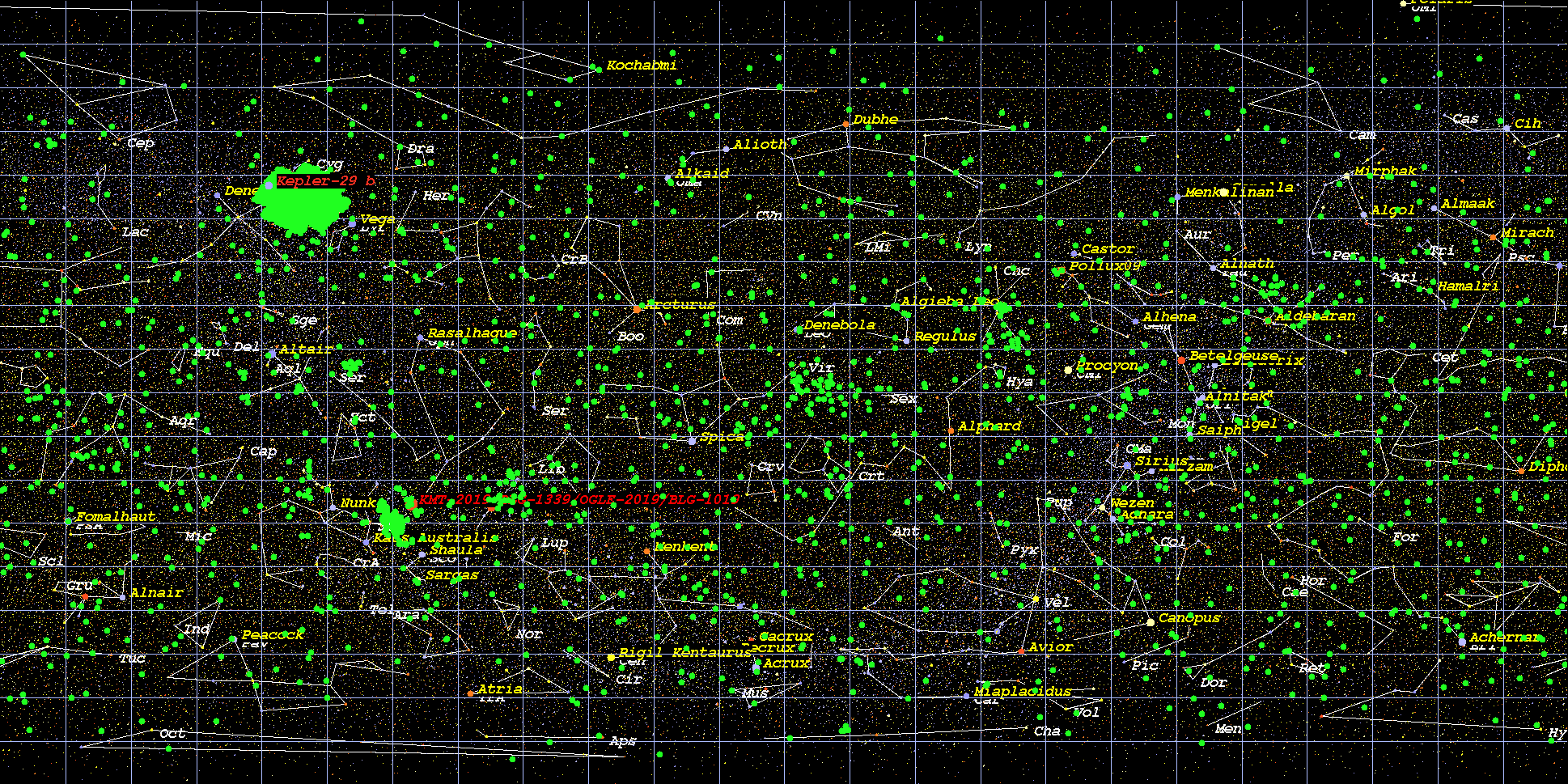

    (Position in Stellar Map of star Kepler-29 and its Exoplanet Kepler-29 b)

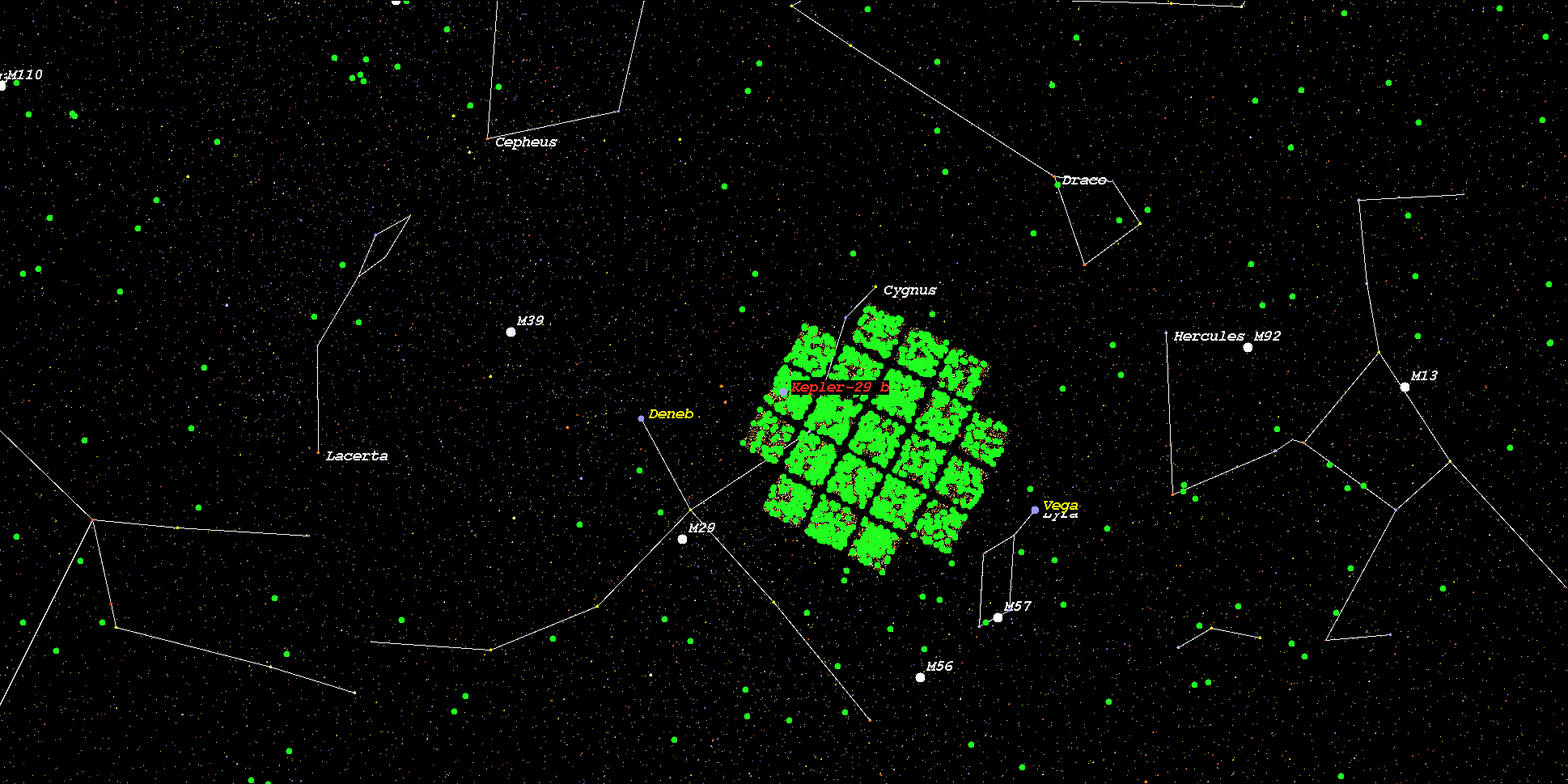

    (Zoomed position in Stellar Map of star Kepler-29 and its Exoplanet Kepler-29 b (zoom level 3))

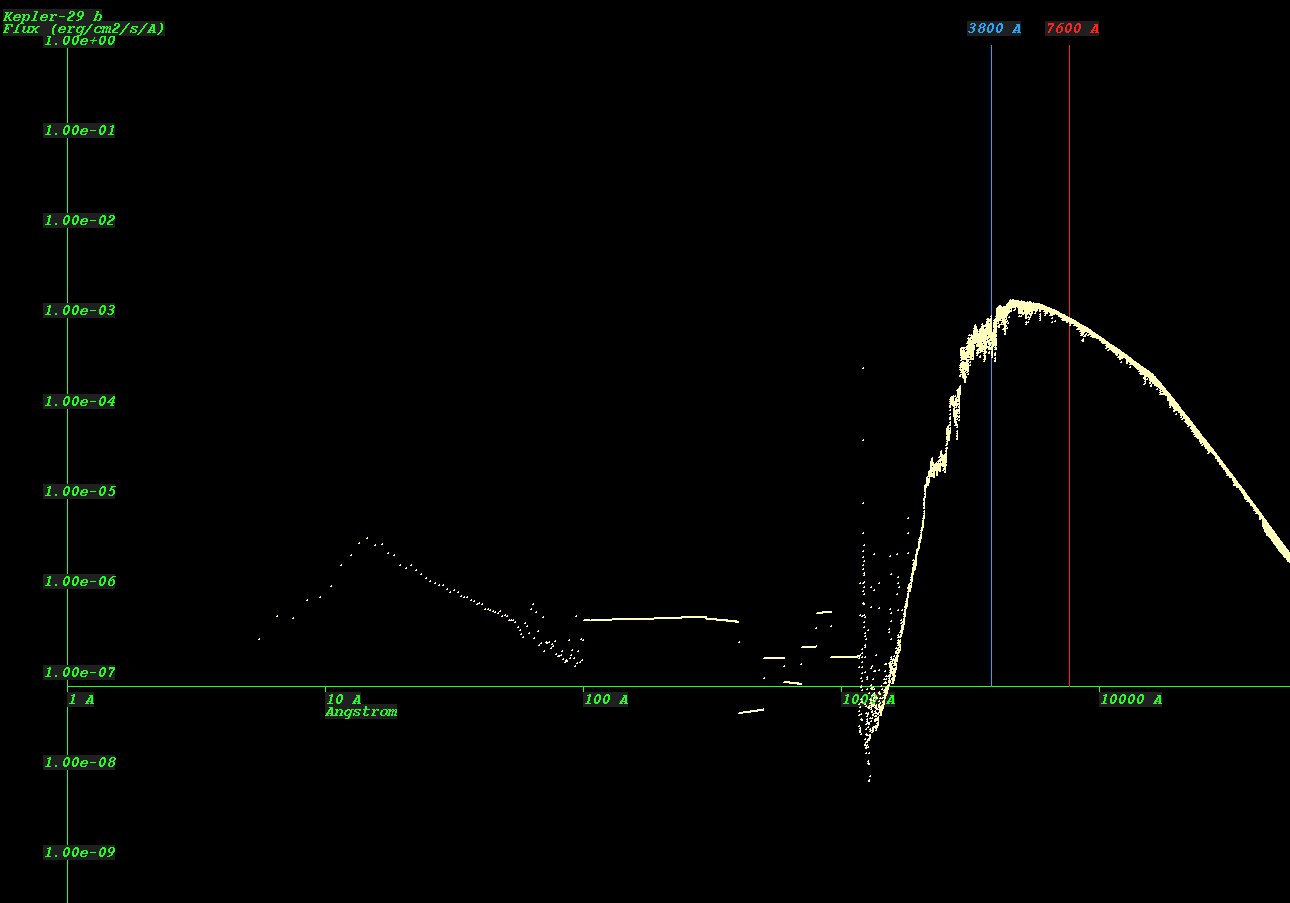

    (Synthetic Spectrum of star Kepler-29*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
