Imaginary Picture of Kepler-292 b

Display orbital revolution of Kepler-292 b around the hoststar Kepler-292
/
Exoplanet Name : Kepler-292 b
Alternate Name : "2MASS J19430387+4225274 b, K01364.05, KIC 6962977 b, KOI-1364 b, KOI-1364.05, WISE J194303.88+422527.3 b"
Radius (Rjup / Re): 0.1180 (Rjup) 1.3227 (Rearth)
Mass (Mjup / Me): 0.0084 (Mjup) 2.6861 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0350 (AU) 0.0350 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0071
Orbital Period(Observed/Estimated) 2.58 (Days Obs.) 2.55 (Days Est.)
Surface Gravity (G Earth) 1.5354
Star Radiation at Atmospheric Boundary: 523118.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1200.3 (K)
Blackbody T 0.3(K) 1127.2 (K)
Blackbody T 0.7(K) 912.0 (K)
Tidally Locked Blackbody T 0.1(K) 1427.4 (K)
Tidally Locked Blackbody T 0.3(K) 1340.5 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-292
Alternate Name : "2MASS J19430387+4225274, KIC 6962977, KOI-1364, WISE J194303.88+422527.3"
Star Distance(LY) : 3452.2
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5248 (K)
Spectral type : K0
UV portion[%]: 5.8
Visible portion[%]: 41.4
IR portion[%]: 52.8
Metalicity : 0.1
Absolute Magnitude: 4.4
Apparent Magnitude: 14.5
Right Ascension(RA) 295.7661
Declination (DEC) 42.4243
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-292+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-292%20b/
Kepler-292 b
Kepler-292 b

  • Kepler-292 b is an exoplanet orbiting the star Kepler-292, located about 3452.2 light-years (1058.5 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-292 has apparent magnitude of 14.5, with absolute magnitude of 4.4.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5248 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-292 b orbits around the star Kepler-292 every 2.6 days with its orbital distance of 0.04 AU ( 5235925.5 km)

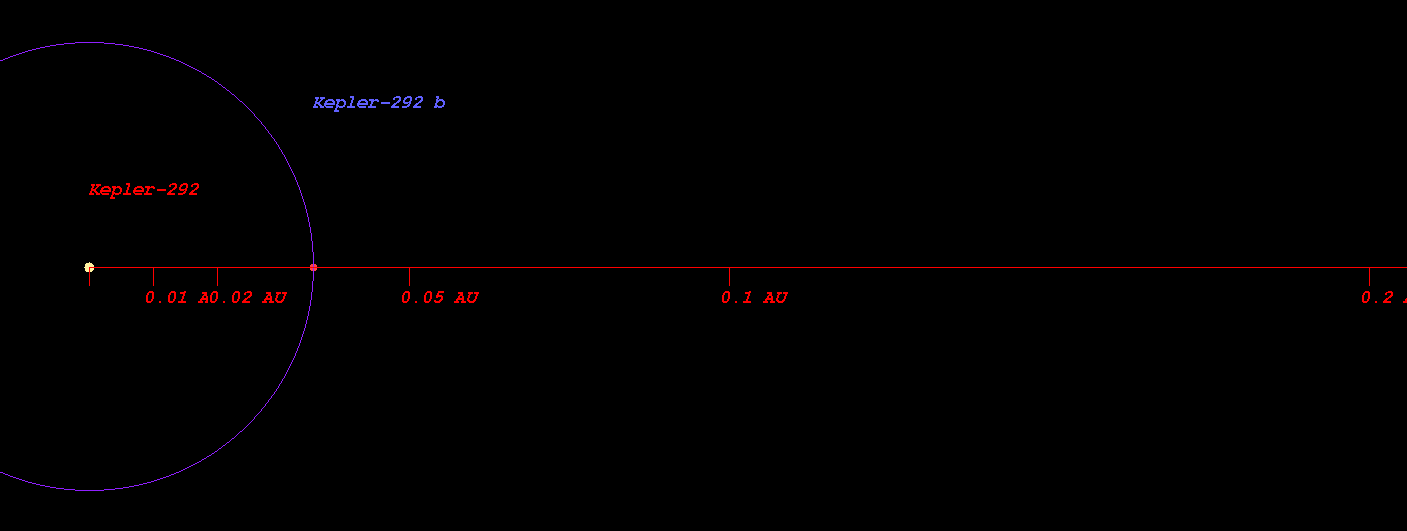

  • (Projected orbit of Kepler-292 b around its host star Kepler-292)


  • The Star Kepler-292 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.495 AU ( 74083903.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.685 AU ( 102403315.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.043 AU ( 156039990.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.535 AU ( 229619681.6 km)
  • Radiation at Planetary Boundary of Kepler-292 b : 523118.66 W/m2

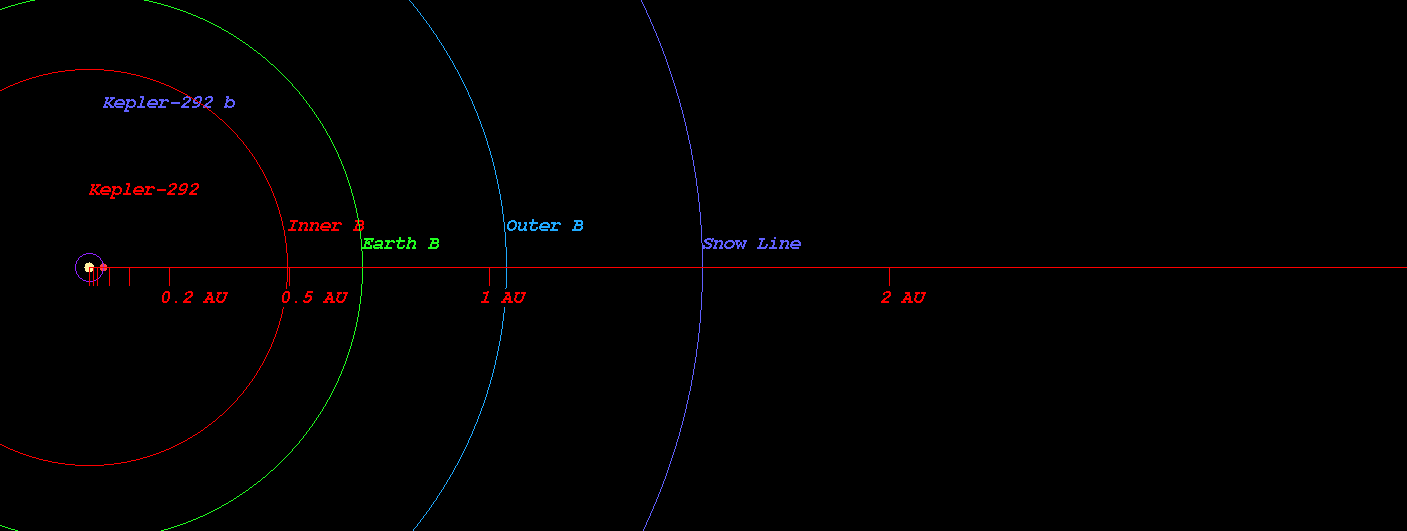

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-292)



  • Kopparapu Recent Venus for Star Kepler-292 distance : 0.529 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-292 distance : 0.670 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-292 distance : 0.647 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-292 distance : 0.710 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-292 distance : 1.203 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-292 distance : 1.269 AU

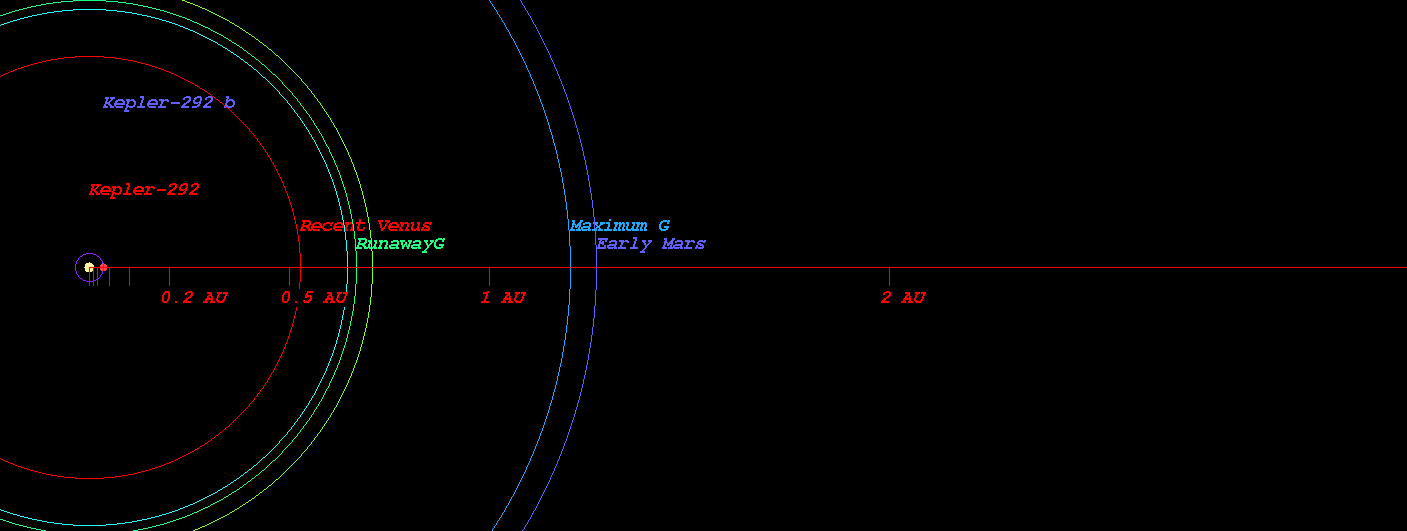

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-292)



  • Original Kopparapu Recent Venus for Star Kepler-292 distance : 0.525 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-292 distance : 0.690 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-292 distance : 0.695 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-292 distance : 1.223 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-292 distance : 1.272 AU

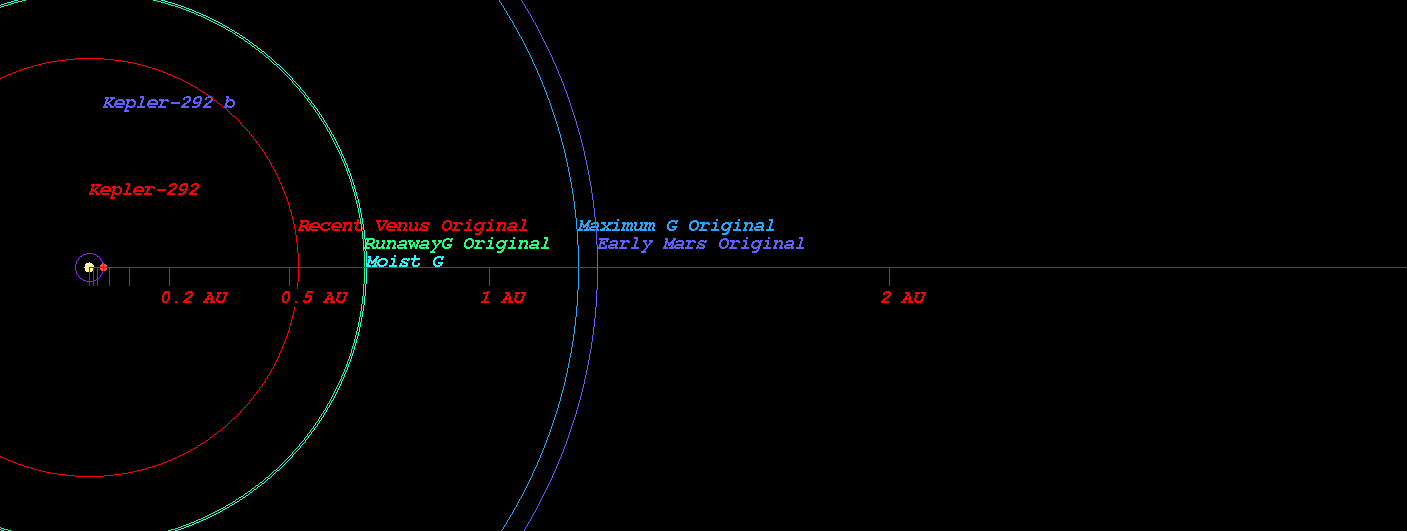

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-292)

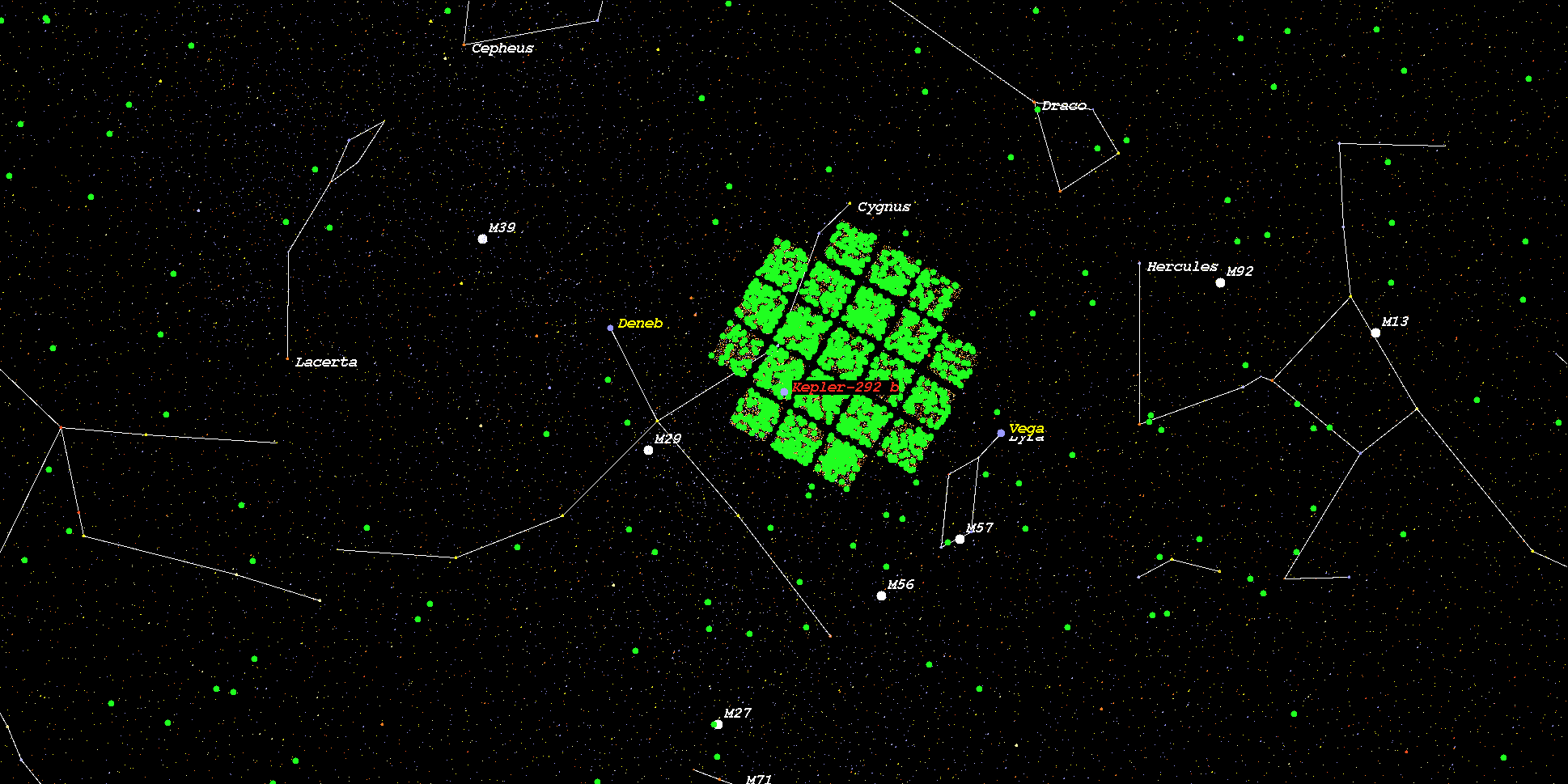

    (Position in Stellar Map of star Kepler-292 and its Exoplanet Kepler-292 b)



    (Zoomed position in Stellar Map of star Kepler-292 and its Exoplanet Kepler-292 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-292*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
