Imaginary Picture of Kepler-221 e

Display orbital revolution of Kepler-221 e around the hoststar Kepler-221
/
Exoplanet Name : Kepler-221 e
Alternate Name : "2MASS J19463714+4650069 e, K00720.03, KIC 9963524 e, KOI-720 e, KOI-720.03, WISE J194637.14+465006.8 e"
Status : Confirmed
Radius (Rjup / Re): 0.2350 (Rjup) 2.6341 (Rearth)
Mass (Mjup / Me): 0.0204 (Mjup) 6.4939 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1300 (AU) 0.1300 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0503
Orbital Period(Observed/Estimated) 18.37 (Days Obs.) 20.18 (Days Est.)
Surface Gravity (G Earth) 0.9359
Star Radiation at Atmospheric Boundary: 33276.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 602.8 (K)
Blackbody T 0.3(K) 566.1 (K)
Blackbody T 0.7(K) 458.0 (K)
Tidally Locked Blackbody T 0.1(K) 716.9 (K)
Tidally Locked Blackbody T 0.3(K) 673.2 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-221
Alternate Name : "2MASS J19463714+4650069, KIC 9963524, KOI-720, WISE J194637.14+465006.8"
Star Distance(LY) : 1256.1
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5260 (K)
Spectral type : K0
UV portion[%]: 5.5
Visible portion[%]: 41.0
IR portion[%]: 53.5
Metalicity : -0.4
Absolute Magnitude: 4.5
Apparent Magnitude: 12.4
Right Ascension(RA) 296.6548
Declination (DEC) 46.8353
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-221+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-221%20e/
Kepler-221 e
Kepler-221 e

  • Kepler-221 e is an exoplanet orbiting the star Kepler-221, located about 1256.1 light-years (385.1 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-221 has apparent magnitude of 12.4, with absolute magnitude of 4.5.
  • It is 0.7 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5260 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-221 e orbits around the star Kepler-221 every 18.4 days with its orbital distance of 0.13 AU ( 19447723.2 km)

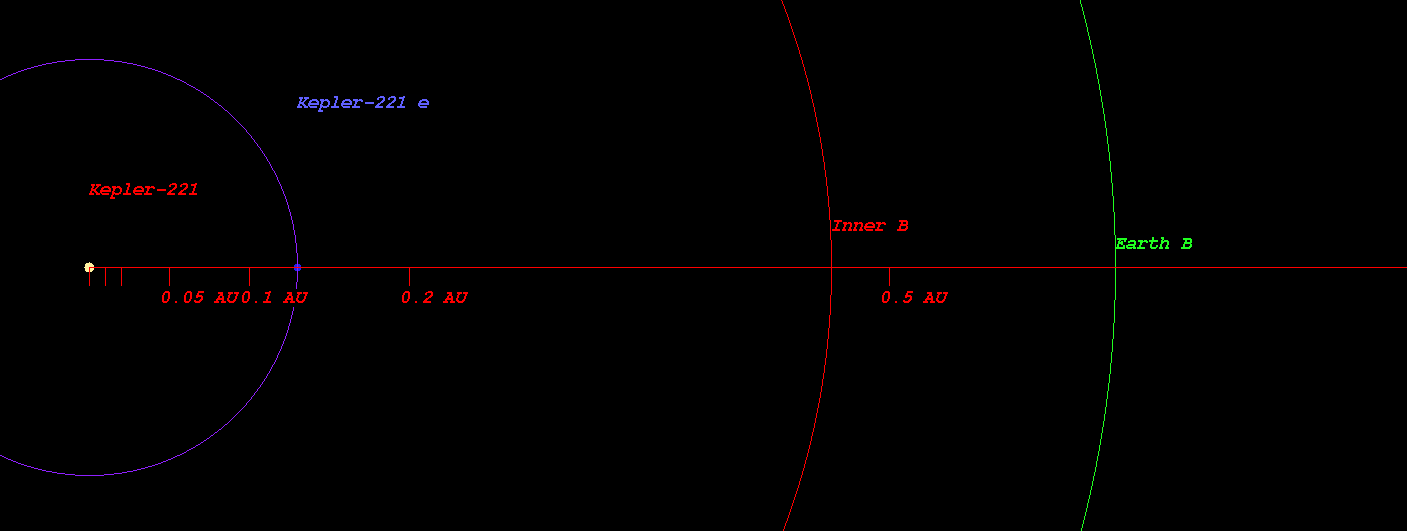

  • (Projected orbit of Kepler-221 e around its host star Kepler-221)


  • The Star Kepler-221 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.464 AU ( 69401772.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.641 AU ( 95931386.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.977 AU ( 146178203.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.438 AU ( 215107629.5 km)
  • Radiation at Planetary Boundary of Kepler-221 e : 33276.91 W/m2

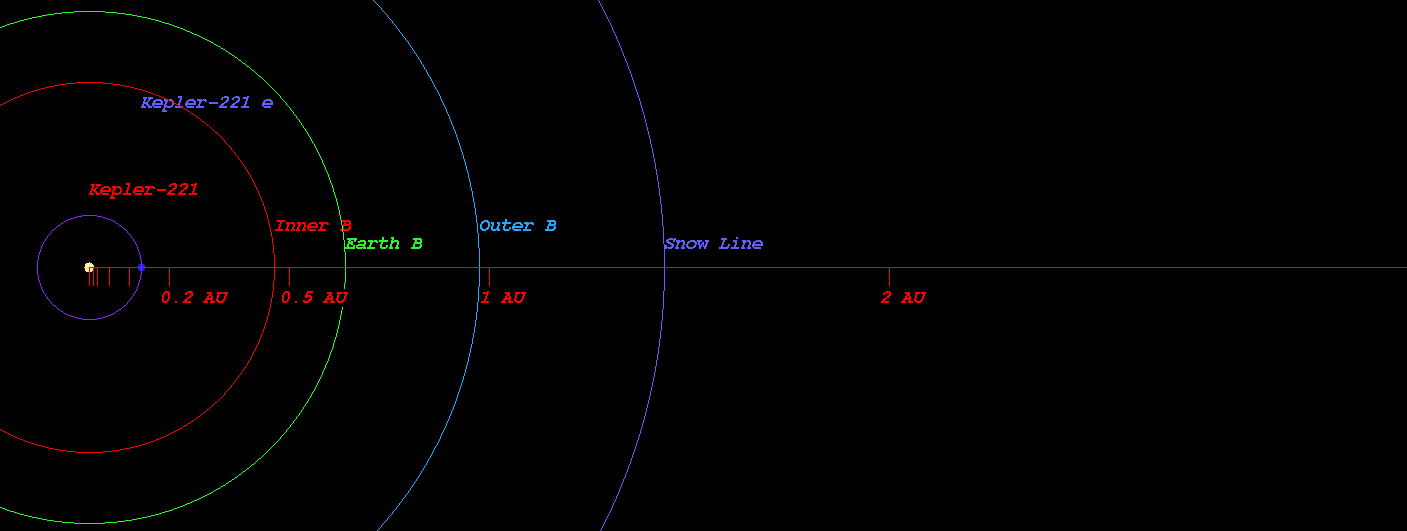

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-221)



  • Kopparapu Recent Venus for Star Kepler-221 distance : 0.495 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-221 distance : 0.627 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-221 distance : 0.606 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-221 distance : 0.665 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-221 distance : 1.126 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-221 distance : 1.187 AU

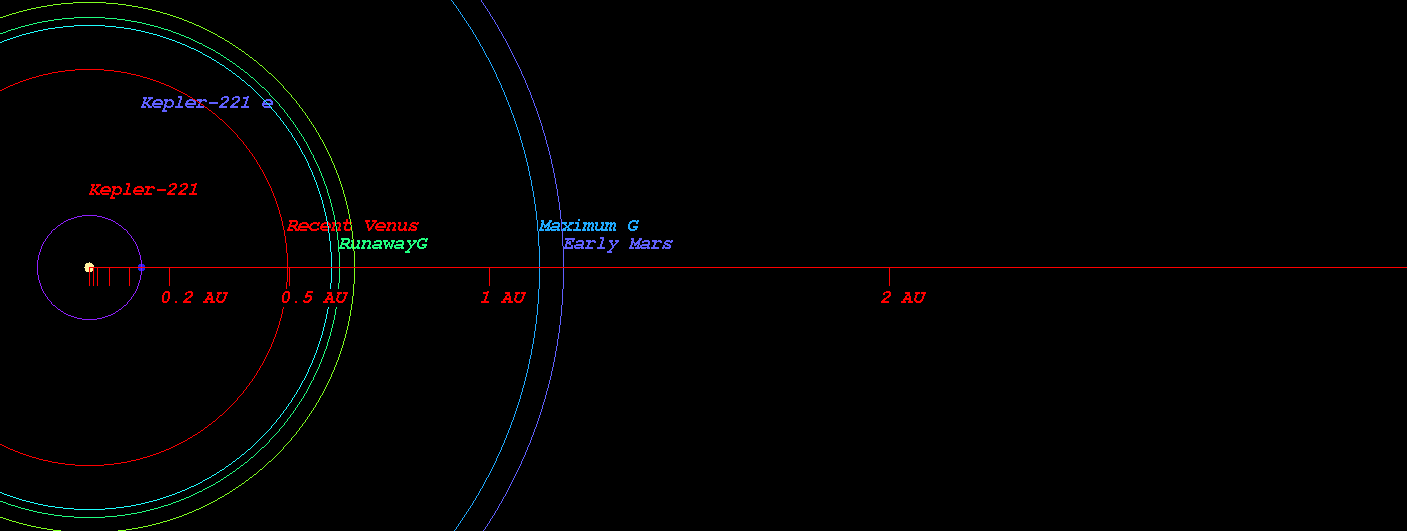

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-221)



  • Original Kopparapu Recent Venus for Star Kepler-221 distance : 0.492 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-221 distance : 0.646 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-221 distance : 0.650 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-221 distance : 1.145 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-221 distance : 1.190 AU

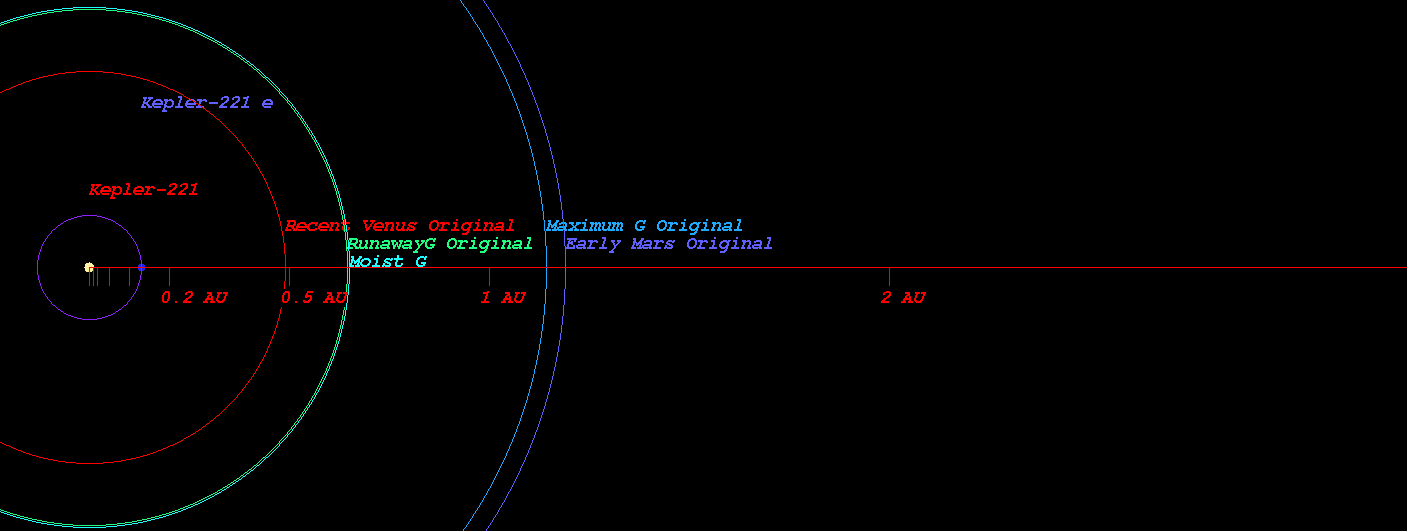

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-221)

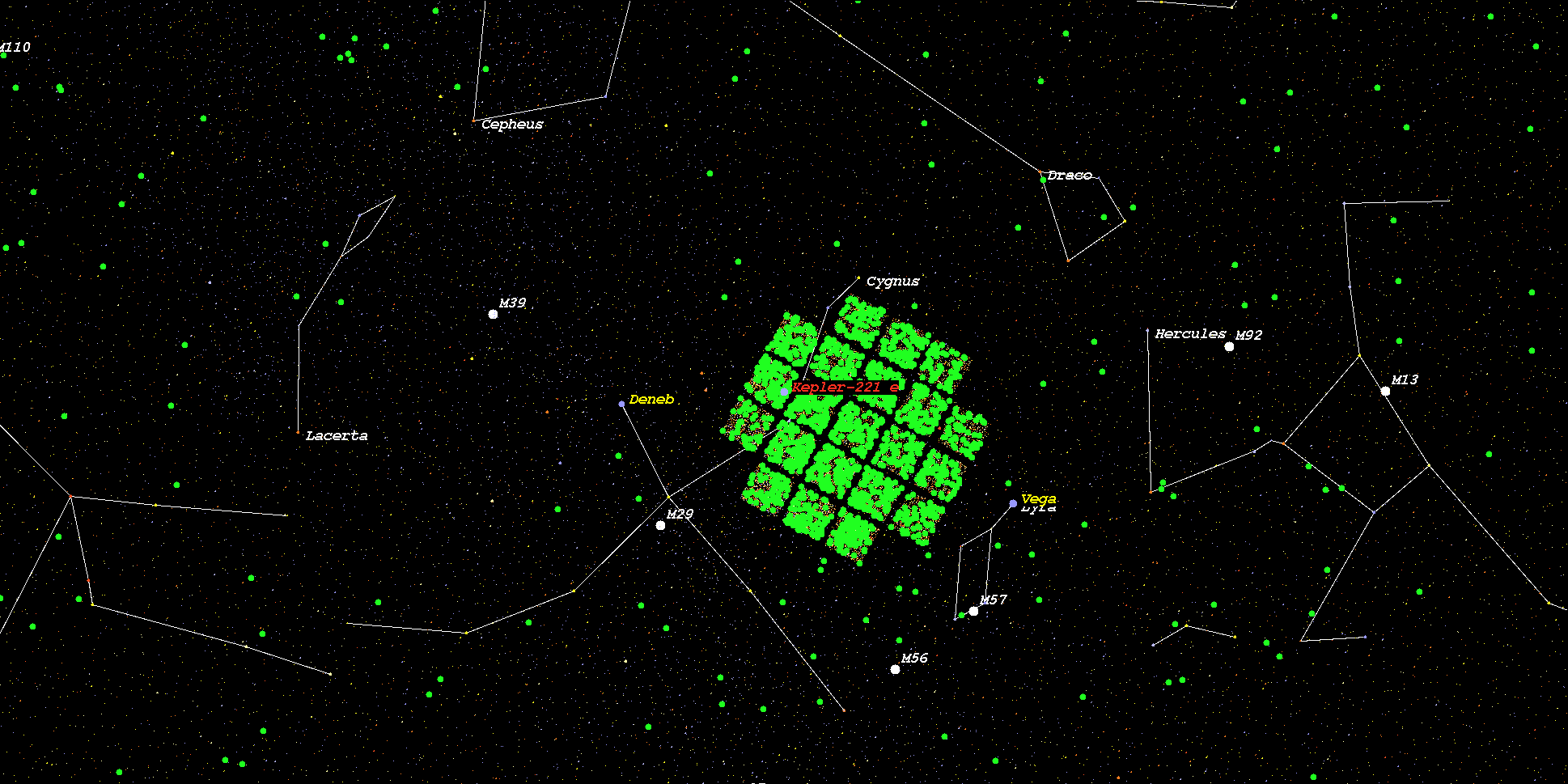

    (Position in Stellar Map of star Kepler-221 and its Exoplanet Kepler-221 e)



    (Zoomed position in Stellar Map of star Kepler-221 and its Exoplanet Kepler-221 e (zoom level 3))

    (Synthetic Spectrum of star Kepler-221*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
