Exoplanet Name : |
Kepler-196 c |
Alternate Name : |
"2MASS J18595244+4204451 c, K00612.02, KIC 6587002 c, KOI-612 c, KOI-612.02, WISE J185952.44+420444.9 c" |
Status : |
Confirmed |
Radius (Rjup / Re): |
0.2000 |
(Rjup) |
2.2418 |
(Rearth) |
Mass (Mjup / Me): |
0.0176 |
(Mjup) |
5.5894 |
(Mearth) |
Semi Major Axis / Orbital Distance Calculated |
0.2400 |
(AU) |
0.2400 |
(AU Est.) |
Eccentricity : |
0.0000 |
Orbital Period(Yrs) |
0.1298 |
Orbital Period(Observed/Estimated) |
47.43 |
(Days Obs.) |
0.00 |
(Days Est.) |
Surface Gravity (G Earth) |
1.1122 |
Star Radiation at Atmospheric Boundary: |
9294.3 |
(W/m2) |
Measured Temperature (K) |
0.0 |
(K) |
Blackbody T 0.1(K) |
438.2 |
(K) |
Blackbody T 0.3(K) |
411.5 |
(K) |
Blackbody T 0.7(K) |
333.0 |
(K) |
Tidally Locked Blackbody T 0.1(K) |
521.1 |
(K) |
Tidally Locked Blackbody T 0.3(K) |
489.4 |
(K) |
Size Class: |
sub-Neptune-size |
Mass Class: |
|
Detection Type : |
Primary Transit |
Mass Detection : |
|
Radius Detection : |
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
Habitability by Kopparapu: |
Not habitable |
Star Name : |
Kepler-196 |
Alternate Name : |
"2MASS J18595244+4204451, KIC 6587002, KOI-612, WISE J185952.44+420444.9" |
Star Distance(LY) : |
1471.4 |
Stellar Radius(Rsun) : |
0.8 |
(Rsun Measured) |
Stellar Mass(Msun) : |
0.0 |
(Msun Measured) |
0.8 |
(Msun Estimated) |
Star Age : |
0.0 |
(GY) |
Temperature : |
5146 |
(K) |
Spectral type : |
K1 |
UV portion[%]: |
4.2 |
Visible portion[%]: |
38.9 |
IR portion[%]: |
56.9 |
Metalicity : |
0.1 |
Absolute Magnitude: |
4.5 |
Apparent Magnitude: |
12.8 |
Right Ascension(RA) |
284.9685 |
Declination (DEC) |
42.0792 |
Hubble Space Telescope Guide Star Catalog (GSC) ID |
|
Discovered by |
|
Discovery Paper - Authors |
0 |
Discovery Paper - Title |
|
Discovery Paper - Journal |
0 |
Discovery Paper - URL |
0 |
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-196+&submit=SIMBAD+search |
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/Kepler-196%20c/ |
 |
 |
 |
 |
/
Kepler-196 c
Kepler-196 c
Kepler-196 c is an exoplanet orbiting the star Kepler-196, located about 1471.4 light-years (451.1 pc) away from Solar System. Its discovery was publicly announced on 2014.
The host star Kepler-196 has apparent magnitude of 12.8, with absolute magnitude of 4.5.
In this planetary system, the extrasolar planet Kepler-196 c orbits around the star Kepler-196 every 47.4 days with its orbital distance of 0.24 AU ( 35903489.0 km)

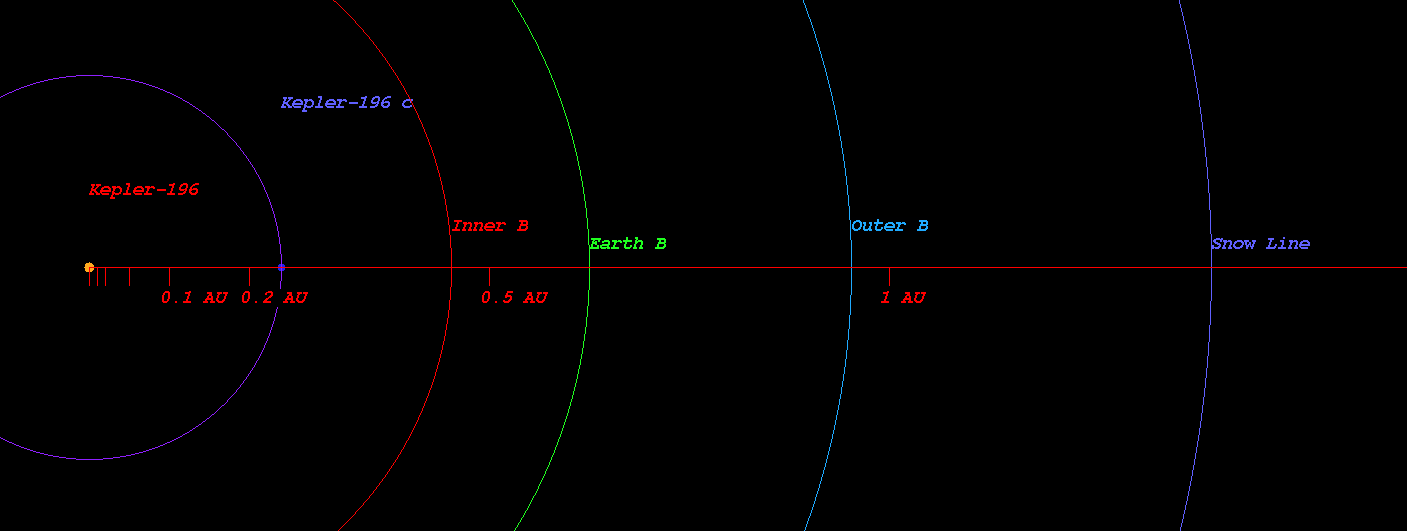

(Projected orbit of Kepler-196 c around its host star Kepler-196)

The Star Kepler-196 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.453 AU ( 67713409.1 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 0.626 AU ( 93597627.0 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 0.953 AU ( 142622070.5 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 1.403 AU ( 209874624.6 km)
Radiation at Planetary Boundary of Kepler-196 c : 9294.27 W/m2

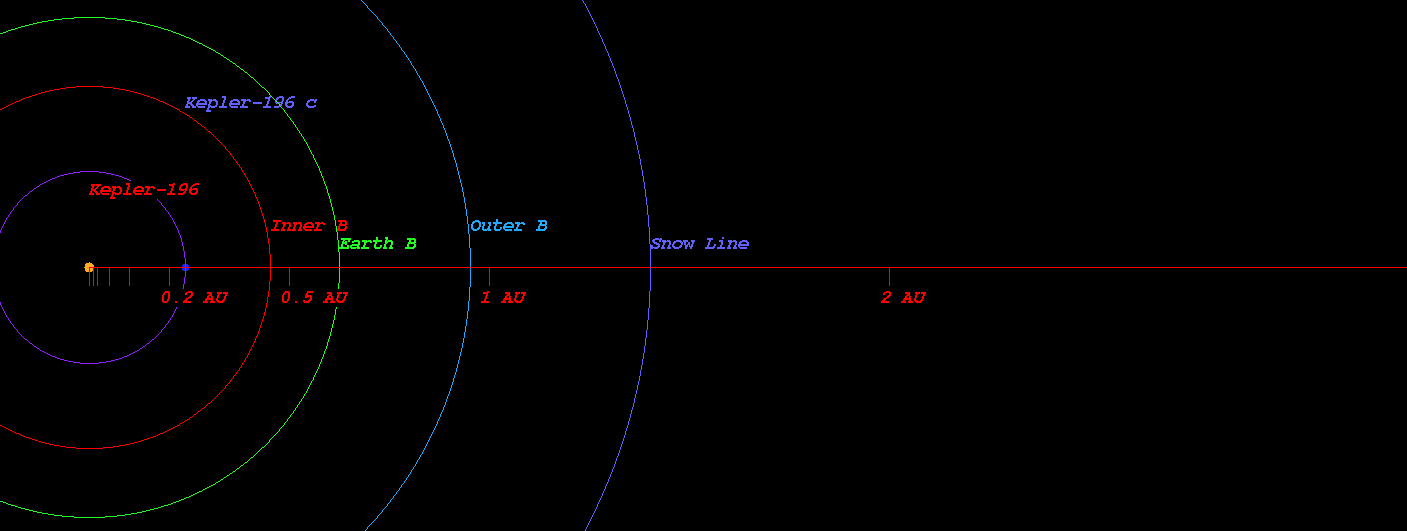

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-196)

Kopparapu Recent Venus for Star Kepler-196 distance : 0.486 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-196 distance : 0.616 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-196 distance : 0.595 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-196 distance : 0.652 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-196 distance : 1.109 AU
Kopparapu Outer Boundary for Early Mars for Star Kepler-196 distance : 1.170 AU

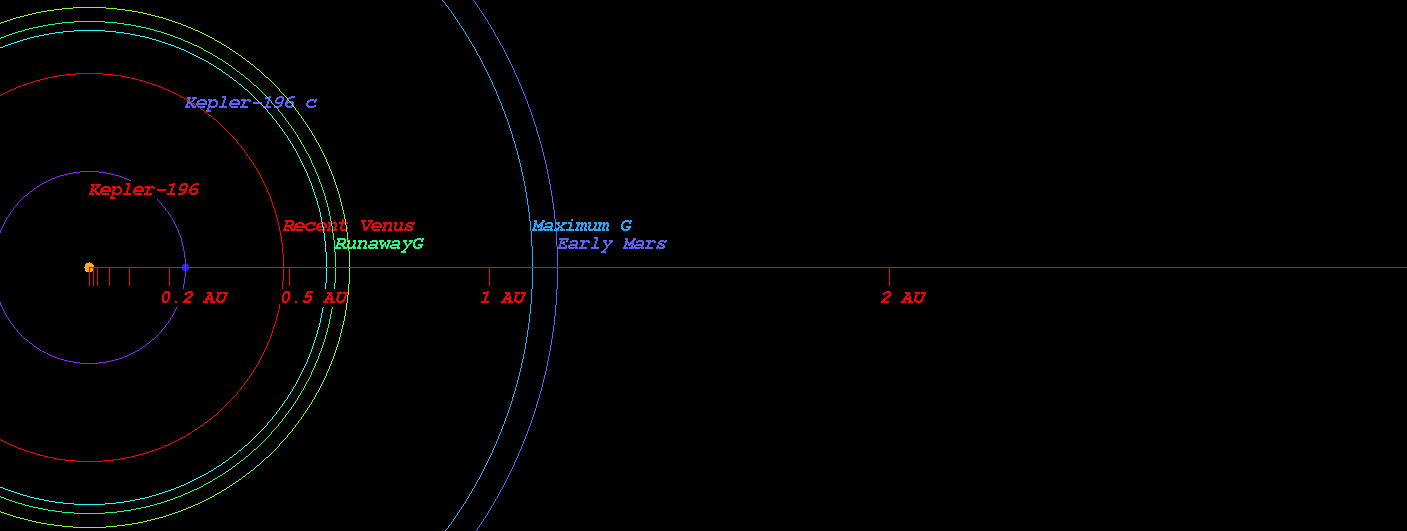

(Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-196)

Original Kopparapu Recent Venus for Star Kepler-196 distance : 0.482 AU
Original Kopparapu Runaway Greenhouse for Star Kepler-196 distance : 0.634 AU
Original Kopparapu Moist Greenhouse for Star Kepler-196 distance : 0.637 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-196 distance : 1.128 AU
Original Kopparapu Outer Boundary for Early Mars for Star Kepler-196 distance : 1.173 AU

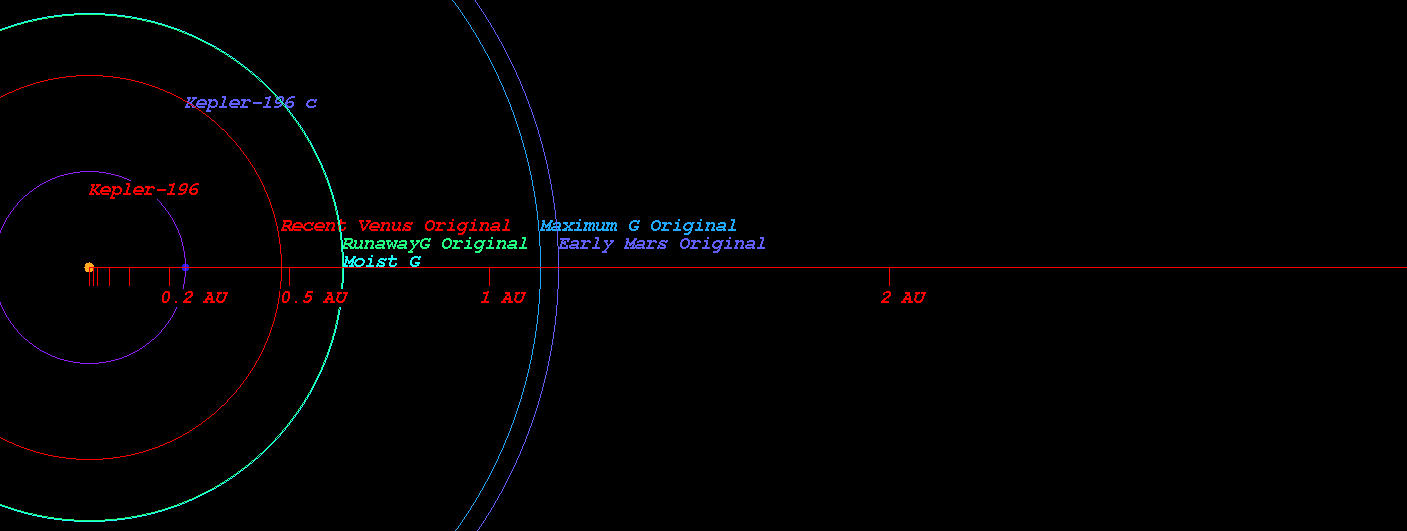

(Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-196)

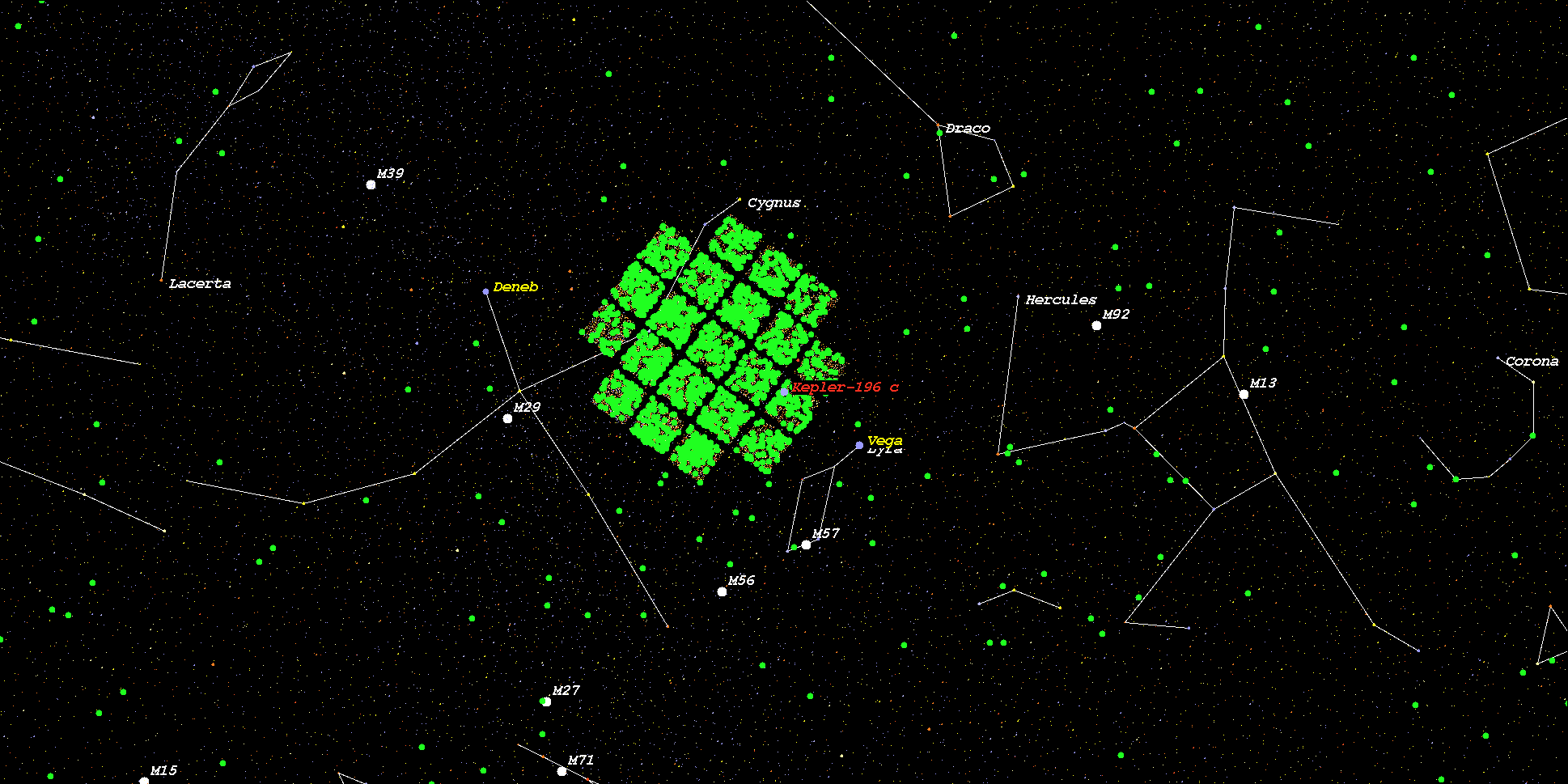

(Position in Stellar Map of star Kepler-196 and its Exoplanet Kepler-196 c)

(Zoomed position in Stellar Map of star Kepler-196 and its Exoplanet Kepler-196 c (zoom level 3))

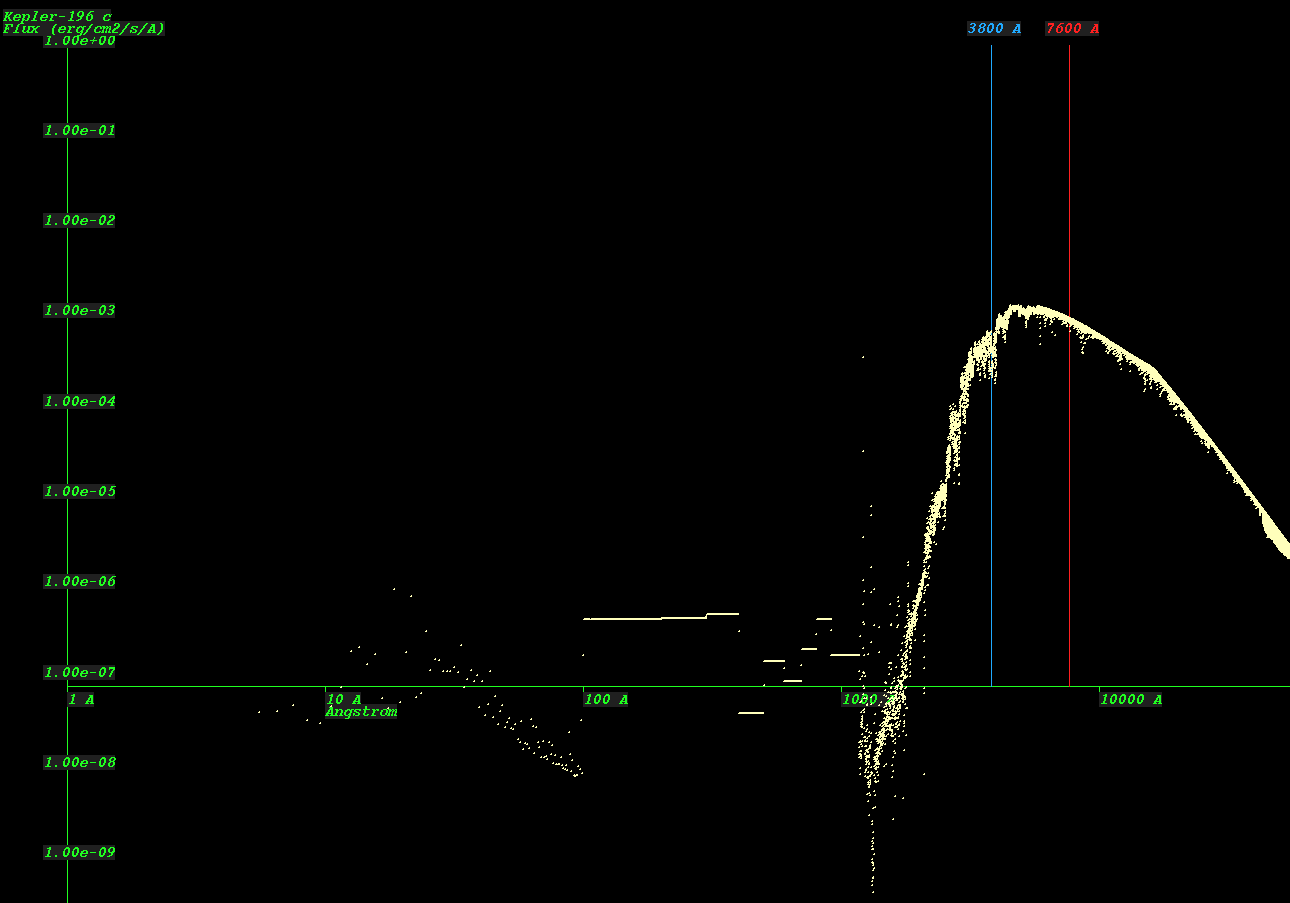

(Synthetic Spectrum of star Kepler-196*)

*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
