Imaginary Picture of Kepler-1655 b

Display orbital revolution of Kepler-1655 b around the hoststar Kepler-1655
/
Exoplanet Name : Kepler-1655 b
Alternate Name : "2MASS J19064546+3912428 b, K00280.01, KIC 4141376 b, KOI-280 b, KOI-280.01, WISE J190645.48+391243.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1970 (Rjup) 2.2082 (Rearth)
Mass (Mjup / Me): 0.0157 (Mjup) 5.0012 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1030 (AU) 0.1030 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0325
Orbital Period(Observed/Estimated) 11.87 (Days Obs.) 11.90 (Days Est.)
Surface Gravity (G Earth) 1.0257
Star Radiation at Atmospheric Boundary: 175202.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 913.1 (K)
Blackbody T 0.3(K) 857.5 (K)
Blackbody T 0.7(K) 693.8 (K)
Tidally Locked Blackbody T 0.1(K) 1085.9 (K)
Tidally Locked Blackbody T 0.3(K) 1019.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1655
Alternate Name : "2MASS J19064546+3912428, KIC 4141376, KOI-280, WISE J190645.48+391243.3"
Star Distance(LY) : 699.9
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 2.6 (GY)
Temperature : 6148 (K)
Spectral type : G0 V
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.2
Absolute Magnitude: 4.4
Apparent Magnitude: 11.1
Right Ascension(RA) 286.6894
Declination (DEC) 39.2119
Hubble Space Telescope Guide Star Catalog (GSC) ID 03120-00325
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1655+&submit=SIMBAD+search
Open Exoplanet Database Link
Kepler-1655 b
Kepler-1655 b

  • Kepler-1655 b is an exoplanet orbiting the star Kepler-1655, located about 699.9 light-years (214.6 pc) away from Solar System. Its discovery was publicly announced on 2018.
  • The host star Kepler-1655 has apparent magnitude of 11.1, with absolute magnitude of 4.4.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 6148 with its spectral types of G0 V
  • In this planetary system, the extrasolar planet Kepler-1655 b orbits around the star Kepler-1655 every 11.9 days with its orbital distance of 0.10 AU ( 15408580.7 km)

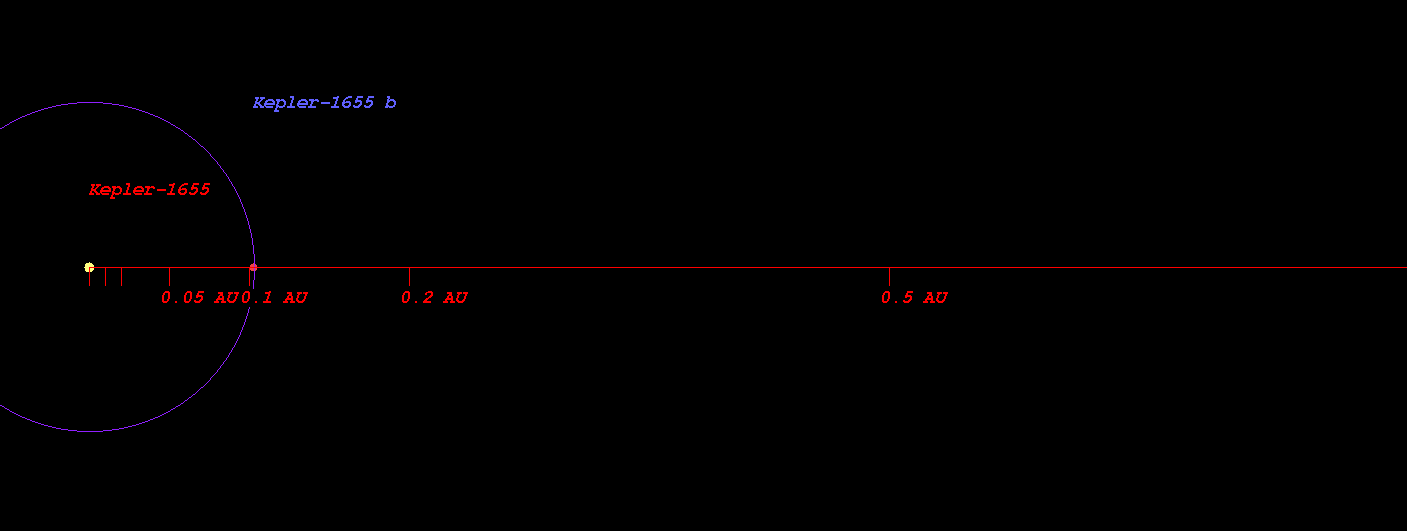

  • (Projected orbit of Kepler-1655 b around its host star Kepler-1655)


  • The Star Kepler-1655 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.843 AU ( 126172019.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.166 AU ( 174402703.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.776 AU ( 265751125.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.614 AU ( 391064422.8 km)
  • Radiation at Planetary Boundary of Kepler-1655 b : 175202.48 W/m2

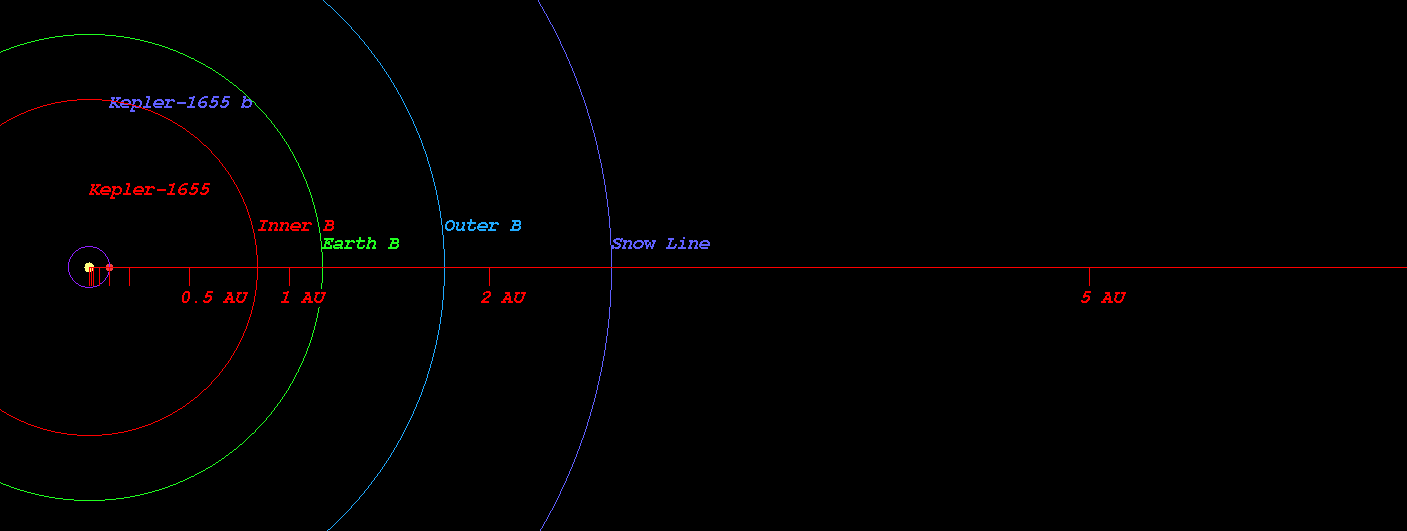

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1655)



  • Kopparapu Recent Venus for Star Kepler-1655 distance : 0.855 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1655 distance : 1.082 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1655 distance : 1.045 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1655 distance : 1.146 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1655 distance : 1.895 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1655 distance : 1.999 AU

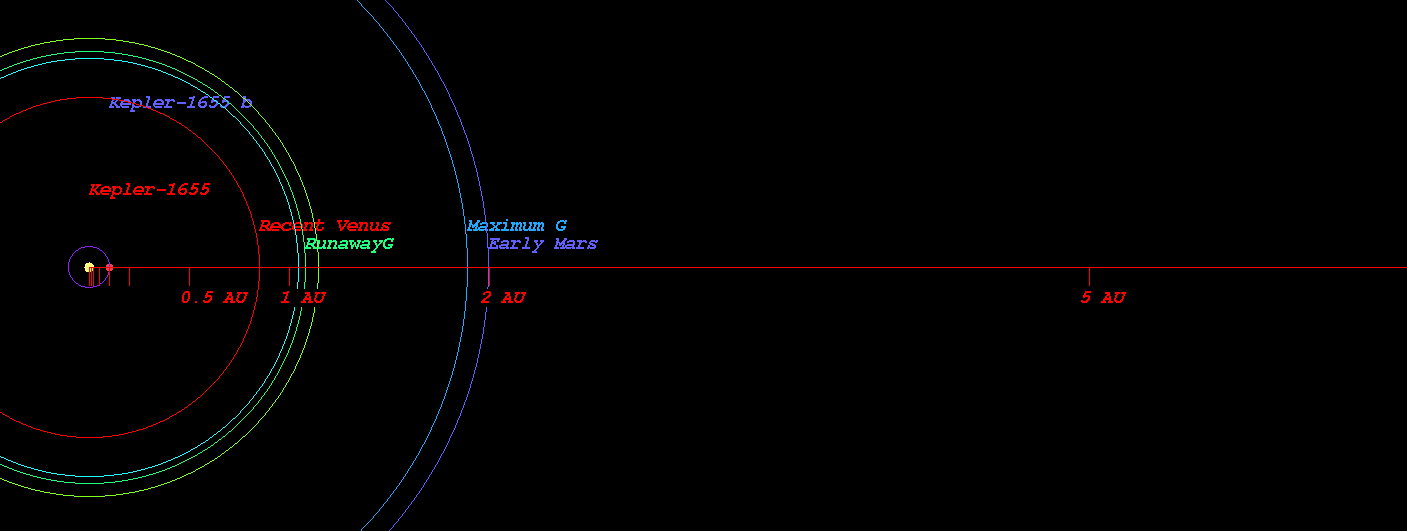

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1655)



  • Original Kopparapu Recent Venus for Star Kepler-1655 distance : 0.863 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1655 distance : 1.111 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1655 distance : 1.141 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1655 distance : 1.929 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1655 distance : 2.006 AU

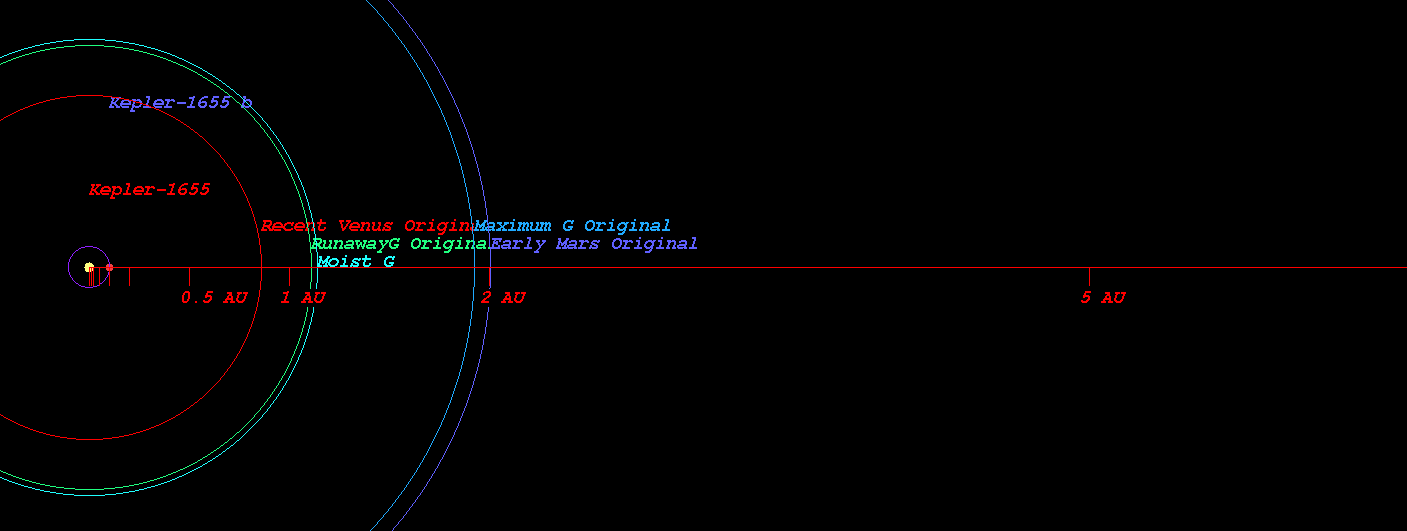

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1655)

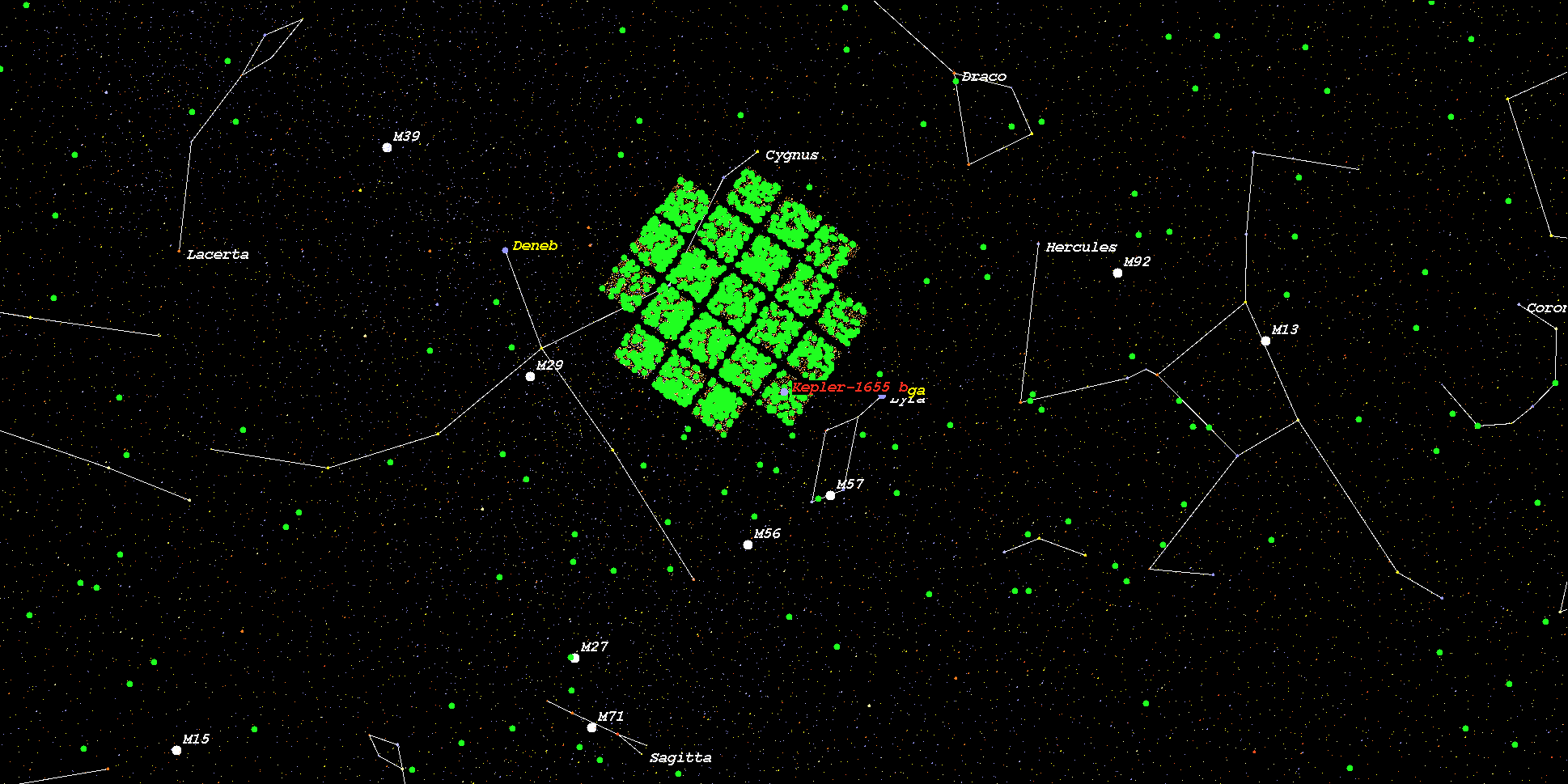

    (Position in Stellar Map of star Kepler-1655 and its Exoplanet Kepler-1655 b)



    (Zoomed position in Stellar Map of star Kepler-1655 and its Exoplanet Kepler-1655 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1655*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
