Imaginary Picture of Kepler-164 b

Display orbital revolution of Kepler-164 b around the hoststar Kepler-164
/
Exoplanet Name : Kepler-164 b
Alternate Name : "2MASS J19110739+4737476 b, K00474.04, KIC 10460984 b, KOI-474 b, KOI-474.04, WISE J191107.39+473747.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.1260 (Rjup) 1.4123 (Rearth)
Mass (Mjup / Me): 0.0107 (Mjup) 3.4131 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0580 (AU) 0.0580 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0138
Orbital Period(Observed/Estimated) 5.04 (Days Obs.) 4.84 (Days Est.)
Surface Gravity (G Earth) 1.7111
Star Radiation at Atmospheric Boundary: 486202.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1178.5 (K)
Blackbody T 0.3(K) 1106.8 (K)
Blackbody T 0.7(K) 895.5 (K)
Tidally Locked Blackbody T 0.1(K) 1401.5 (K)
Tidally Locked Blackbody T 0.3(K) 1316.2 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-164
Alternate Name : "2MASS J19110739+4737476, KIC 10460984, KOI-474, WISE J191107.39+473747.5"
Star Distance(LY) : 2904.0
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5923 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.5
Apparent Magnitude: 13.3
Right Ascension(RA) 287.7808
Declination (DEC) 47.6299
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-164+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-164%20b/
Kepler-164 b
Kepler-164 b

  • Kepler-164 b is an exoplanet orbiting the star Kepler-164, located about 2904.0 light-years (890.4 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-164 has apparent magnitude of 13.3, with absolute magnitude of 3.5.
  • It is 1.1 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5923 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-164 b orbits around the star Kepler-164 every 5.0 days with its orbital distance of 0.06 AU ( 8676676.5 km)

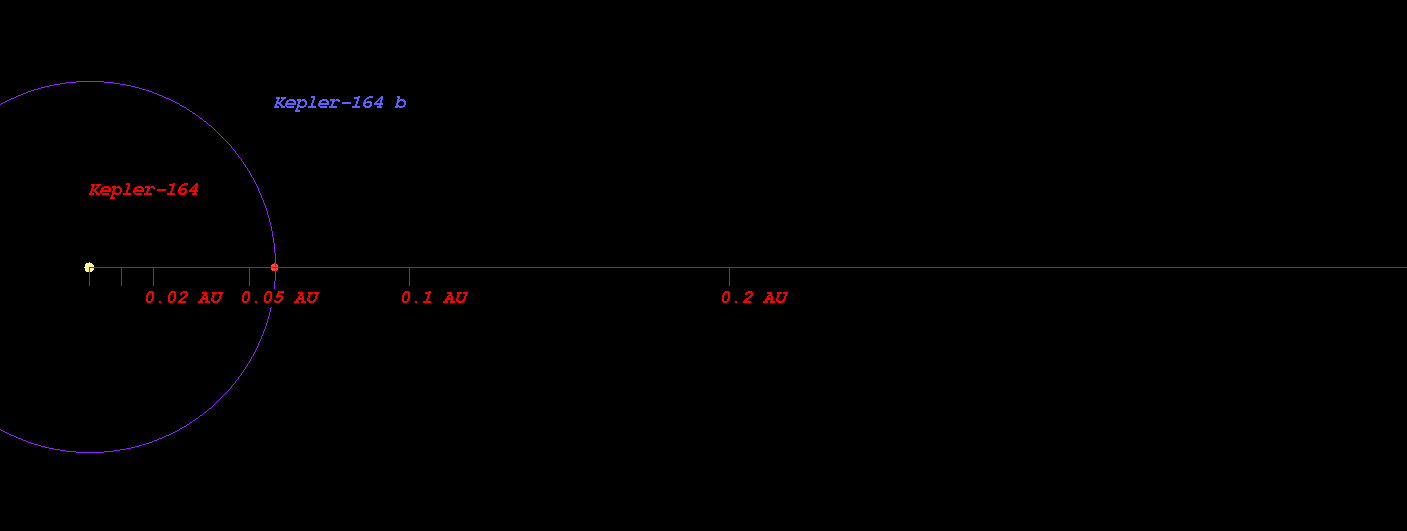

  • (Projected orbit of Kepler-164 b around its host star Kepler-164)


  • The Star Kepler-164 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.791 AU ( 118356552.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.094 AU ( 163599686.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.666 AU ( 249289717.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.452 AU ( 366840739.4 km)
  • Radiation at Planetary Boundary of Kepler-164 b : 486202.53 W/m2

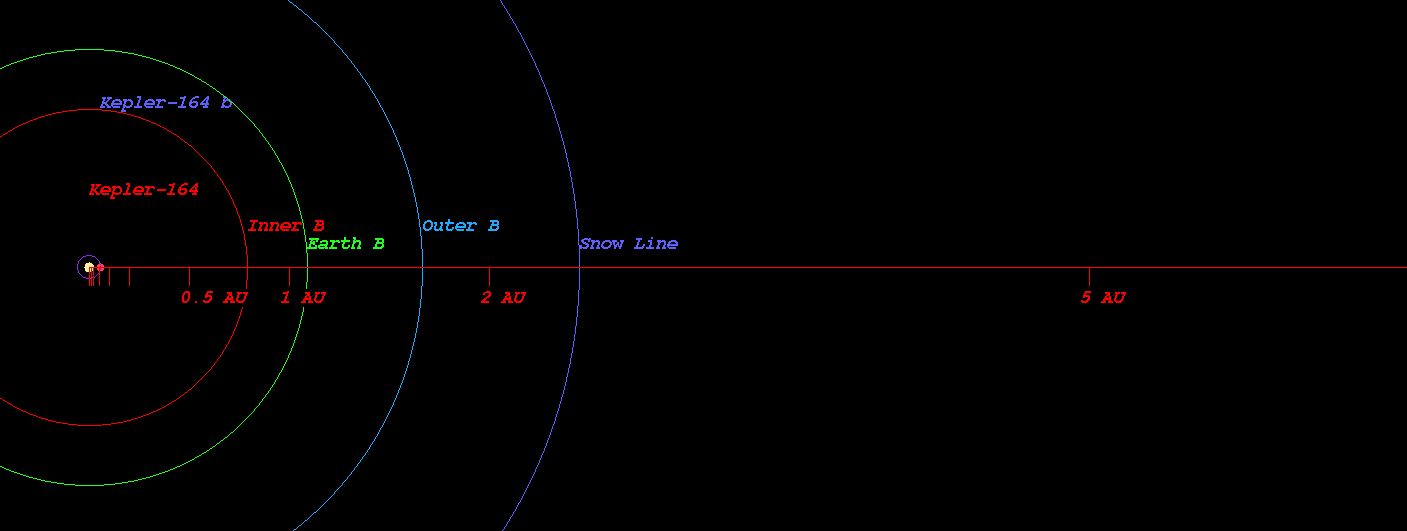

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-164)



  • Kopparapu Recent Venus for Star Kepler-164 distance : 0.813 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-164 distance : 1.029 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-164 distance : 0.994 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-164 distance : 1.090 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-164 distance : 1.811 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-164 distance : 1.910 AU

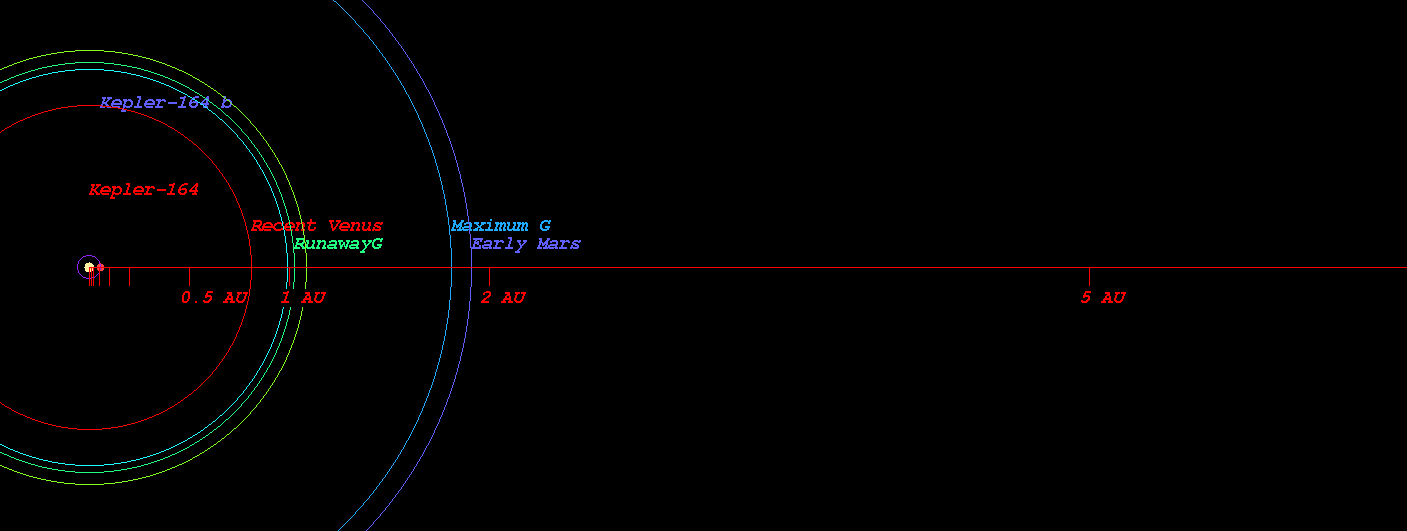

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-164)



  • Original Kopparapu Recent Venus for Star Kepler-164 distance : 0.816 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-164 distance : 1.057 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-164 distance : 1.080 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-164 distance : 1.843 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-164 distance : 1.917 AU

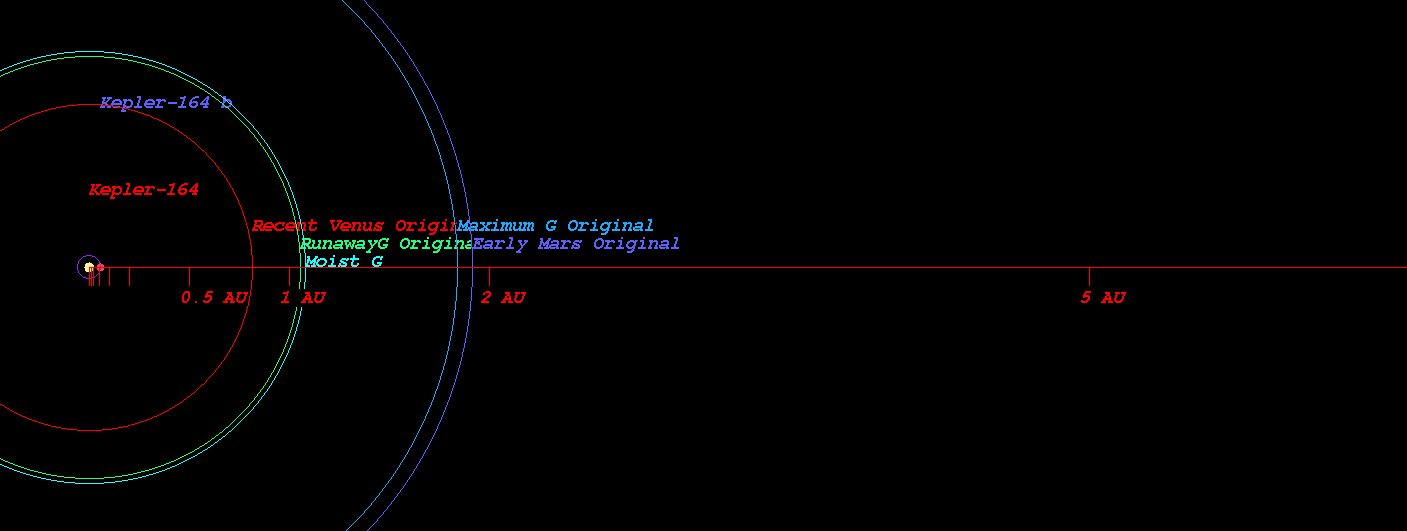

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-164)

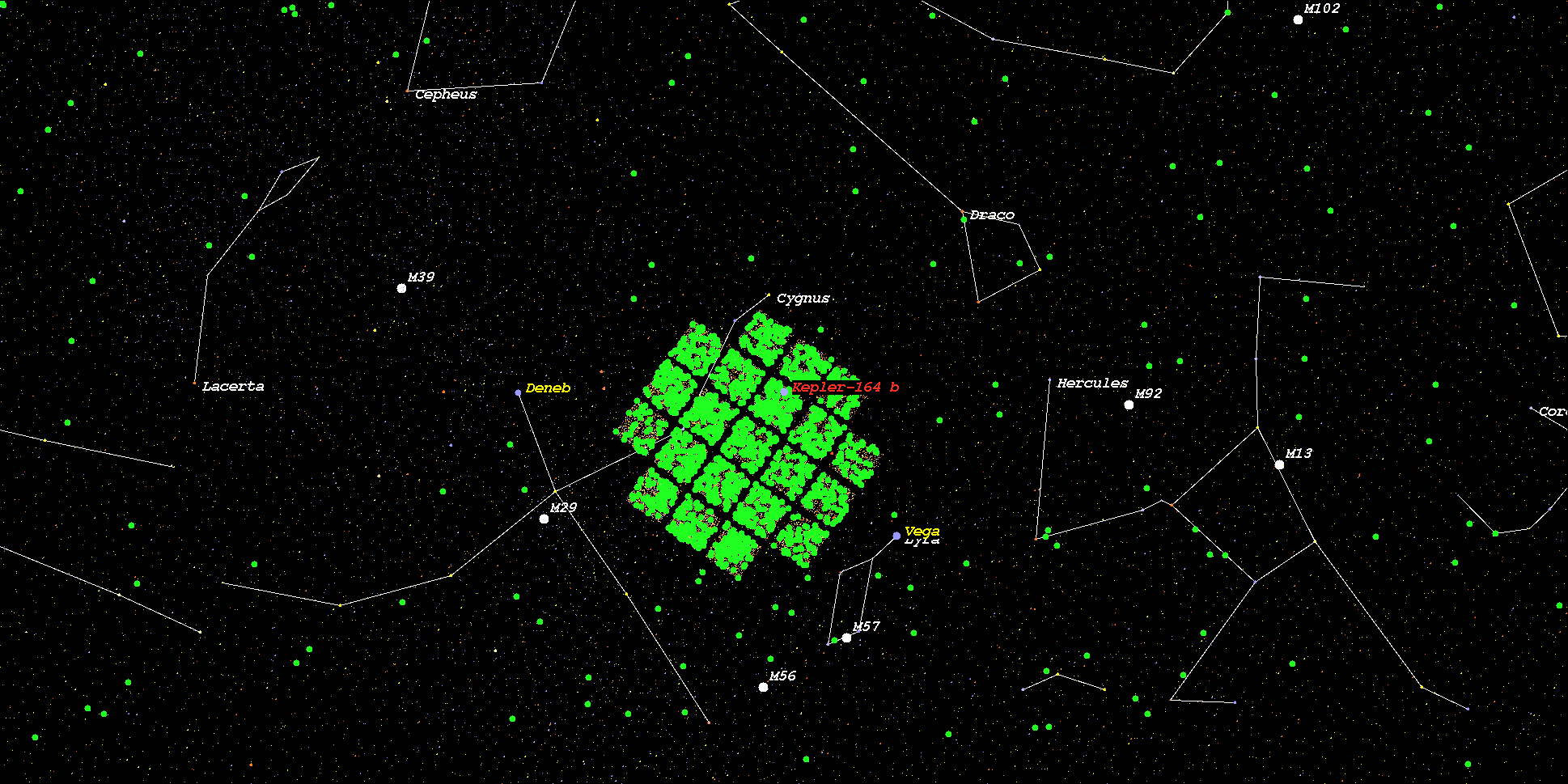

    (Position in Stellar Map of star Kepler-164 and its Exoplanet Kepler-164 b)



    (Zoomed position in Stellar Map of star Kepler-164 and its Exoplanet Kepler-164 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-164*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
