Imaginary Picture of Kepler-1632 b

Display orbital revolution of Kepler-1632 b around the hoststar Kepler-1632
/
Exoplanet Name : Kepler-1632 b
Alternate Name : "2MASS J19375876+4354490 b, K05475.01, KIC 8105398 b, KOI-54
Radius (Rjup / Re): 0.2200 (Rjup) 2.4660 (Rearth)
Mass (Mjup / Me): 0.0192 (Mjup) 6.1075 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 1.1905 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 1.2274
Orbital Period(Observed/Estimated) 448.30 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0043
Star Radiation at Atmospheric Boundary: 2669.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 320.8 (K)
Blackbody T 0.3(K) 301.3 (K)
Blackbody T 0.7(K) 243.8 (K)
Tidally Locked Blackbody T 0.1(K) 381.5 (K)
Tidally Locked Blackbody T 0.3(K) 358.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1632
Alternate Name : "2MASS J19375876+4354490, KIC 8105398, KOI-5475, WISE J193758.77hHū\@[| E@t#D@
Star Distance(LY) : 2336.5
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.1 (GY)
Temperature : 6071 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 2.8
Apparent Magnitude: 12.0
Right Ascension(RA) 294.4949
Declination (DEC) 43.9136
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1632%20b/
Kepler-1632 b
Kepler-1632 b

  • Kepler-1632 b is an exoplanet orbiting the star Kepler-1632, located about 2336.5 light-years (716.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1632 has apparent magnitude of 12.0, with absolute magnitude of 2.8.
  • It is 1.1 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 6071 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-1632 b orbits around the star Kepler-1632 every 448.3 days with its orbital distance of 1.19 AU ( 178095410.1 km)

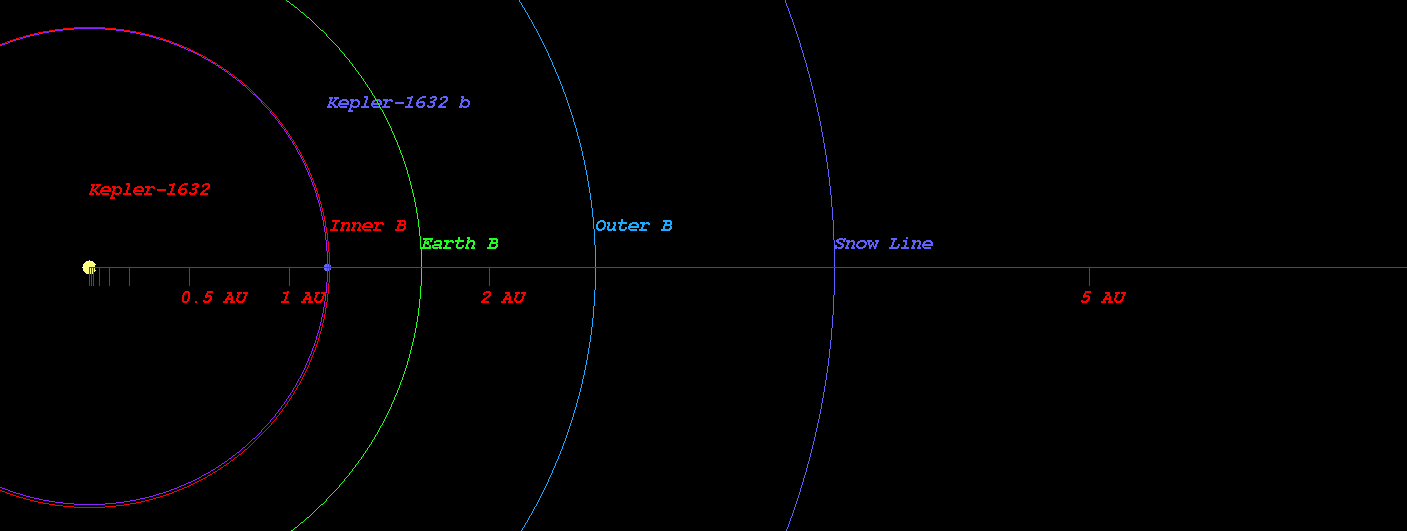

  • (Projected orbit of Kepler-1632 b around its host star Kepler-1632)


  • The Star Kepler-1632 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.203 AU ( 180008009.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.663 AU ( 248818111.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.534 AU ( 379143738.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.730 AU ( 557926620.3 km)
  • Radiation at Planetary Boundary of Kepler-1632 b : 2669.42 W/m2

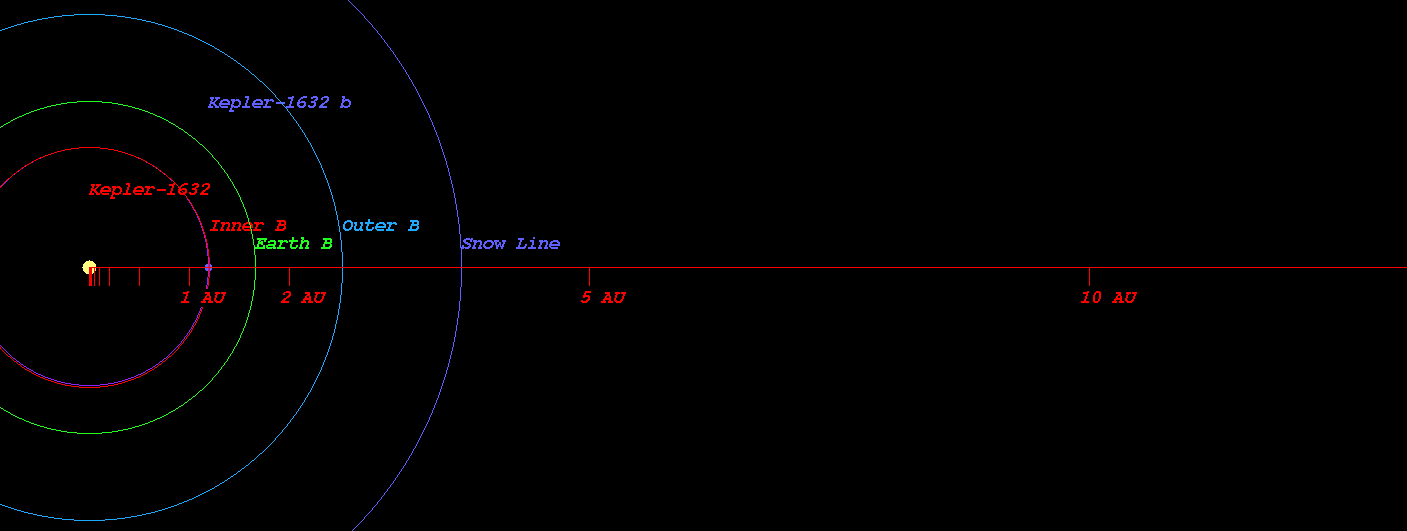

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1632)



  • Kopparapu Recent Venus for Star Kepler-1632 distance : 1.225 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1632 distance : 1.552 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1632 distance : 1.498 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1632 distance : 1.642 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1632 distance : 2.720 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1632 distance : 2.869 AU

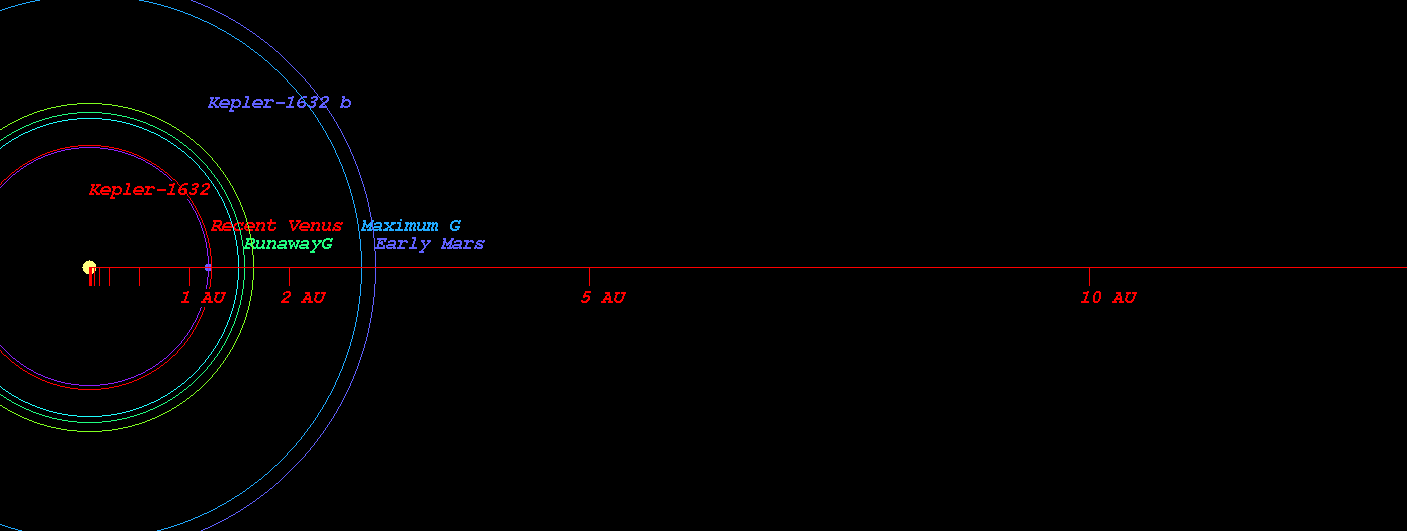

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1632)



  • Original Kopparapu Recent Venus for Star Kepler-1632 distance : 1.234 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1632 distance : 1.593 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1632 distance : 1.633 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1632 distance : 2.769 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1632 distance : 2.880 AU

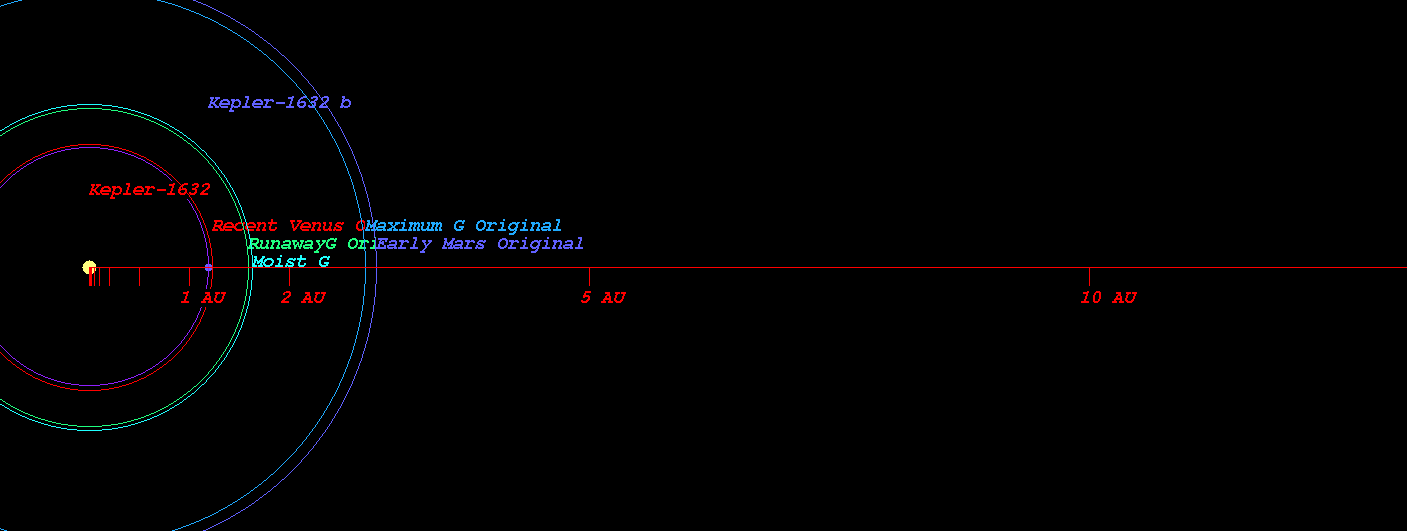

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1632)

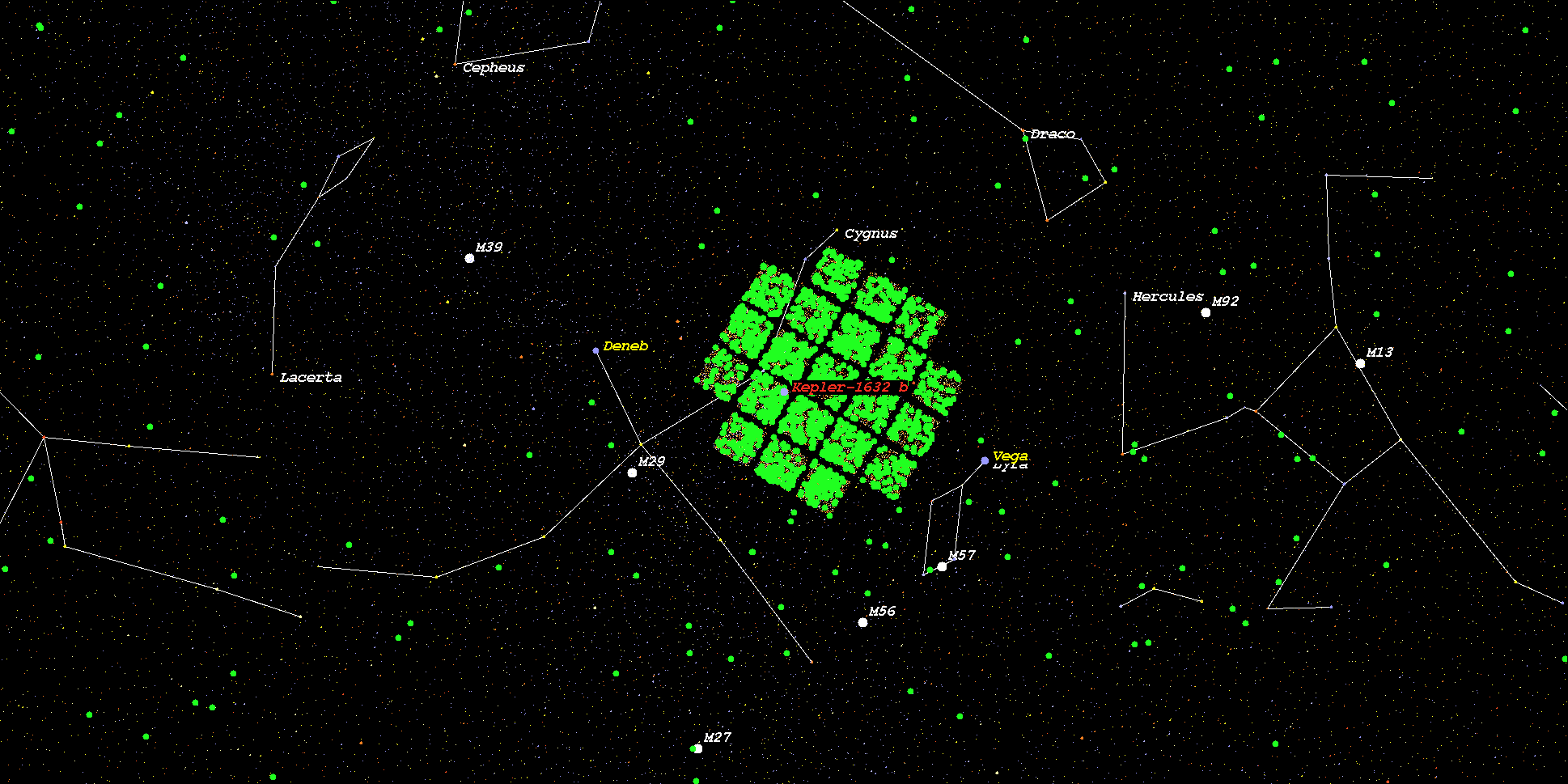

    (Position in Stellar Map of star Kepler-1632 and its Exoplanet Kepler-1632 b)



    (Zoomed position in Stellar Map of star Kepler-1632 and its Exoplanet Kepler-1632 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1632*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
