Imaginary Picture of Kepler-1630 b

Display orbital revolution of Kepler-1630 b around the hoststar Kepler-1630
/
Exoplanet Name : Kepler-1630 b
Alternate Name : "2MASS J19500199+4342394 b, K05454.01, KIC 7978202 b, KOI-5454 b, KOI-5454.01, WISE J195001.96+434239.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.1950 (Rjup) 2.1858 (Rearth)
Mass (Mjup / Me): 0.0172 (Mjup) 5.4594 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 1.0877 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 1.3963
Orbital Period(Observed/Estimated) 510.00 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1427
Star Radiation at Atmospheric Boundary: 381.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 197.2 (K)
Blackbody T 0.3(K) 185.2 (K)
Blackbody T 0.7(K) 149.9 (K)
Tidally Locked Blackbody T 0.1(K) 234.5 (K)
Tidally Locked Blackbody T 0.3(K) 220.3 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1630
Alternate Name : "2MASS J19500199+4342394, KIC 7978202, KOI-5454, WISE J195001.96+434239.8"
Star Distance(LY) : 1090.7
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 5.0 (GY)
Temperature : 5037 (K)
Spectral type : K3
UV portion[%]: 2.3
Visible portion[%]: 34.7
IR portion[%]: 63.0
Metalicity : -0.5
Absolute Magnitude: 4.9
Apparent Magnitude: 12.5
Right Ascension(RA) 297.5083
Declination (DEC) 43.7110
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1630+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1630%20b/
Kepler-1630 b
Kepler-1630 b

  • Kepler-1630 b is an exoplanet orbiting the star Kepler-1630, located about 1090.7 light-years (334.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1630 has apparent magnitude of 12.5, with absolute magnitude of 4.9.
  • It is 0.7 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5037 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-1630 b orbits around the star Kepler-1630 every 510.0 days with its orbital distance of 1.09 AU ( 162714110.6 km)

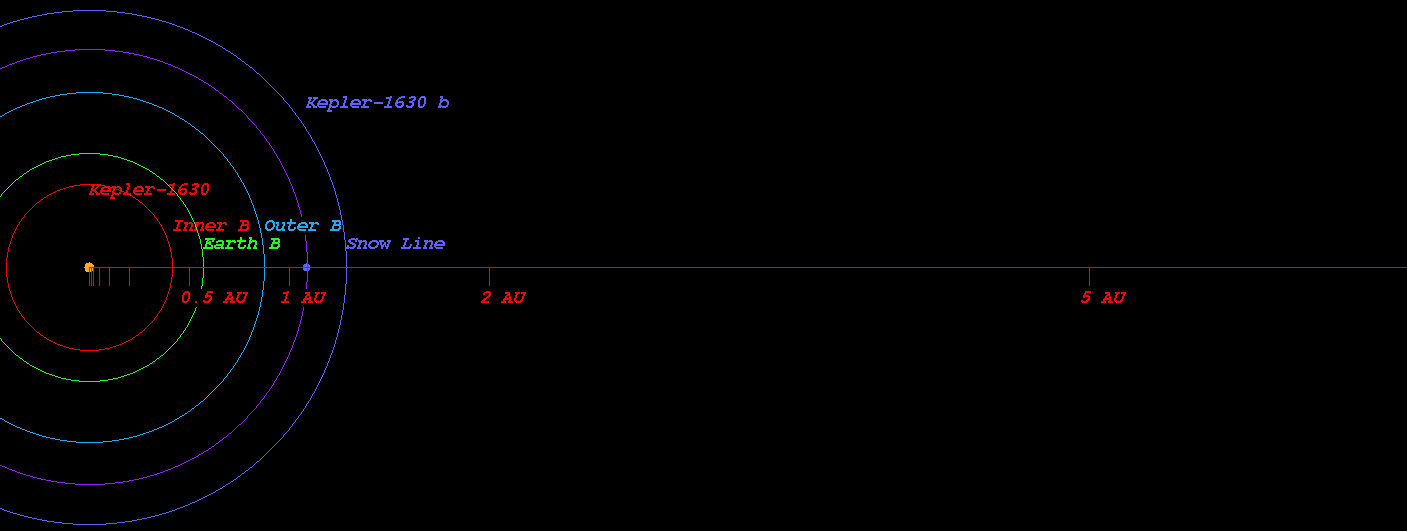

  • (Projected orbit of Kepler-1630 b around its host star Kepler-1630)


  • The Star Kepler-1630 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.416 AU ( 62161832.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.574 AU ( 85923897.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.875 AU ( 130929004.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.288 AU ( 192667766.4 km)
  • Radiation at Planetary Boundary of Kepler-1630 b : 381.36 W/m2

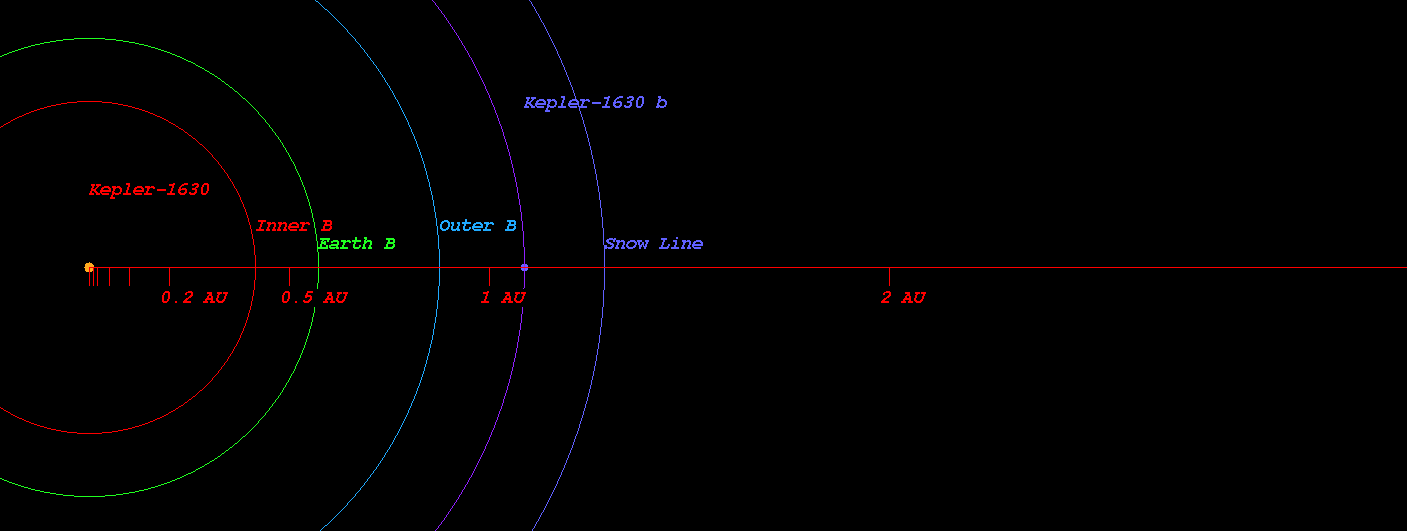

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1630)



  • Kopparapu Recent Venus for Star Kepler-1630 distance : 0.449 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1630 distance : 0.568 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1630 distance : 0.549 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1630 distance : 0.602 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1630 distance : 1.028 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1630 distance : 1.085 AU

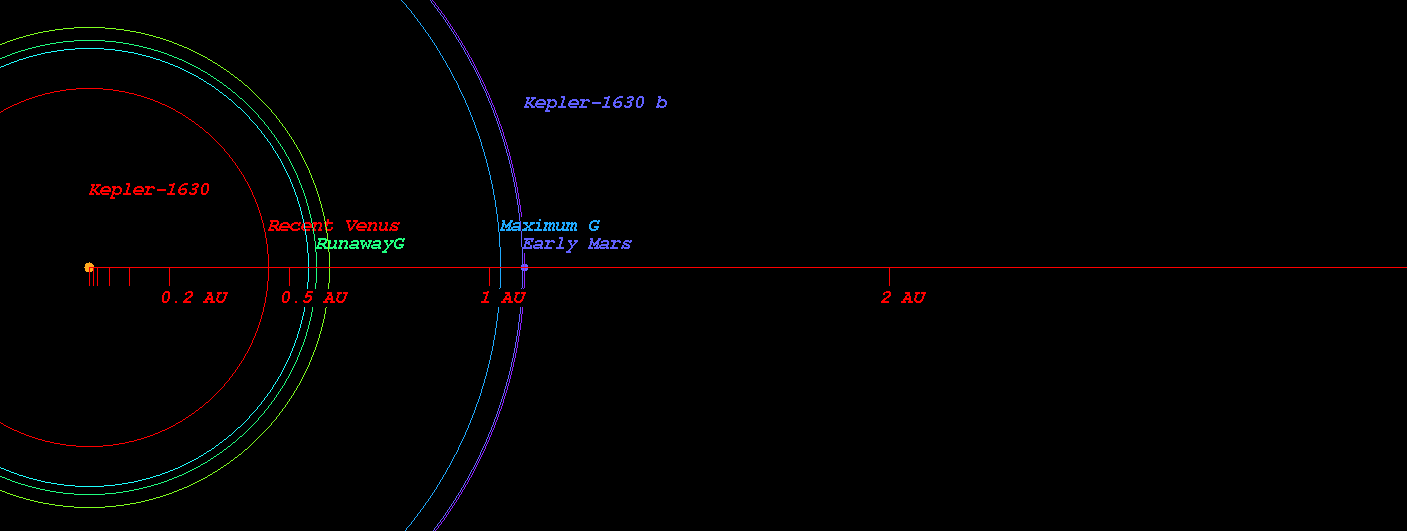

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1630)



  • Original Kopparapu Recent Venus for Star Kepler-1630 distance : 0.444 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1630 distance : 0.585 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1630 distance : 0.588 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1630 distance : 1.045 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1630 distance : 1.087 AU

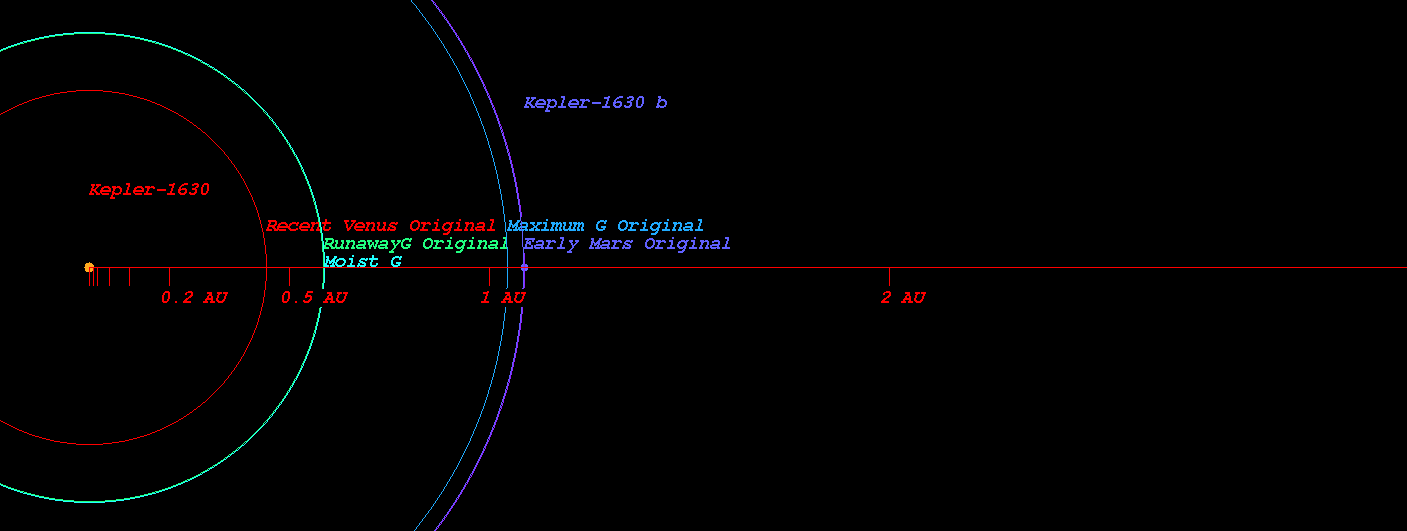

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1630)

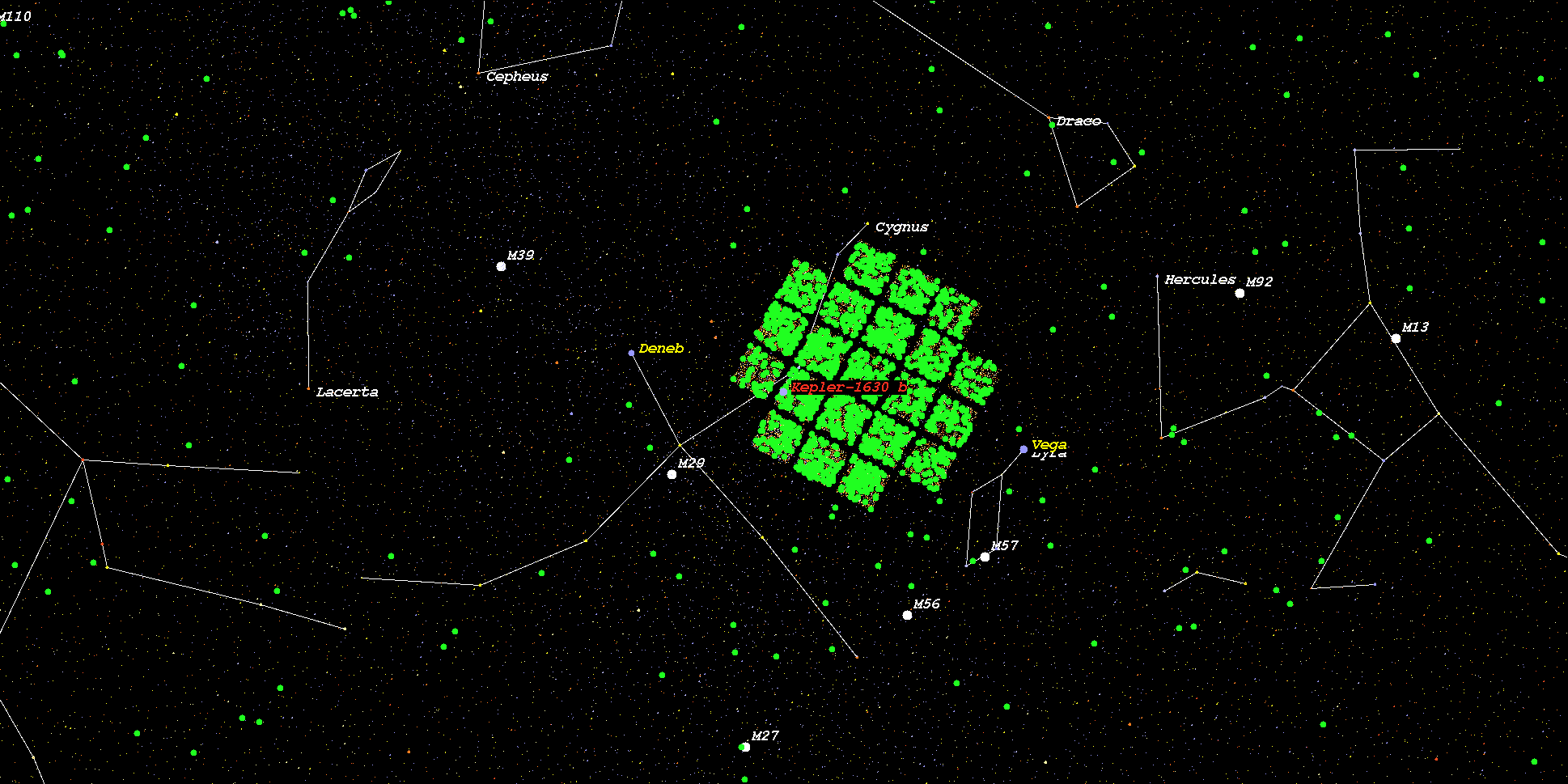

    (Position in Stellar Map of star Kepler-1630 and its Exoplanet Kepler-1630 b)



    (Zoomed position in Stellar Map of star Kepler-1630 and its Exoplanet Kepler-1630 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1630*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
