Imaginary Picture of Kepler-160 c

Display orbital revolution of Kepler-160 c around the hoststar Kepler-160
/
Exoplanet Name : Kepler-160 c
Alternate Name : "2MASS J19110565+4252094 c, K00456.01, KIC 7269974 c, KOI-456 c, KOI-456.01, WISE J191105.67+425209.5 c"
Status : Confirmed
Radius (Rjup / Re): 0.3350 (Rjup) 3.7550 (Rearth)
Mass (Mjup / Me): 0.0284 (Mjup) 9.0303 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1192 (AU) 0.1192 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0375
Orbital Period(Observed/Estimated) 13.70 (Days Obs.) 16.90 (Days Est.)
Surface Gravity (G Earth) 0.6404
Star Radiation at Atmospheric Boundary: 97560.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 788.8 (K)
Blackbody T 0.3(K) 740.8 (K)
Blackbody T 0.7(K) 599.4 (K)
Tidally Locked Blackbody T 0.1(K) 938.0 (K)
Tidally Locked Blackbody T 0.3(K) 880.9 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-160
Alternate Name : "2MASS J19110565+4252094, KIC 7269974, KOI-456, WISE J191105.67+425209.5"
Star Distance(LY) : 3055.2
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5616 (K)
Spectral type : G7
UV portion[%]: 6.7
Visible portion[%]: 43.0
IR portion[%]: 50.2
Metalicity : -0.4
Absolute Magnitude: 3.6
Apparent Magnitude: 13.5
Right Ascension(RA) 287.7736
Declination (DEC) 42.8693
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-160+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-160%20c/
Kepler-160 c
Kepler-160 c

  • Kepler-160 c is an exoplanet orbiting the star Kepler-160, located about 3055.2 light-years (936.7 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-160 has apparent magnitude of 13.5, with absolute magnitude of 3.6.
  • It is 0.8 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5616 with its spectral types of G7
  • In this planetary system, the extrasolar planet Kepler-160 c orbits around the star Kepler-160 every 13.7 days with its orbital distance of 0.12 AU ( 17832066.2 km)

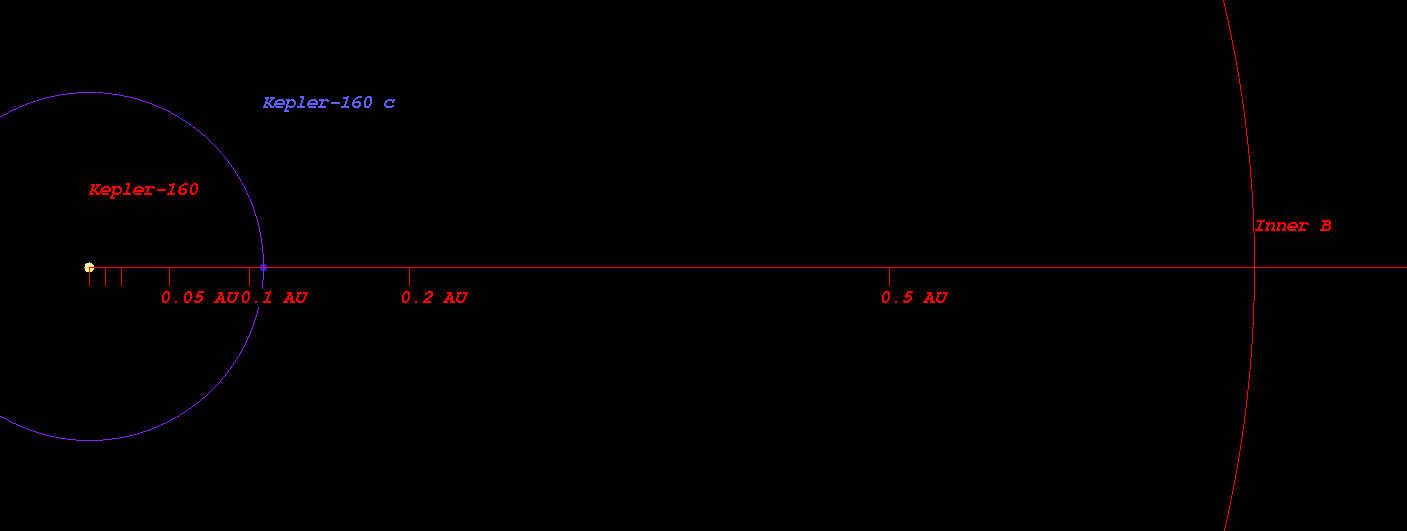

  • (Projected orbit of Kepler-160 c around its host star Kepler-160)


  • The Star Kepler-160 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.728 AU ( 108960607.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.007 AU ( 150612034.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.534 AU ( 229499409.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.258 AU ( 337718435.1 km)
  • Radiation at Planetary Boundary of Kepler-160 c : 97560.74 W/m2

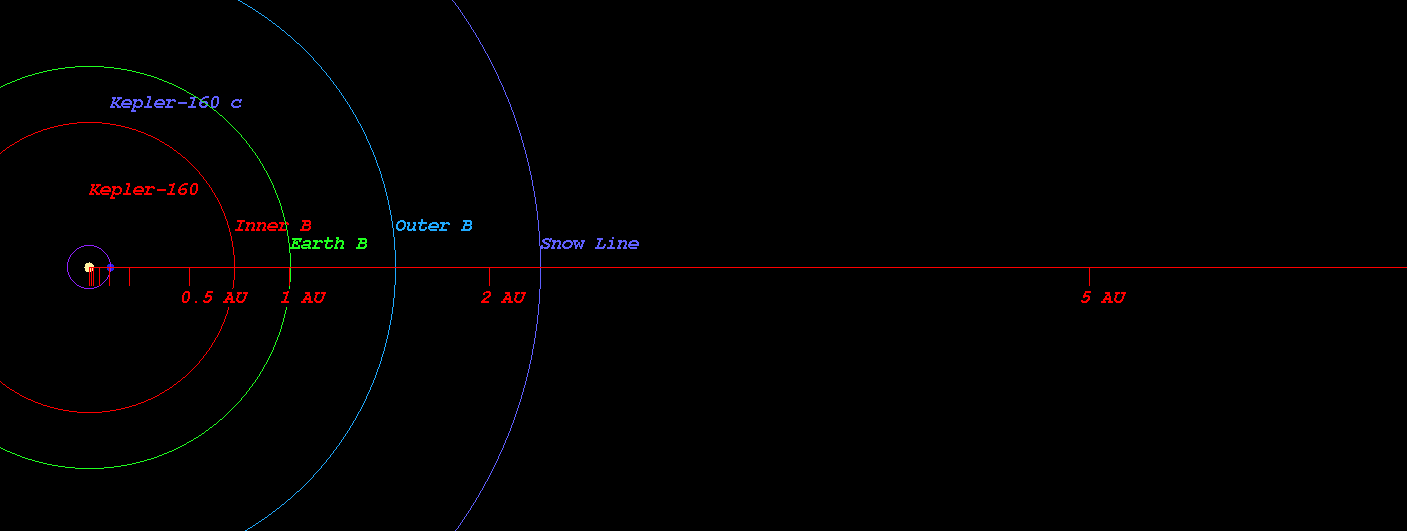

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-160)



  • Kopparapu Recent Venus for Star Kepler-160 distance : 0.762 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-160 distance : 0.965 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-160 distance : 0.932 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-160 distance : 1.022 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-160 distance : 1.712 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-160 distance : 1.806 AU

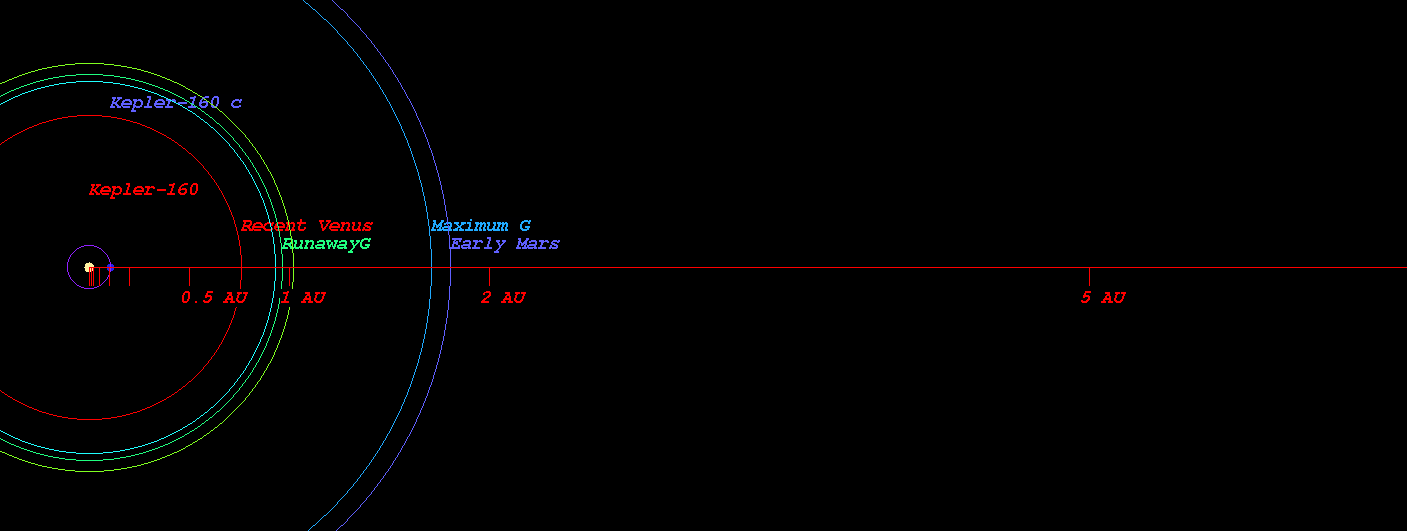

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-160)



  • Original Kopparapu Recent Venus for Star Kepler-160 distance : 0.761 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-160 distance : 0.992 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-160 distance : 1.007 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-160 distance : 1.742 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-160 distance : 1.812 AU

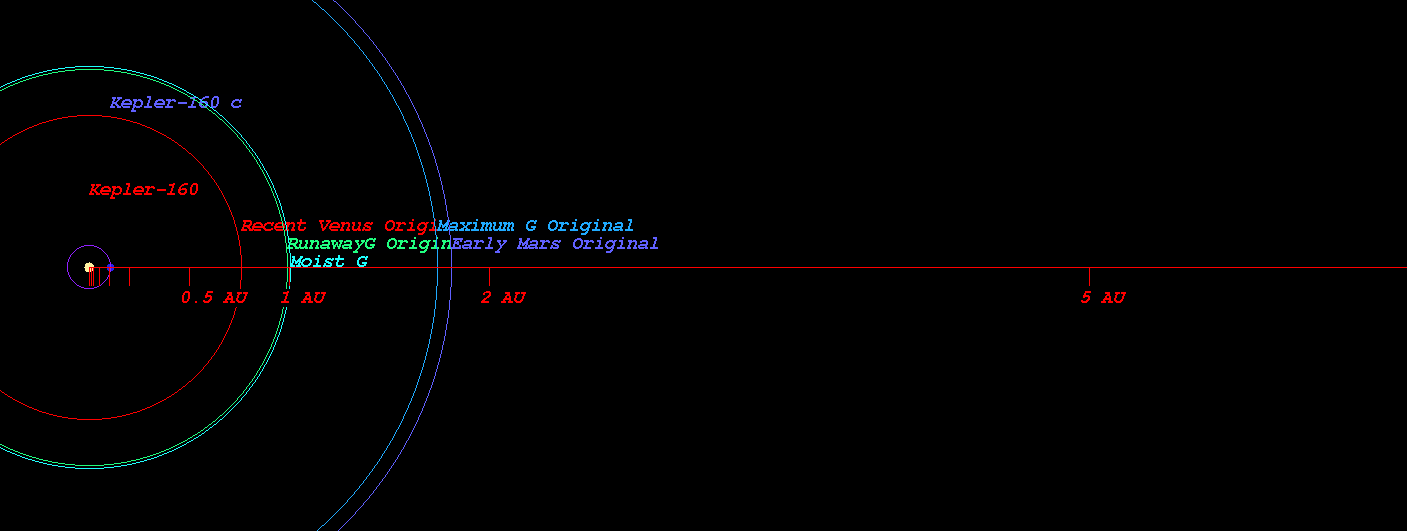

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-160)

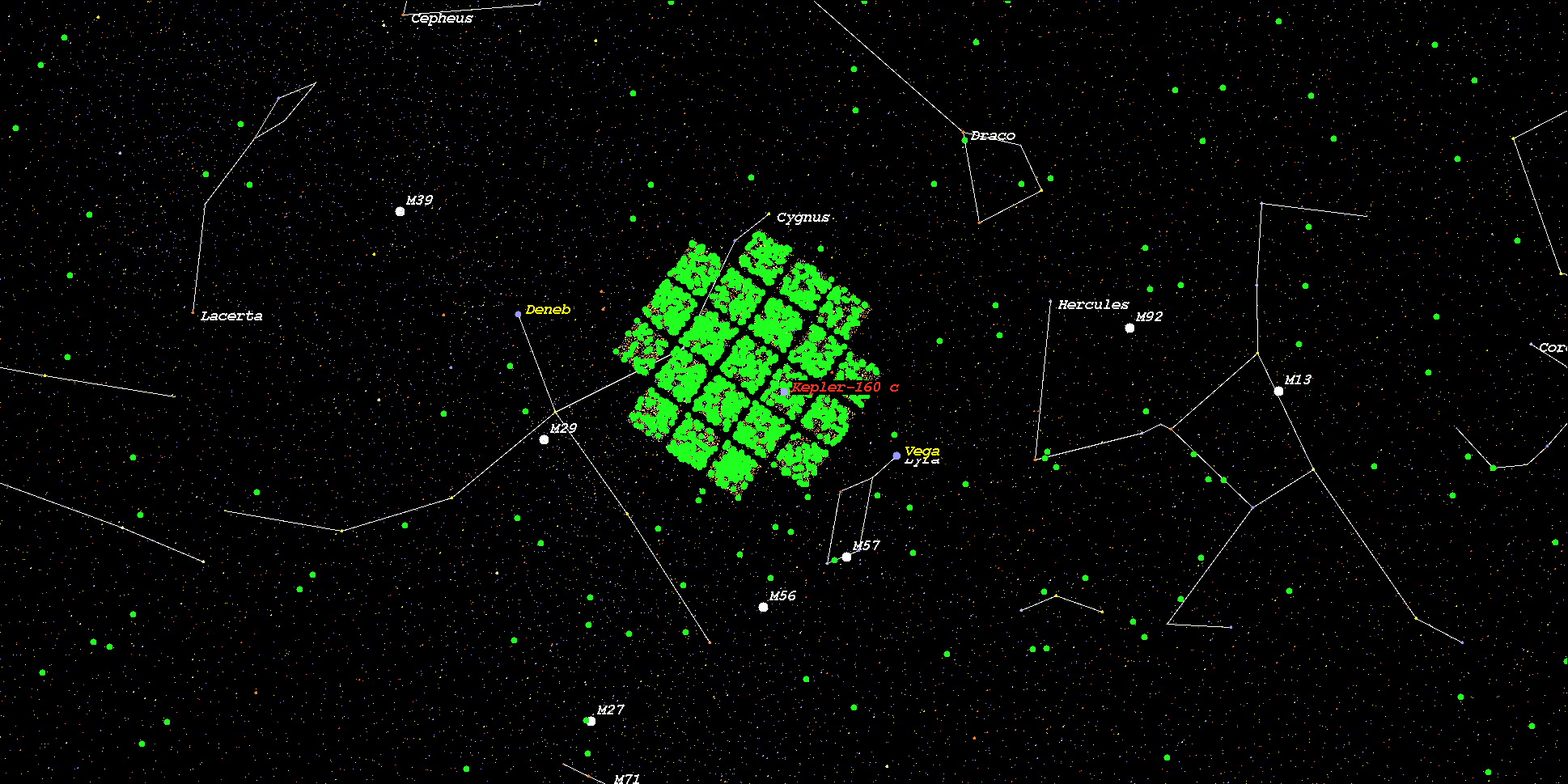

    (Position in Stellar Map of star Kepler-160 and its Exoplanet Kepler-160 c)



    (Zoomed position in Stellar Map of star Kepler-160 and its Exoplanet Kepler-160 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-160*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
