Imaginary Picture of Kepler-1605 b

Display orbital revolution of Kepler-1605 b around the hoststar Kepler-1605
/
Exoplanet Name : Kepler-1605 b
Alternate Name : "2MASS J19083237+4729190 b, K04446.01, KIC 10329196 b, KOI-4446 b, KOI-4446.01, WISE J190832.38+472919.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.0960 (Rjup) 1.0761 (Rearth)
Mass (Mjup / Me): 0.0040 (Mjup) 1.2728 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.3619 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.2348
Orbital Period(Observed/Estimated) 85.76 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0993
Star Radiation at Atmospheric Boundary: 26707.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 570.6 (K)
Blackbody T 0.3(K) 535.8 (K)
Blackbody T 0.7(K) 433.5 (K)
Tidally Locked Blackbody T 0.1(K) 678.5 (K)
Tidally Locked Blackbody T 0.3(K) 637.2 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1605
Alternate Name : "2MASS J19083237+4729190, KIC 10329196, KOI-4446, WISE J190832.38+472919.0"
Star Distance(LY) : 1781.1
Stellar Radius(Rsun) : 2.1 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.7 (GY)
Temperature : 5087 (K)
Spectral type : K0
UV portion[%]: 5.6
Visible portion[%]: 41.2
IR portion[%]: 53.1
Metalicity : -0.0
Absolute Magnitude: 2.4
Apparent Magnitude: 11.1
Right Ascension(RA) 287.1349
Declination (DEC) 47.4886
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1605%20b/
Kepler-1605 b
Kepler-1605 b

  • Kepler-1605 b is an exoplanet orbiting the star Kepler-1605, located about 1781.1 light-years (546.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1605 has apparent magnitude of 11.1, with absolute magnitude of 2.4.
  • It is 0.9 times more massive and 2.1 times bigger compared with our Sun. The surface temperature is 5087 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-1605 b orbits around the star Kepler-1605 every 85.8 days with its orbital distance of 0.36 AU ( 54143078.4 km)

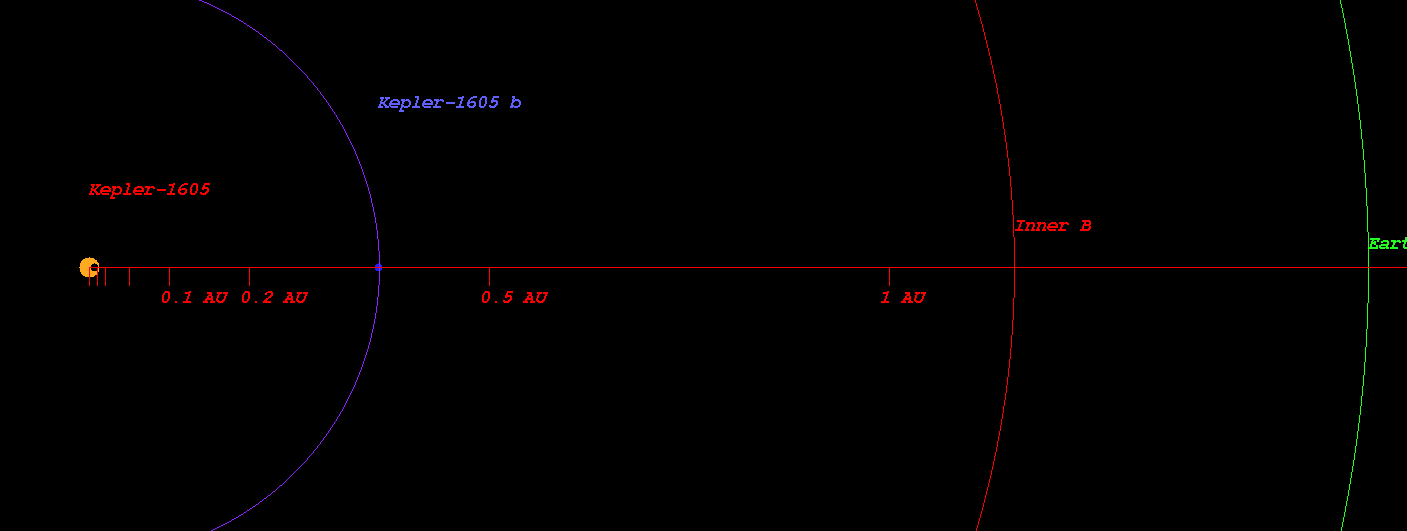

  • (Projected orbit of Kepler-1605 b around its host star Kepler-1605)


  • The Star Kepler-1605 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.157 AU ( 173097693.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.599 AU ( 239266248.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.437 AU ( 364588812.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.586 AU ( 536508409.3 km)
  • Radiation at Planetary Boundary of Kepler-1605 b : 26707.67 W/m2

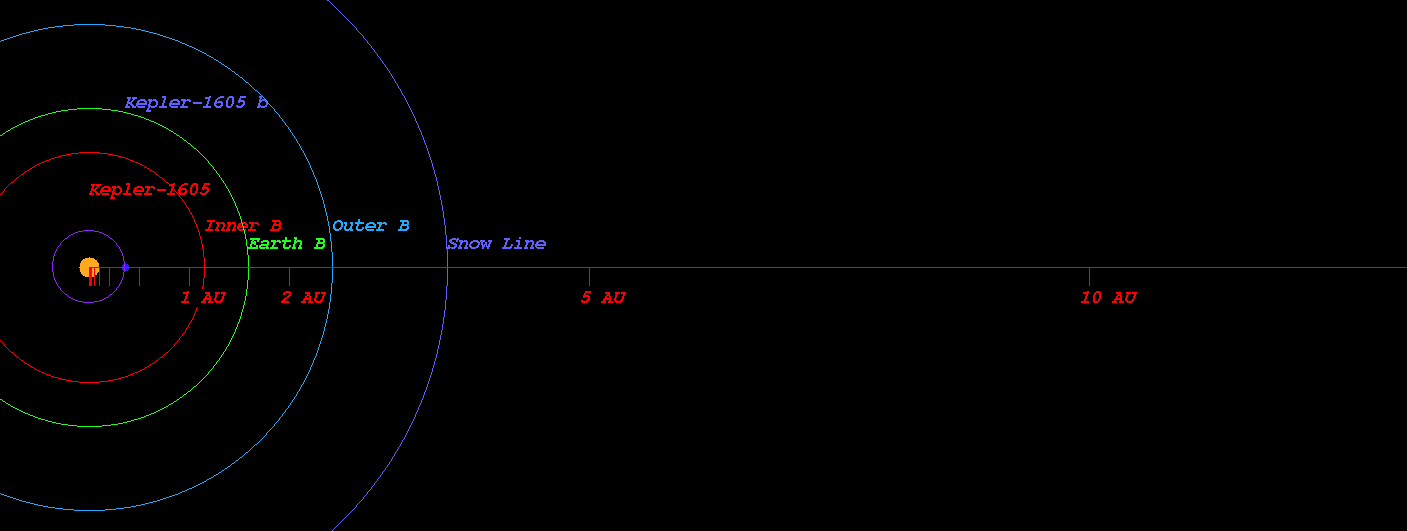

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1605)



  • Kopparapu Recent Venus for Star Kepler-1605 distance : 1.246 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1605 distance : 1.578 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1605 distance : 1.524 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1605 distance : 1.673 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1605 distance : 2.851 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1605 distance : 3.007 AU

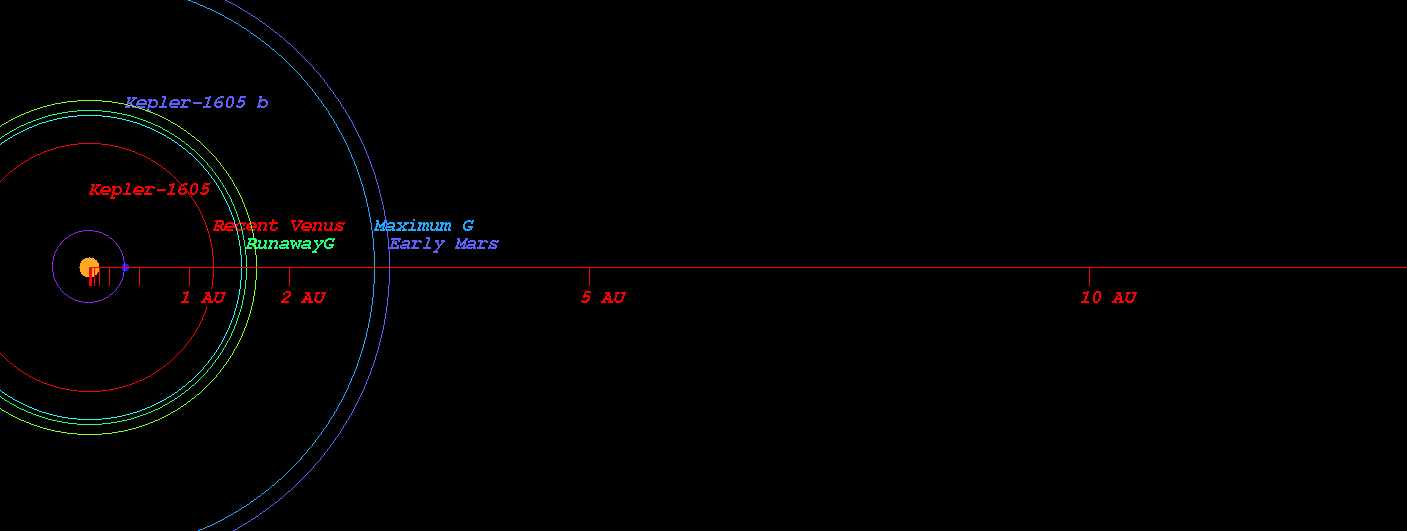

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1605)



  • Original Kopparapu Recent Venus for Star Kepler-1605 distance : 1.234 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1605 distance : 1.626 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1605 distance : 1.633 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1605 distance : 2.899 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1605 distance : 3.014 AU

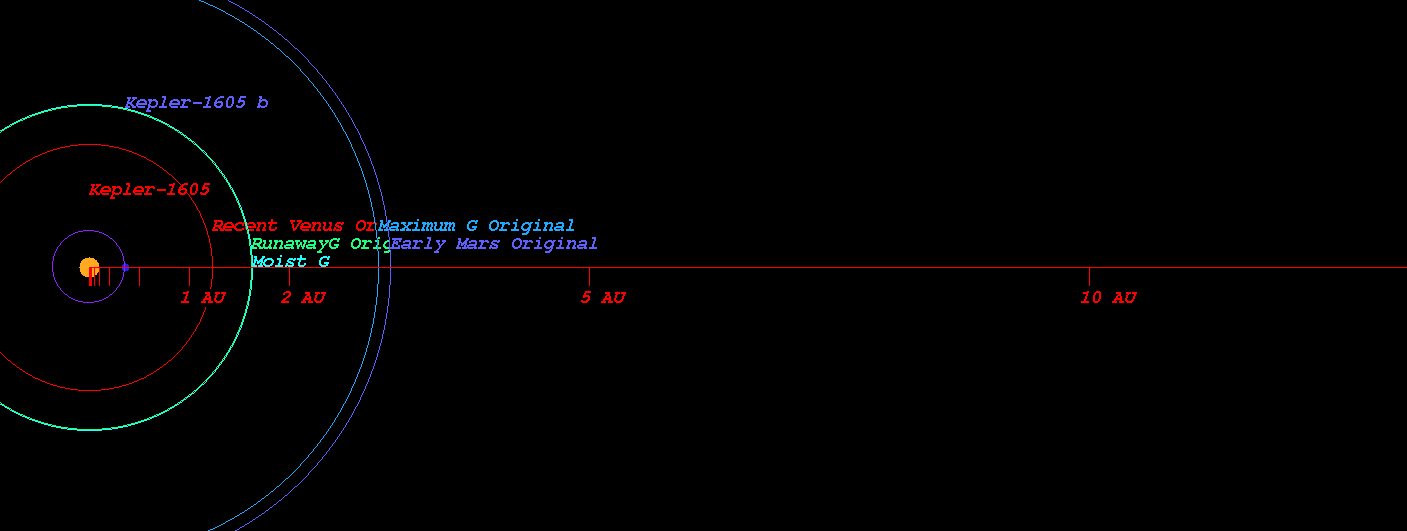

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1605)



    (Position in Stellar Map of star Kepler-1605 and its Exoplanet Kepler-1605 b)

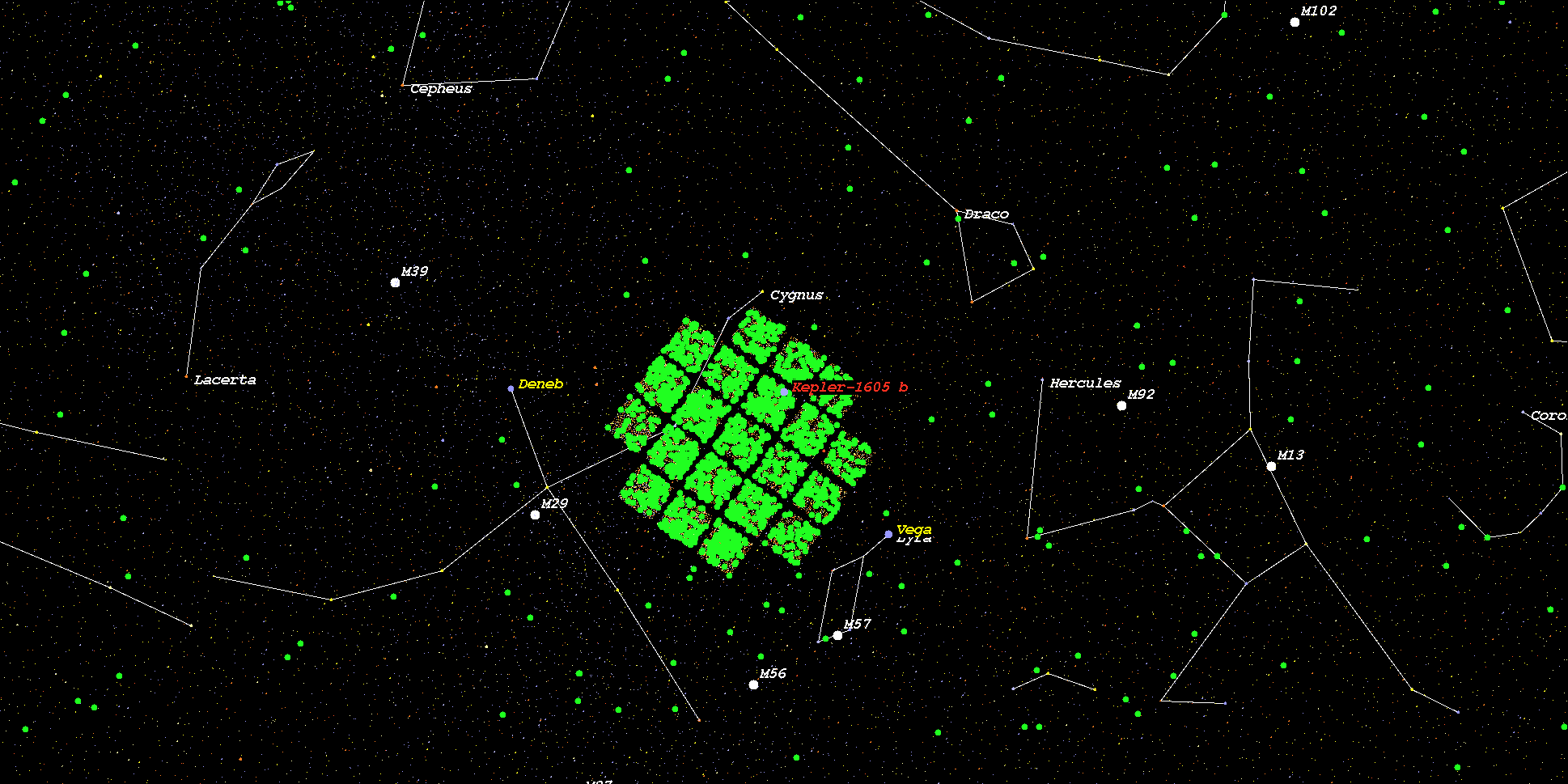

    (Zoomed position in Stellar Map of star Kepler-1605 and its Exoplanet Kepler-1605 b (zoom level 3))

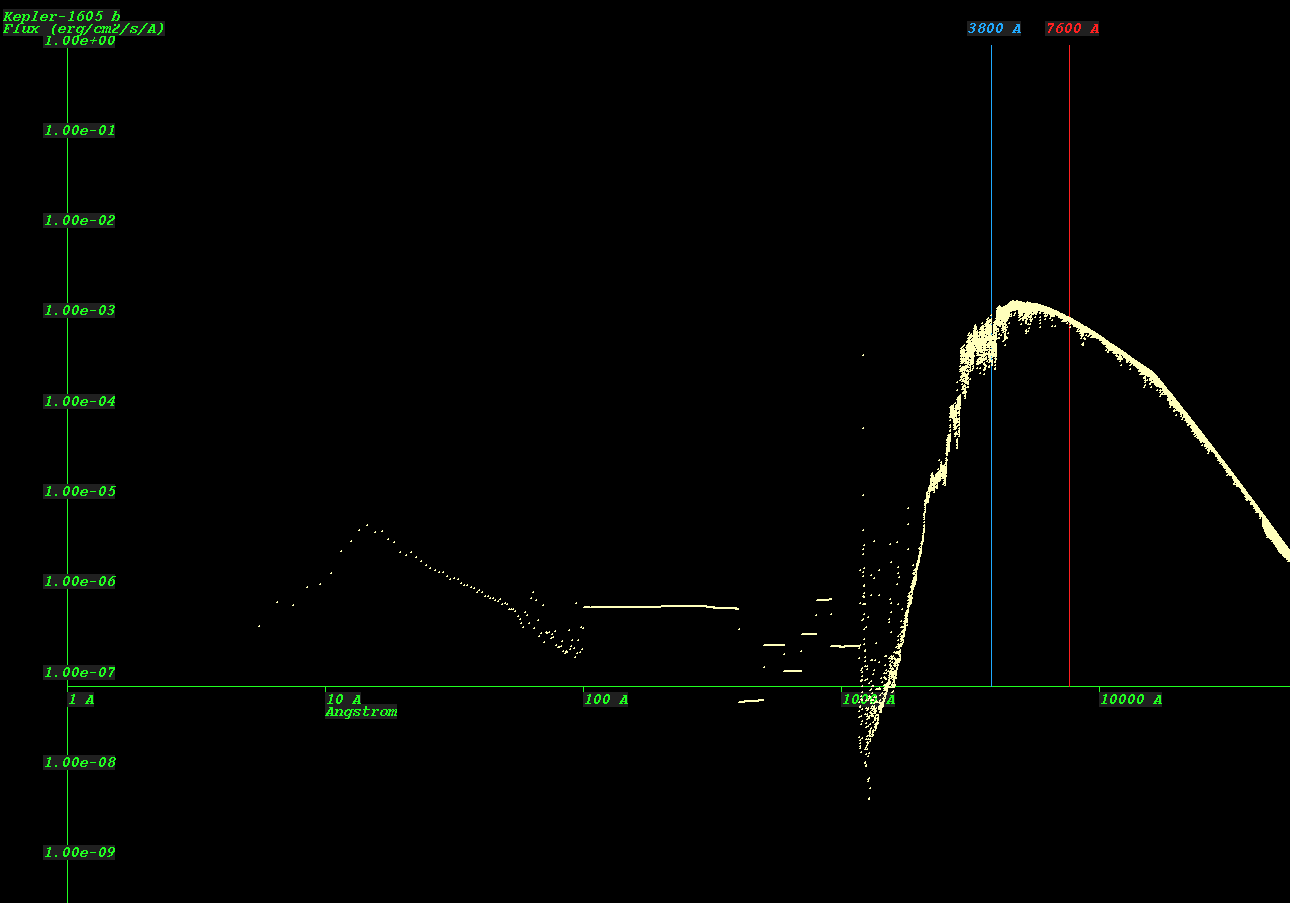

    (Synthetic Spectrum of star Kepler-1605*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
