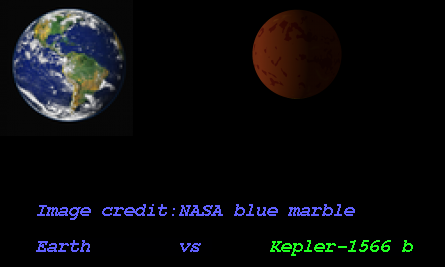

Imaginary Picture of Kepler-1566 b

Display orbital revolution of Kepler-1566 b around the hoststar Kepler-1566
/
Exoplanet Name : Kepler-1566 b
Alternate Name : "2MASS J18542102+4034297 b, K04199.01, KIC 5340878 b, KOI-4199 b, KOI-4199.01, WISE J185421.01+403429.6 b"
Status : Confirmed
Radius (Rjup / Re): 0.0700 (Rjup) 0.7846 (Rearth)
Mass (Mjup / Me): 0.0013 (Mjup) 0.4139 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0122 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0015
Orbital Period(Observed/Estimated) 0.54 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6724
Star Radiation at Atmospheric Boundary: 3118302.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1875.5 (K)
Blackbody T 0.3(K) 1761.3 (K)
Blackbody T 0.7(K) 1425.1 (K)
Tidally Locked Blackbody T 0.1(K) 2230.4 (K)
Tidally Locked Blackbody T 0.3(K) 2094.6 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1566
Alternate Name : "2MASS J18542102+4034297, KIC 5340878, KOI-4199, WISE J185421.01+403429.6"
Star Distance(LY) : 1521.3
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 5.0 (GY)
Temperature : 5109 (K)
Spectral type : K0
UV portion[%]: 5.4
Visible portion[%]: 40.9
IR portion[%]: 53.7
Metalicity : -0.1
Absolute Magnitude: 4.6
Apparent Magnitude: 12.9
Right Ascension(RA) 283.5876
Declination (DEC) 40.5749
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1566+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1566%20b/
Kepler-1566 b
Kepler-1566 b

  • Kepler-1566 b is an exoplanet orbiting the star Kepler-1566, located about 1521.3 light-years (466.4 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1566 has apparent magnitude of 12.9, with absolute magnitude of 4.6.

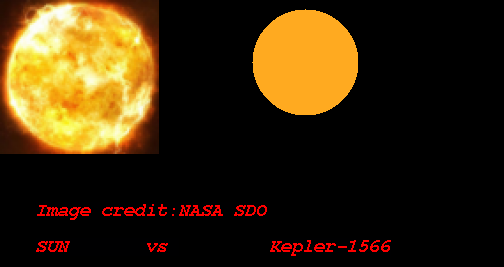

  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 5109 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-1566 b orbits around the star Kepler-1566 every 0.5 days with its orbital distance of 0.01 AU ( 1831648.3 km)

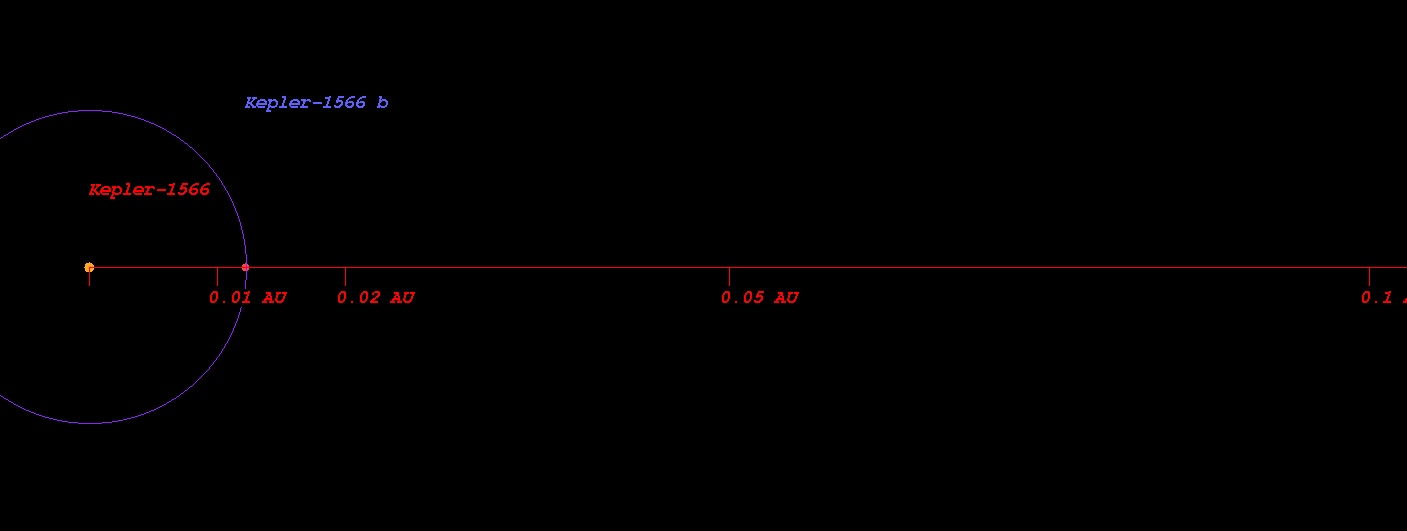

  • (Projected orbit of Kepler-1566 b around its host star Kepler-1566)


  • The Star Kepler-1566 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.423 AU ( 63274907.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.585 AU ( 87462457.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.891 AU ( 133273429.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.311 AU ( 196117689.7 km)
  • Radiation at Planetary Boundary of Kepler-1566 b : 3118302.75 W/m2

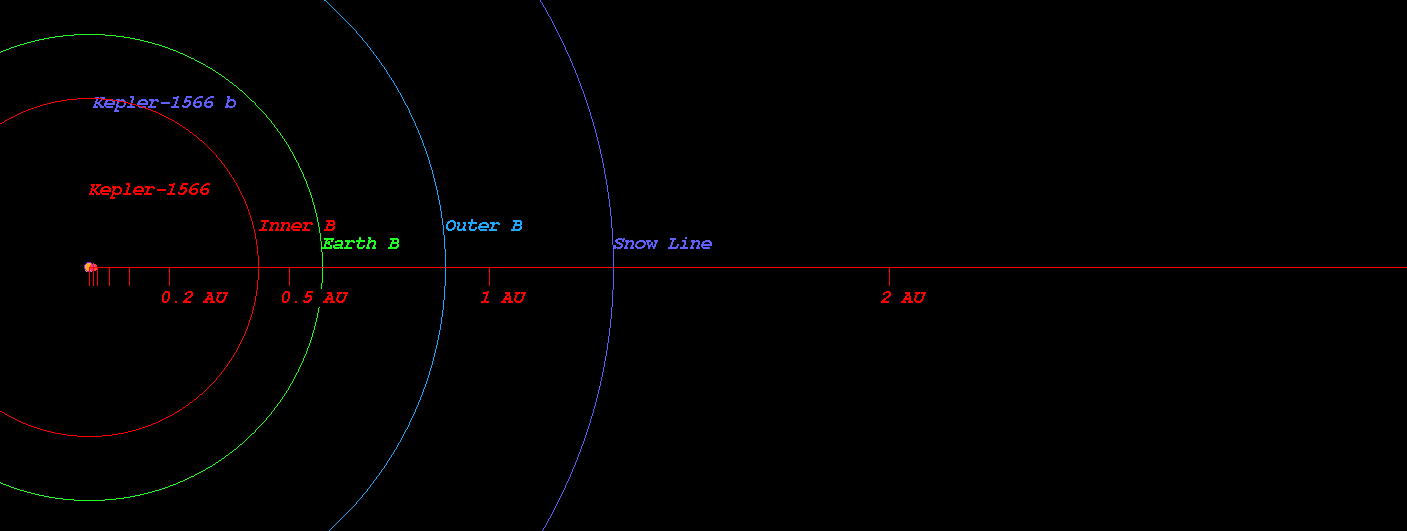

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1566)



  • Kopparapu Recent Venus for Star Kepler-1566 distance : 0.455 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1566 distance : 0.576 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1566 distance : 0.557 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1566 distance : 0.611 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1566 distance : 1.040 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1566 distance : 1.097 AU

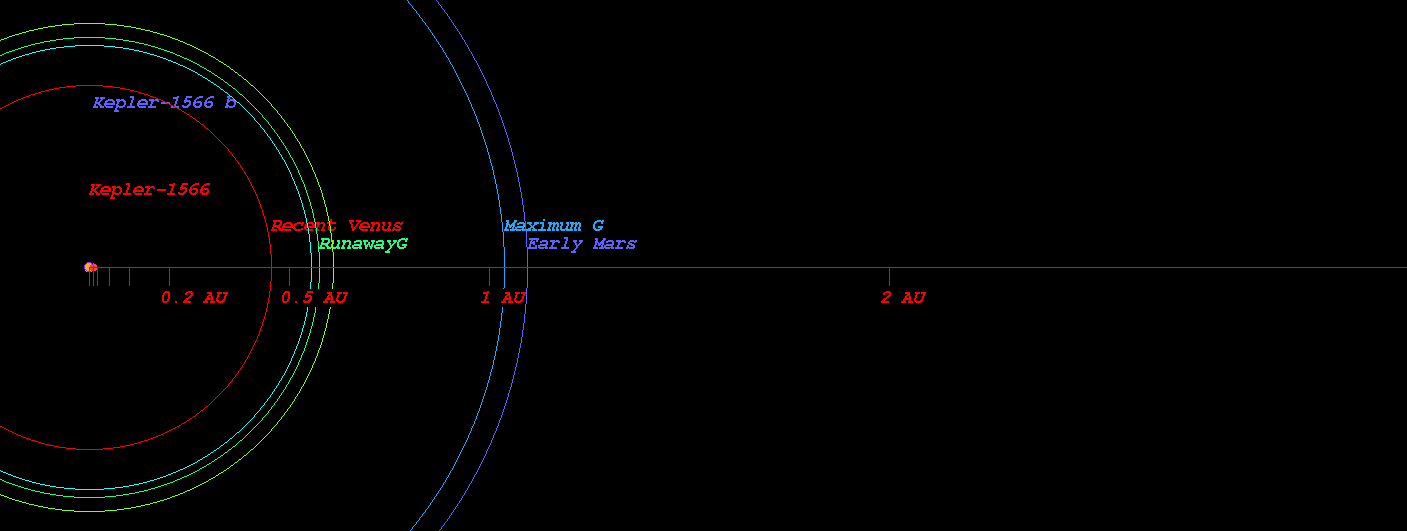

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1566)



  • Original Kopparapu Recent Venus for Star Kepler-1566 distance : 0.451 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1566 distance : 0.594 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1566 distance : 0.597 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1566 distance : 1.058 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1566 distance : 1.100 AU

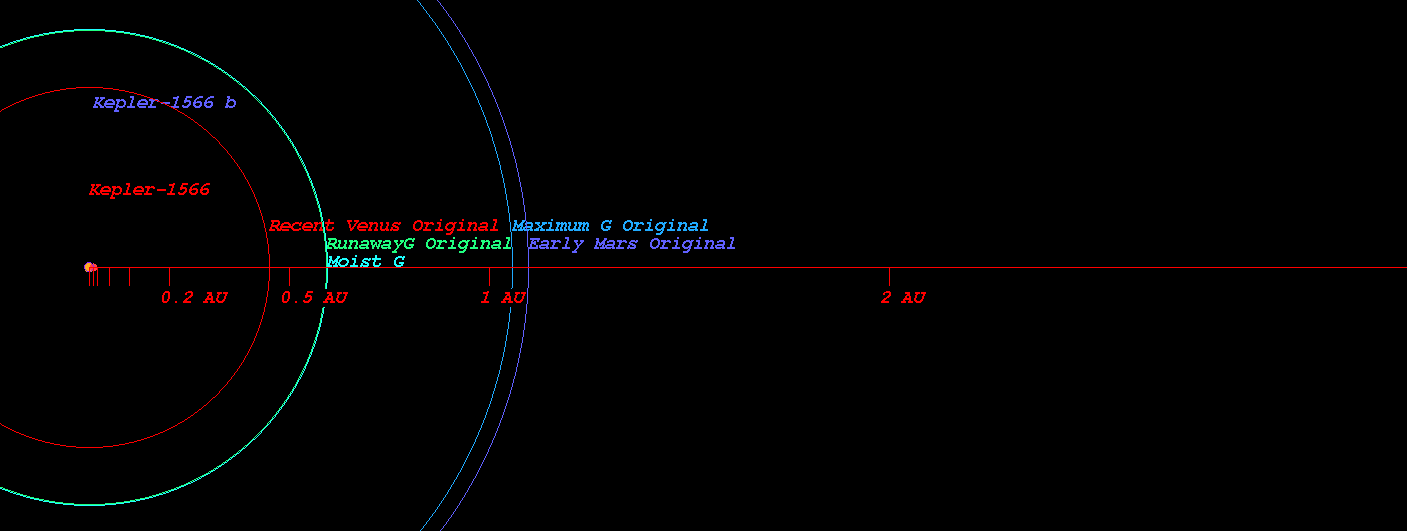

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1566)

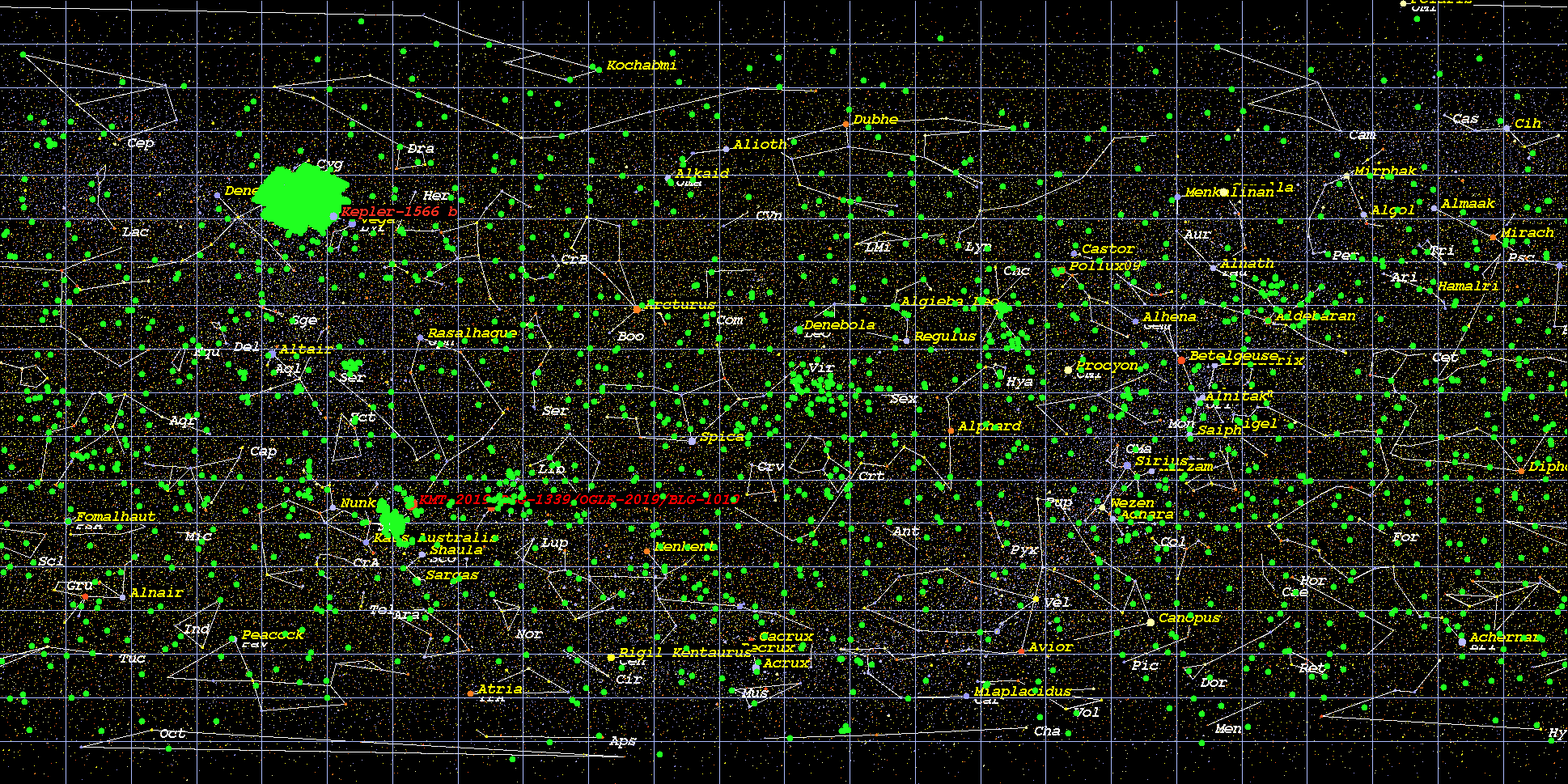

    (Position in Stellar Map of star Kepler-1566 and its Exoplanet Kepler-1566 b)

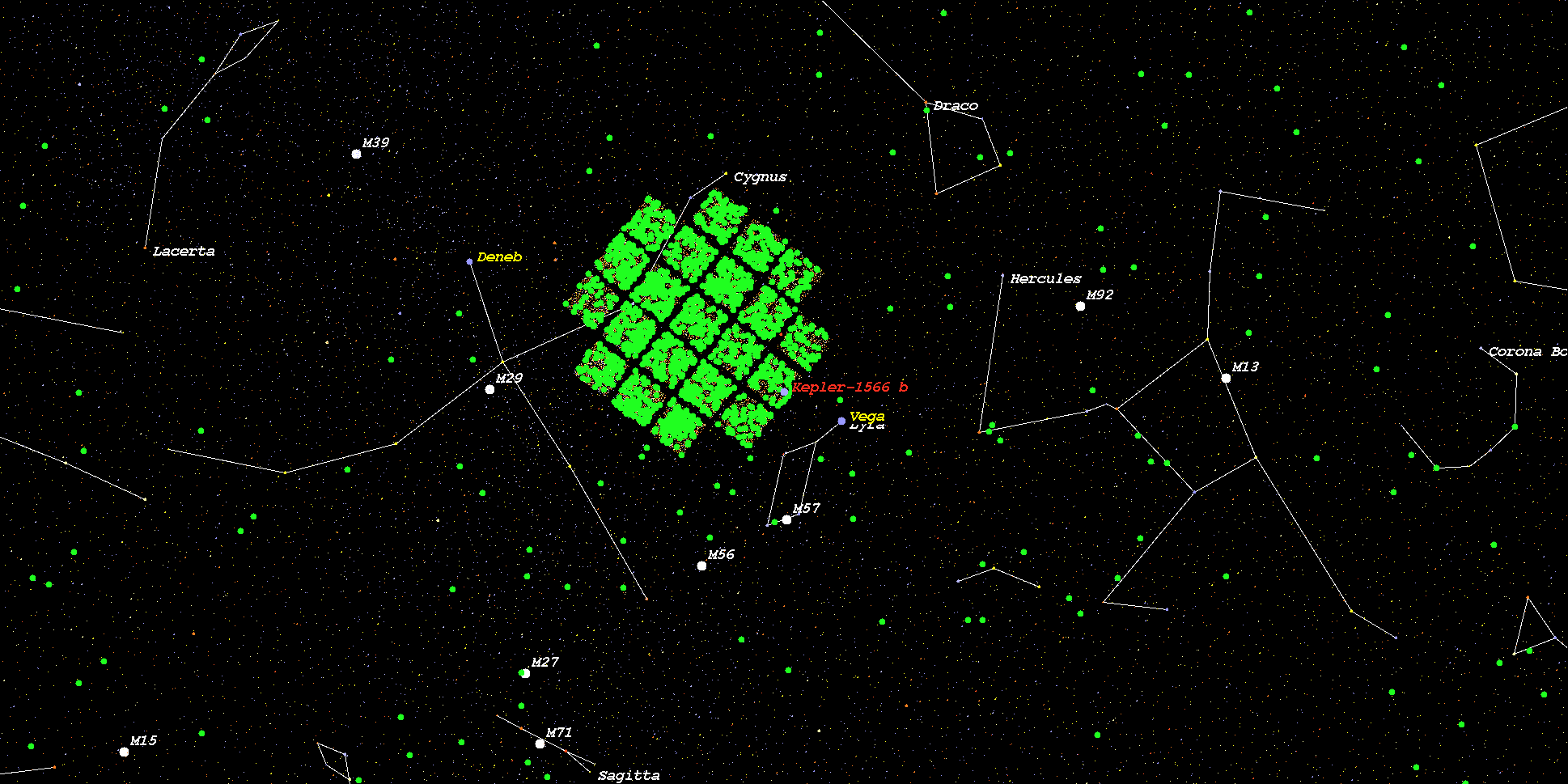

    (Zoomed position in Stellar Map of star Kepler-1566 and its Exoplanet Kepler-1566 b (zoom level 3))

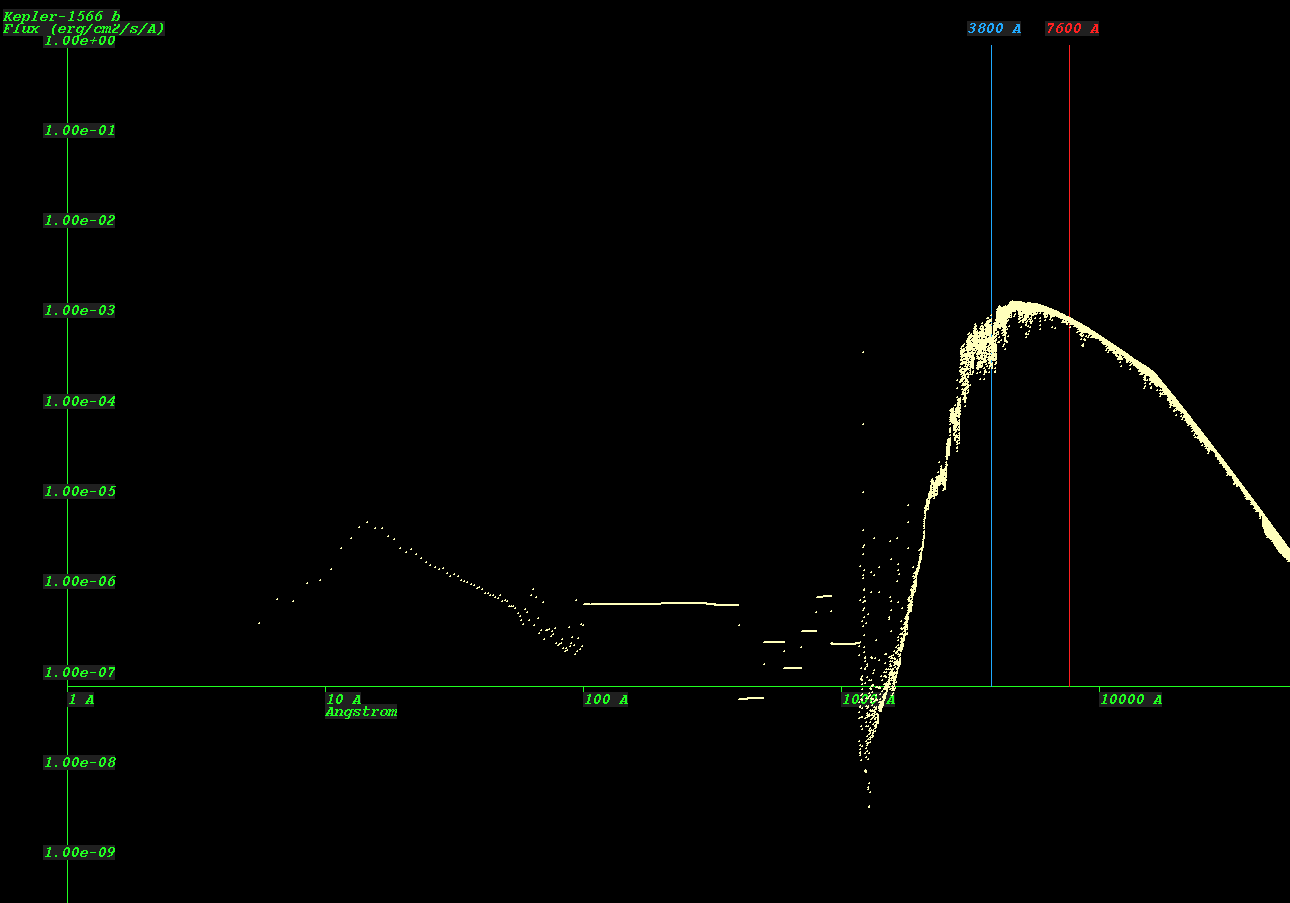

    (Synthetic Spectrum of star Kepler-1566*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
