Imaginary Picture of Kepler-1514 b

Display orbital revolution of Kepler-1514 b around the hoststar Kepler-1514
/
Exoplanet Name : Kepler-1514 b
Alternate Name : "2MASS J19303059+3751364 b, K03681.01, KIC 2581316 b, KOI-3681 b, KOI-3681.01, TIC 137685450 b, TYC 3135-497-1 b, WISE J
Status : Confirmed
Radius (Rjup / Re): 1.1080 (Rjup) 12.4196 (Rearth)
Mass (Mjup / Me): 5.2800 (Mjup) 1678.7126 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.7530 (AU) 0.7530 (AU Est.)
Eccentricity : 0.4010
Orbital Period(Yrs) 0.5964
Orbital Period(Observed/Estimated) 217.83 (Days Obs.) 217.87 (Days Est.)
Surface Gravity (G Earth) 10.8834
Star Radiation at Atmospheric Boundary: 5158.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 378.3 (K)
Blackbody T 0.3(K) 355.2 (K)
Blackbody T 0.7(K) 287.4 (K)
Tidally Locked Blackbody T 0.1(K) 449.8 (K)
Tidally Locked Blackbody T 0.3(K) 422.4 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1514
Alternate Name : "2MASS J19303059+3751364, KIC 2581316, KOI-3681, TIC 137685450, TYC 3135-497-1, WISE J193030.59+375136.5"
Star Distance(LY) : 1130.5
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 6194 (K)
Spectral type : G0
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.1
Absolute Magnitude: 3.3
Apparent Magnitude: 11.0
Right Ascension(RA) 292.6275
Declination (DEC) 37.8601
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1514+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1515%20b/
Kepler-1514 b
Kepler-1514 b

  • Kepler-1514 b is an exoplanet orbiting the star Kepler-1514, located about 1130.5 light-years (346.6 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1514 has apparent magnitude of 11.0, with absolute magnitude of 3.3.
  • It is 1.2 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 6194 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-1514 b orbits around the star Kepler-1514 every 217.8 days with its orbital distance of 0.75 AU ( 112647196.6 km)
  • (Projected orbit of Kepler-1514 b around its host star Kepler-1514)


  • The Star Kepler-1514 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.058 AU ( 158281048.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.462 AU ( 218785772.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.229 AU ( 333381100.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.279 AU ( 490584893.6 km)
  • Radiation at Planetary Boundary of Kepler-1514 b : 5158.89 W/m2

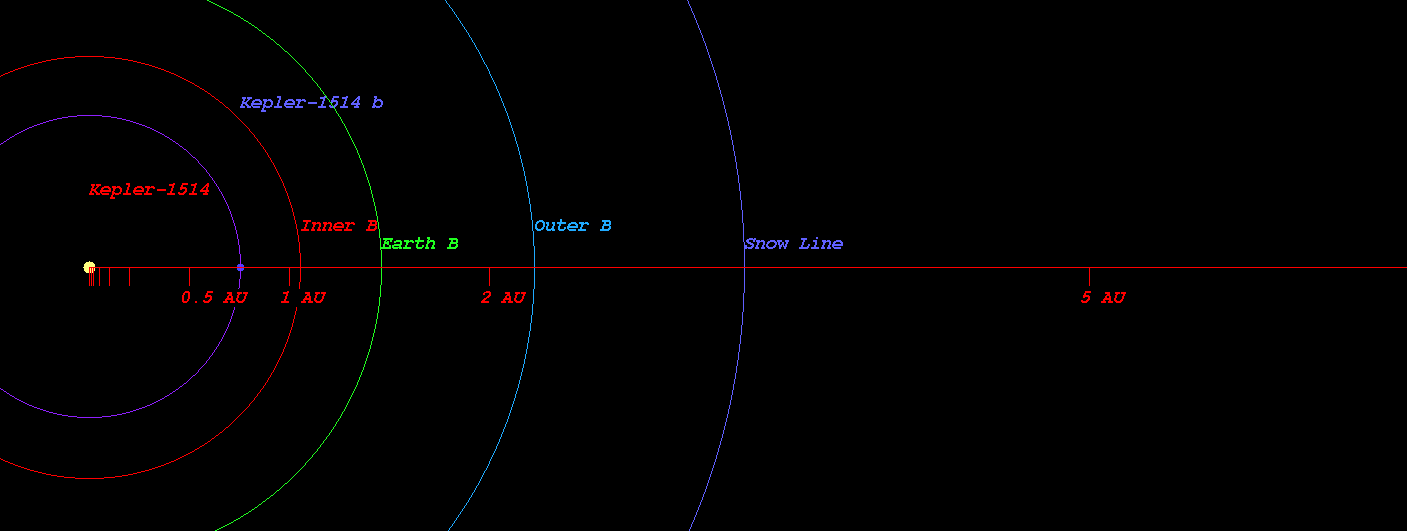

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1514)



  • Kopparapu Recent Venus for Star Kepler-1514 distance : 1.069 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1514 distance : 1.354 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1514 distance : 1.308 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1514 distance : 1.433 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1514 distance : 2.368 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1514 distance : 2.498 AU

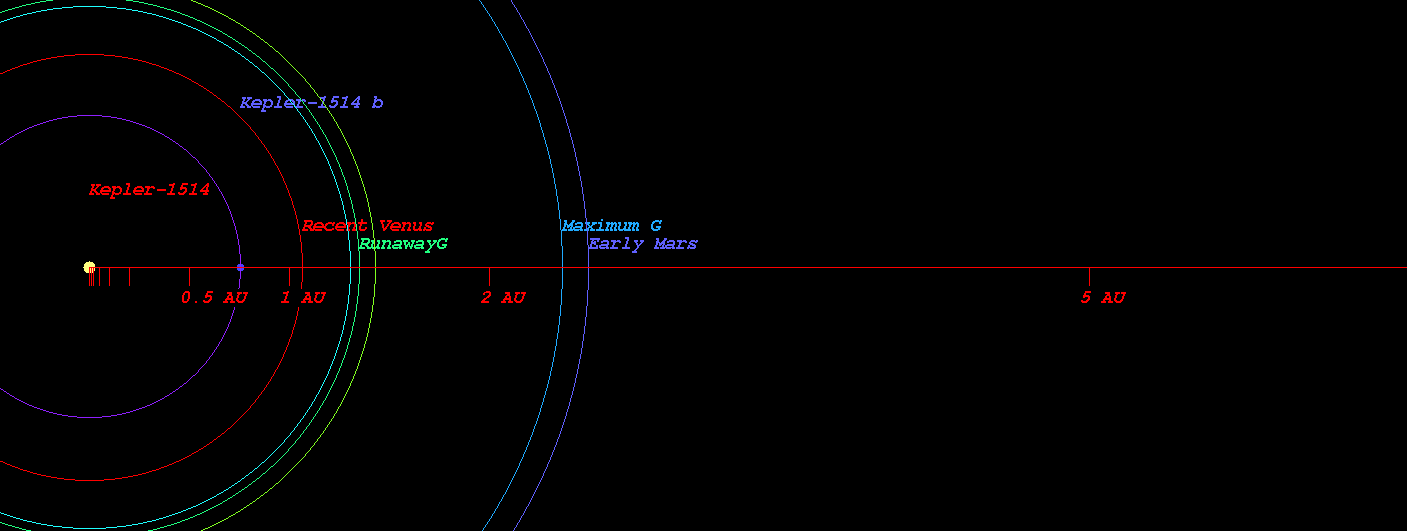

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1514)



  • Original Kopparapu Recent Venus for Star Kepler-1514 distance : 1.080 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1514 distance : 1.389 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1514 distance : 1.429 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1514 distance : 2.411 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1514 distance : 2.507 AU

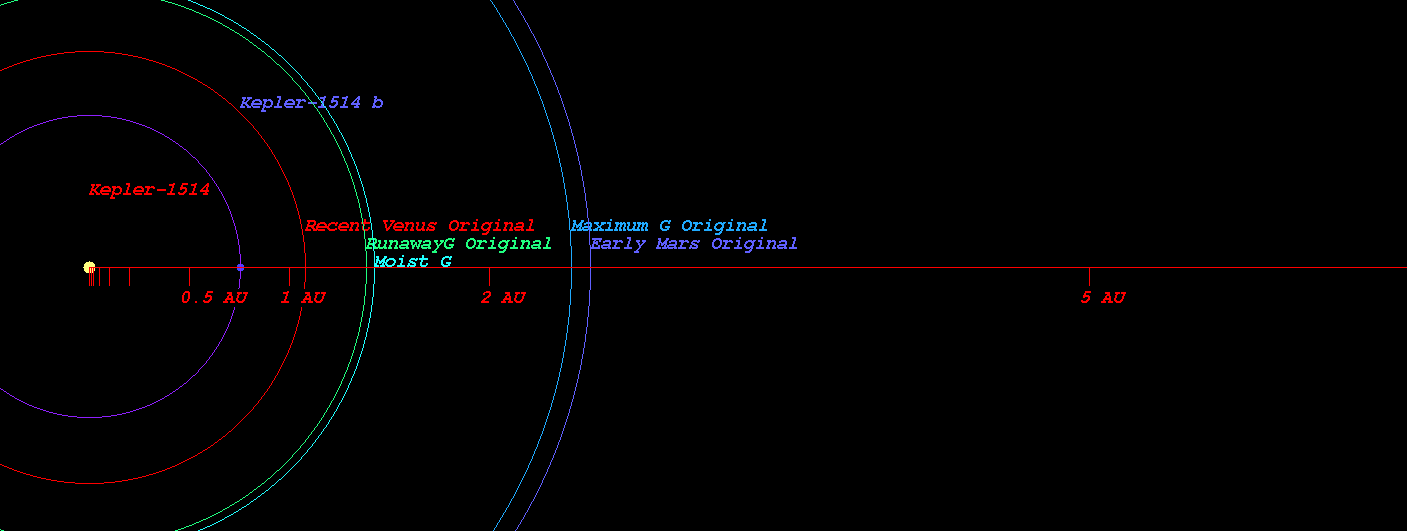

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1514)

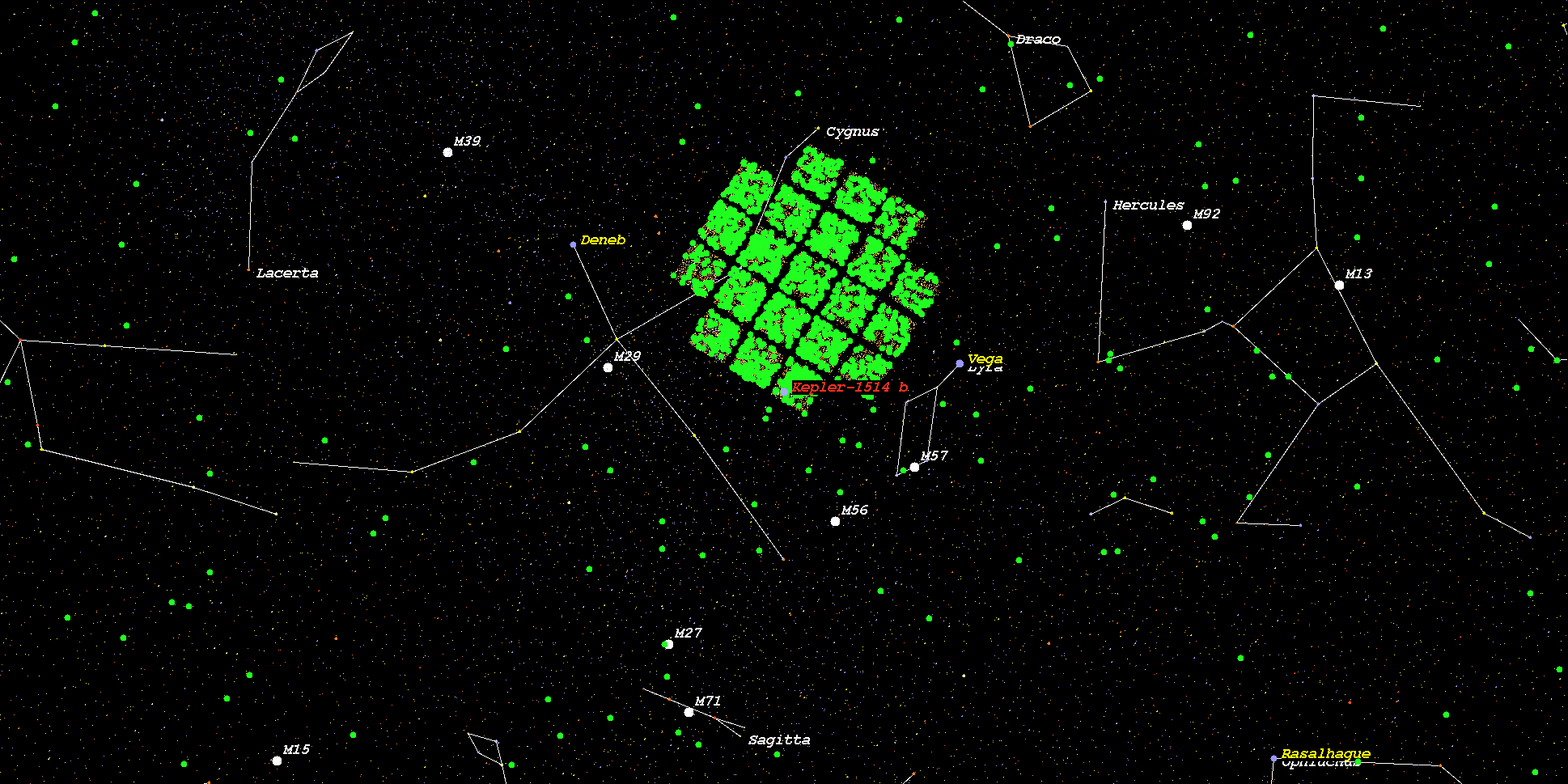

    (Position in Stellar Map of star Kepler-1514 and its Exoplanet Kepler-1514 b)



    (Zoomed position in Stellar Map of star Kepler-1514 and its Exoplanet Kepler-1514 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1514*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
