Imaginary Picture of Kepler-1505 b

Display orbital revolution of Kepler-1505 b around the hoststar Kepler-1505
/
Exoplanet Name : Kepler-1505 b
Alternate Name : "2MASS J19280049+4147130 b, K03456.01, KIC 6364582 b, KOI-3456 b, KOI-3456.01, WISE J192800.49+414713.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.0830 (Rjup) 0.9303 (Rearth)
Mass (Mjup / Me): 0.0024 (Mjup) 0.7563 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1879 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0845
Orbital Period(Observed/Estimated) 30.86 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8738
Star Radiation at Atmospheric Boundary: 48419.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 662.1 (K)
Blackbody T 0.3(K) 621.7 (K)
Blackbody T 0.7(K) 503.1 (K)
Tidally Locked Blackbody T 0.1(K) 787.3 (K)
Tidally Locked Blackbody T 0.3(K) 739.4 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1505
Alternate Name : "2MASS J19280049+4147130, KIC 6364582, KOI-3456, WISE J192800.49+414713.1"
Star Distance(LY) : 1614.9
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 1.7 (GY)
Temperature : 5526 (K)
Spectral type : G4
UV portion[%]: 7.0
Visible portion[%]: 43.4
IR portion[%]: 49.6
Metalicity : -0.2
Absolute Magnitude: 3.4
Apparent Magnitude: 11.8
Right Ascension(RA) 292.0021
Declination (DEC) 41.7870
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1505+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1505%20b/
Kepler-1505 b
Kepler-1505 b

  • Kepler-1505 b is an exoplanet orbiting the star Kepler-1505, located about 1614.9 light-years (495.1 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1505 has apparent magnitude of 11.8, with absolute magnitude of 3.4.
  • It is 0.9 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 5526 with its spectral types of G4
  • In this planetary system, the extrasolar planet Kepler-1505 b orbits around the star Kepler-1505 every 30.9 days with its orbital distance of 0.19 AU ( 28116784.1 km)

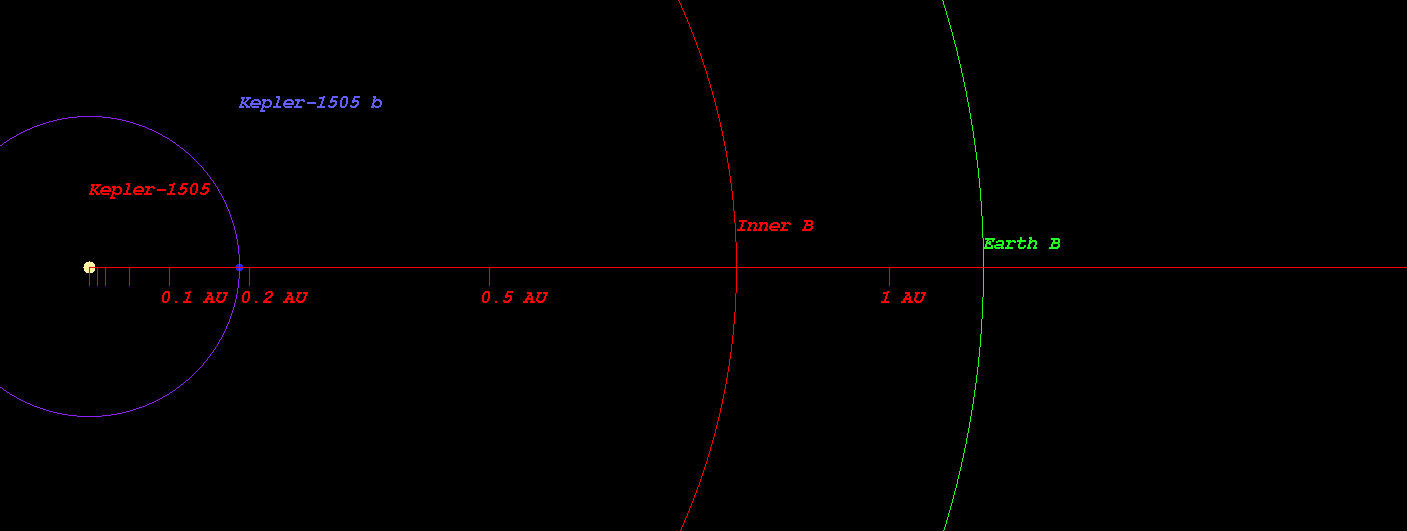

  • (Projected orbit of Kepler-1505 b around its host star Kepler-1505)


  • The Star Kepler-1505 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.809 AU ( 121033705.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.118 AU ( 167300211.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.704 AU ( 254928498.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.508 AU ( 375138453.3 km)
  • Radiation at Planetary Boundary of Kepler-1505 b : 48419.55 W/m2

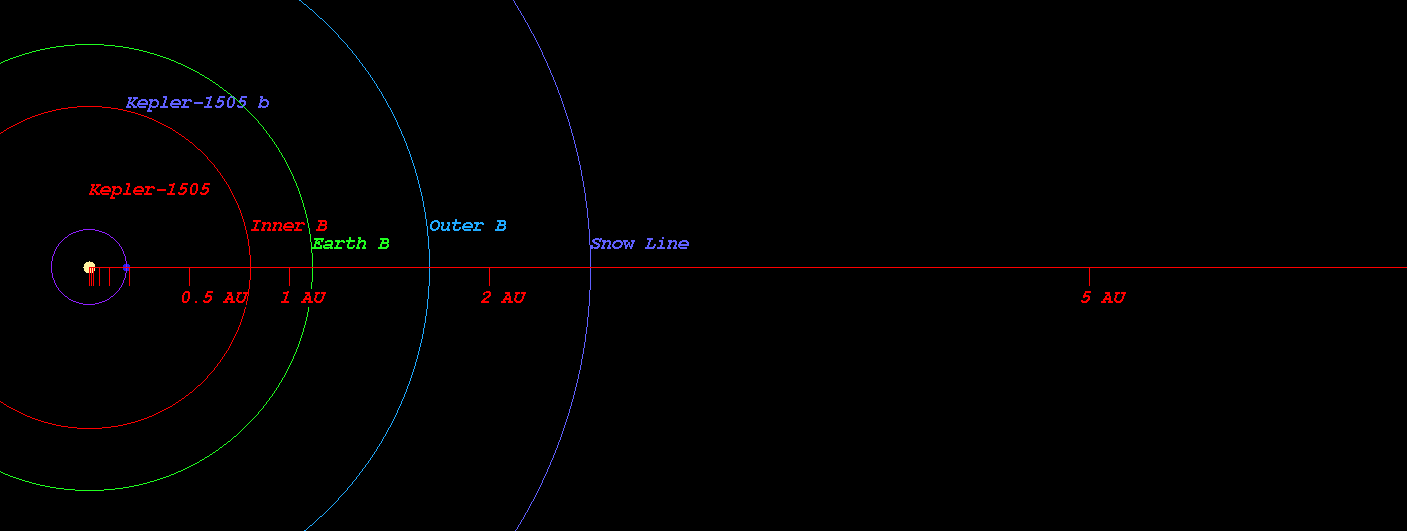

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1505)



  • Kopparapu Recent Venus for Star Kepler-1505 distance : 0.851 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1505 distance : 1.078 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1505 distance : 1.041 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1505 distance : 1.142 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1505 distance : 1.917 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1505 distance : 2.022 AU

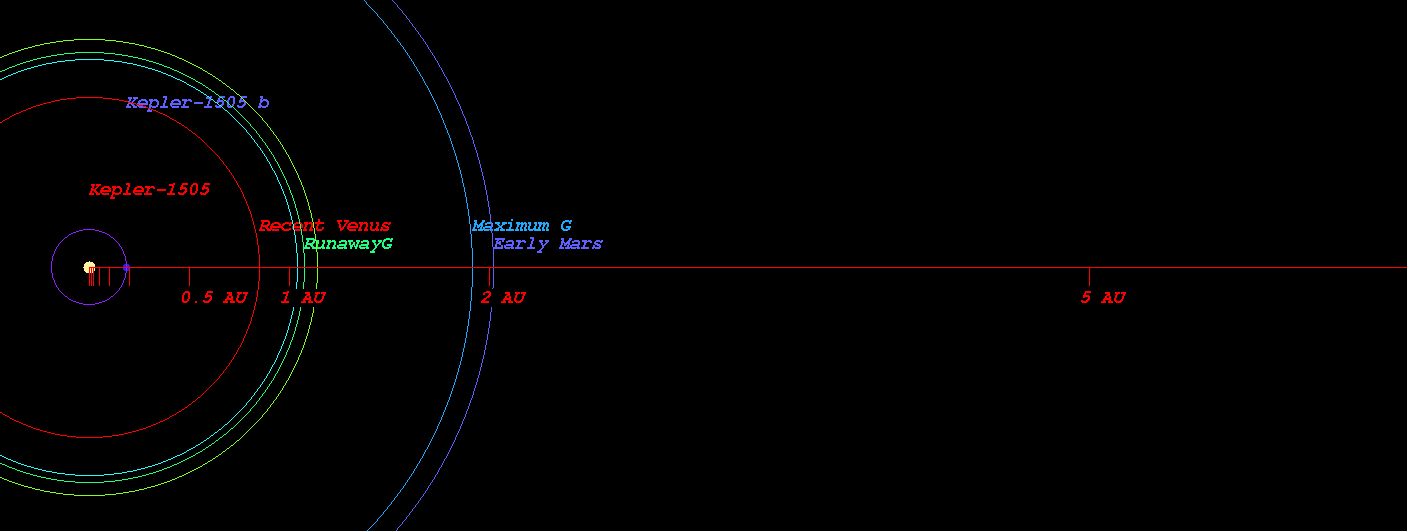

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1505)



  • Original Kopparapu Recent Venus for Star Kepler-1505 distance : 0.848 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1505 distance : 1.108 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1505 distance : 1.122 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1505 distance : 1.950 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1505 distance : 2.028 AU

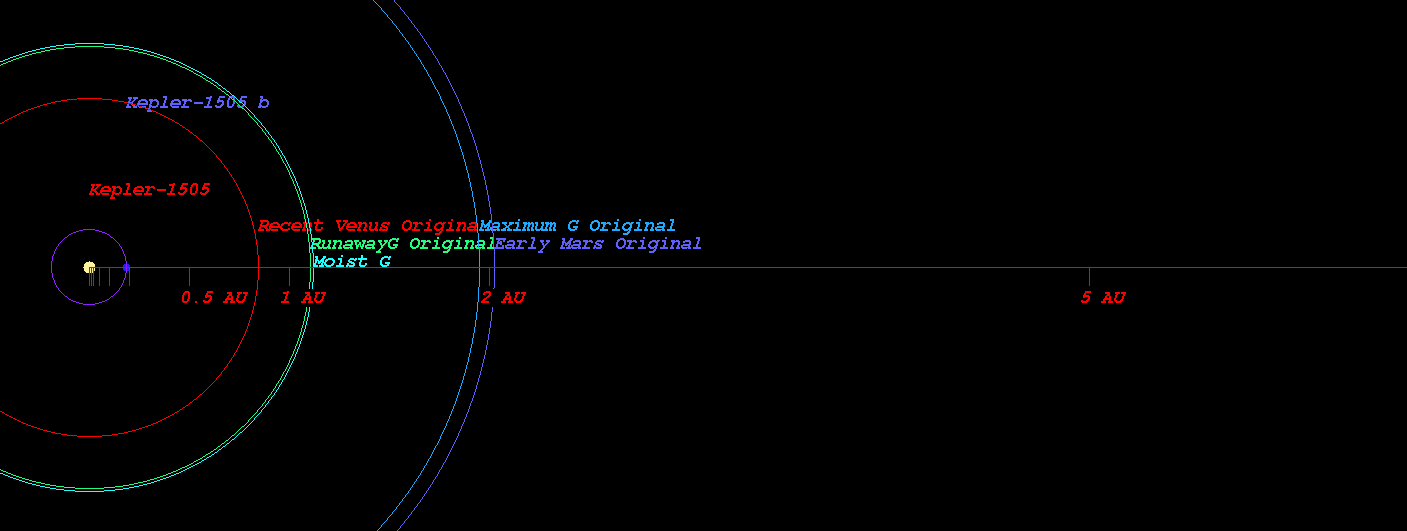

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1505)



    (Position in Stellar Map of star Kepler-1505 and its Exoplanet Kepler-1505 b)

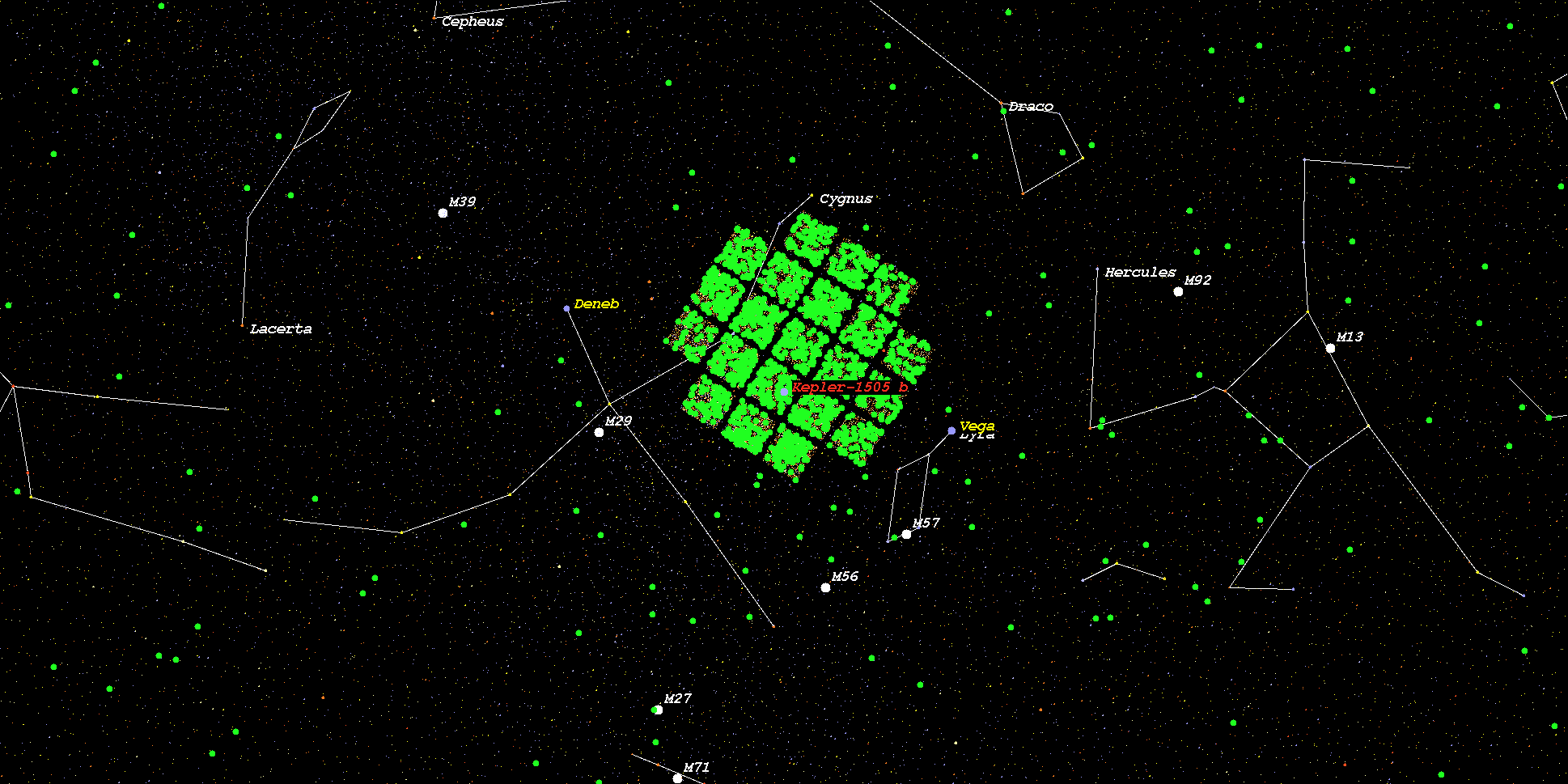

    (Zoomed position in Stellar Map of star Kepler-1505 and its Exoplanet Kepler-1505 b (zoom level 3))

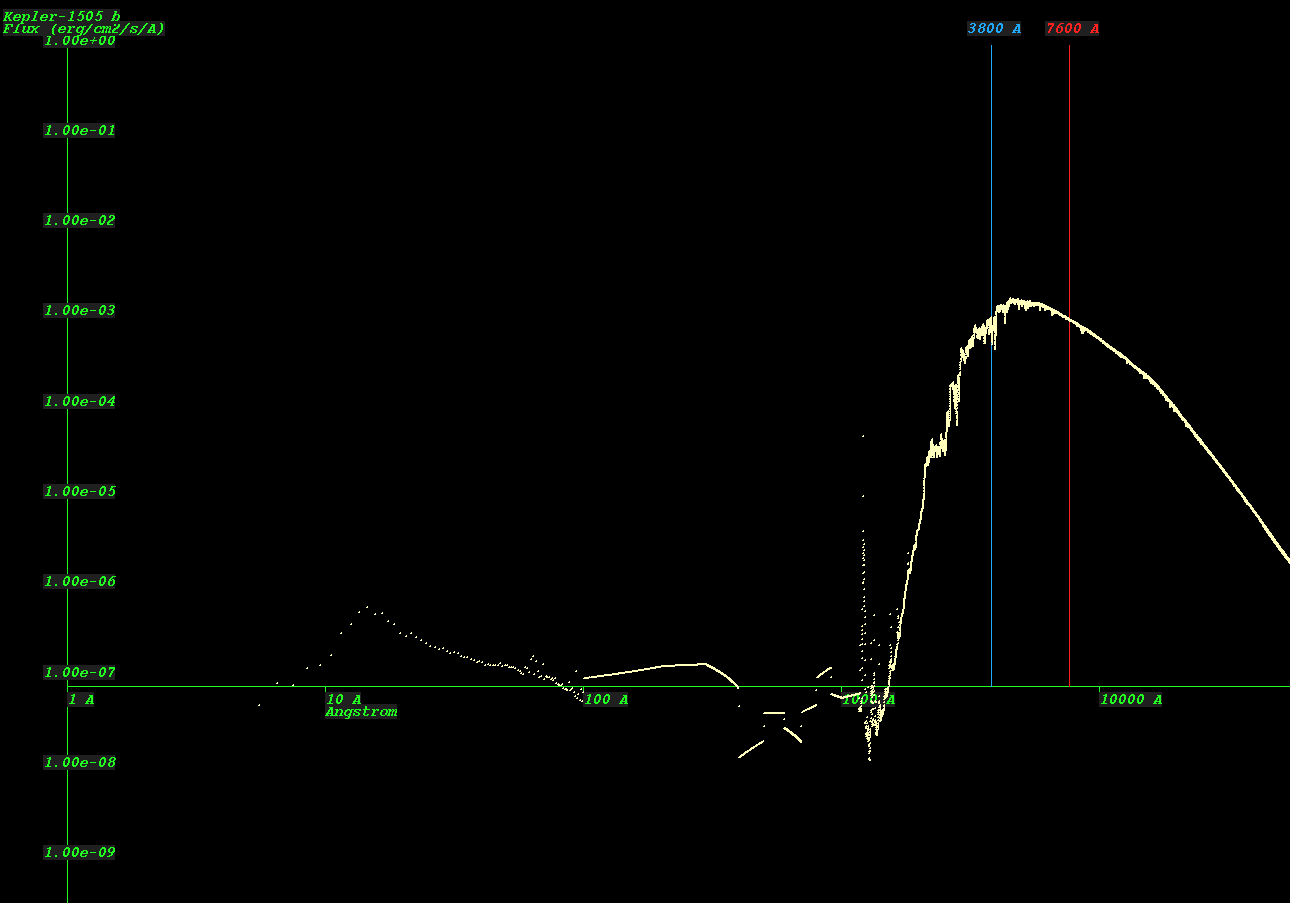

    (Synthetic Spectrum of star Kepler-1505*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
