Imaginary Picture of Kepler-1476 b

Display orbital revolution of Kepler-1476 b around the hoststar Kepler-1476
/
Exoplanet Name : Kepler-1476 b
Alternate Name : "2MASS J18580770+4359238 b, K03352.01, KIC 8081239 b, KOI-3352 b, KOI-3352.01, WISE J185807.71+435923.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1490 (Rjup) 1.6701 (Rearth)
Mass (Mjup / Me): 0.0134 (Mjup) 4.2508 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0924 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0284
Orbital Period(Observed/Estimated) 10.36 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5239
Star Radiation at Atmospheric Boundary: 105305.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 804.0 (K)
Blackbody T 0.3(K) 755.0 (K)
Blackbody T 0.7(K) 610.9 (K)
Tidally Locked Blackbody T 0.1(K) 956.1 (K)
Tidally Locked Blackbody T 0.3(K) 897.9 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1476
Alternate Name : "2MASS J18580770+4359238, KIC 8081239, KOI-3352, WISE J185807.71+435923.3"
Star Distance(LY) : 3272.9
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5891 (K)
Spectral type : G5
UV portion[%]: 7.5
Visible portion[%]: 44.2
IR portion[%]: 48.3
Metalicity : 0.1
Absolute Magnitude: 4.2
Apparent Magnitude: 14.2
Right Ascension(RA) 284.5321
Declination (DEC) 43.9900
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1476+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1476%20b/
Kepler-1476 b
Kepler-1476 b

  • Kepler-1476 b is an exoplanet orbiting the star Kepler-1476, located about 3272.9 light-years (1003.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1476 has apparent magnitude of 14.2, with absolute magnitude of 4.2.
  • It is 1.0 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5891 with its spectral types of G5
  • In this planetary system, the extrasolar planet Kepler-1476 b orbits around the star Kepler-1476 every 10.4 days with its orbital distance of 0.09 AU ( 13818966.5 km)

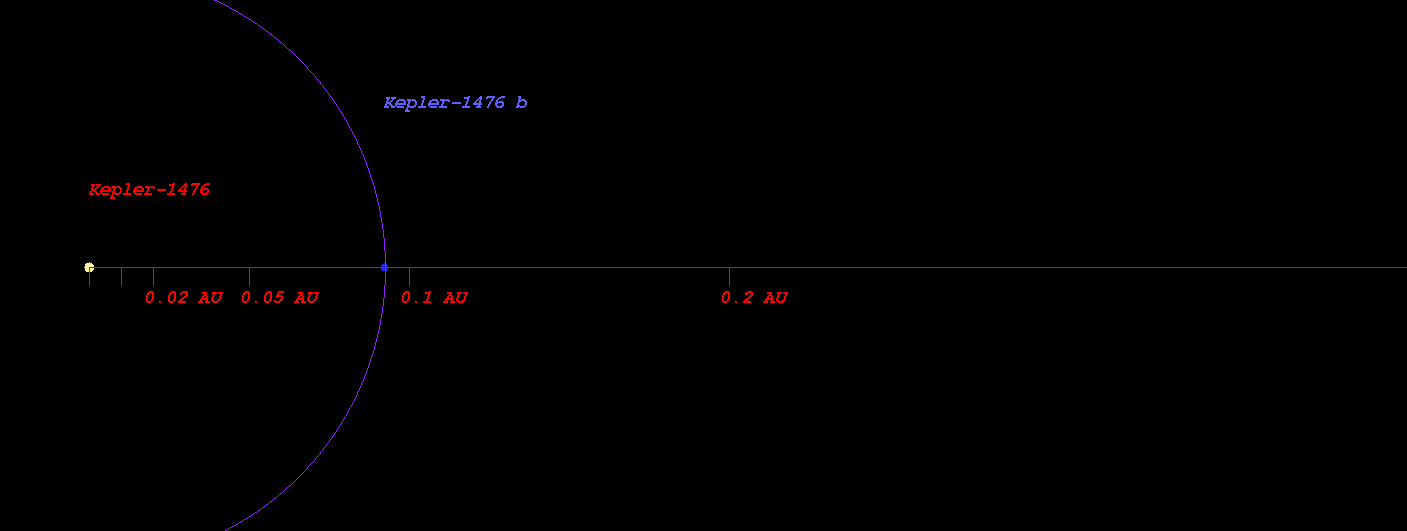

  • (Projected orbit of Kepler-1476 b around its host star Kepler-1476)


  • The Star Kepler-1476 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.586 AU ( 87726491.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.811 AU ( 121260936.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.235 AU ( 184774832.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.818 AU ( 271904261.0 km)
  • Radiation at Planetary Boundary of Kepler-1476 b : 105305.20 W/m2

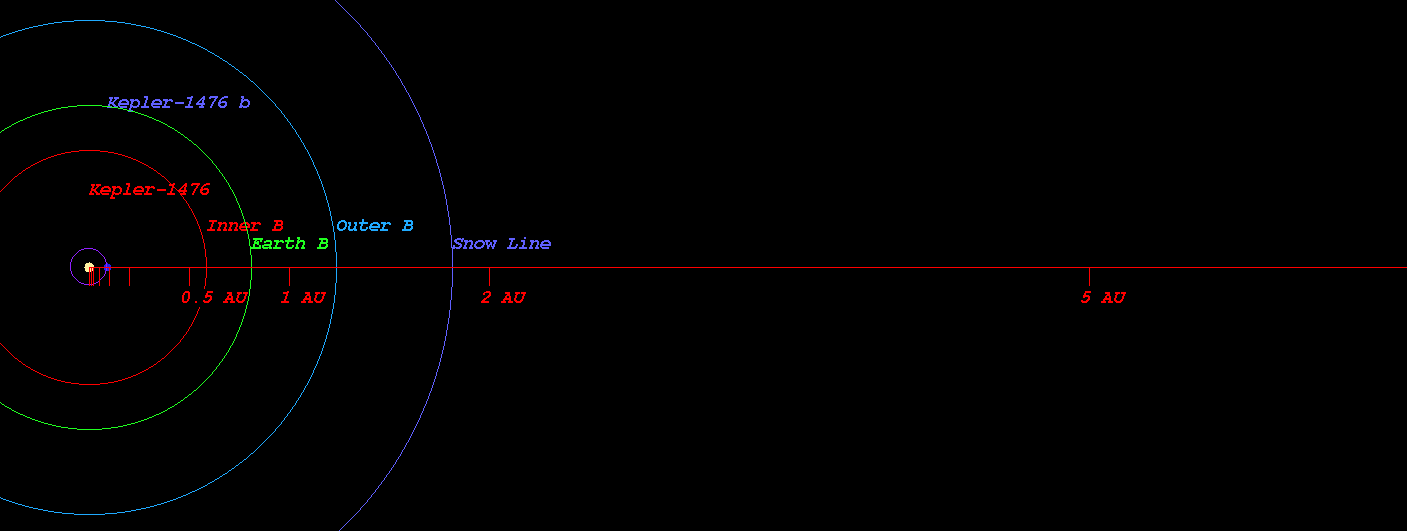

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1476)



  • Kopparapu Recent Venus for Star Kepler-1476 distance : 0.604 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1476 distance : 0.764 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1476 distance : 0.738 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1476 distance : 0.809 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1476 distance : 1.346 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1476 distance : 1.420 AU

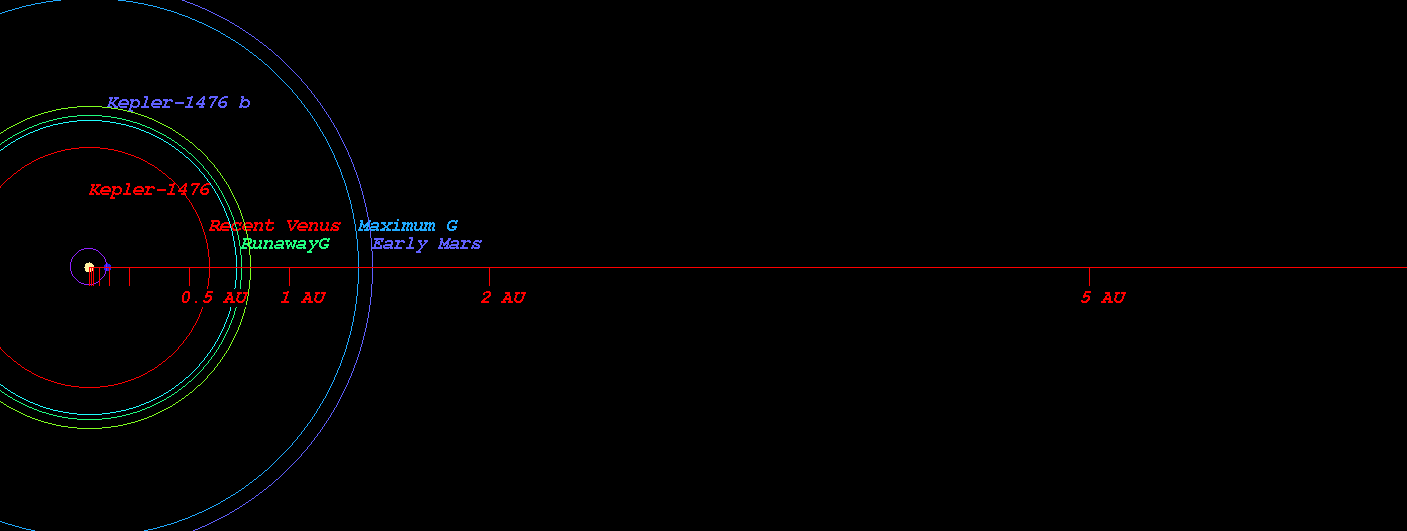

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1476)



  • Original Kopparapu Recent Venus for Star Kepler-1476 distance : 0.606 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1476 distance : 0.785 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1476 distance : 0.802 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1476 distance : 1.370 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1476 distance : 1.425 AU

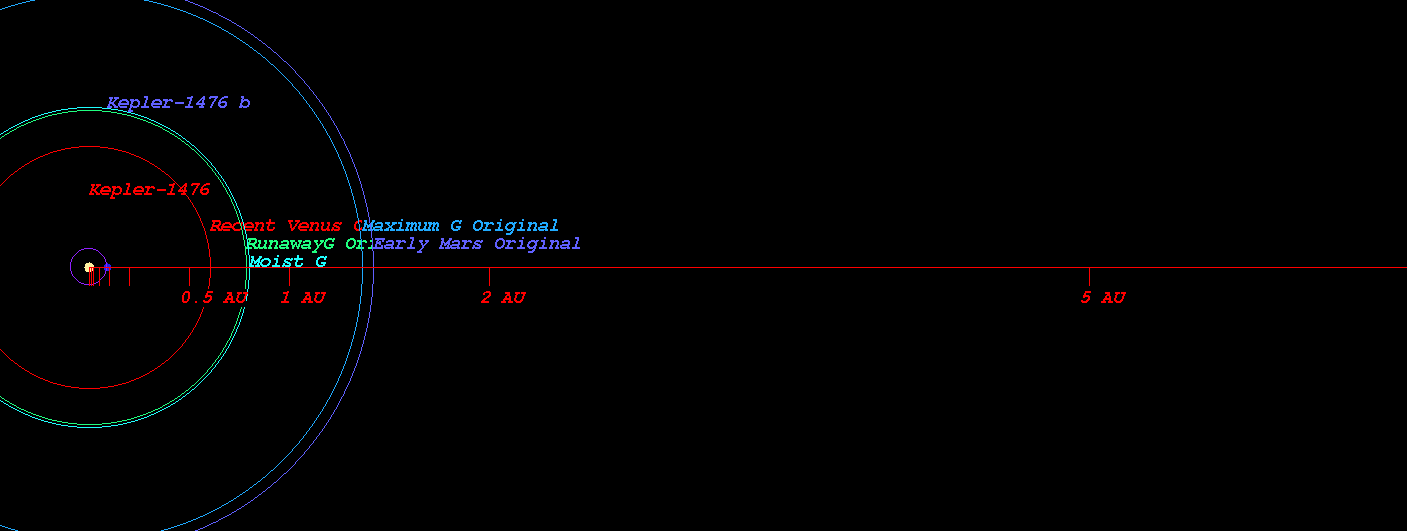

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1476)



    (Position in Stellar Map of star Kepler-1476 and its Exoplanet Kepler-1476 b)



    (Zoomed position in Stellar Map of star Kepler-1476 and its Exoplanet Kepler-1476 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1476*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
