Imaginary Picture of Kepler-1435 b

Display orbital revolution of Kepler-1435 b around the hoststar Kepler-1435
/
Exoplanet Name : Kepler-1435 b
Alternate Name : "2MASS J19244159+4455160 b, K03125.01, KIC 8751796 b, KOI-3125 b, KOI-3125.01, WISE J192441.58+445515.9 b"
Status : Confirmed
Radius (Rjup / Re): 0.0770 (Rjup) 0.8631 (Rearth)
Mass (Mjup / Me): 0.0018 (Mjup) 0.5794 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0565 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0122
Orbital Period(Observed/Estimated) 4.45 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.7779
Star Radiation at Atmospheric Boundary: 1142452.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1459.2 (K)
Blackbody T 0.3(K) 1370.3 (K)
Blackbody T 0.7(K) 1108.7 (K)
Tidally Locked Blackbody T 0.1(K) 1735.2 (K)
Tidally Locked Blackbody T 0.3(K) 1629.6 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1435
Alternate Name : "2MASS J19244159+4455160, KIC 8751796, KOI-3125, WISE J192441.58+445515.9"
Star Distance(LY) : 2296.0
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 2.6 (GY)
Temperature : 6234 (K)
Spectral type : F7
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.0
Absolute Magnitude: 2.8
Apparent Magnitude: 12.0
Right Ascension(RA) 291.1733
Declination (DEC) 44.9211
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1435+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1435%20b/
Kepler-1435 b
Kepler-1435 b

  • Kepler-1435 b is an exoplanet orbiting the star Kepler-1435, located about 2296.0 light-years (704.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1435 has apparent magnitude of 12.0, with absolute magnitude of 2.8.
  • It is 1.2 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 6234 with its spectral types of F7
  • In this planetary system, the extrasolar planet Kepler-1435 b orbits around the star Kepler-1435 every 4.5 days with its orbital distance of 0.06 AU ( 8444818.5 km)

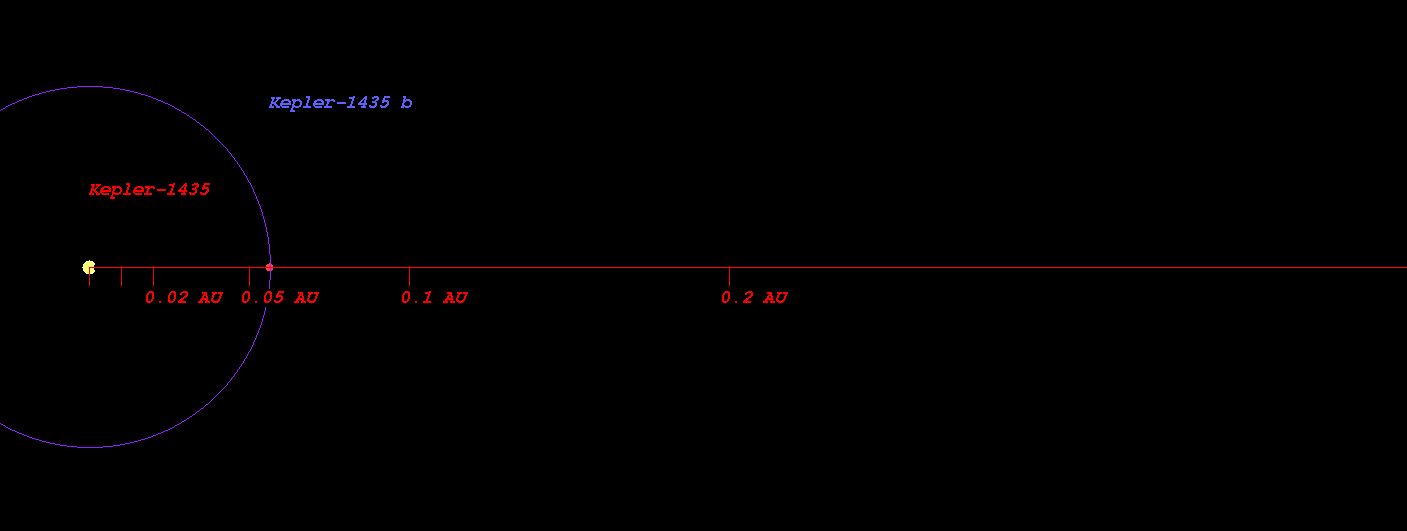

  • (Projected orbit of Kepler-1435 b around its host star Kepler-1435)


  • The Star Kepler-1435 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.180 AU ( 176579272.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.632 AU ( 244078699.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.486 AU ( 371921923.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.658 AU ( 547299403.5 km)
  • Radiation at Planetary Boundary of Kepler-1435 b : 1142452.65 W/m2

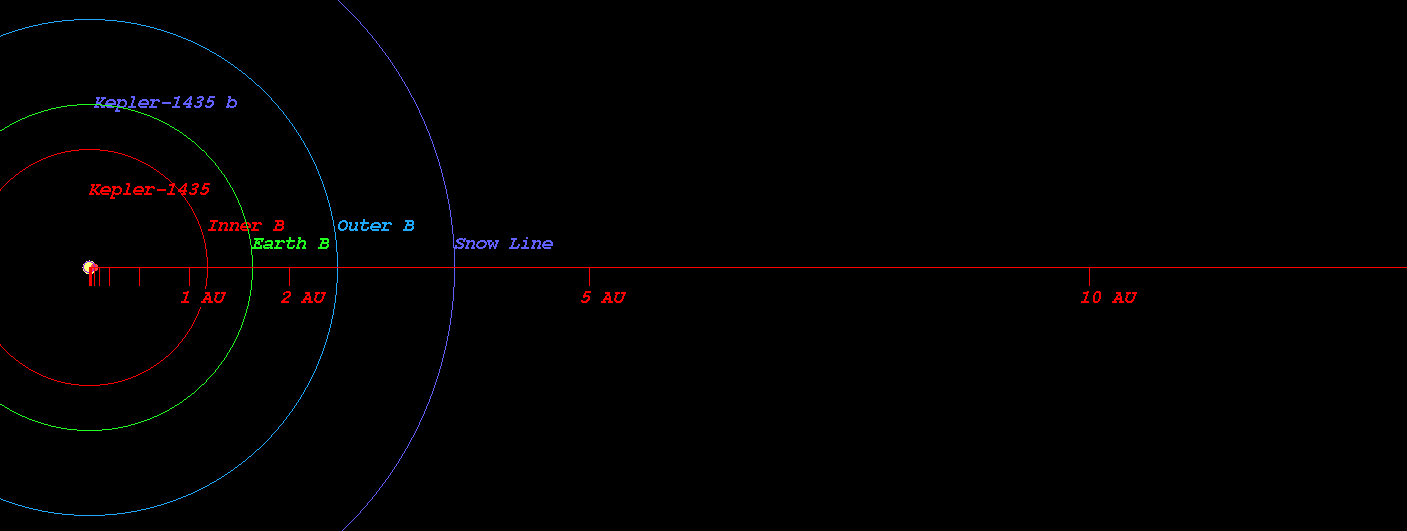

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1435)



  • Kopparapu Recent Venus for Star Kepler-1435 distance : 1.190 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1435 distance : 1.507 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1435 distance : 1.455 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1435 distance : 1.595 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1435 distance : 2.634 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1435 distance : 2.778 AU

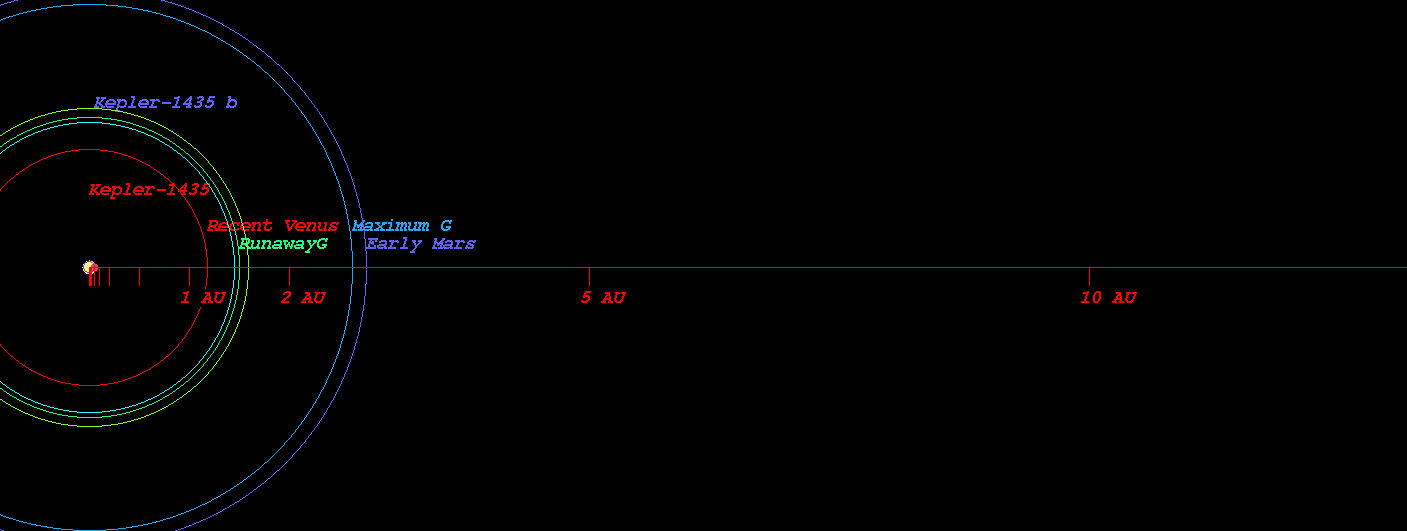

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1435)



  • Original Kopparapu Recent Venus for Star Kepler-1435 distance : 1.203 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1435 distance : 1.546 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1435 distance : 1.592 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1435 distance : 2.681 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1435 distance : 2.788 AU

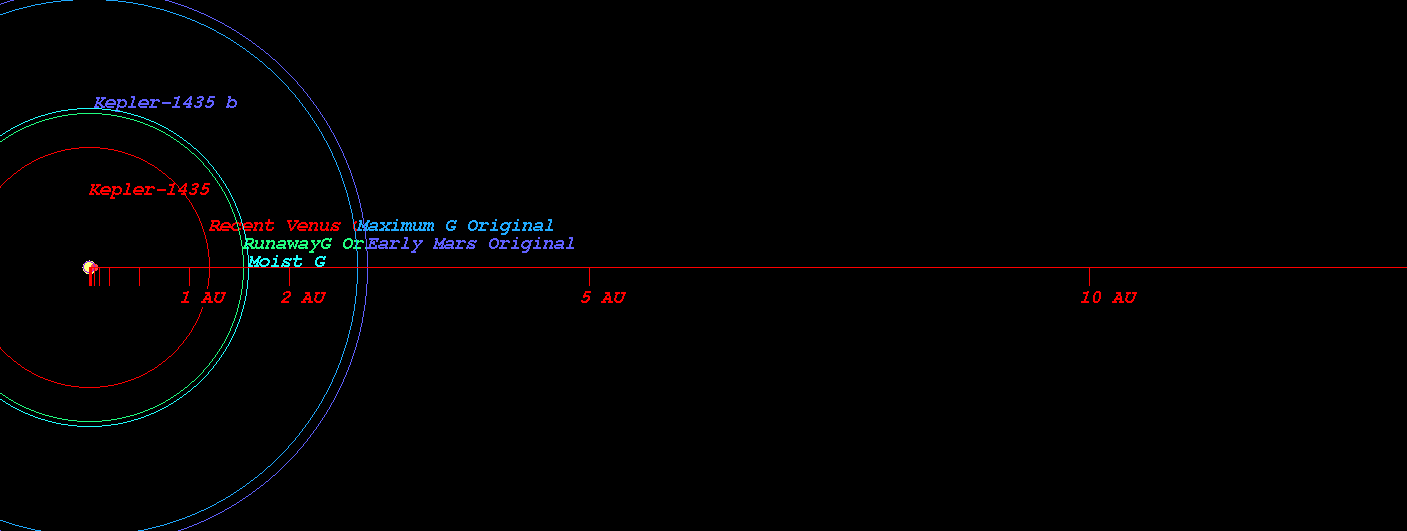

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1435)



    (Position in Stellar Map of star Kepler-1435 and its Exoplanet Kepler-1435 b)



    (Zoomed position in Stellar Map of star Kepler-1435 and its Exoplanet Kepler-1435 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1435*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
