Imaginary Picture of Kepler-1414 b

Display orbital revolution of Kepler-1414 b around the hoststar Kepler-1414
/
Exoplanet Name : Kepler-1414 b
Alternate Name : "2MASS J18594285+4225203 b, K03026.01, KIC 6929841 b, KOI-3026 b, KOI-3026.01, WISE J185942.85+422520.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1100 (Rjup) 1.2330 (Rearth)
Mass (Mjup / Me): 0.0065 (Mjup) 2.0811 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0420 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0096
Orbital Period(Observed/Estimated) 3.52 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3689
Star Radiation at Atmospheric Boundary: 293997.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1039.3 (K)
Blackbody T 0.3(K) 976.0 (K)
Blackbody T 0.7(K) 789.7 (K)
Tidally Locked Blackbody T 0.1(K) 1235.9 (K)
Tidally Locked Blackbody T 0.3(K) 1160.6 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1414
Alternate Name : "2MASS J18594285+4225203, KIC 6929841, KOI-3026, WISE J185942.85+422520.3"
Star Distance(LY) : 1861.3
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 4.7 (GY)
Temperature : 5080 (K)
Spectral type : K2
UV portion[%]: 3.0
Visible portion[%]: 36.6
IR portion[%]: 60.4
Metalicity : -0.0
Absolute Magnitude: 4.6
Apparent Magnitude: 13.4
Right Ascension(RA) 284.9286
Declination (DEC) 42.4223
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1414+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1414%20b/
Kepler-1414 b
Kepler-1414 b

  • Kepler-1414 b is an exoplanet orbiting the star Kepler-1414, located about 1861.3 light-years (570.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1414 has apparent magnitude of 13.4, with absolute magnitude of 4.6.
  • It is 0.8 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5080 with its spectral types of K2
  • In this planetary system, the extrasolar planet Kepler-1414 b orbits around the star Kepler-1414 every 3.5 days with its orbital distance of 0.04 AU ( 6284079.4 km)

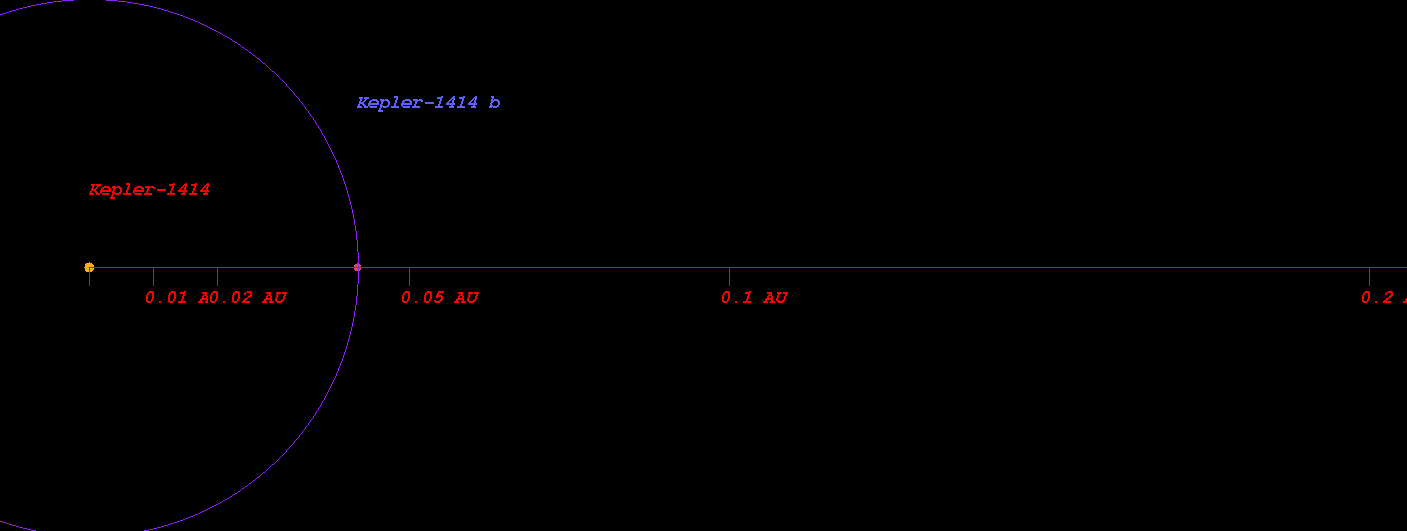

  • (Projected orbit of Kepler-1414 b around its host star Kepler-1414)


  • The Star Kepler-1414 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.446 AU ( 66656707.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.616 AU ( 92136989.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.938 AU ( 140396381.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.381 AU ( 206599426.3 km)
  • Radiation at Planetary Boundary of Kepler-1414 b : 293997.61 W/m2

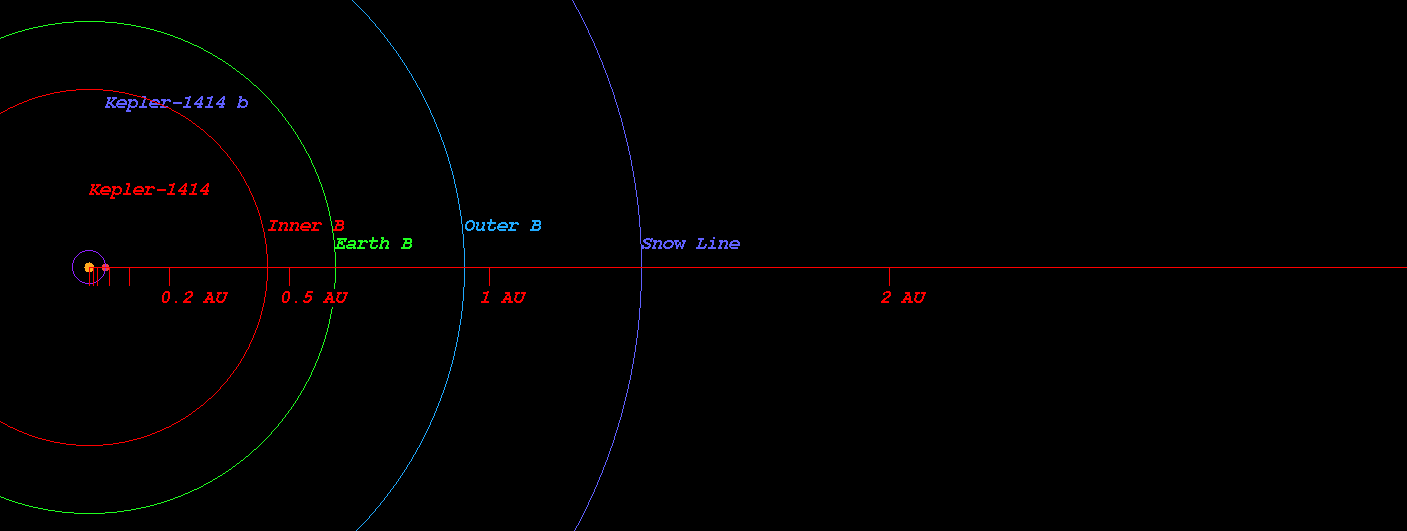

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1414)



  • Kopparapu Recent Venus for Star Kepler-1414 distance : 0.480 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1414 distance : 0.608 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1414 distance : 0.587 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1414 distance : 0.644 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1414 distance : 1.098 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1414 distance : 1.159 AU

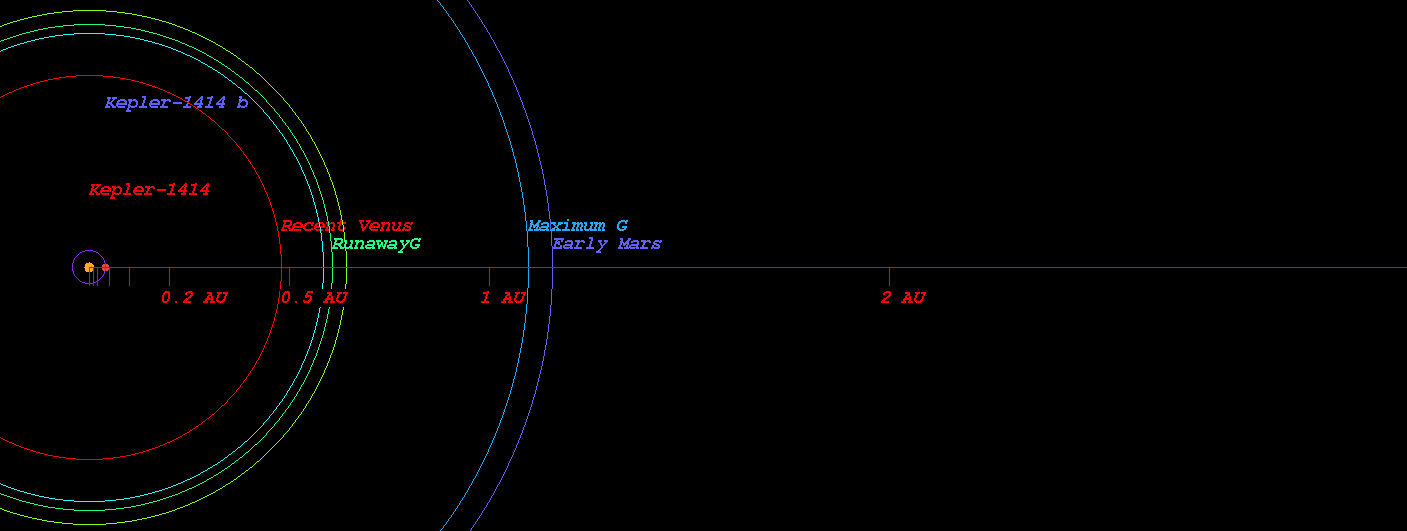

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1414)



  • Original Kopparapu Recent Venus for Star Kepler-1414 distance : 0.475 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1414 distance : 0.626 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1414 distance : 0.629 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1414 distance : 1.117 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1414 distance : 1.162 AU

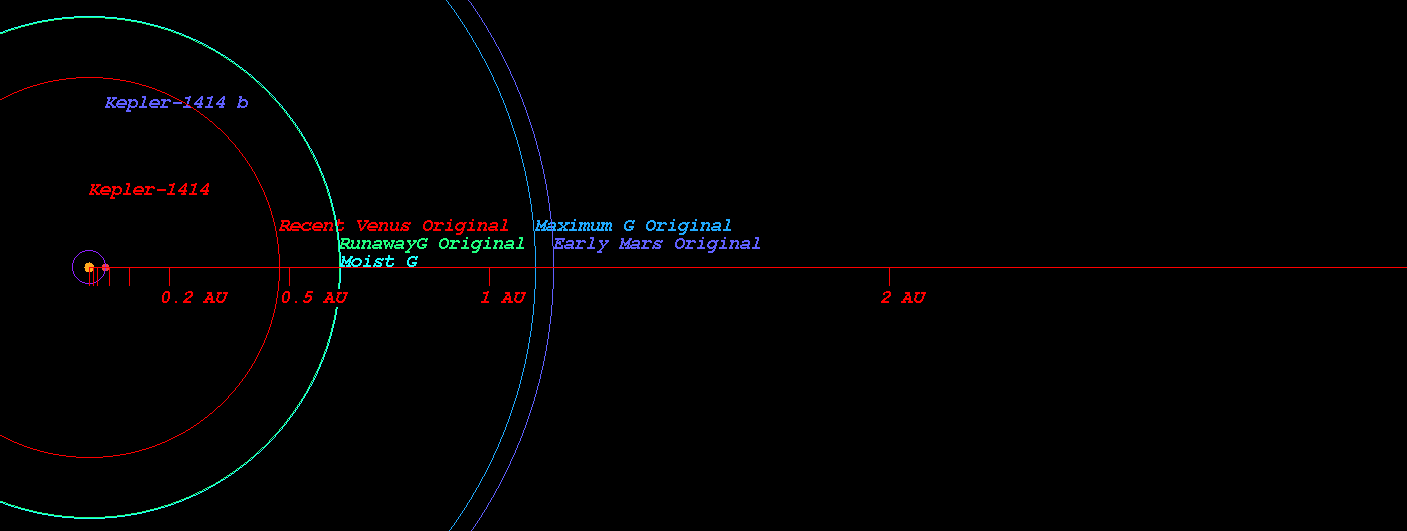

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1414)

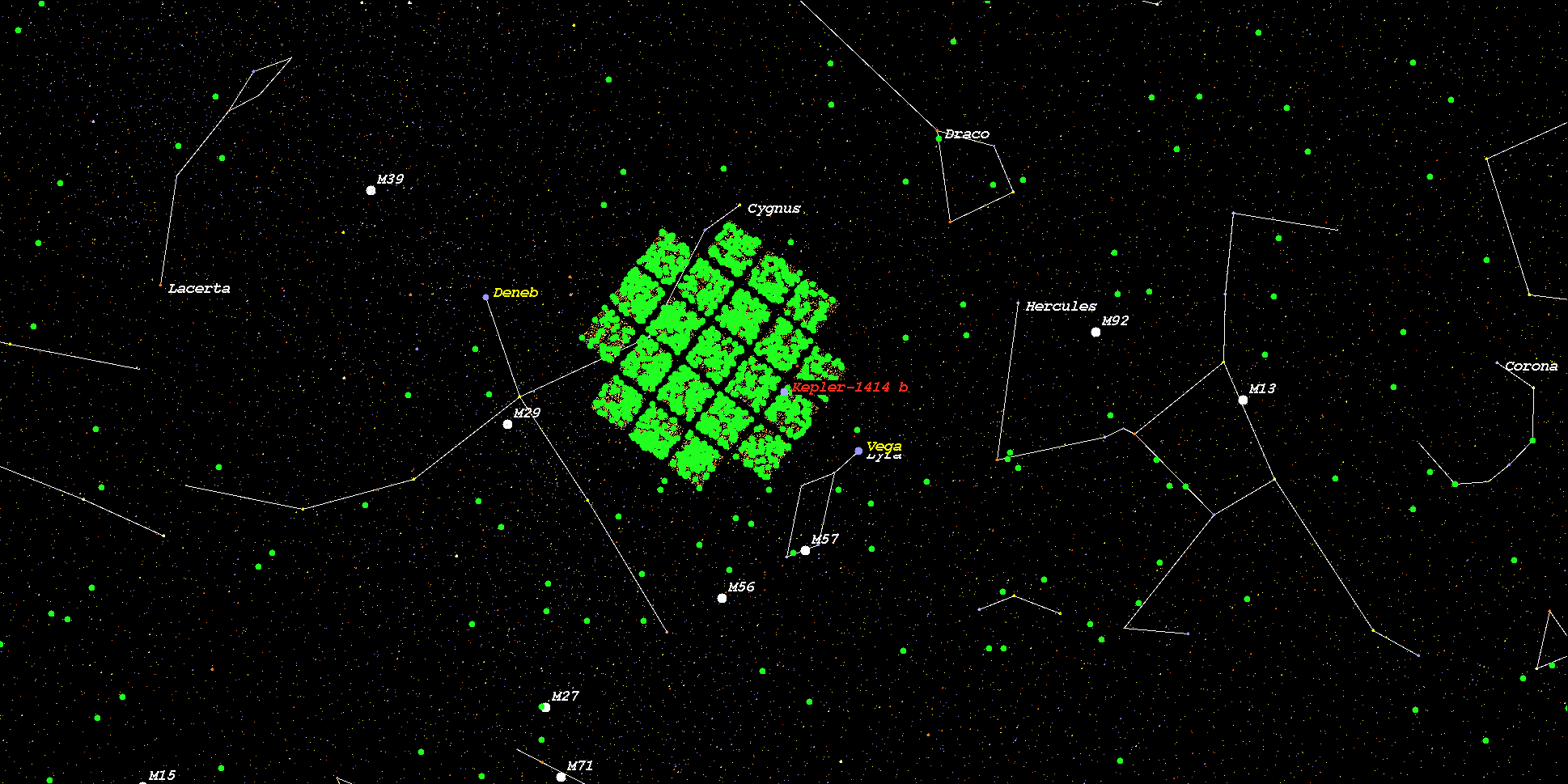

    (Position in Stellar Map of star Kepler-1414 and its Exoplanet Kepler-1414 b)



    (Zoomed position in Stellar Map of star Kepler-1414 and its Exoplanet Kepler-1414 b (zoom level 3))

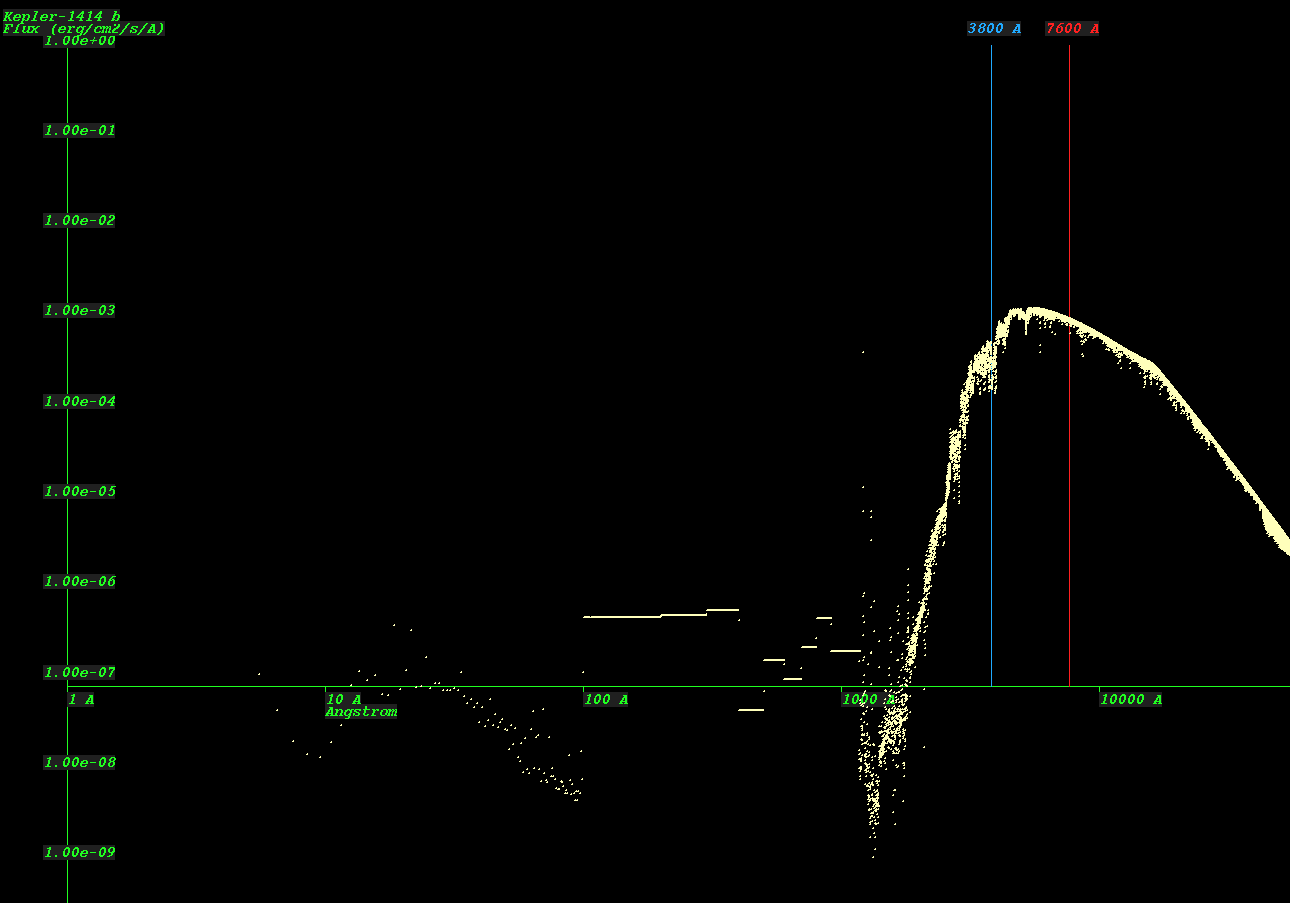

    (Synthetic Spectrum of star Kepler-1414*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
