Imaginary Picture of Kepler-1410 b

Display orbital revolution of Kepler-1410 b around the hoststar Kepler-1410
/
Exoplanet Name : Kepler-1410 b
Alternate Name : "2MASS J19220244+3844367 b, K03010.01, KIC 3642335 b, KOI-3010 b, KOI-3010.01, WISE J192202.44+384436.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.1590 (Rjup) 1.7822 (Rearth)
Mass (Mjup / Me): 0.0142 (Mjup) 4.5155 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2596 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1666
Orbital Period(Observed/Estimated) 60.87 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.4216
Star Radiation at Atmospheric Boundary: 1042.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 253.6 (K)
Blackbody T 0.3(K) 238.2 (K)
Blackbody T 0.7(K) 192.7 (K)
Tidally Locked Blackbody T 0.1(K) 301.6 (K)
Tidally Locked Blackbody T 0.3(K) 283.2 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Habitable
Star Name : Kepler-1410
Alternate Name : "2MASS J19220244+3844367, KIC 3642335, KOI-3010, WISE J192202.44+384436.8"
Star Distance(LY) : 865.9
Stellar Radius(Rsun) : 0.5 (Rsun Measured)
Stellar Mass(Msun) : 0.6 (Msun Measured) 0.6 (Msun Estimated)
Star Age : 4.1 (GY)
Temperature : 3808 (K)
Spectral type : K7
UV portion[%]: 0.8
Visible portion[%]: 25.2
IR portion[%]: 74.0
Metalicity : 0.0
Absolute Magnitude: 6.5
Apparent Magnitude: 13.6
Right Ascension(RA) 290.5102
Declination (DEC) 38.7435
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1410+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1410%20b/
Kepler-1410 b
Kepler-1410 b

  • Kepler-1410 b is an exoplanet orbiting the star Kepler-1410, located about 865.9 light-years (265.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1410 has apparent magnitude of 13.6, with absolute magnitude of 6.5.
  • It is 0.6 times more massive and 0.5 times bigger compared with our Sun. The surface temperature is 3808 with its spectral types of K7
  • In this planetary system, the extrasolar planet Kepler-1410 b orbits around the star Kepler-1410 every 60.9 days with its orbital distance of 0.26 AU ( 38835546.3 km)
  • (Projected orbit of Kepler-1410 b around its host star Kepler-1410)


  • The Star Kepler-1410 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.164 AU ( 24531409.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.227 AU ( 33908818.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.345 AU ( 51669534.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.508 AU ( 76033984.1 km)
  • Radiation at Planetary Boundary of Kepler-1410 b : 1042.62 W/m2

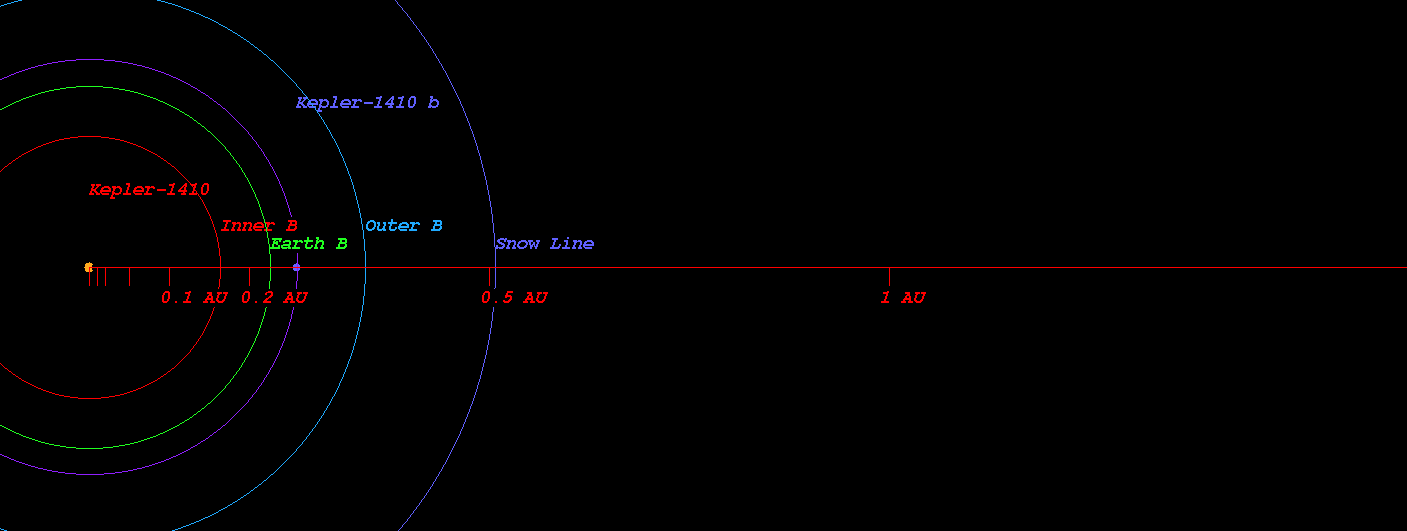

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1410)



  • Kopparapu Recent Venus for Star Kepler-1410 distance : 0.184 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1410 distance : 0.233 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1410 distance : 0.225 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1410 distance : 0.248 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1410 distance : 0.447 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1410 distance : 0.472 AU

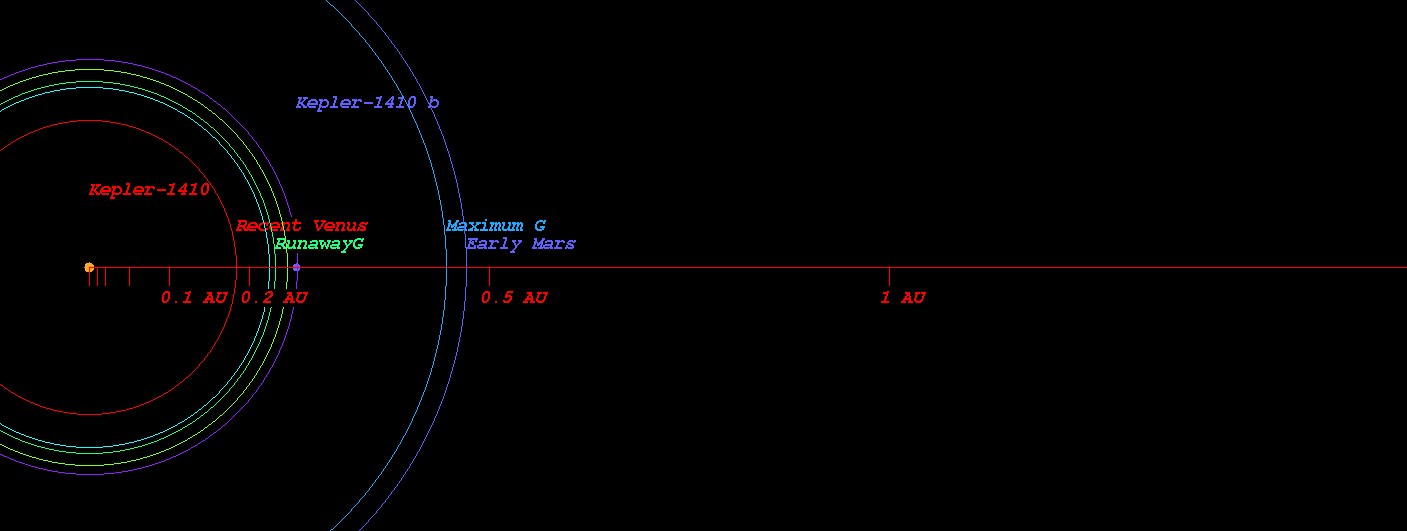

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1410)



  • Original Kopparapu Recent Venus for Star Kepler-1410 distance : 0.182 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1410 distance : 0.241 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1410 distance : 0.241 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1410 distance : 0.454 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1410 distance : 0.473 AU

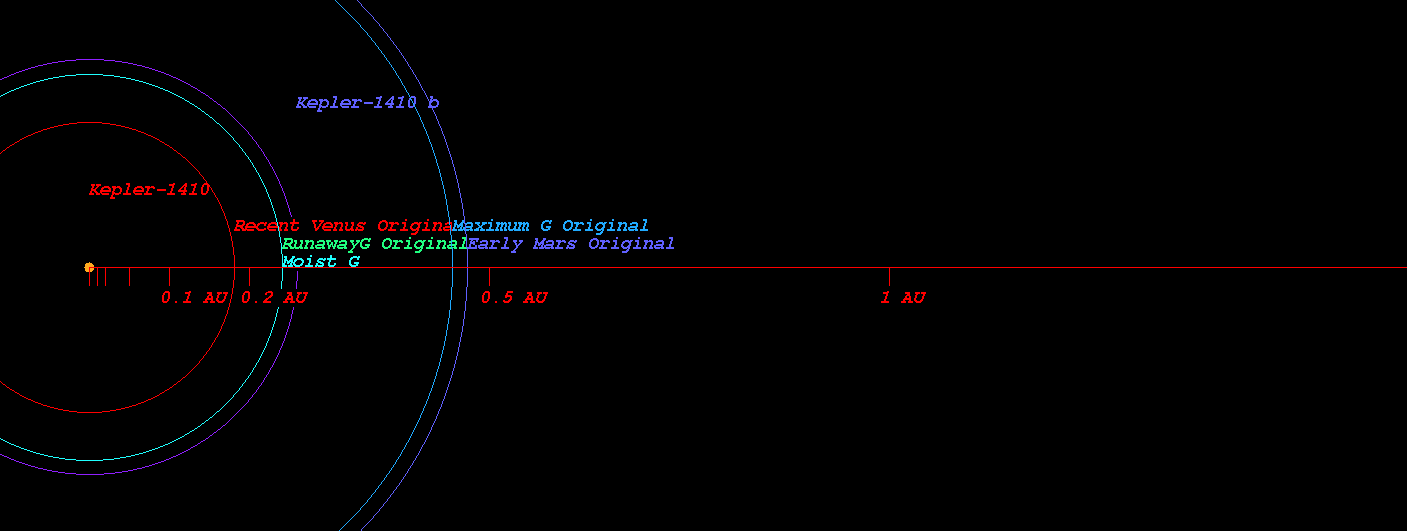

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1410)

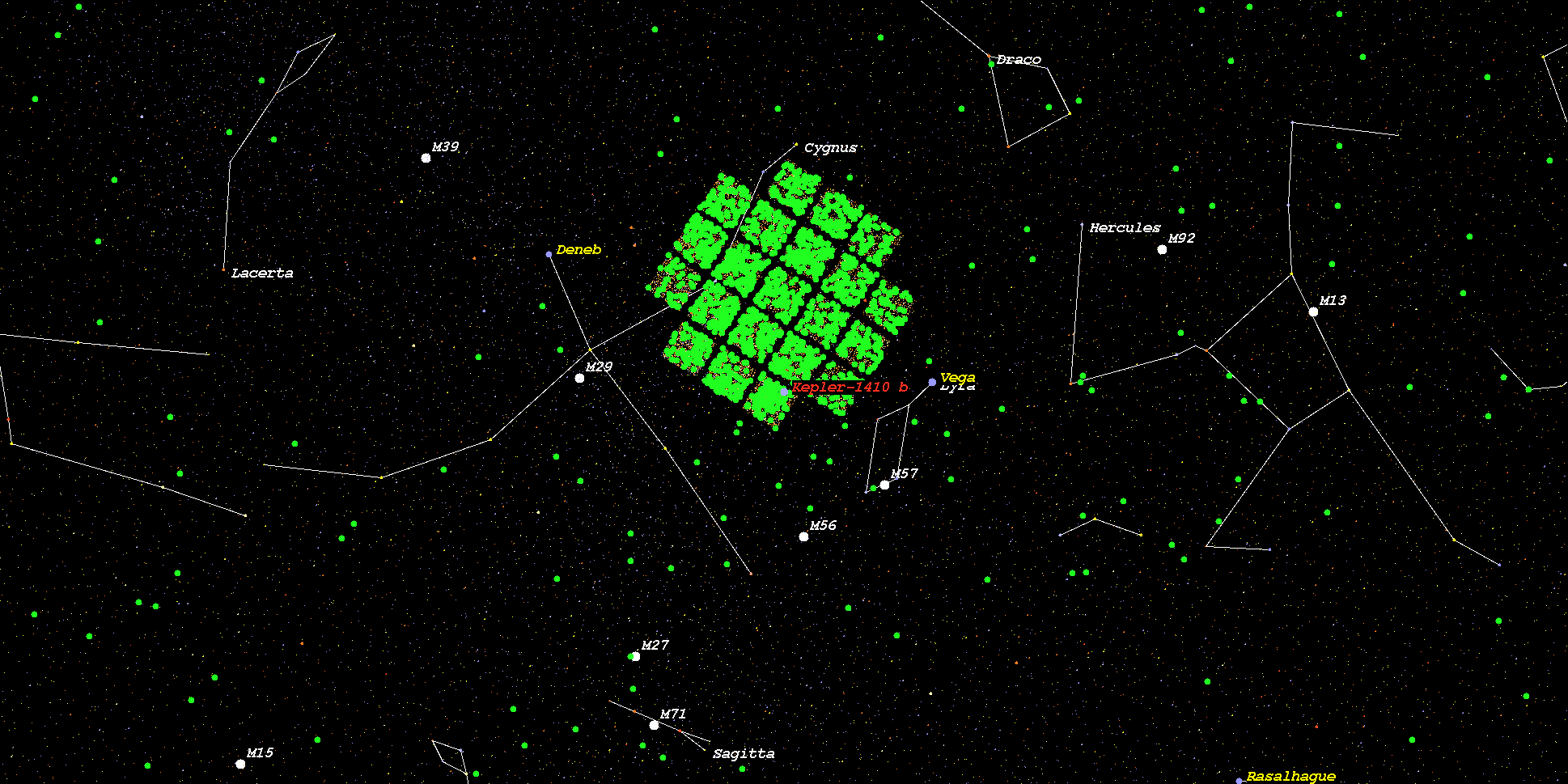

    (Position in Stellar Map of star Kepler-1410 and its Exoplanet Kepler-1410 b)



    (Zoomed position in Stellar Map of star Kepler-1410 and its Exoplanet Kepler-1410 b (zoom level 3))

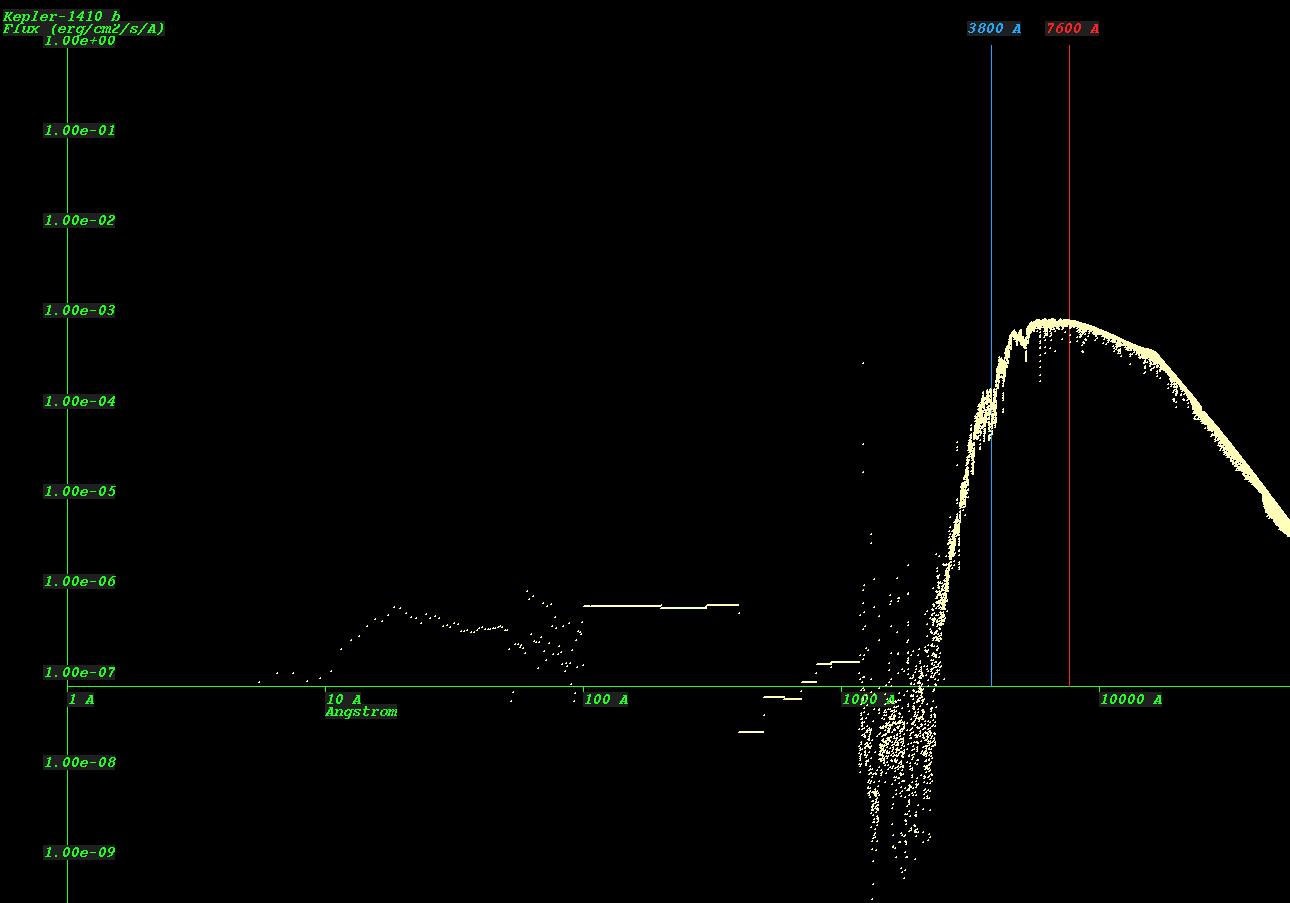

    (Synthetic Spectrum of star Kepler-1410*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
