Imaginary Picture of Kepler-1401 b

Display orbital revolution of Kepler-1401 b around the hoststar Kepler-1401
/
Exoplanet Name : Kepler-1401 b
Alternate Name : "2MASS J19095185+4045304 b, K02990.01, KIC 5520547 b, KOI-2990 b, KOI-2990.01, WISE J190951.84+404530.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1500 (Rjup) 1.6813 (Rearth)
Mass (Mjup / Me): 0.0135 (Mjup) 4.2774 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1002 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0307
Orbital Period(Observed/Estimated) 11.20 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5131
Star Radiation at Atmospheric Boundary: 130898.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 848.9 (K)
Blackbody T 0.3(K) 797.2 (K)
Blackbody T 0.7(K) 645.1 (K)
Tidally Locked Blackbody T 0.1(K) 1009.6 (K)
Tidally Locked Blackbody T 0.3(K) 948.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1401
Alternate Name : "2MASS J19095185+4045304, KIC 5520547, KOI-2990, WISE J190951.84+404530.3"
Star Distance(LY) : 2745.6
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.5 (GY)
Temperature : 6038 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 4.2
Apparent Magnitude: 13.9
Right Ascension(RA) 287.4660
Declination (DEC) 40.7585
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1401+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1401%20b/
Kepler-1401 b
Kepler-1401 b

  • Kepler-1401 b is an exoplanet orbiting the star Kepler-1401, located about 2745.6 light-years (841.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1401 has apparent magnitude of 13.9, with absolute magnitude of 4.2.
  • It is 1.1 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 6038 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-1401 b orbits around the star Kepler-1401 every 11.2 days with its orbital distance of 0.10 AU ( 14990716.1 km)

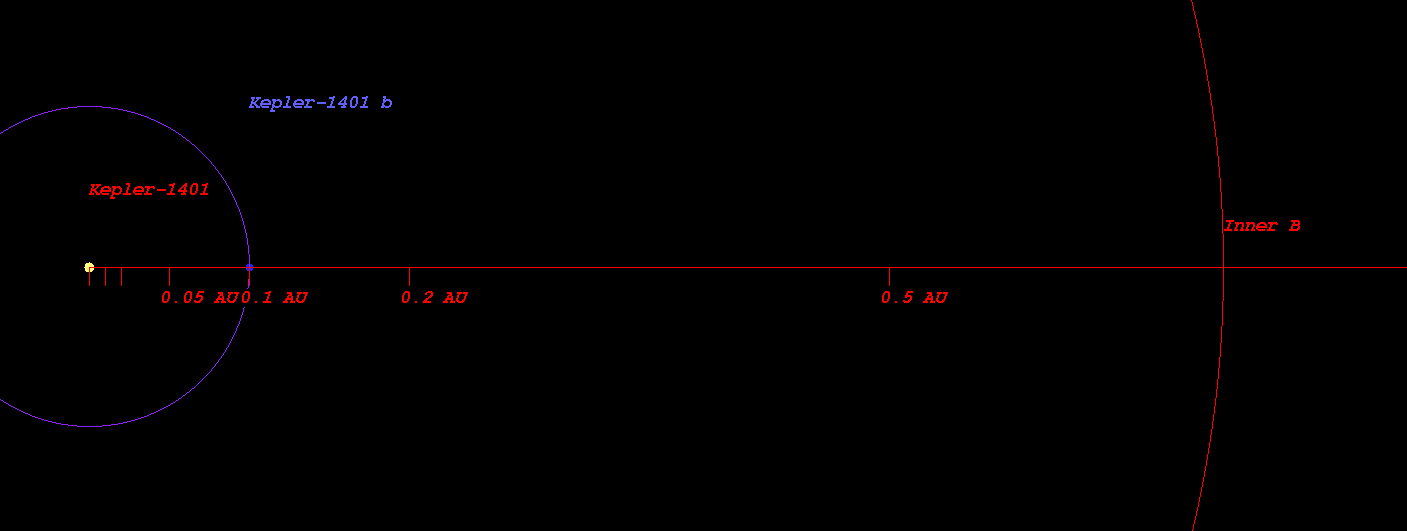

  • (Projected orbit of Kepler-1401 b around its host star Kepler-1401)


  • The Star Kepler-1401 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.709 AU ( 106101290.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.980 AU ( 146659711.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.494 AU ( 223476944.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.198 AU ( 328856113.1 km)
  • Radiation at Planetary Boundary of Kepler-1401 b : 130898.90 W/m2

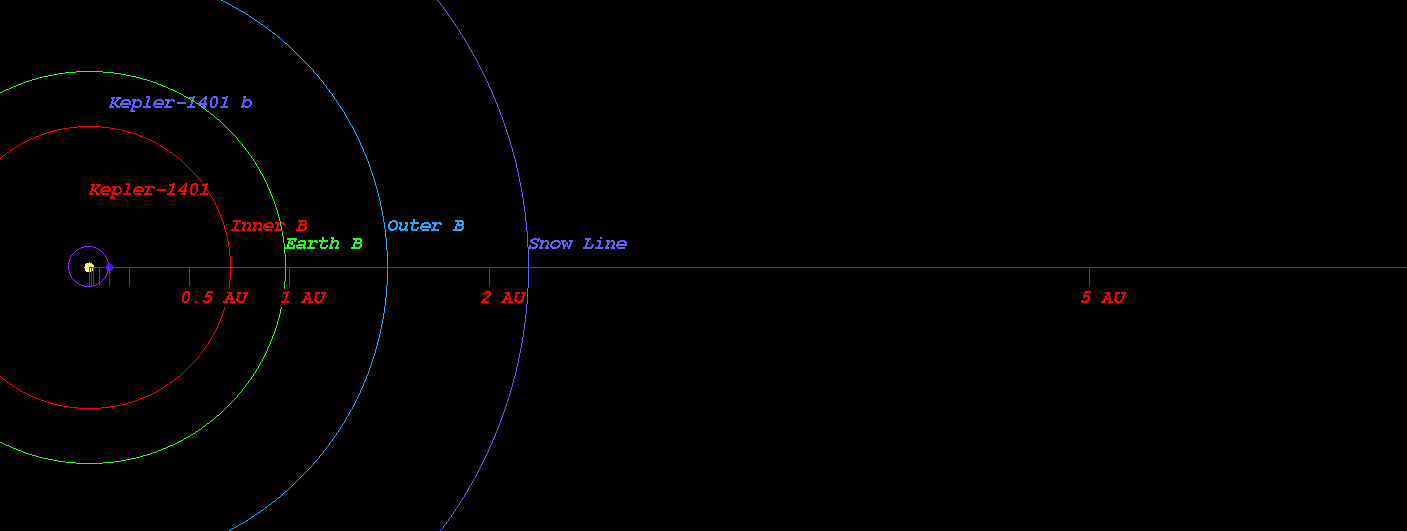

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1401)



  • Kopparapu Recent Venus for Star Kepler-1401 distance : 0.724 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1401 distance : 0.916 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1401 distance : 0.885 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1401 distance : 0.970 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1401 distance : 1.608 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1401 distance : 1.696 AU

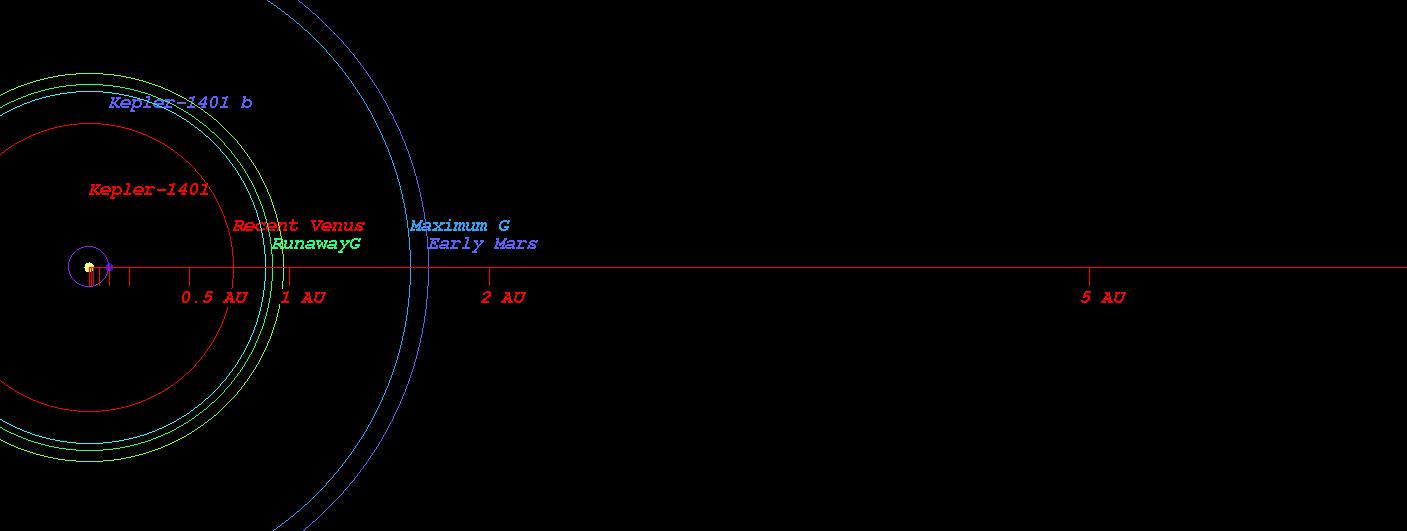

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1401)



  • Original Kopparapu Recent Venus for Star Kepler-1401 distance : 0.728 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1401 distance : 0.941 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1401 distance : 0.964 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1401 distance : 1.637 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1401 distance : 1.702 AU

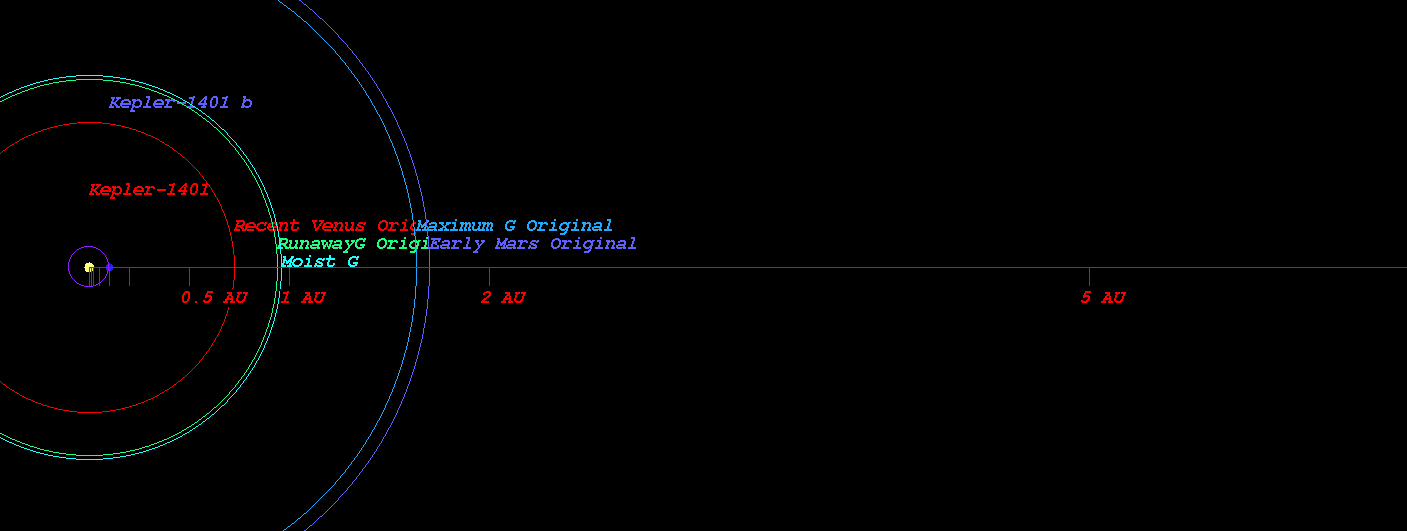

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1401)

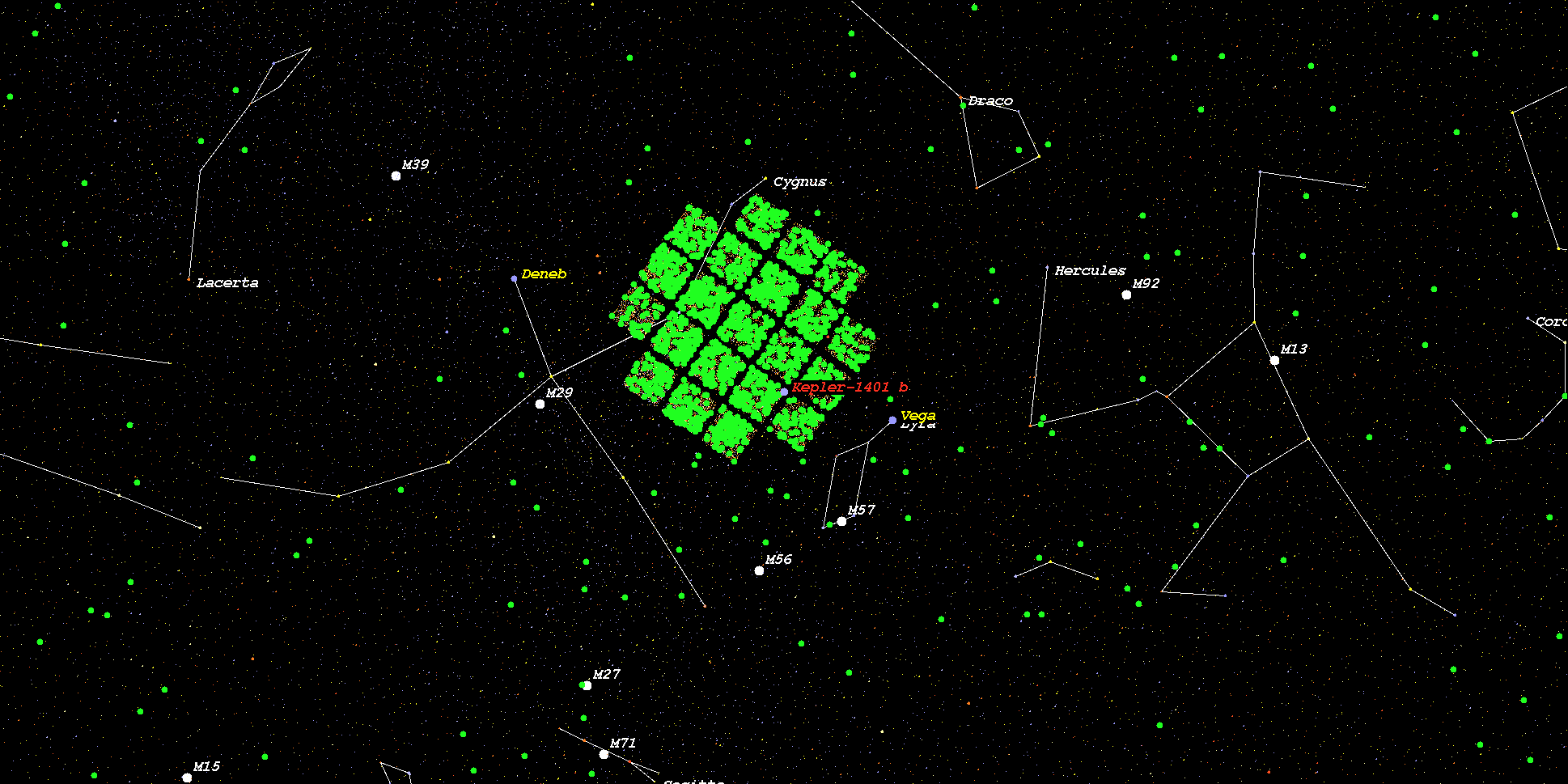

    (Position in Stellar Map of star Kepler-1401 and its Exoplanet Kepler-1401 b)



    (Zoomed position in Stellar Map of star Kepler-1401 and its Exoplanet Kepler-1401 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1401*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
