Imaginary Picture of Kepler-1395 b

Display orbital revolution of Kepler-1395 b around the hoststar Kepler-1395
/
Exoplanet Name : Kepler-1395 b
Alternate Name : "2MASS J19292101+4739511 b, K02961.01, KIC 10471515 b, KOI-2961 b, KOI-2961.01, WISE J192921.00+473951.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.0710 (Rjup) 0.7958 (Rearth)
Mass (Mjup / Me): 0.0014 (Mjup) 0.4351 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0501 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0104
Orbital Period(Observed/Estimated) 3.78 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6870
Star Radiation at Atmospheric Boundary: 971100.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1401.1 (K)
Blackbody T 0.3(K) 1315.7 (K)
Blackbody T 0.7(K) 1064.6 (K)
Tidally Locked Blackbody T 0.1(K) 1666.2 (K)
Tidally Locked Blackbody T 0.3(K) 1564.7 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1395
Alternate Name : "2MASS J19292101+4739511, KIC 10471515, KOI-2961, WISE J192921.00+473951.0"
Star Distance(LY) : 1607.4
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 1.2 (Msun Measured) 1.2 (Msun Estimated)
Star Age : 2.9 (GY)
Temperature : 6069 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 3.1
Apparent Magnitude: 11.6
Right Ascension(RA) 292.3376
Declination (DEC) 47.6642
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1395+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1395%20b/
Kepler-1395 b
Kepler-1395 b

  • Kepler-1395 b is an exoplanet orbiting the star Kepler-1395, located about 1607.4 light-years (492.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1395 has apparent magnitude of 11.6, with absolute magnitude of 3.1.
  • It is 1.2 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 6069 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-1395 b orbits around the star Kepler-1395 every 3.8 days with its orbital distance of 0.05 AU ( 7492303.3 km)

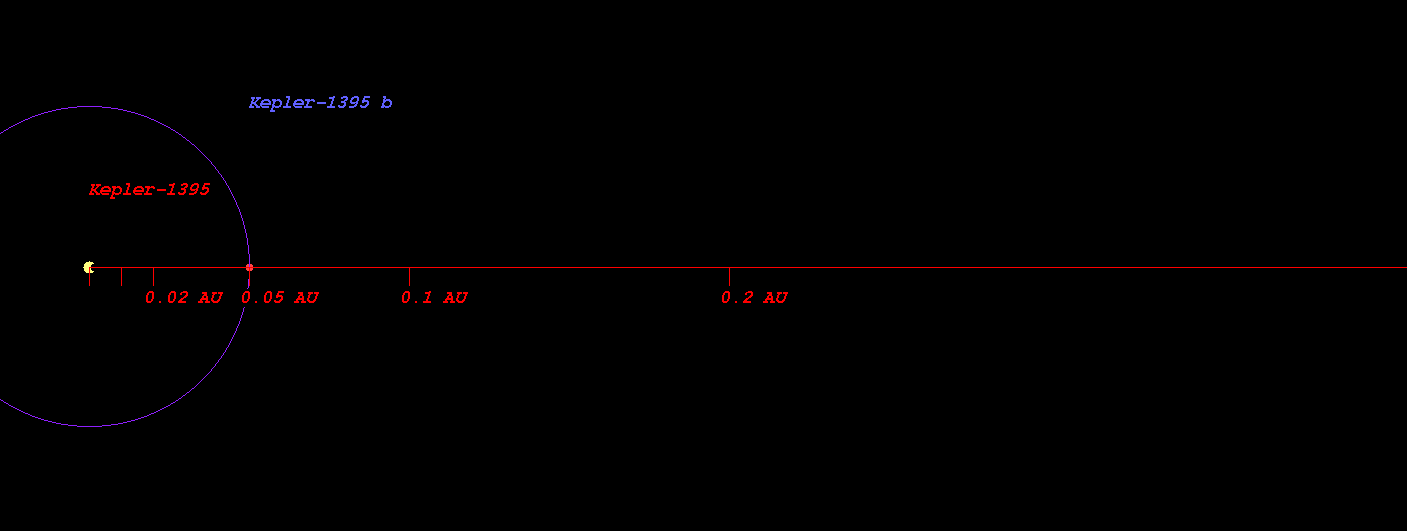

  • (Projected orbit of Kepler-1395 b around its host star Kepler-1395)


  • The Star Kepler-1395 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.966 AU ( 144436766.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.335 AU ( 199649357.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.034 AU ( 304221438.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.993 AU ( 447675173.5 km)
  • Radiation at Planetary Boundary of Kepler-1395 b : 971100.59 W/m2

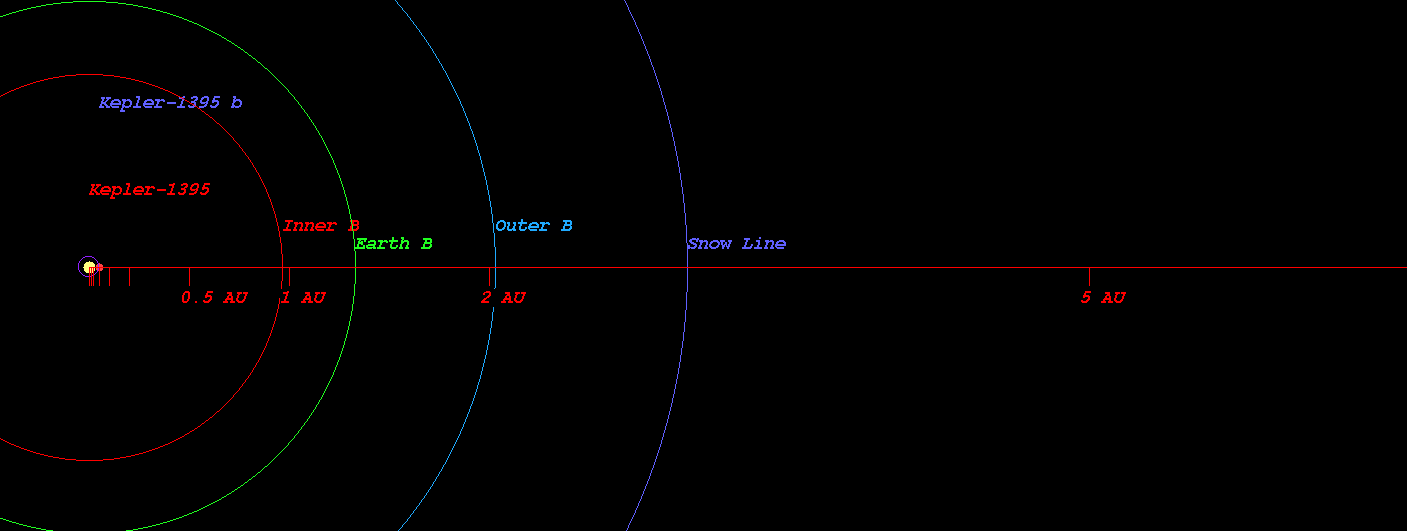

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1395)



  • Kopparapu Recent Venus for Star Kepler-1395 distance : 0.983 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1395 distance : 1.245 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1395 distance : 1.202 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1395 distance : 1.318 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1395 distance : 2.183 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1395 distance : 2.303 AU

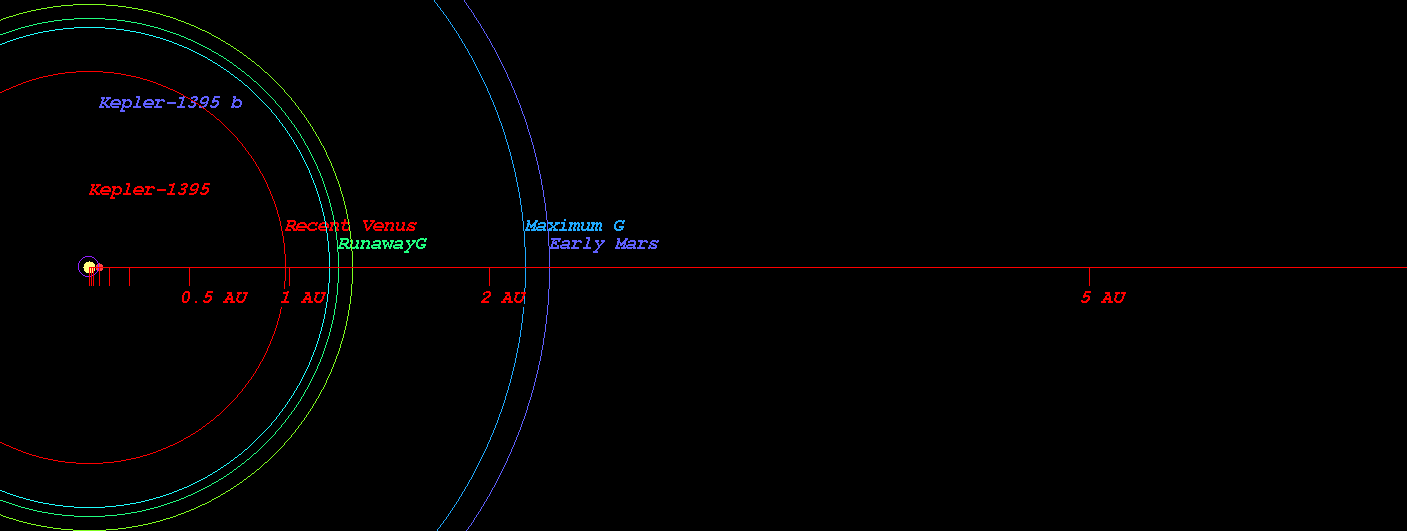

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1395)



  • Original Kopparapu Recent Venus for Star Kepler-1395 distance : 0.990 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1395 distance : 1.278 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1395 distance : 1.310 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1395 distance : 2.222 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1395 distance : 2.311 AU

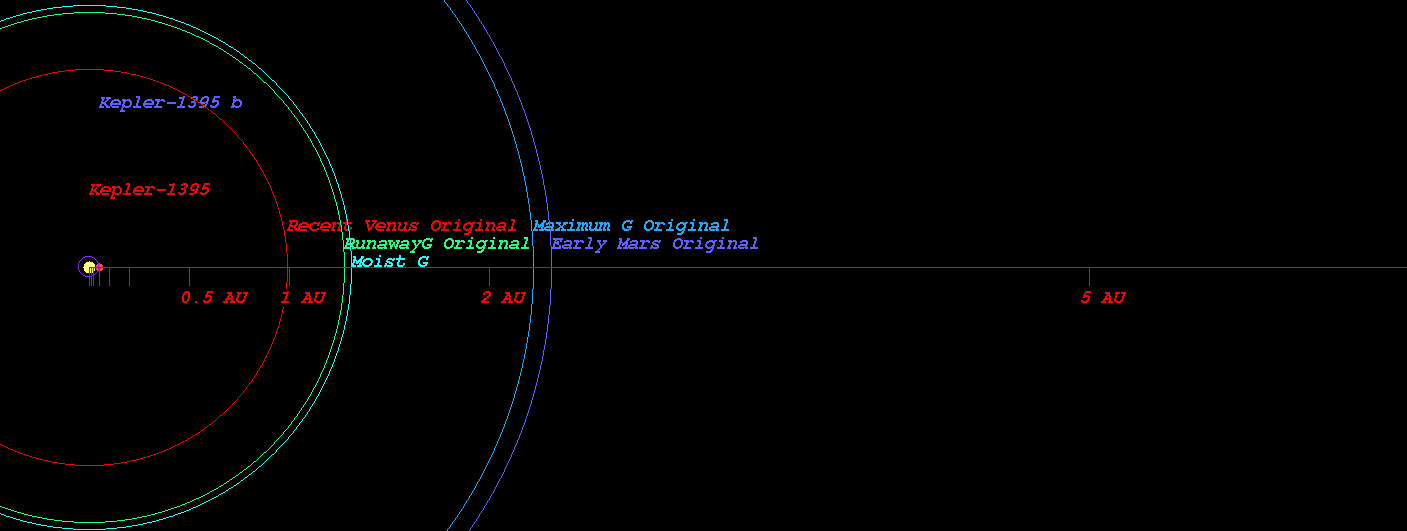

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1395)

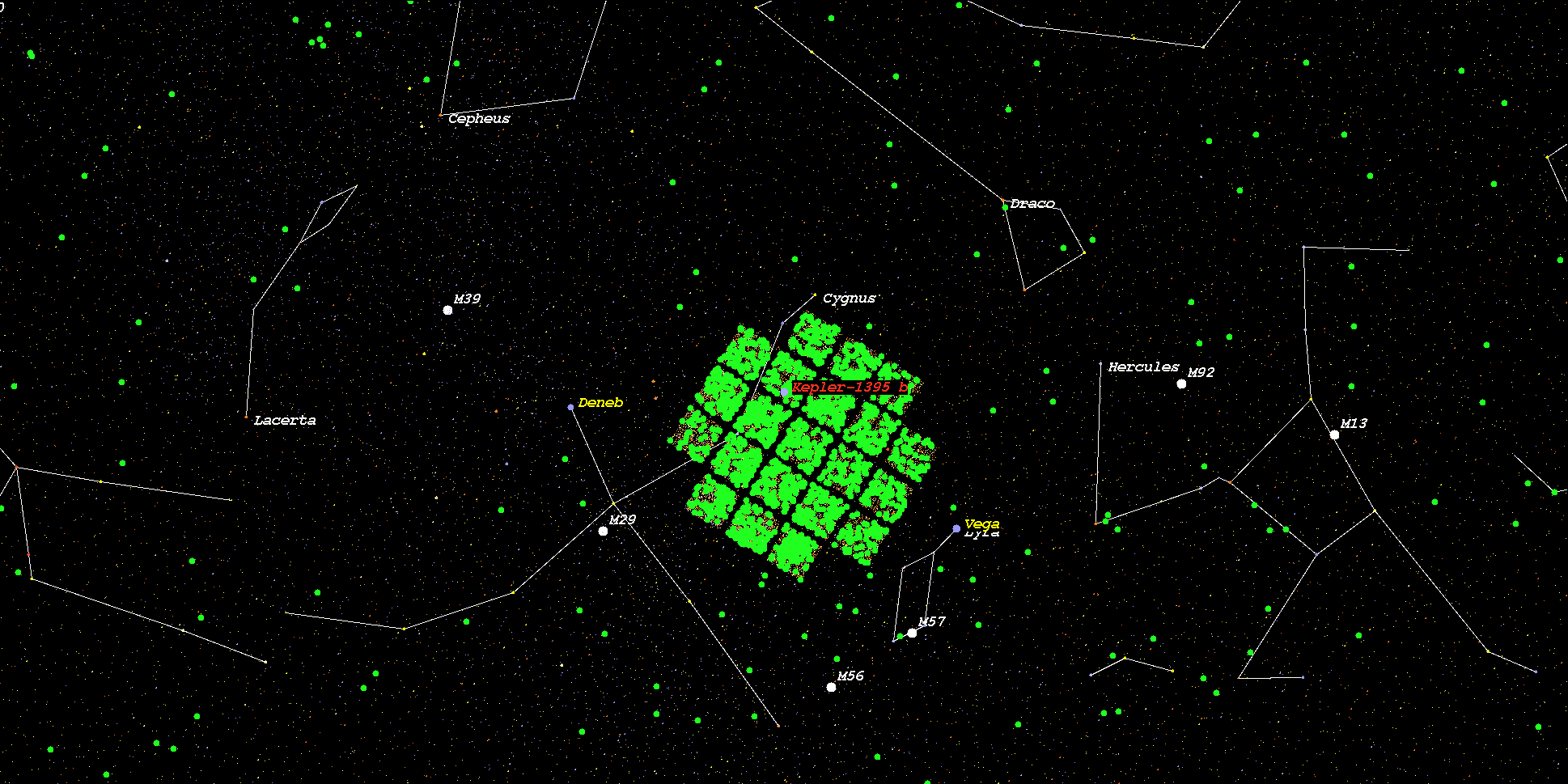

    (Position in Stellar Map of star Kepler-1395 and its Exoplanet Kepler-1395 b)



    (Zoomed position in Stellar Map of star Kepler-1395 and its Exoplanet Kepler-1395 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1395*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
